Brand: Henxlco
Model: 066

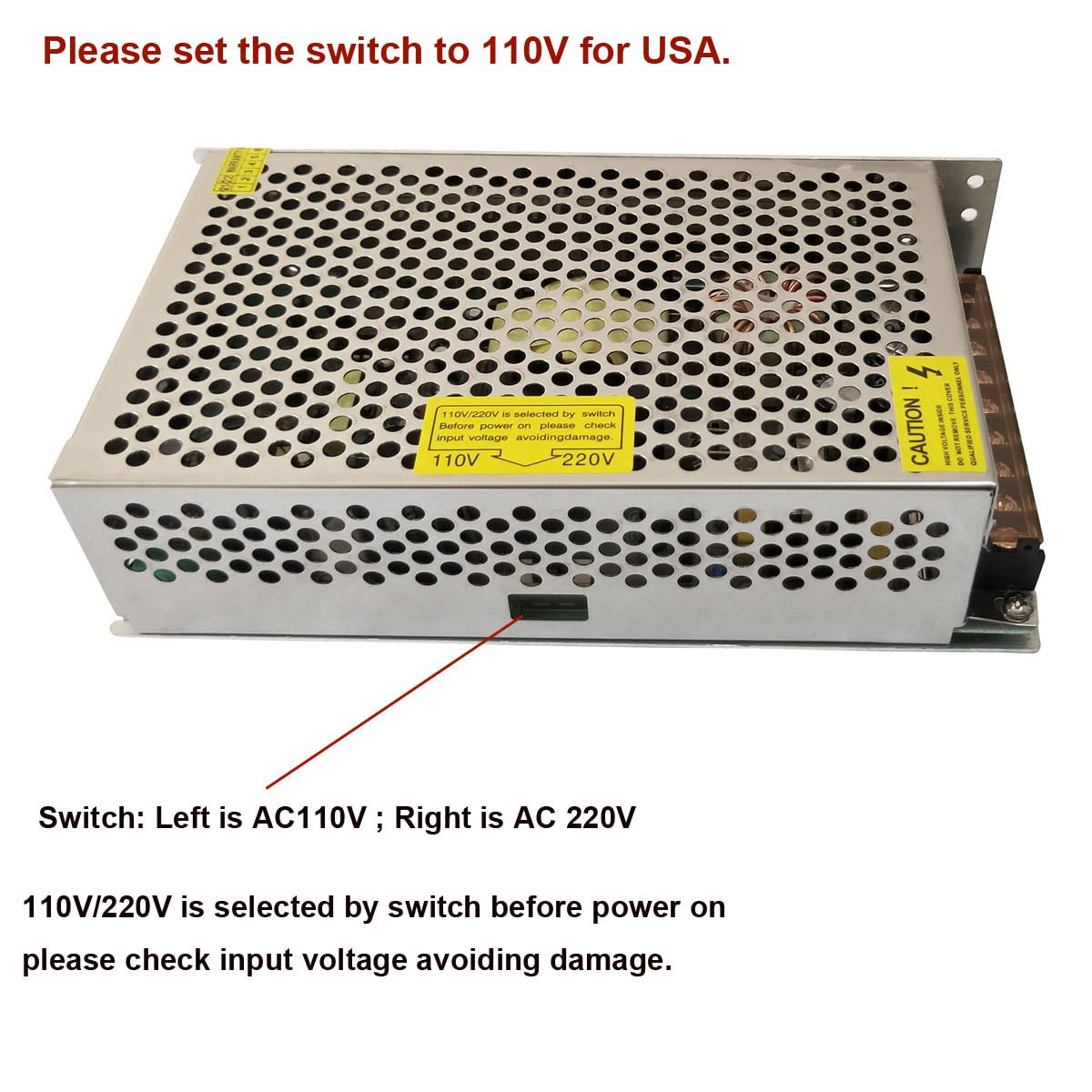

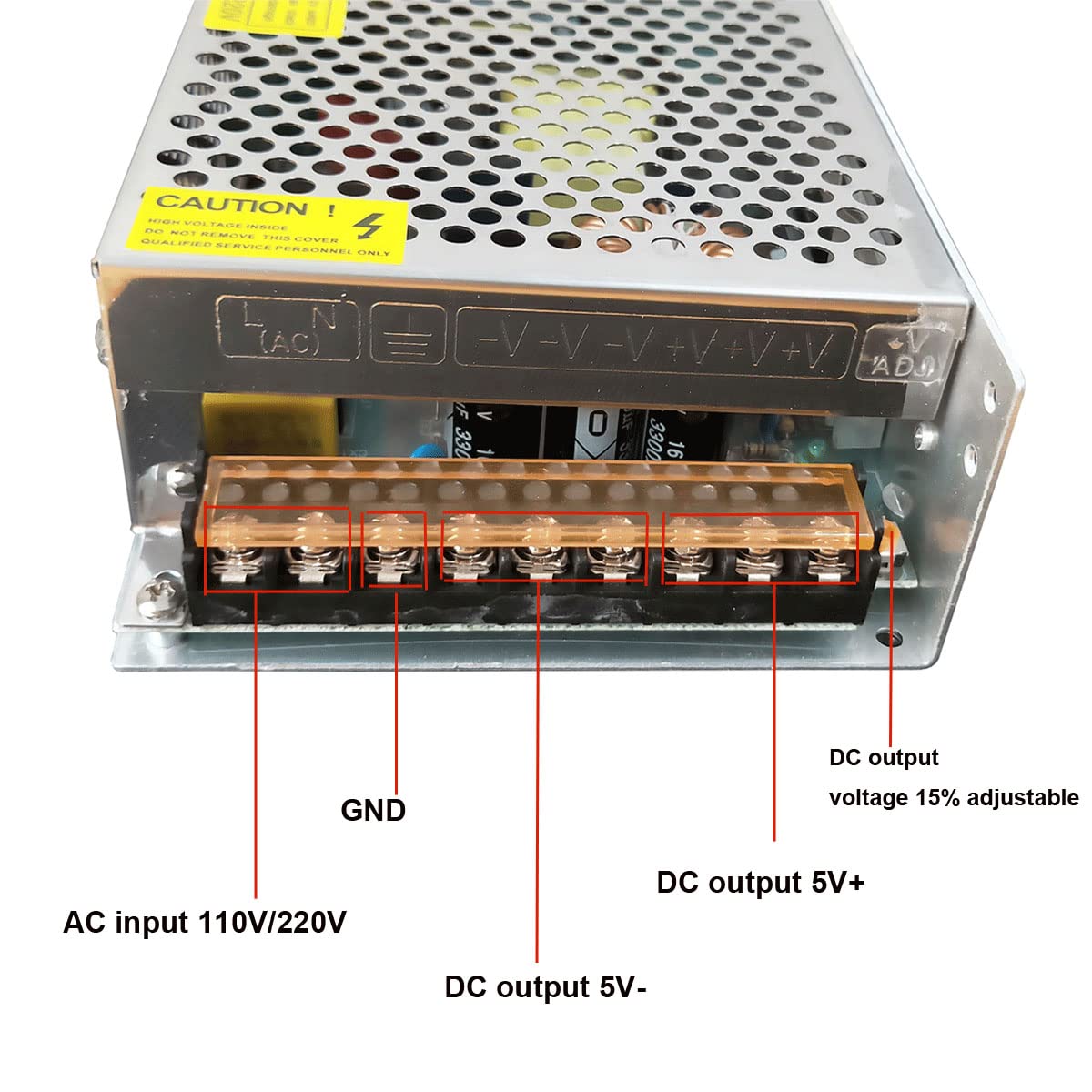

Package included： 1 x 5V 40A 200W Regulated Switching Power Supply (power cord is not included) Be sure to confirm the input and output voltage first: 1. You can choose the proper input voltage (110V/220V) by a black switch to avoid damaging. Left is: AC 110V, Right is AC 220V. Please set the switch to 110V for USA/CA. 2. The 5V 40A output voltage can be regulated by ±15%, which greatly expand its application range. There is a yellow botton on the right corner. Turn the yellow button clockwise, the output voltage could be fine tuning. 3. The max use of power should be no more than 80% of the full loads, otherwise,the power supply's spanlife will be shortened. We recommend you to use this 5V 40A 200W power supply to power devices less than 32A 160W. 4. This Unit "DOES NOT" comes with installation instruction, wiring cable, on/off switch, or screws. Professional installation of qualified electrician is highly recommended. 5. High Voltage inside, do not remove the cover. Dust the switcher out every 2 or 3 months if necessary. 6. Connection instruction: L/N: AC power input(L: Live wire,N: Negative wire) ; +V: DC power output“+”; -V: DC power output“-“ ; +V ADJ: Adjust the output voltage (15%) * Over Voltage Protection, Overload Protection，Over Current Protection, Over Temperature Protection， Short Circuit Protection Why does the LED power supply stop working？ Maybe the overcurrent protective switch (in the power supply) disconnect. Please unplug your AC cable, it's important! Then wait about 10 minutes. It will be auto recovered. Then reconnected it, it will work well.
• Dual input voltage: AC 110V/220V. Output: DC 5V 40A max, Output voltage is adjustable ±15%. IN-DOOR USE ONLY!
• Three sets of output Channel. With three independent output channels, it can power more devices. The maximum output of each channel can reach 40A 200W. Total output power of the three channels is 40A 200W.
• Works with device that draws less than 40A, such as DC 5V 1A~32A. The max use of power should be no more than 80% of the full loads 40A 200W.
• Over Voltage Protection, Overload Protection，Over Current Protection, Over Temperature Protection， Short Circuit Protection
• High quality Widely used in Industrial automation, Electronic equipment, LED display, LED Lighting, LED Strip, CCTV cameras Security System, Computer Project, Home appliance etc.
• Over Voltage Protection, Overload Protection，Over Current Protection, Over Temperature Protection， Short Circuit Protection Why does the LED power supply stop working？ Maybe the overcurrent protective switch (in the power supply) disconnect. Please unplug your AC cable, it's important! Then wait about 10 minutes. It will be auto recovered. Then reconnected it, it will work well.
Color: Silver
Power/Wattage: 5V 40A
Model: 066
Package included： 1 x 5V 40A 200W Regulated Switching Power Supply (power cord is not included) Be sure to confirm the input and output voltage first: 1. You can choose the proper input voltage (110V/220V) by a black switch to avoid damaging. Left is: AC 110V, Right is AC 220V. Please set the switch to 110V for USA/CA. 2. The 5V 40A output voltage can be regulated by ±15%, which greatly expand its application range. There is a yellow botton on the right corner. Turn the yellow button clockwise, the output voltage could be fine tuning. 3. The max use of power should be no more than 80% of the full loads, otherwise,the power supply's spanlife will be shortened. We recommend you to use this 5V 40A 200W power supply to power devices less than 32A 160W. 4. This Unit "DOES NOT" comes with installation instruction, wiring cable, on/off switch, or screws. Professional installation of qualified electrician is highly recommended. 5. High Voltage inside, do not remove the cover. Dust the switcher out every 2 or 3 months if necessary. 6. Connection instruction: L/N: AC power input(L: Live wire,N: Negative wire) ; +V: DC power output“+”; -V: DC power output“-“ ; +V ADJ: Adjust the output voltage (15%) * Over Voltage Protection, Overload Protection，Over Current Protection, Over Temperature Protection， Short Circuit Protection Why does the LED power supply stop working？ Maybe the overcurrent protective switch (in the power supply) disconnect. Please unplug your AC cable, it's important! Then wait about 10 minutes. It will be auto recovered. Then reconnected it, it will work well.
• Dual input voltage: AC 110V/220V. Output: DC 5V 40A max, Output voltage is adjustable ±15%. IN-DOOR USE ONLY!
• Three sets of output Channel. With three independent output channels, it can power more devices. The maximum output of each channel can reach 40A 200W. Total output power of the three channels is 40A 200W.
• Works with device that draws less than 40A, such as DC 5V 1A~32A. The max use of power should be no more than 80% of the full loads 40A 200W.
• Over Voltage Protection, Overload Protection，Over Current Protection, Over Temperature Protection， Short Circuit Protection
• High quality Widely used in Industrial automation, Electronic equipment, LED display, LED Lighting, LED Strip, CCTV cameras Security System, Computer Project, Home appliance etc.
• Over Voltage Protection, Overload Protection，Over Current Protection, Over Temperature Protection， Short Circuit Protection Why does the LED power supply stop working？ Maybe the overcurrent protective switch (in the power supply) disconnect. Please unplug your AC cable, it's important! Then wait about 10 minutes. It will be auto recovered. Then reconnected it, it will work well.
Color: Silver
Power/Wattage: 5V 40A
