Brand: Heluok

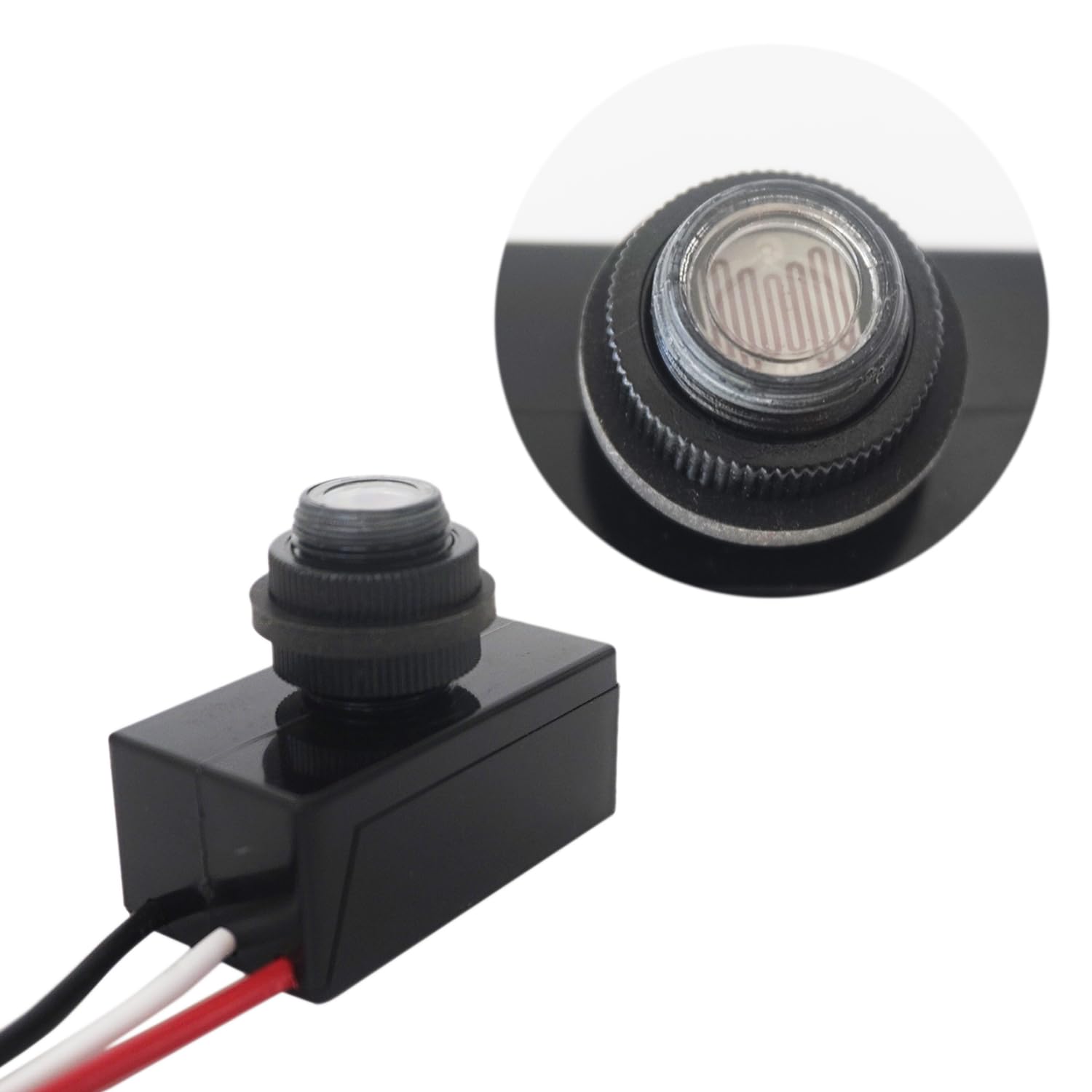

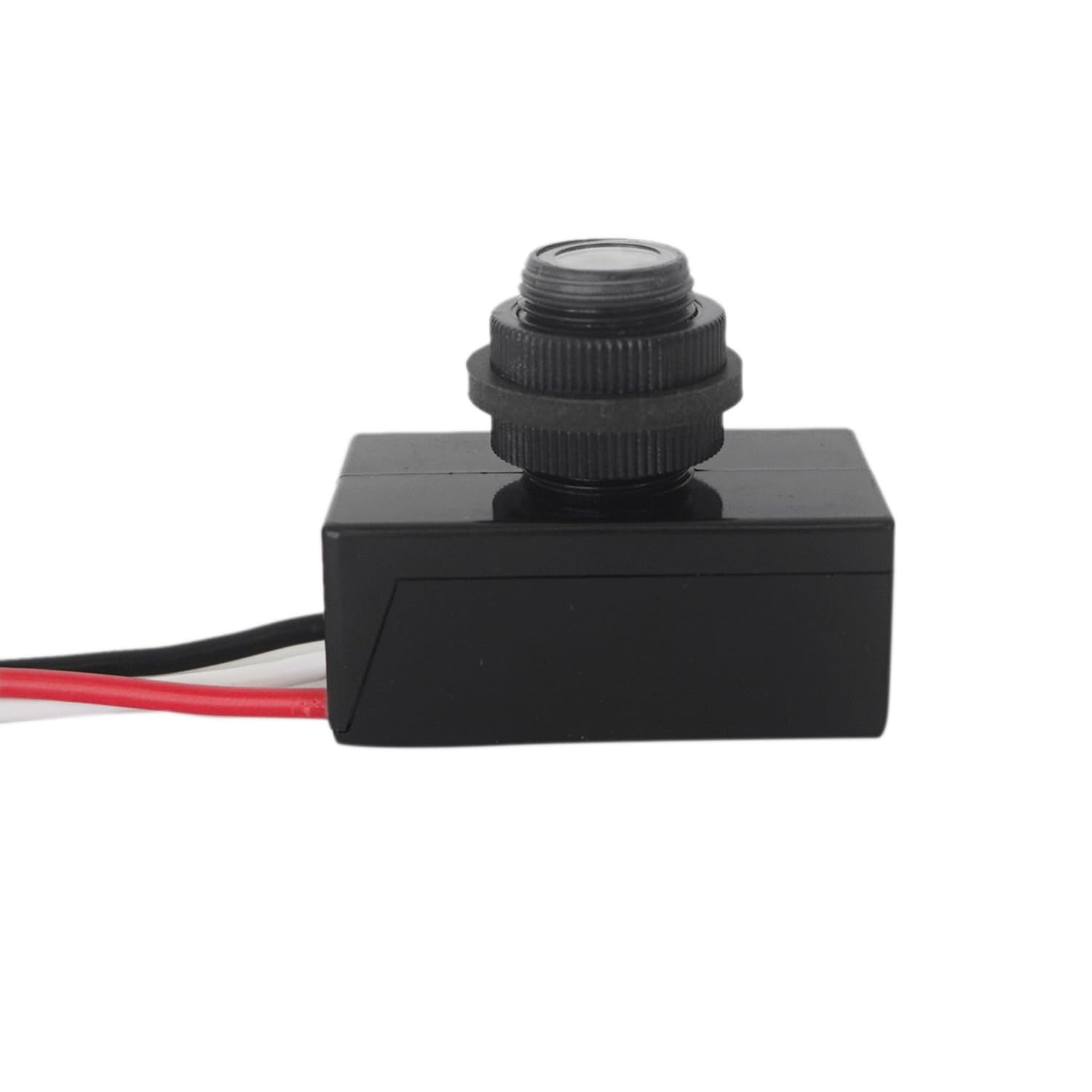

<B>A convenient and versatile option for automating outdoor lighting</B><Br/><Br/> The DC 12v single voltage light control switch is a handy device for automating outdoor lights, turns lights on at dusk and off at dawn automatically.<Br/><Br/> Compatible with most types of light bulbs, such as LED lights, post lamps, outdoor lighting, walkway lighting, pole lanterns, coach and entry way porch lights.<Br/><Br/> It could be a good choice if you're looking for a way to make your outdoor lights more efficient and set you free.<Br/><Br/><Br/><Br/> <B>Technical parameters:</B><Br/><Br/> Voltage range: 10-20V DC<Br/><Br/> Rated voltage: 12VDC<Br/><Br/> Rated loading: 8A, TUNGSTEN; 4A, E-BALLAST<Br/><Br/> Maximum load: 10A, TUNGSTEN; 5A, E-BALLAST<Br/><Br/> Power consumption: 0.6W<Br/><Br/> On/Off level: 5-15LUX ON ; 20-40LUX OFF<Br/><Br/> Anti-interference delay: on/3s; off/5s(on/off)<Br/><Br/> Ambient temp: (-40?) (+70?)<Br/><Br/> Related humidity: 99%RH<Br/><Br/> Probe rain level: IP66<Br/><Br/> Type: three-wire system<Br/><Br/> Base dimensions(LxWxH): 52.5x28.5x22.4 mm<Br/><Br/> Probe size: 15(dia.)x21(H)mm<Br/><Br/> Leads length: around 150mm(AWG#18)<Br/><Br/> Application: street lighting, garden lighting, LED lighting<Br/><Br/> Longlife: use 5000 times<Br/><Br/> Net weight:1.35oz/38.4g<Br/><Br/> Package included:<Br/><Br/> 2 x dc dusk to dawn sensor<Br/><Br/> <B>Notes:</B><Br/><Br/> When you install, please do not point the sensor at the light.<Br/><Br/> Please follow the wiring diagram on the manual to ensure connecting the positive and negative poles correctly.<Br/><Br/> Check the size if suitable for your before purchasing.<Br/><Br/> It is a singele valtage switch for DC 12v project.<Br/><Br/>

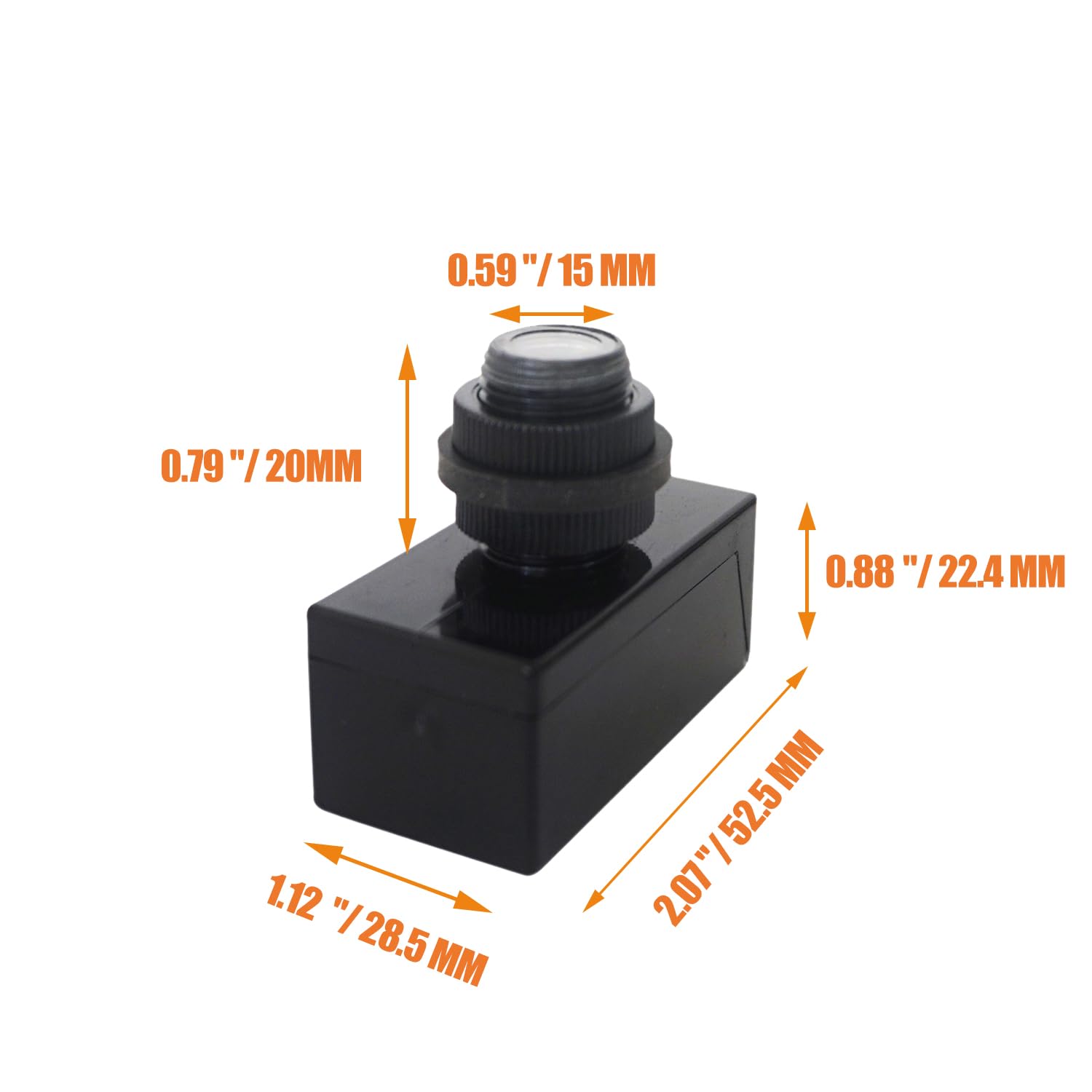

• Photoelectric switch size: dimensions (not including the probe) 52.5x28.5x22.4 mm, probe size 15(dia.)x21(H)m
• rated voltage 12V DC, rated loading 5A
• Value pack day/night switching, energy saving: the hard-wired post eye light control could make the outdoor lighting work from dusk to dawn automatically, turn on at night and off during the day

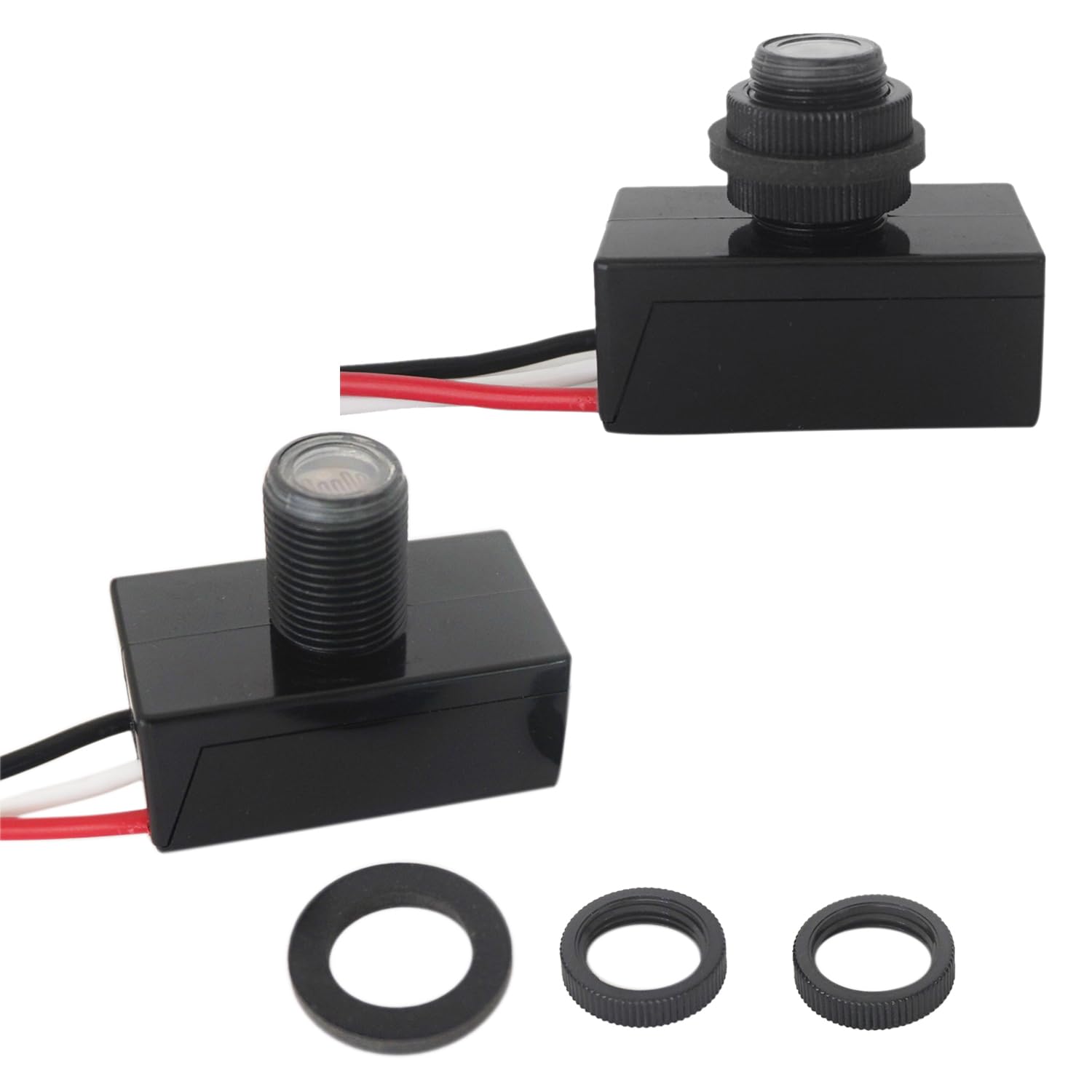

• Prastical waterproof, anti-interference delay design: equipped with heavy-duty cover and waterproof washer which could help it survive in some bad weather
• a preset delay, the photoelectric sensor don't switch on/off from temporary light sources
• Ease installation & broad application photocell light sensor: easy to mount and use, can work with most types of light lamps such as LED, stree/courtyard/corridor lamps, walkway lighting, barn lights and where needs lighting at night

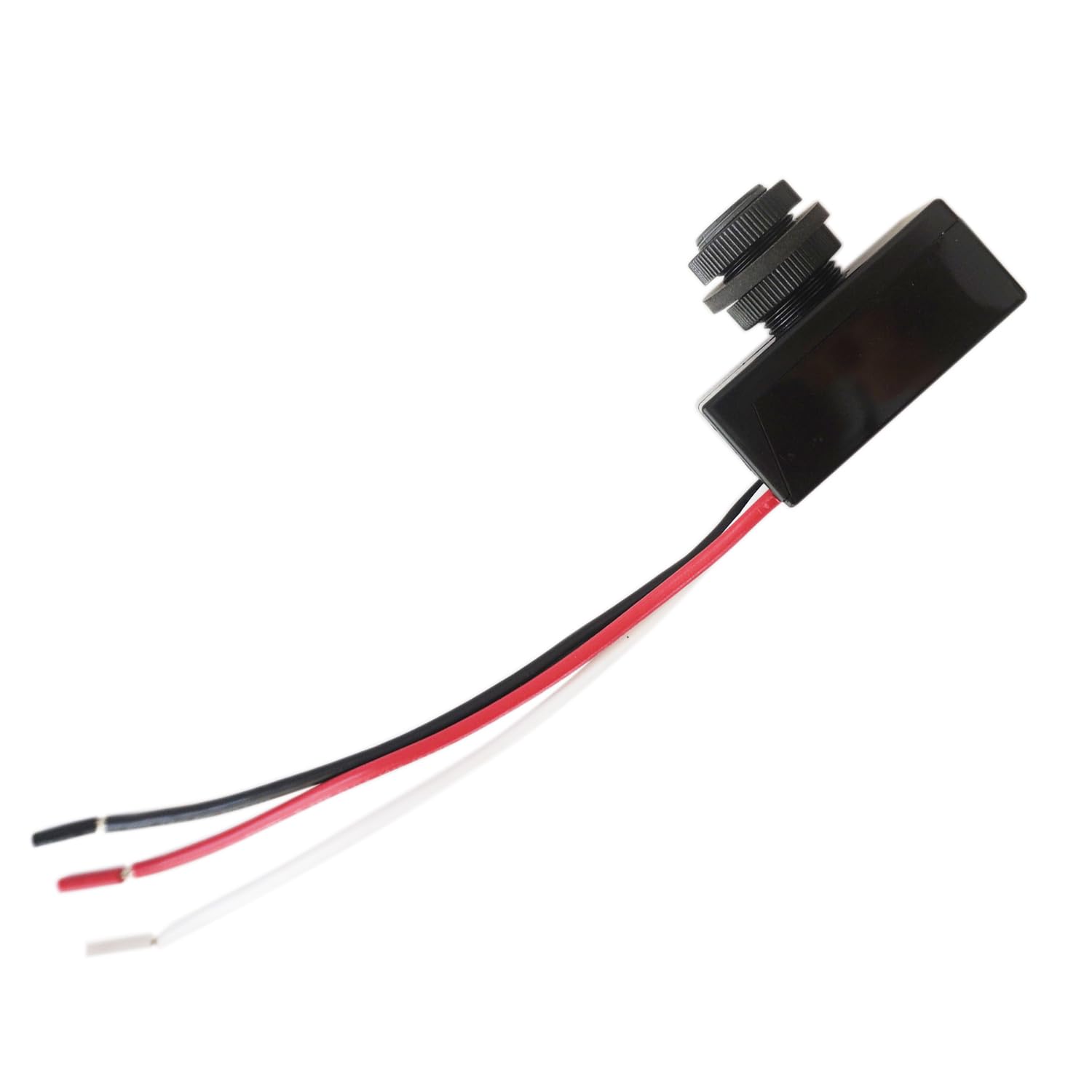

• NOTES: this DC photoelectric switch uses three wire system type, please follow the wiring diagram on the manual to ensure connecting the positive and negative poles correctly, otherwise the controller would be damage
