Description
Brand: Hebbeko
Phone RJ11 port specifications:
FXS interface (transmitter)
Telephone Channel: 2
Ringing receiving voltage: 75V (AC)
Ring frequency: 25Hz or 50Hz
Two-wire input impedance: 600?
FXO interface (receiver)
Telephone Channel: 2
Ring output voltage: 75V (AC)
Ring frequency: 50Hz
Two-wire input impedance: 600?
Optical interface: FC/UPC
Ethernet RJ45 port specifications:
Rate: 10M/100Mbps, full duplex, half duplex fully adaptive
Protocol:
IEEE802.3 10Base-T Ethernet , IEEE802.3u.
100Base-TX/FX Fast Ethernet , IEEE802.3x Flow control ,
IEEE802.1q VLAN,IEEE802.1p Qos,IEEE802.1d Spanning Tree
Physical interface: RJ45, support AUTO-MDIX (cross line straight line adaptive)
Power supply:
1. Suitable working voltage AC100~240V, DC12V
2. US/EU/UK/AU standard power supply adaptor is optional.
Other index
Working temperature -20°C ~70°C
Storage temperature -40°C ~85°C
MTBF >100,000hours

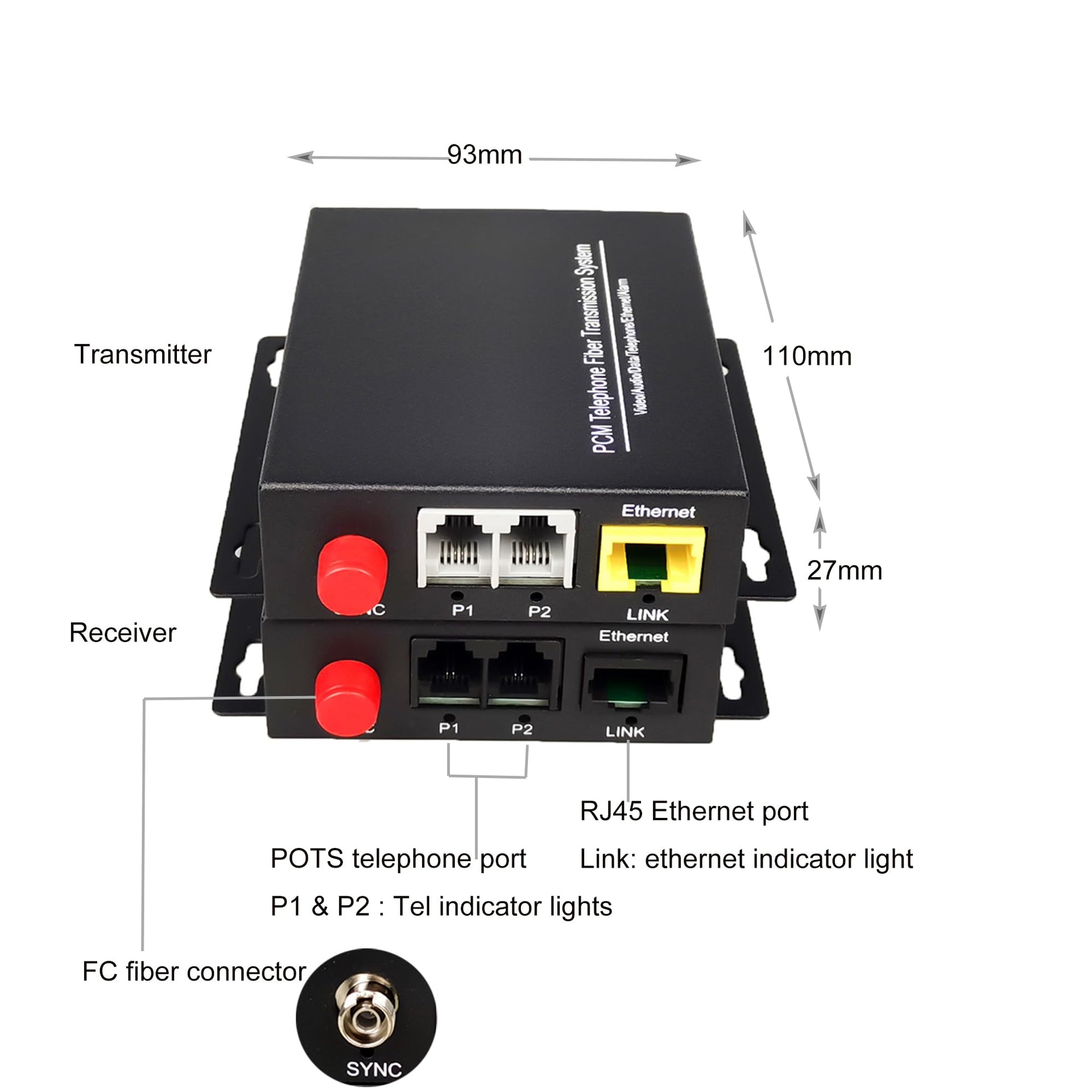

Product size: 110*93*27mm(LxWxH)
Weight: 1Kg/set
Package include:
1. 1x 2 channel POTS telephone Transmitter
2. 1x 2 channel POTS telephone Receiver
3. 1x FREE 3m FC-FC Fiber patch cord
4. 2 x External US standard power adapter
5. User Manual

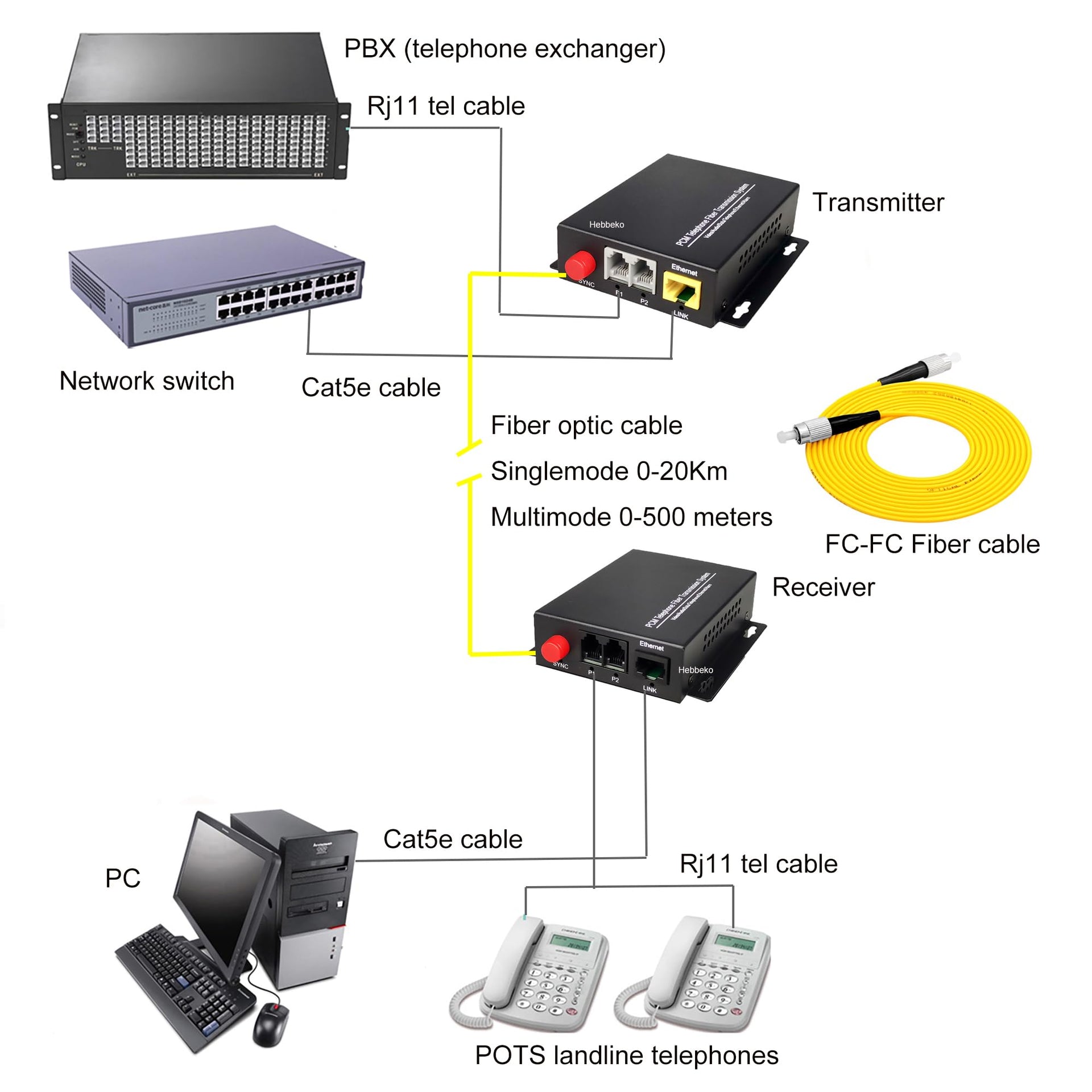

• This pots over fiber converter can extend POTS (Plain Old Telephone Service) landline phones and Network signal by a same fiber: 2 Independent POTS telephones lines and 1x 10/100Mbps Ethernet port over same fiber optic cable to far end, Optical interface is FC/UPC
• Suitable for Both Fiber Types (Single-mode and multimode). Single-mode fiber distance up to 20 km(12.4 miles), Compatible with Multimode fiber distance up to 200m
• Support Called id, Ring and Fax function,Voice coding adopts PCM coding .Uncompressed and No Delay Transmission and Protocol Support, High fidelity speech
• Professional high quality design and Excellent performance, Voice quality is pure clear and stable. Widely used in government units, electric power, public security, military, civil aviation, maritime, mining, highway and other college networks or public networks
• LEDs for power supply and optical fiber link, data status indication can monitor the operating status of the system
• Plug and play,No need to set up
Phone RJ11 port specifications:
FXS interface (transmitter)
Telephone Channel: 2
Ringing receiving voltage: 75V (AC)
Ring frequency: 25Hz or 50Hz
Two-wire input impedance: 600?
FXO interface (receiver)
Telephone Channel: 2
Ring output voltage: 75V (AC)
Ring frequency: 50Hz
Two-wire input impedance: 600?
Optical interface: FC/UPC
Ethernet RJ45 port specifications:
Rate: 10M/100Mbps, full duplex, half duplex fully adaptive
Protocol:
IEEE802.3 10Base-T Ethernet , IEEE802.3u.
100Base-TX/FX Fast Ethernet , IEEE802.3x Flow control ,
IEEE802.1q VLAN,IEEE802.1p Qos,IEEE802.1d Spanning Tree
Physical interface: RJ45, support AUTO-MDIX (cross line straight line adaptive)
Power supply:
1. Suitable working voltage AC100~240V, DC12V
2. US/EU/UK/AU standard power supply adaptor is optional.
Other index
Working temperature -20°C ~70°C
Storage temperature -40°C ~85°C
MTBF >100,000hours
Product size: 110*93*27mm(LxWxH)
Weight: 1Kg/set
Package include:
1. 1x 2 channel POTS telephone Transmitter
2. 1x 2 channel POTS telephone Receiver
3. 1x FREE 3m FC-FC Fiber patch cord
4. 2 x External US standard power adapter
5. User Manual
• This pots over fiber converter can extend POTS (Plain Old Telephone Service) landline phones and Network signal by a same fiber: 2 Independent POTS telephones lines and 1x 10/100Mbps Ethernet port over same fiber optic cable to far end, Optical interface is FC/UPC
• Suitable for Both Fiber Types (Single-mode and multimode). Single-mode fiber distance up to 20 km(12.4 miles), Compatible with Multimode fiber distance up to 200m
• Support Called id, Ring and Fax function,Voice coding adopts PCM coding .Uncompressed and No Delay Transmission and Protocol Support, High fidelity speech
• Professional high quality design and Excellent performance, Voice quality is pure clear and stable. Widely used in government units, electric power, public security, military, civil aviation, maritime, mining, highway and other college networks or public networks
• LEDs for power supply and optical fiber link, data status indication can monitor the operating status of the system
• Plug and play,No need to set up
