Description
Brand: AccessTech Innovations

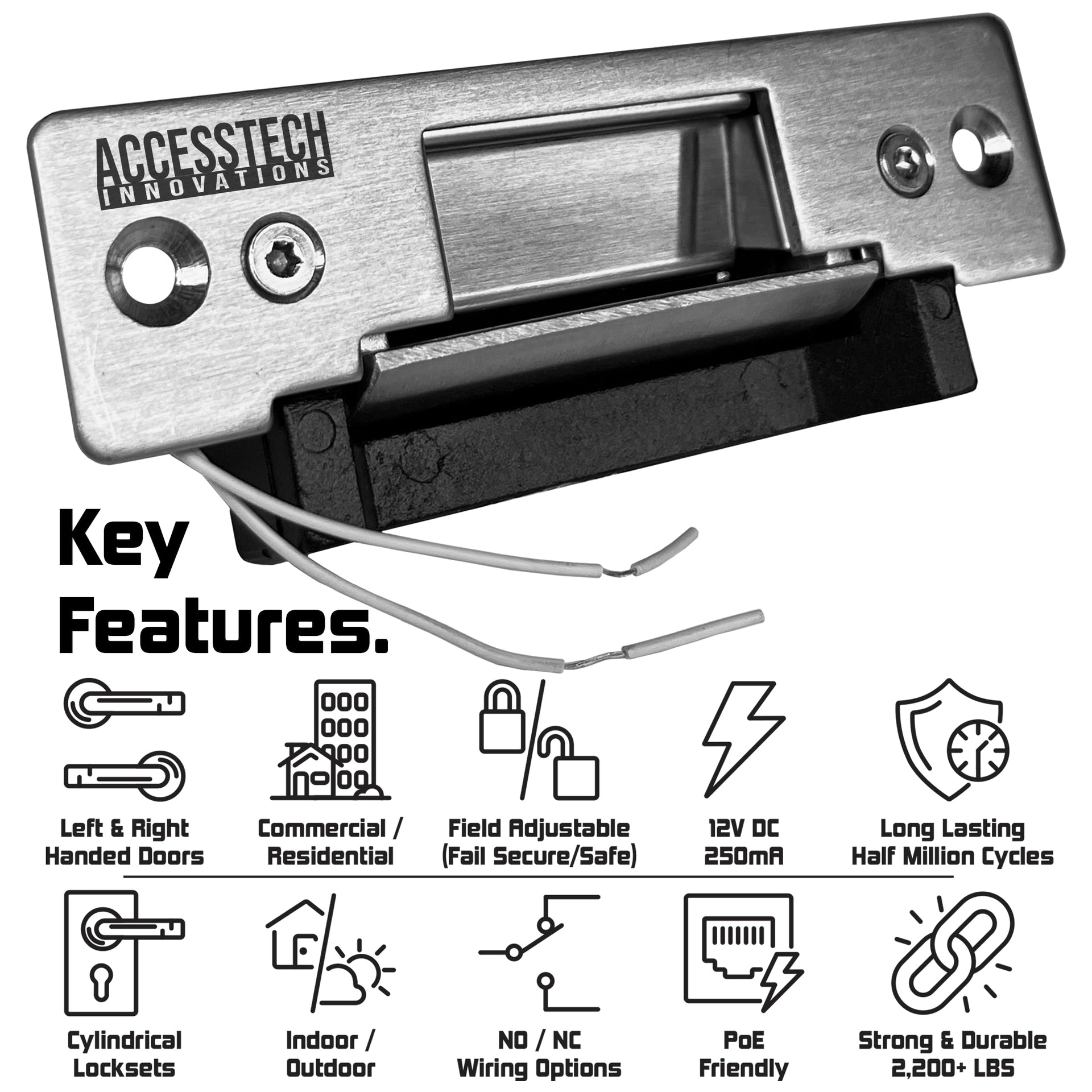

• FAIL-SECURE / FAIL-SAFE ADJUSTABLE: Lock can be switched between both modes by adjusting a screw. Fail Secure (Default) means device is Locked when Unpowered, Fail Safe means device is Unlocked when Unpowered.
• LEFT & RIGHT HANDED DOORS: Can be installed to work with doors that have their handle on their left side in addition to doors with the handle on the right.
• ACCESS CONTROL: Electric door strike can convert cylindrical lock sets into an electronic access controlled locking system.
• STRONG & DURABLE: Jaw Strength rated at 2,200 Lbs and cycle tested up to 500,000 times.
• VOLTAGE & DIMENSIONS: 12 Volt DC Input @ 250mA
• Overall Size (LxWxH) 4-7/8” x 1-11/16” x 1-1/4” (124x43x32mm) - LatchBolt sizes up to 5/8”
• PACKAGE CONTENTS: 1 x Electric Door Strike Device
• 2 x Mounting Tabs
• 6 x Screws
• 1 x Diode
• 1 x User Manual

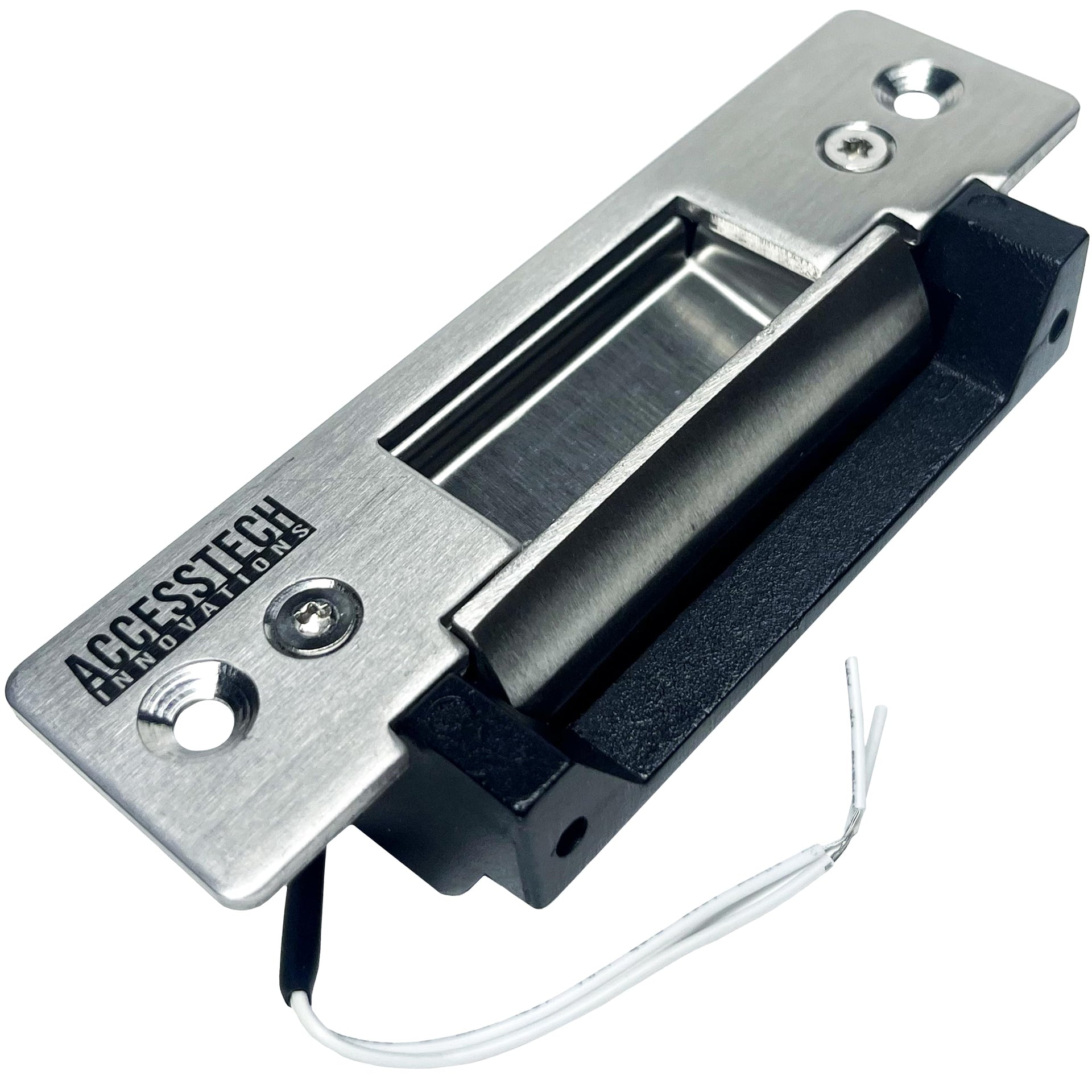

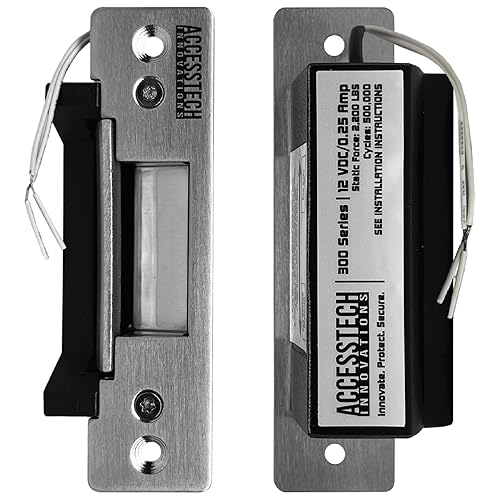

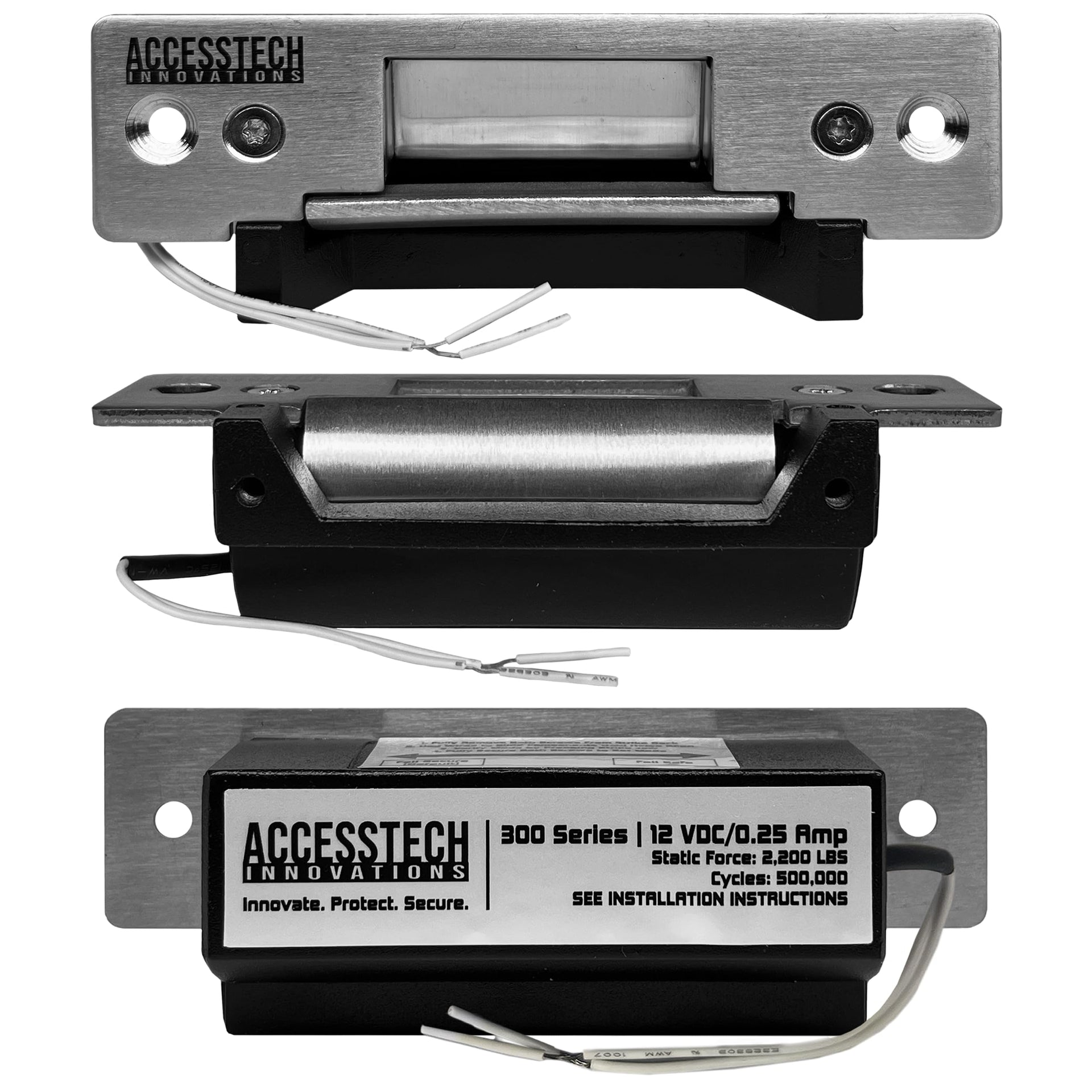

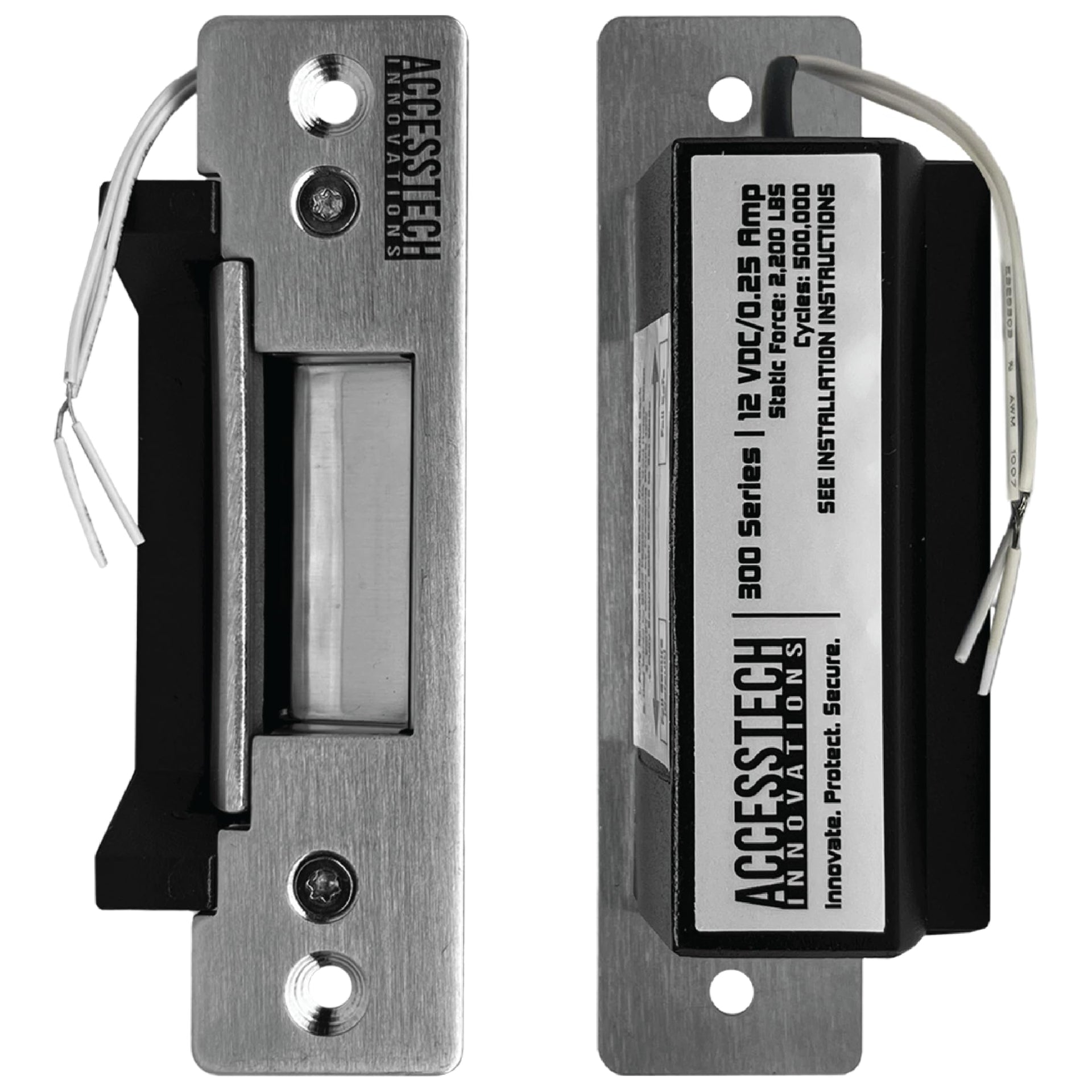

Convert Cylindrical Mechanical Locks Into An Electronic Access-Controlled Locking System.

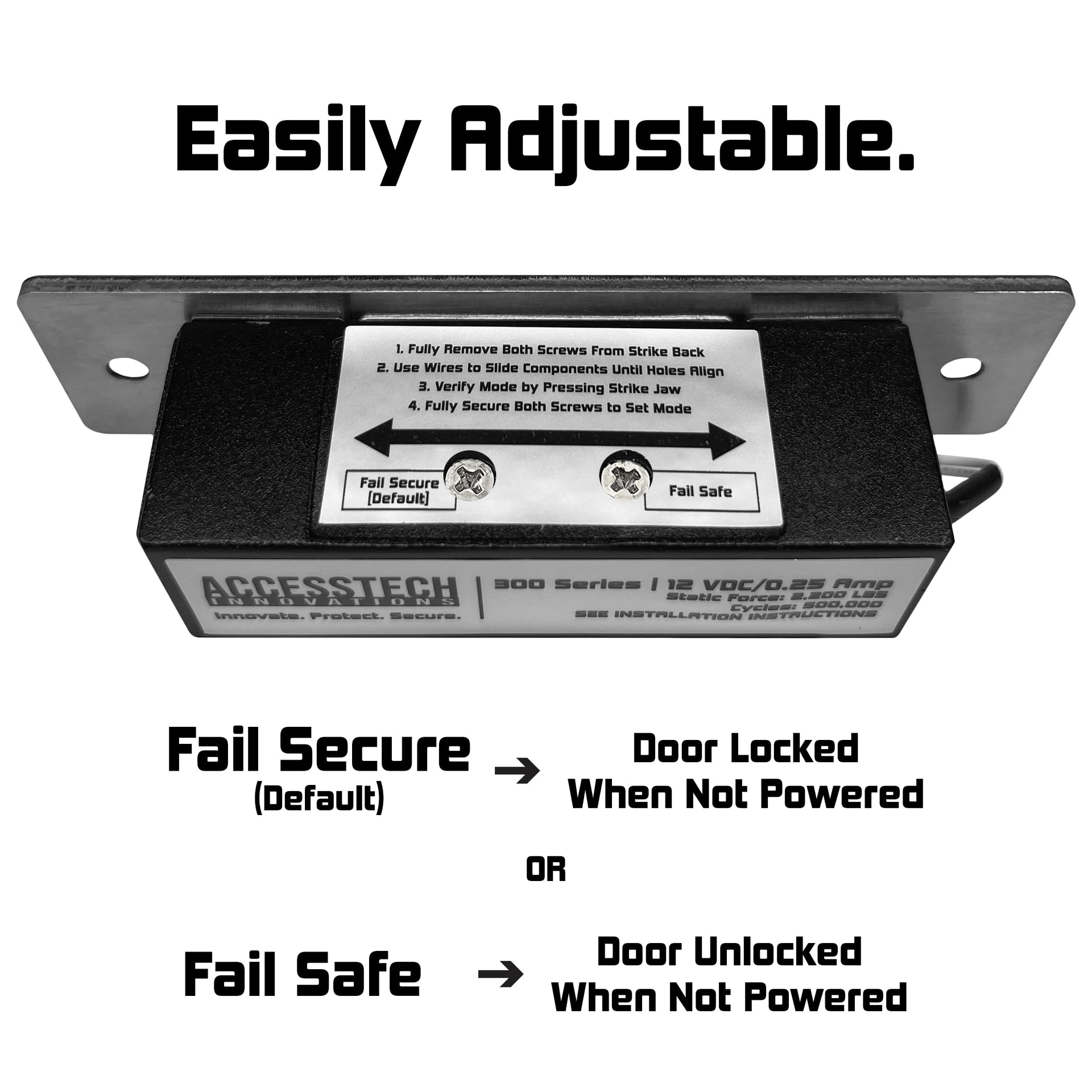

Two Operating Modes:
? Fail Secure (NO) (Default) – When Unpowered, strike is Locked
? Fail Safe (NC) – When Unpowered, strike is Unlocked
Normally Open (NO) / Normally Closed (NC) Wiring:
? Fail Secure - Normally Open (NO) – Strike is Normally Unpowered and remains locked, Unlocks when power is added
? Fail Safe - Normally Closed (NC) – Strike is Normally Powered and remains locked, Unlocks when power is removed
Specifications:
Model: 300
Operation: Normally Open (NO) / Normally Closed (NC)
Operating Power: 12VDC @ 250mA
Latchbolt Size: 5/8”
Static Strength: 2,200-lbs
Cycles: 500,000
Operating Temperature: 14°F~131°F (-10°C~55°C)
Dimensions (LxWxH): 4-7/8” x 1-11/16” x 1-1/4” (124x43x32mm)
Materials: Stainless Steel / Metal Alloy
Wiring:
White: Power (No Polarity) – Either one can be positive or negative
Diode:
Protects equipment from electromagnetic surges - Leg with White Stripe attaches to Positive Wire
Package Contents:
1 x 300 Series Electric Strike Lock Body
1 x ANSI Standard Faceplate (Ships Pre-Installed on Device Body)
2 x Mounting Tabs
6 x Mounting Screws (4x Metal Frame Screws & 2x Wood Frame Screws
1 x Diode (1N4007)
1 x User Manual
? Attention: We recommend the customer checks with their local fire authority to see if any additional products are needed to comply with local fire codes. We are not responsible for improper installation of our product(s) or liable for any fees that may be incurred by not complying with the local fire authority.
• FAIL-SECURE / FAIL-SAFE ADJUSTABLE: Lock can be switched between both modes by adjusting a screw. Fail Secure (Default) means device is Locked when Unpowered, Fail Safe means device is Unlocked when Unpowered.
• LEFT & RIGHT HANDED DOORS: Can be installed to work with doors that have their handle on their left side in addition to doors with the handle on the right.
• ACCESS CONTROL: Electric door strike can convert cylindrical lock sets into an electronic access controlled locking system.
• STRONG & DURABLE: Jaw Strength rated at 2,200 Lbs and cycle tested up to 500,000 times.
• VOLTAGE & DIMENSIONS: 12 Volt DC Input @ 250mA
• Overall Size (LxWxH) 4-7/8” x 1-11/16” x 1-1/4” (124x43x32mm) - LatchBolt sizes up to 5/8”
• PACKAGE CONTENTS: 1 x Electric Door Strike Device
• 2 x Mounting Tabs
• 6 x Screws
• 1 x Diode
• 1 x User Manual
