Brand: KLEAWARTE

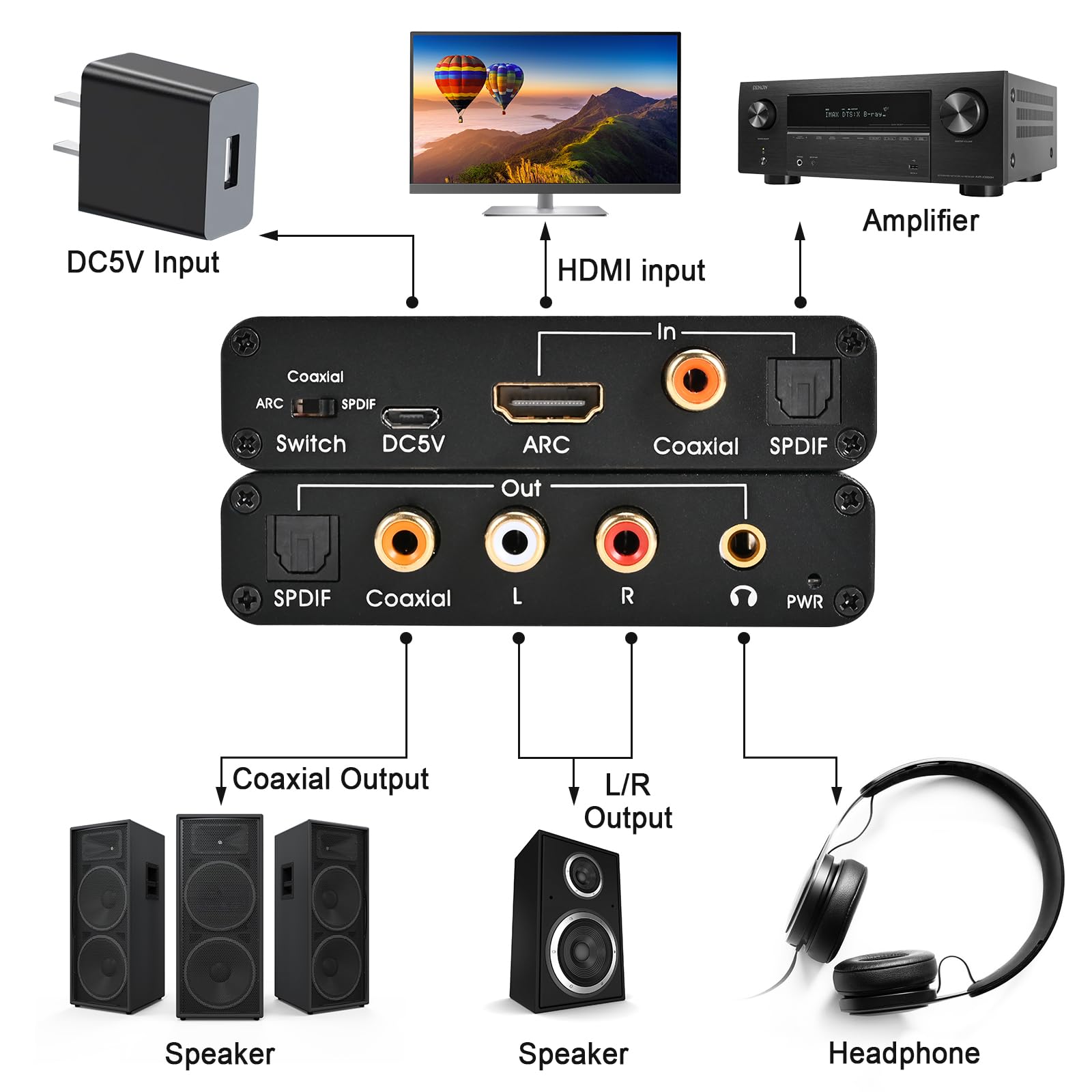

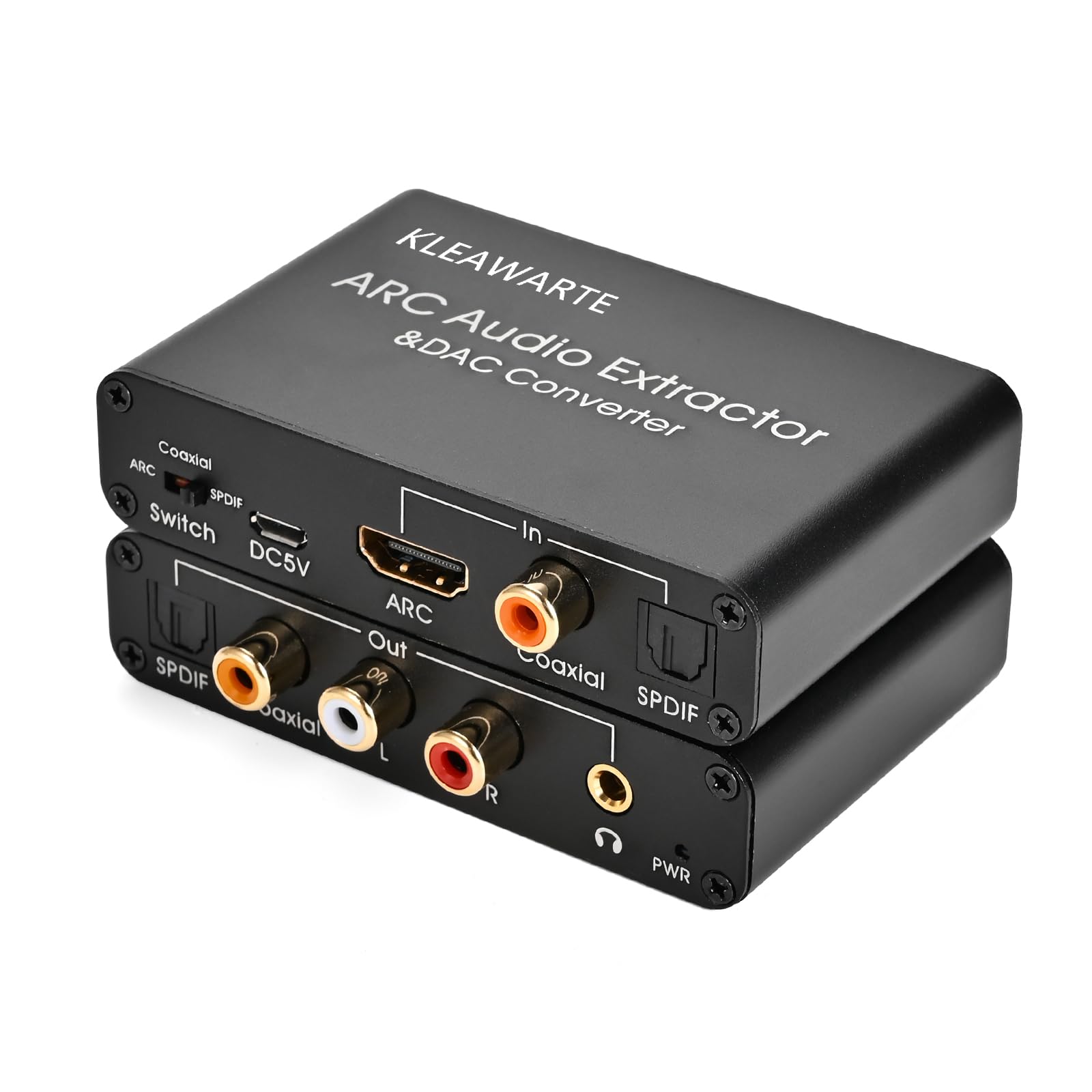

<p><strong>Description:</strong></p><p>This KLEAWARTE HDMI ARC audio converter can transfer the audio signal of a TV that supports ARC function to the SPDIF port, L/R port, coaxial port, 3.5mm headphone jack prot of the adapter through the ARC interface. Moreover, it supports optical or coaxial digital audio signal conversion. Its stereo analog signal can be output&nbsp;to optical/SPDIF coaxial stereo L/R 3.5mm Jack at the same time. It is designed for for home theater, teaching, training structure, conference room, home appliance and so on.</p><p><br></p><p><strong>Connection and Operation:</strong></p><p>1.Connect the HDMI port of adapter to the HDMI/ARC port of TV via an HDMI cable. Note: Please connect HDMI port with “ARC” mark.</p><p>2.Connect the optical fiber and coaxial input of the converter to the corresponding audio interface of DVD or PS3 through optical fiber cable and coaxial cable.</p><p>3.Use optic cable, coaxial cable or RCA cable and 3.5mm audio cable to connect to the amplifier system.</p><p>4.Connect the USB power cable to the Micro USB interface of the converter.</p><p>5.Switch to corresponding channel by toggle switch.</p><p><br></p><p><strong>Product features:</strong></p><p>1. Shell material: metal</p><p>2. Colour: black</p><p>3. Power supply interface: Micro USB</p><p>4. Weight: 0.37lb</p><p><br></p><p><strong>Package includes:</strong></p><p>1 x ARC Audio Extractor</p><p>1 x USB Power Cable</p><p>1 x Users Manual</p>

• The KLEAWARTE HDMI ARC audio extractor converts the the audio signal from TV with ARC function to the optical fiber signal port, coaxial port and 3.5mm headphone jack port.
• The KLEAWARTE boasts three input methods, namely ARC input, Coaxial input and SPDIF input. There is a switch on the converter to select the input method.
• This KLEAWARTE HDMI ARC audio extractor converts audio to SPDIF(Optical)/ coxial L/R stero audio/3.5mm jacks simultaneously. The SPDIF/coxial/ 3.5mm L/R output port can work at the same time.
• Plug and Play: Simply connect the adapter between your TV and audio device using HDMI cables (not included) for an easy setup process. The adapter's small and lightweight form factor ensures a discreet installation behind your entertainment system.
• Please conect the TV's HDMI/ARC port and the KLEAWARTE adapter's ARC port via HMID cable. Make sure to use AGW26 standard HDMI 1.4 cable. The HDMI 1.3 cable does not support ARC function. For stereo R/L or 3.5mm jack output, it only supports LPCM/PCM audio format output, not 5.1 audio output.

Model: RC01
