Brand: Envistia

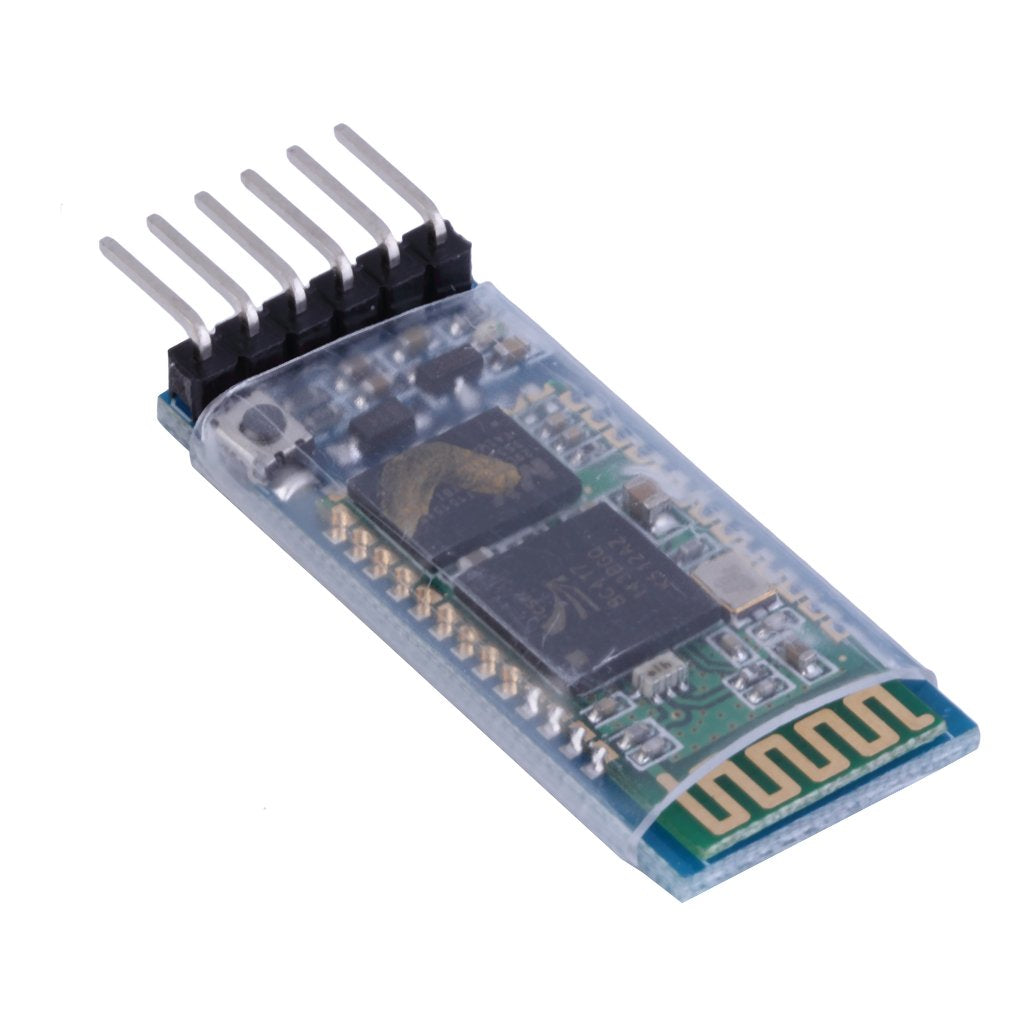

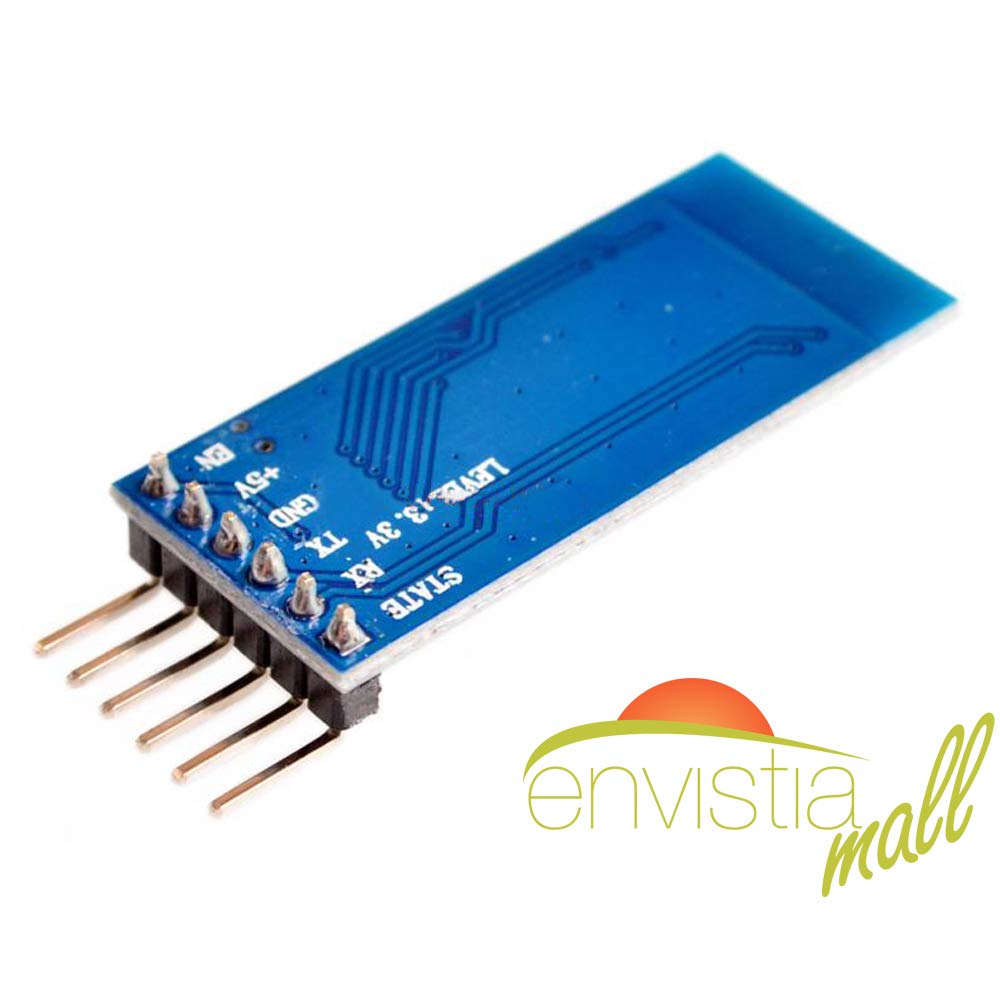

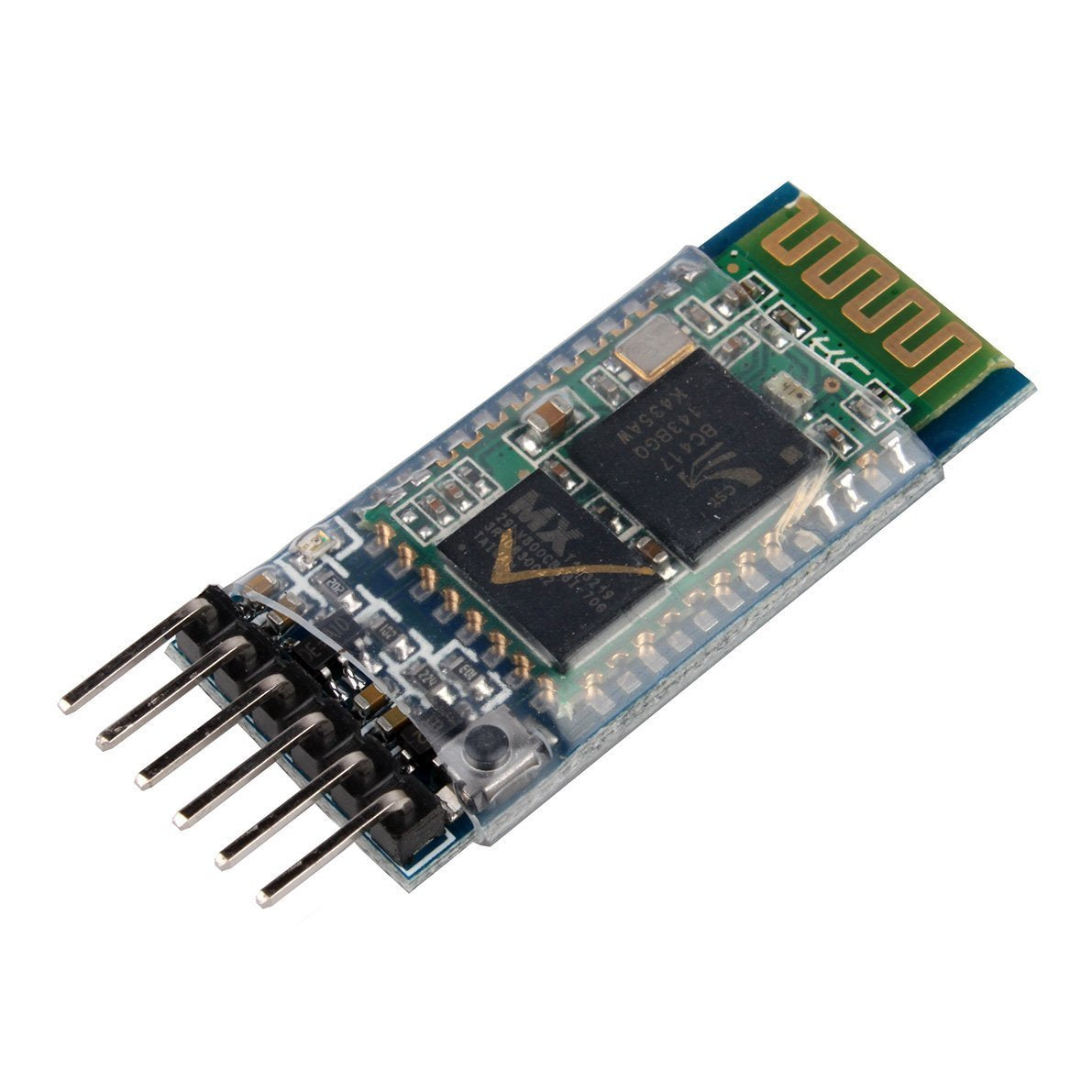

<p>This 6-pin HC-05 Bluetooth RF transceiver module can be set as a transmitter or receiver. It can easily transfer data wirelessly, without complex PCB layout or deep knowledge in the Bluetooth software stack.</p> <p>You can combine this Bluetooth module with your MCU, ARM or DSP systems, SOC systems, Personal Digital Assistants (PDAs), Computer Accessories or other systems your want to use under Bluetooth functions.</p> <p>The HC-05 Bluetooth module can connect to other modules in two ways: As a master, or as a slave. For example, a robot can be designed to be a master connected to a slave Bluetooth module or as a slave board to make a wireless connection with a PC.</p> <p>Specifications:</p> <ul> <li>Integrated Bluetooth Serial Pass-through Module Master-Slave 6 Pin JY-MCU anti-reverse</li> <li>High frequency: 2.4GHz</li> <li>With VCC, GND, TXD, RXD, EN, STATE foot for the Bluetooth</li> <li>Master and slave, two modes in one module</li> <li>Uses the CSR mainstream bluetooth chip</li> <li>Bluetooth V2.0 protocol standards</li> <li>Input voltage: 3.6V to 6V, on-board chip regualtes working voltage to 3.3V</li> <li>Fully compatible with Arduino</li> <li>High speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps</li> <li>TTL data transparent</li> <li>Transfer between a host Bluetooth device</li> <li>Works for Bluetooth TTL transceiver module which allows your target device to both send or receive the TTL data.</li> <li>Coverage up to 10 meters (30 feet) with built-in antenna.</li> <li>Working current: When unpaired, current of about 30mA; when pairing is successful, current reduces to about 10mA</li> <li>PCB Dimensions: 37mm x 15.5mm</li> </ul><br /><p><strong>Package includes:</strong></p> <ul><li>2x (2 pieces) HC-05 6-Pin Bluetooth module with backboard</li> <li>Printed installation and operation instructions</li> </ul>

Features:

• Integrated Bluetooth Serial Pass-through Module Master-Slave 6 Pin JY-MCU anti-reverse, fully compatible with Arduino
• Combine this HC-05 Bluetooth module with your MCU, ARM or DSP systems, SOC systems, Personal Digital Assistants (PDAs), Computer Accessories or other systems your want to use under Bluetooth functions.
• Master and slave, two modes in one module
• Bluetooth V2.0 protocol standards
• Input voltage: 3.6V to 6V, on-board chip regulates working voltage to 3.3V

Product Details:

• Package Quantity: 1
