Brand: Haupowfo

The Haupowfo wired keypad is a versatile solution designed to enhance your driveway gate automation system, garage door automation system, and door access control security. Ensure top-level security and access control for your property with the Haupowfo HP001-a high-performance, IP68-rated standalone access control wired keypad. Compare with the wireless keypad, it will not cause insensitivity or even failure of operation due to wireless signal interference. It performs more stable than the wireless keypad. Designed to meet the demands of both residential and commercial environments, this advanced access control device supports up to 20,000 users and integrates seamlessly with most gate openers, door strikes, and security systems. The wired keypad integrates a request to exit input for wiring a exit push button. With a vandal-resistant enclosure and anti-tamper features, the HP002 offers unrivaled protection and reliability for your access points. The HP001 has then nearly same function as Liftmaster KPR2000 waterproof keypad/proximity reader. It's an ideal replacement for Liftmaster KPR2000.
Overall, choose the Haupowfo HP001 to protect your property with cutting-edge access control technology, ensuring you stay one step ahead of potential threats while offering convenience and peace of mind!
Technical Specifications:
User Capacity: 20,000 users (card/tag, access code PIN, or both)
Operating Voltage (Wide Voltage Power Input ): 10-28VDC/AC
Idle Current: 35mA@12VDC
Active Current: 80mA@12VDC
Proximity Card Support: HID 26-bit and 30-bit Wiegand proximity cards
Relay Output: Programmable relay output for gates, doors, and more
Relay Capacity: SPDT*1 (NO, NC, COMMON) 1Amp Maximum
Adjustable Relay Output Time (Delay Mode): 50mS, 1-999 Seconds
Wiegand Interface: Wiegand 26-66 bit Format Input & Output (factory default is 26)
Alarm (or doorbell) signal MOS tube output current: ?1A
Entry Code Length: 4-6 Digits
Waterproof Rating: IP68 for outdoor durability
Material: Vandal-resistant zinc alloy housing
Operating Temperature: -20°C to 60°C (-4°F to 140°F)

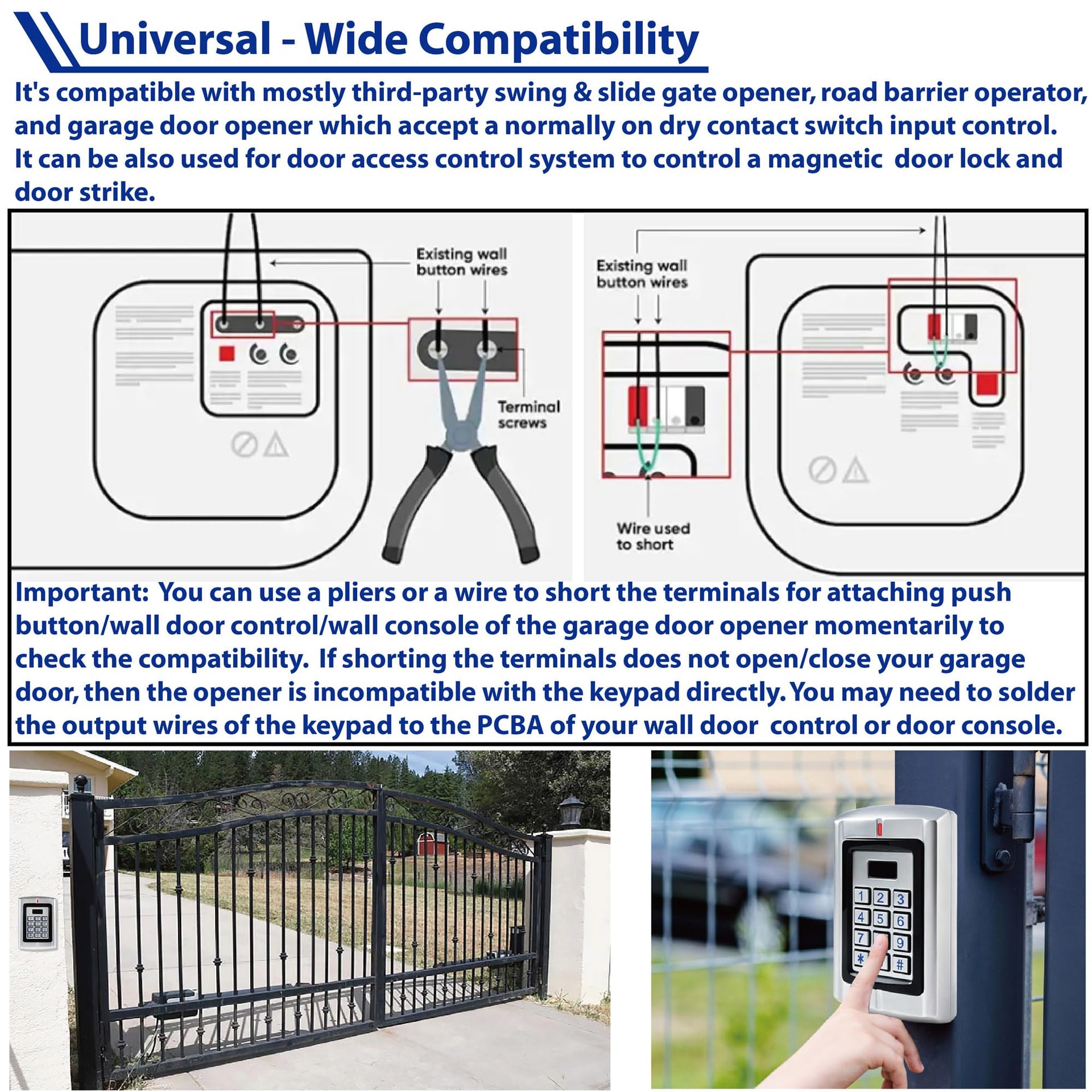

• Universal - The wired keypad has a programmable SPDT relay with adjustable contact time makes it's ideal for controlling an automatic gate operator/opener, commercial gate operator, any opener which accepts an normally open dry contact switch input, magnetic door lock or door strike. It's compatible with mostly third-party gate opener & barrier operator such as Liftmaster Doorking Viking FAAC Eagle Ramset Maximum Controls Mighty Mule GTO Ghost Controls Topens CO-Z Jujiang ZUMI gate opener! The rated voltage of the wired keypad is wide range of 10-28VDC/AC so it can be powered by 12VDC 24VDC 12VAC 24VAC directly which is the auxiliary power output voltage of most of gate operator/opener.

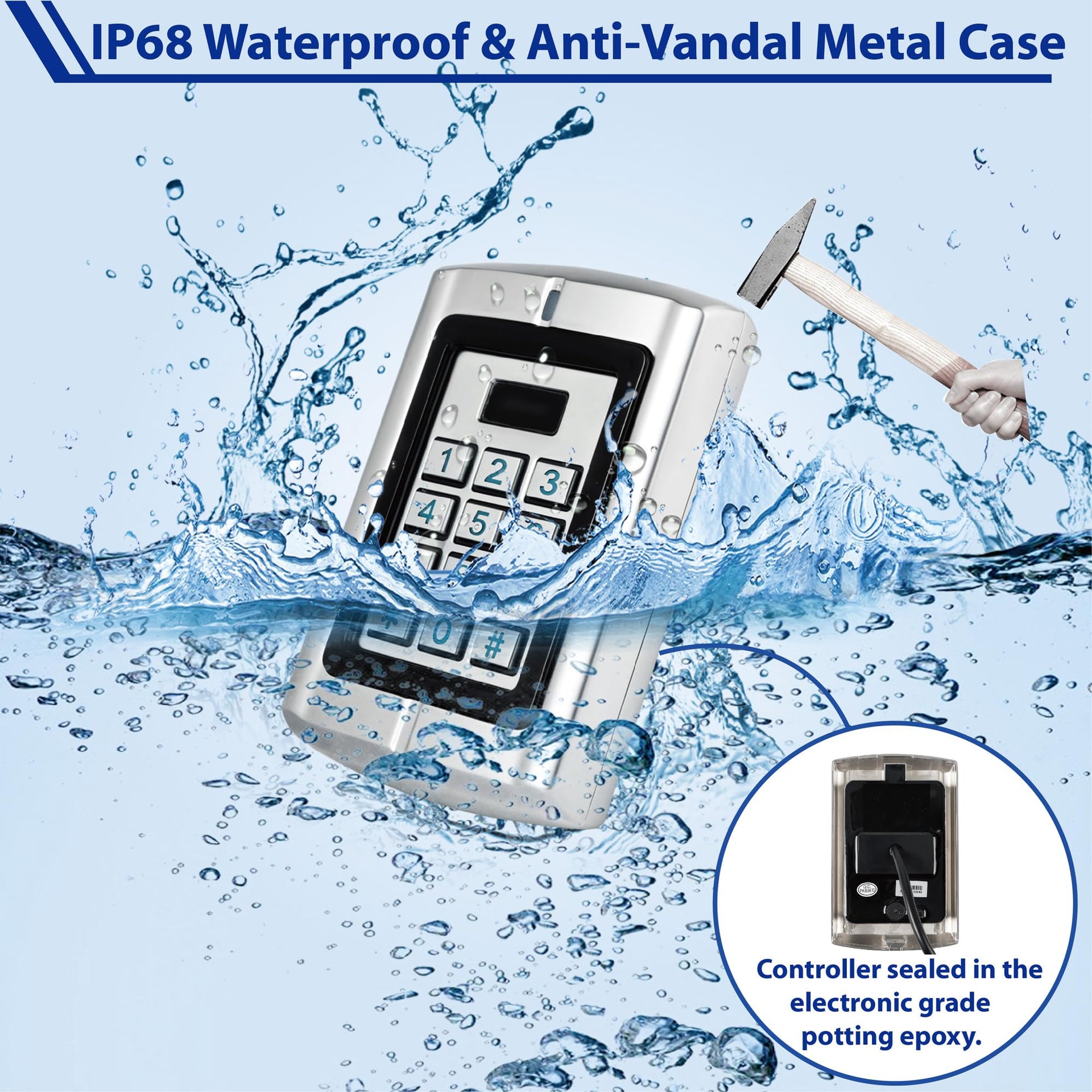

• Waterproof (IP68) & Security - All the electronic components are sealed in the electronic grade potting epoxy. It's designed to function reliably in all weather conditions, making it perfect for outdoor installations. The zinc alloy enclosure ensures the device is tamper-proof and built to last, even in high-security environments, such as bank, hospital, school and prison. The anti-tamper alarm feature can prevents unauthorized attempts to breach the system with built-in security alarms!

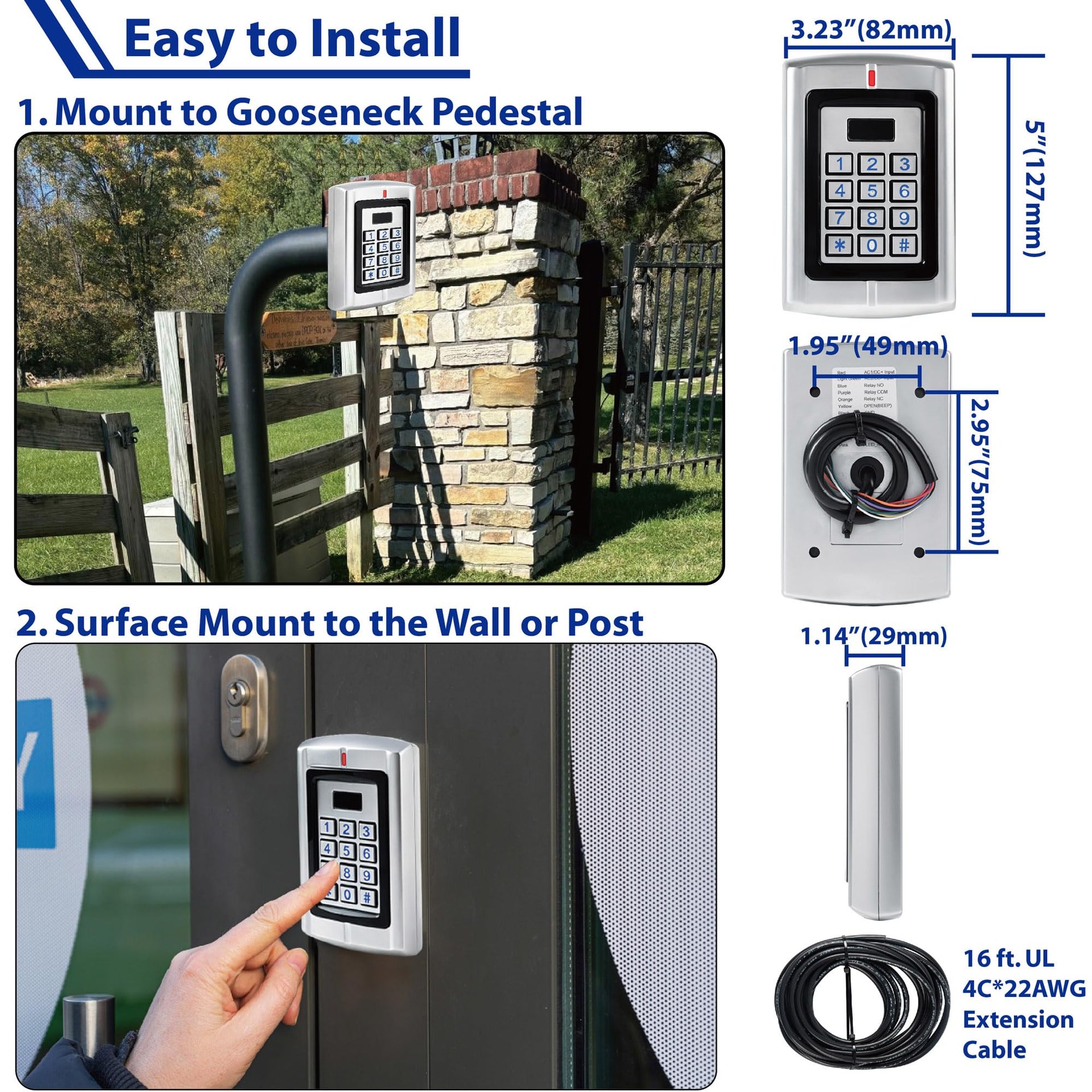

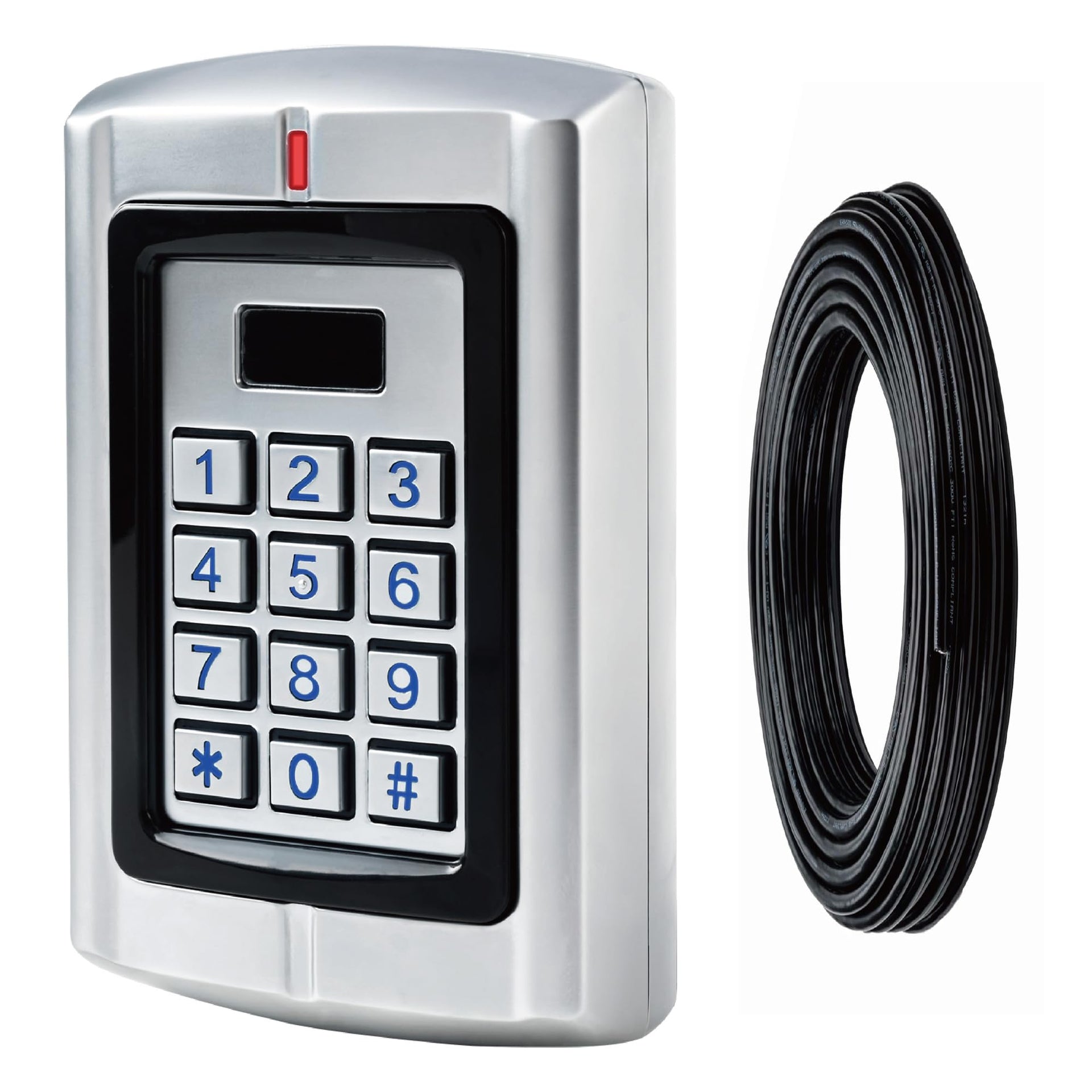

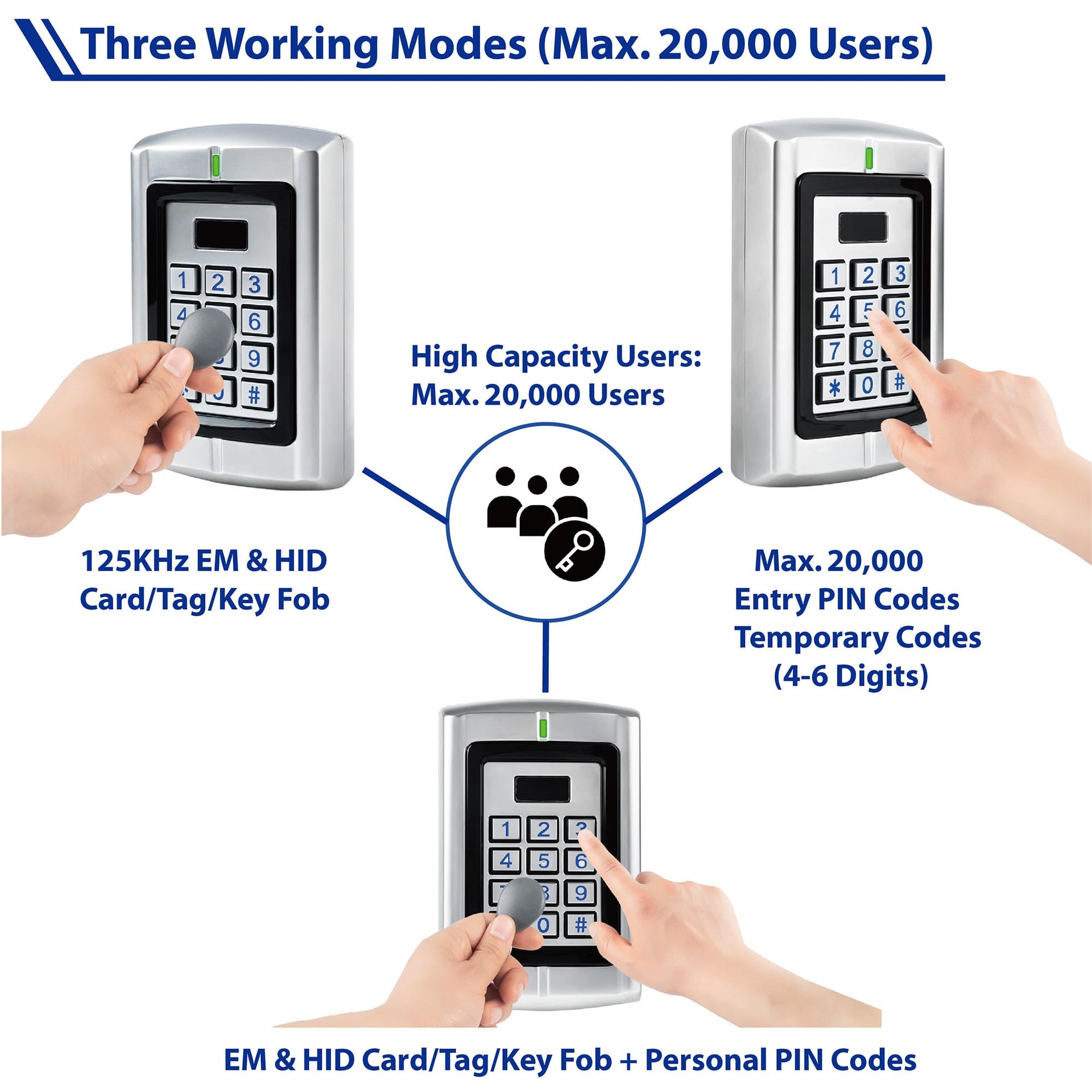

• Easy to Install and Program (MAX. 20000 Users) - The keypad which comes with a 16.6 ft. (5 meters) 4-core cable can be mounted to the wall or the pedestal post easily! It can be configured to three working mode, (1) proximity card /key chain or entry code PIN (factory default), (2)proximity card/key chain only, (3)proximity card /key chain and entry code PIN.The s entry code PIN could be set to 3 to 6 digits. Multiple entry codes setting system makes it's easy to program and manage temporary entry code PIN for the guest/deliveryman. The keypad supports 125KHz EM or HID proximity card/tag The card /key chain can be easily programmed to the keypad by manager add/delete card.
• Adjustable Key Volume and Backlight Brightness - The keypad has a backlit 4*3 digits keyboard which makes it can be easily operated in the night/dark. The machine makes a sound every time a key is pressed. The key volume can be set to 21 levels or muted to avoid disturbing the neighbor when inputting the code in the early morning or night. The brightness of standby LED light and backlight can also be set to 21 levels or turned off when the keypad is in standby to protect your privacy. The backlight can be configured to 3 modes, normally on, normally off or automatic darken after delay time as your need!
• Professional Pre-sales and After-sales Service - We have professional electrical engineers with many years of experience in the electrical industry. We will provide you with professional technical support if you have any question about wiring and building an access control system related to this product. You can email us (haupowfo@outlook.com) and we gua-rantee to reply in 24 hours!
