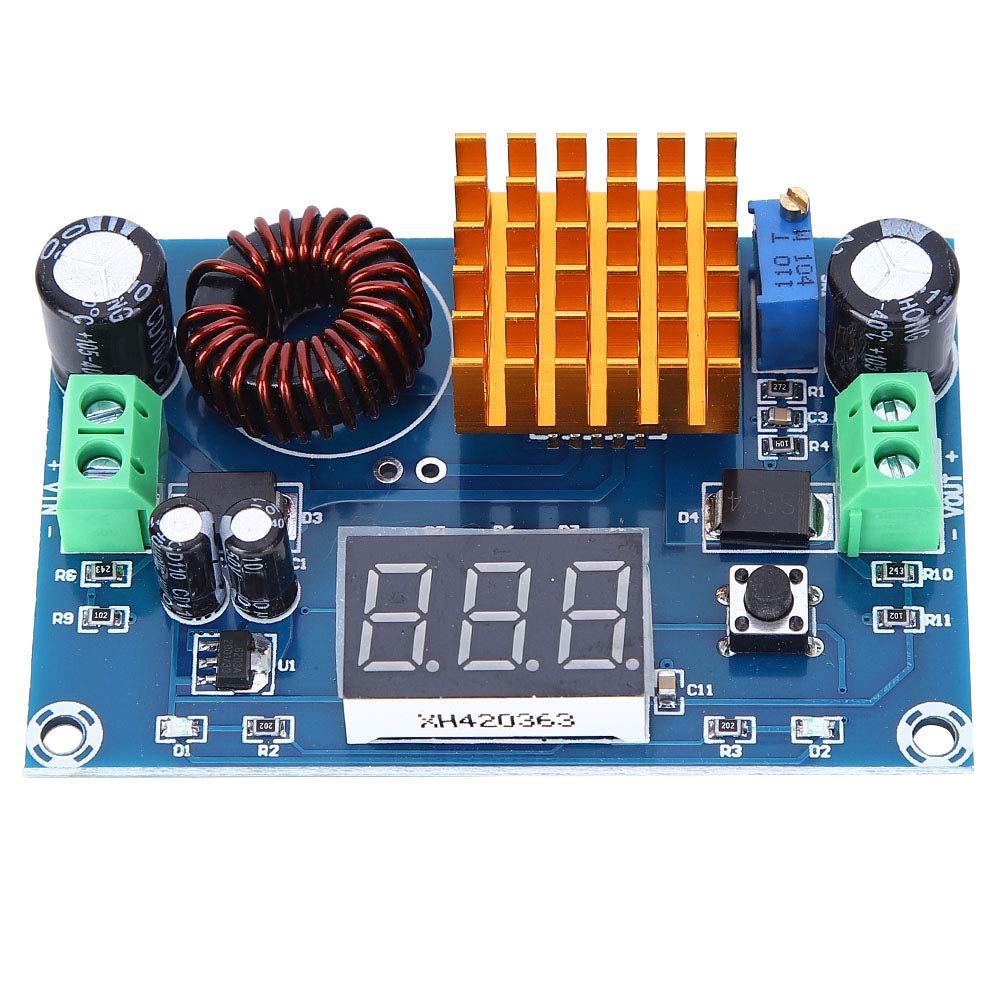

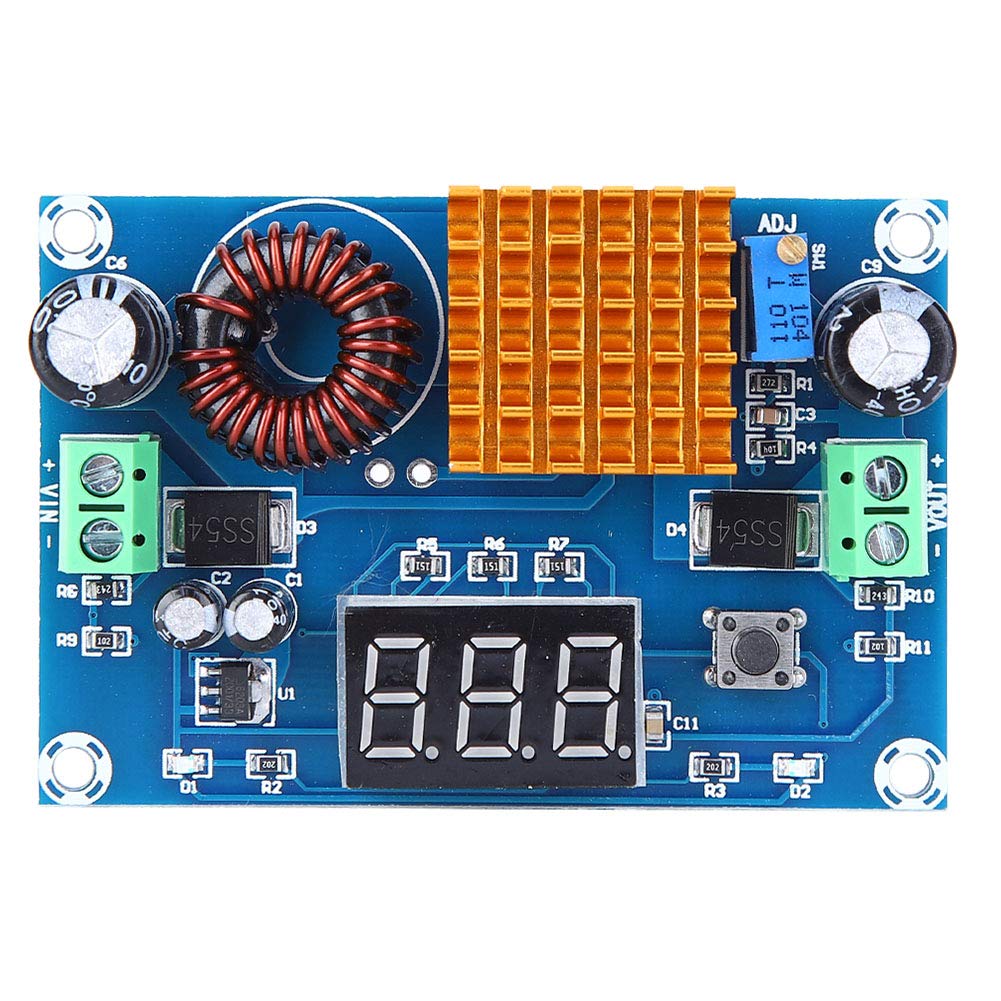

Description
Brand: Haosie
Model: XH-M411

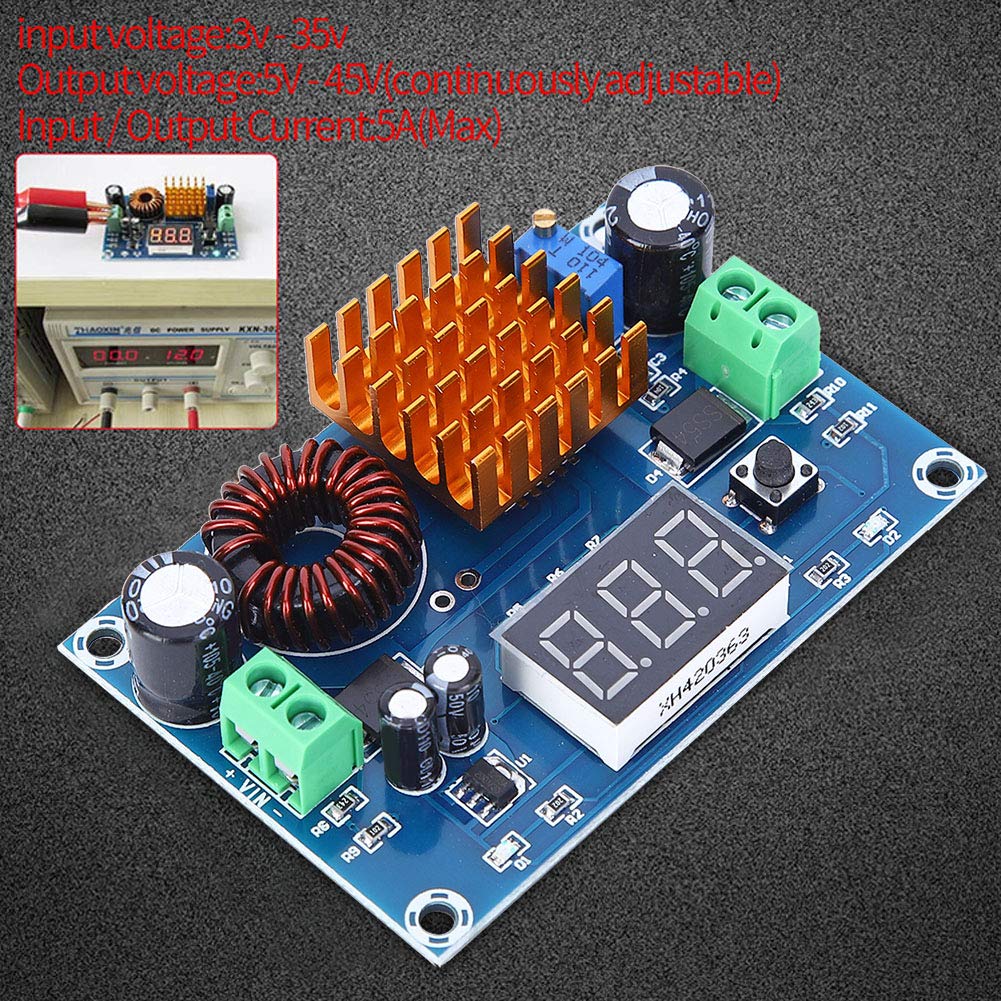

Specifications:
Input Voltage: 3V-35V
Output Voltage: 5V-45V
Input Current: 5A(Peak)
Voltage Display Range: 5V-30V(if input voltage is lower than 4.5V, it will not display)
Voltage Display Error: +/-0.1V
Size: 72*48*16mm / 2.83*1.89*0.63"
Note:
1, This is a boost module so output voltage should be higher than input voltage.
2, Peak output current is less than 5A.
3, This kit requires professional knowledge and ability, please make sure you know how to use it.

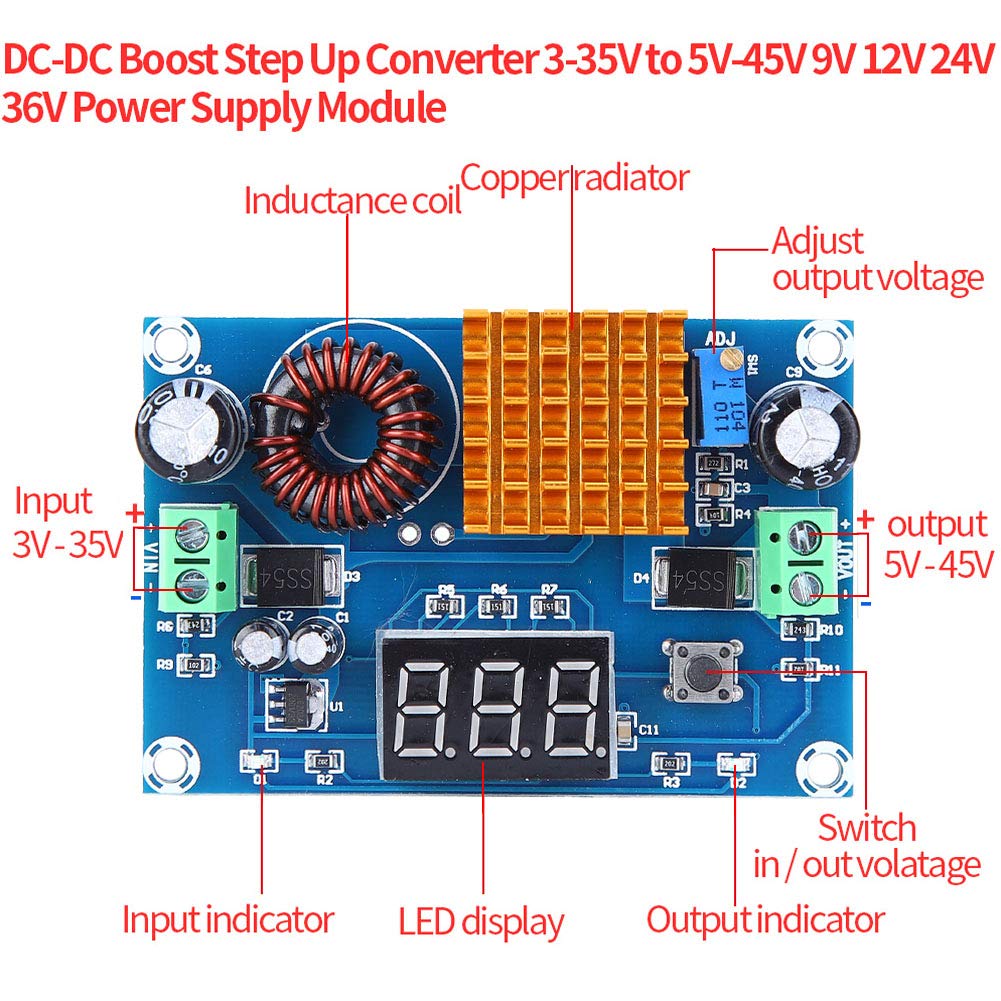

Instruction:
1. Connect the module to power supply (4.5-40V), the input indicator light is on, and module is working normally.
2. Adjust the blue potentiometer knob (generally turn clockwise to step up and turn counterclockwise to step down) and check the output voltage with a multimeter until it meets requirement.
3. If the output voltage of the module can not be adjusted, which means it is equal to the input voltage, please turn the potentiometer counter-clockwise for several circles then the voltage can be adjusted normally.
Package Includes:
1 x Boost Module
• 【Wide Application】This great DC to DC boost converter module is suitable for electrical equipment, digital products, and more. Recommended for electronics professionals!
• 【Easy to Use】The module features screw terminal designs for both input and output, making it convenient for wire connection and disconnection. With a heat sink, it ensures better heat dissipation.
• 【LED Display】It has a voltage display function, which can display the input voltage or output voltage, just press the button to switch. It can also manually adjust the output voltage, (5V -45V ) convenient and practical.
• 【Large Current Output】Designed with USB and 2.5A large current output, our step-up converter board can identify resistance and simultaneously charge multiple smartphones.
• 【Multi-functionality】This module can also serve as a power supply for laptops or as a voltage regulator for solar panels.
Model: XH-M411
Specifications:
Input Voltage: 3V-35V
Output Voltage: 5V-45V
Input Current: 5A(Peak)
Voltage Display Range: 5V-30V(if input voltage is lower than 4.5V, it will not display)
Voltage Display Error: +/-0.1V
Size: 72*48*16mm / 2.83*1.89*0.63"
Note:
1, This is a boost module so output voltage should be higher than input voltage.
2, Peak output current is less than 5A.
3, This kit requires professional knowledge and ability, please make sure you know how to use it.
Instruction:
1. Connect the module to power supply (4.5-40V), the input indicator light is on, and module is working normally.
2. Adjust the blue potentiometer knob (generally turn clockwise to step up and turn counterclockwise to step down) and check the output voltage with a multimeter until it meets requirement.
3. If the output voltage of the module can not be adjusted, which means it is equal to the input voltage, please turn the potentiometer counter-clockwise for several circles then the voltage can be adjusted normally.
Package Includes:
1 x Boost Module
• 【Wide Application】This great DC to DC boost converter module is suitable for electrical equipment, digital products, and more. Recommended for electronics professionals!
• 【Easy to Use】The module features screw terminal designs for both input and output, making it convenient for wire connection and disconnection. With a heat sink, it ensures better heat dissipation.
• 【LED Display】It has a voltage display function, which can display the input voltage or output voltage, just press the button to switch. It can also manually adjust the output voltage, (5V -45V ) convenient and practical.
• 【Large Current Output】Designed with USB and 2.5A large current output, our step-up converter board can identify resistance and simultaneously charge multiple smartphones.
• 【Multi-functionality】This module can also serve as a power supply for laptops or as a voltage regulator for solar panels.
