Description
Brand: Hamadap
<p><b>Technical Parameters of M12 Series with Cable</b></p> <ul> <li>Number of pins: 5 Pin</li> <li>Connector locking system: Threaded type (screw)</li> <li>Termination: solder moulded-on cable</li> <li>Wire guage: 0.25mm²</li> <li>Degree go protection: IP67 Waterproof</li> <li>Mechanical operation: >100mating cycles</li> <li>temperature range: -25°~ +85°</li> <li>Rated voltage: 125V</li> <li>Rated impulse voltage: 1500V</li> <li>Pollution degree: 3</li> <li>0vervoltage categorie: II</li> <li>Material group: II</li> <li>Rated current (40°): 4A</li> <li>Contact resistance: <=10m? (Gold)</li> <li>Material of contact: Brass</li> <li>Contact plating: Gold</li> <li>Material of contact body: Nylon/PA</li> <li>Material of housing: PVC,PUR</li> <li>codding key: A:B:D</li> </ul>

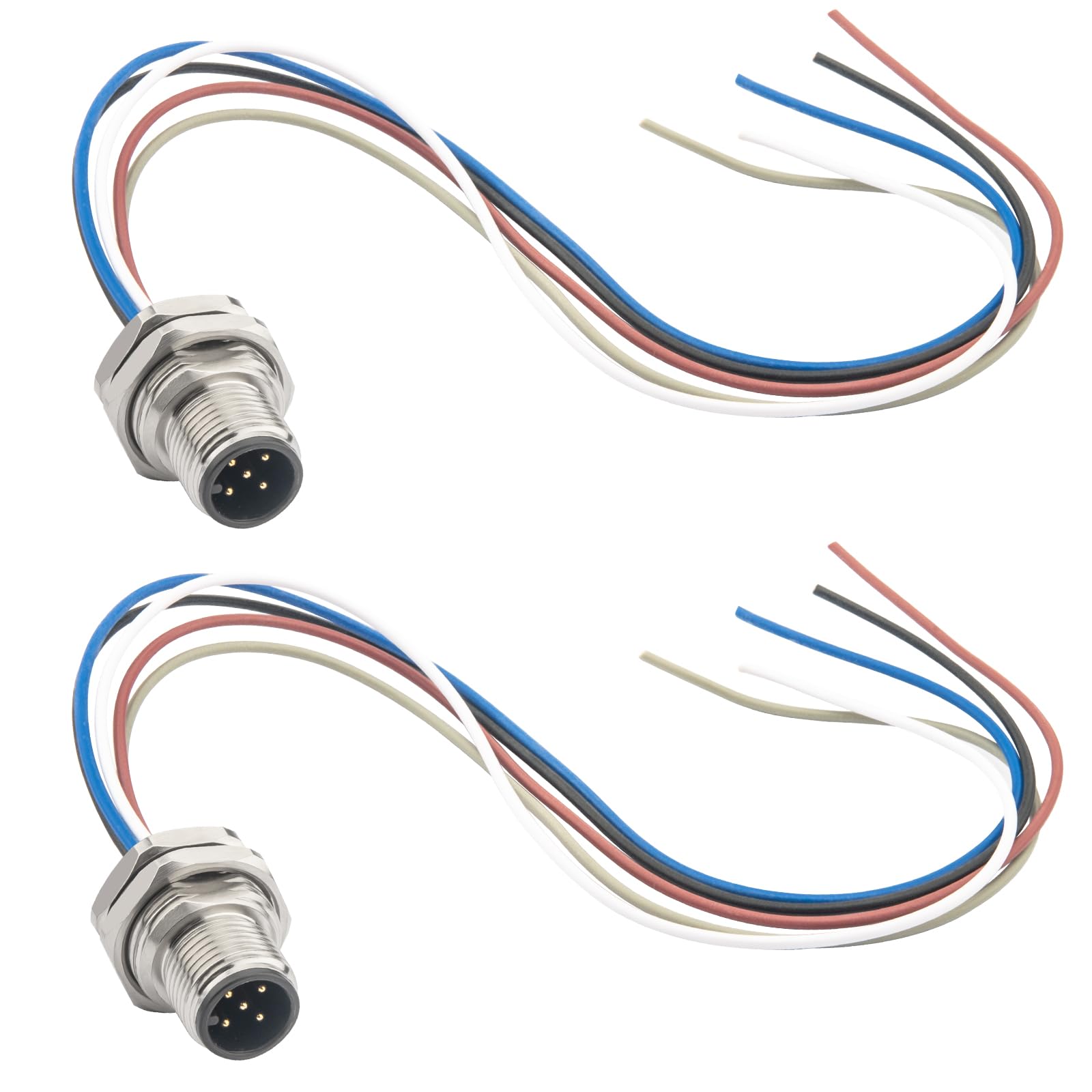

• ?M12 Connector Cable?M12 Aviation Connector Cable,A Coded, 5Pin,Male,Straight,Front Mount,For Panel/Cable,Screw-Joint,Unshield,IP67 Waterproof. (Note: An additional 2-3 cm has been reserved for trimming to accommodate different devices.)
• ?High Quality?M12 aviation panel back mount flange socket sensor connector cable is made of professional high-quality PVC material, insulated and flame-retardant
• thread locking mechanism, anti-vibration locking design, 16mm threaded joint

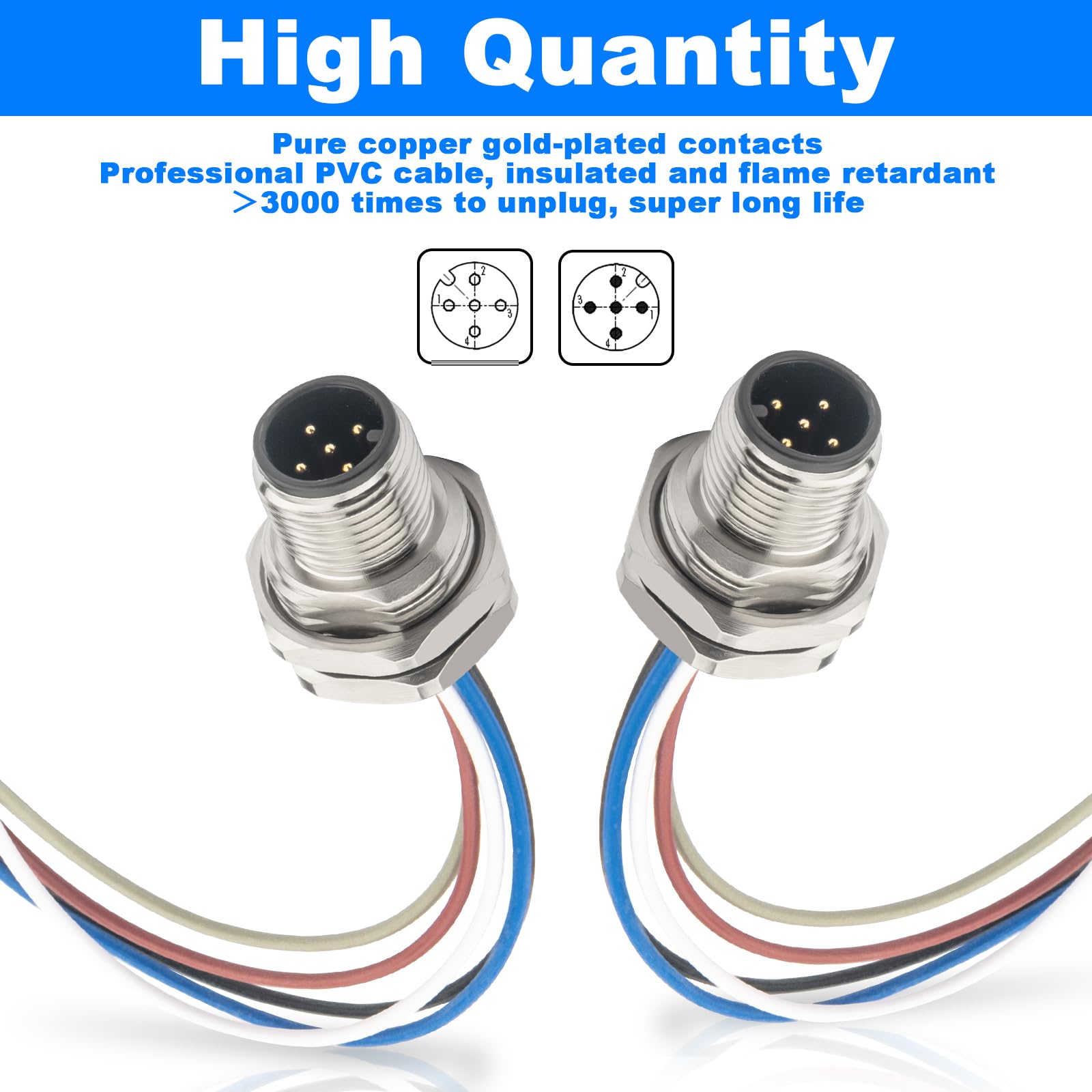

• waterproof industrial circular connector with fully nickel-plated copper metal sleeves, pure gold-plated copper contacts, durable and corrosion-resistant, ensuring stable and reliable data and signal transmission, suitable for various durable application requirements.

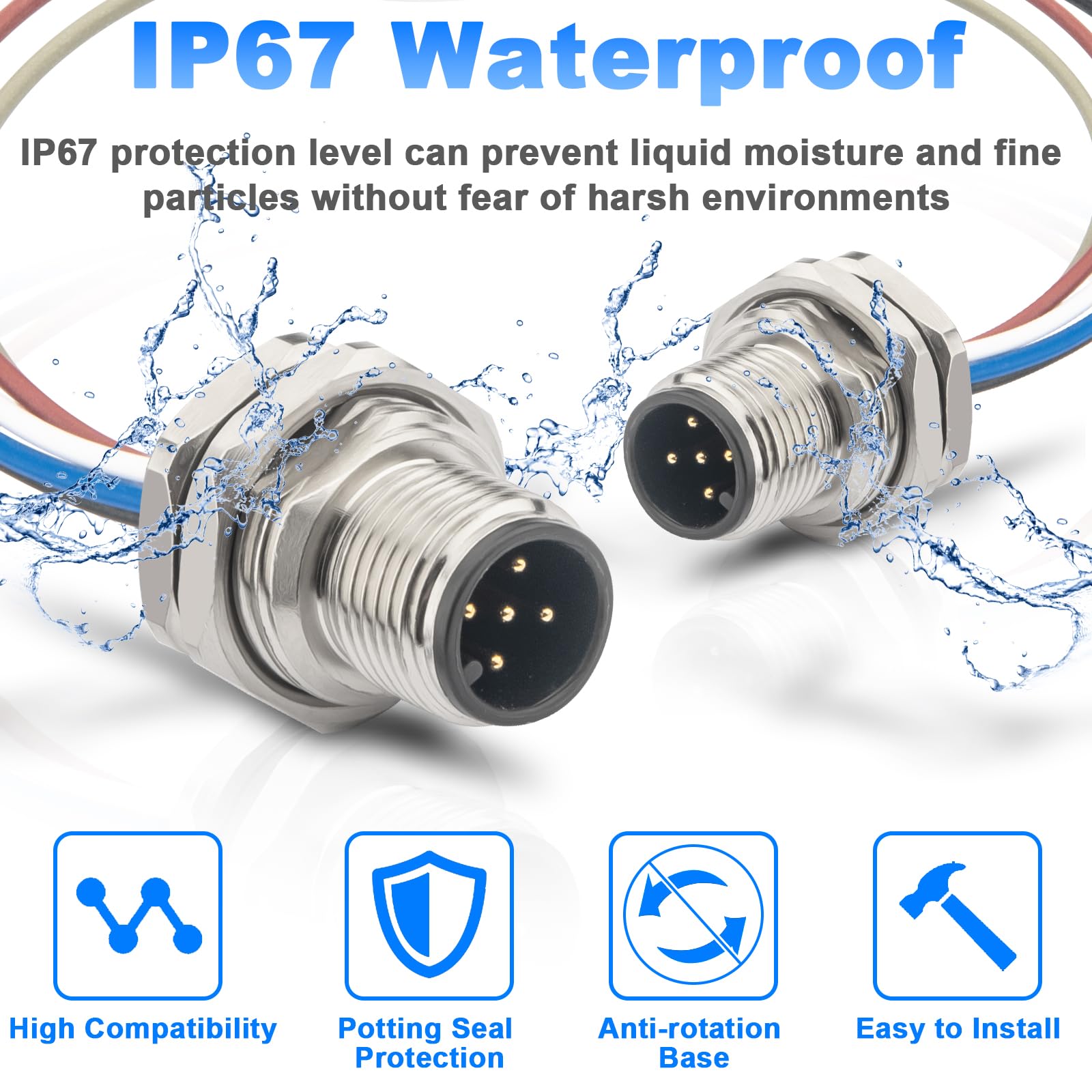

• ?IP67 Waterproof?The Waterproof 16mm Aviation Wire Connector are IP67 Compliant. High elastic rubber ring and clamping nuts provide a perfect waterproof /dust-proof, prevent the network parts from moisture, dirt rain & snow and insects for quality connections.

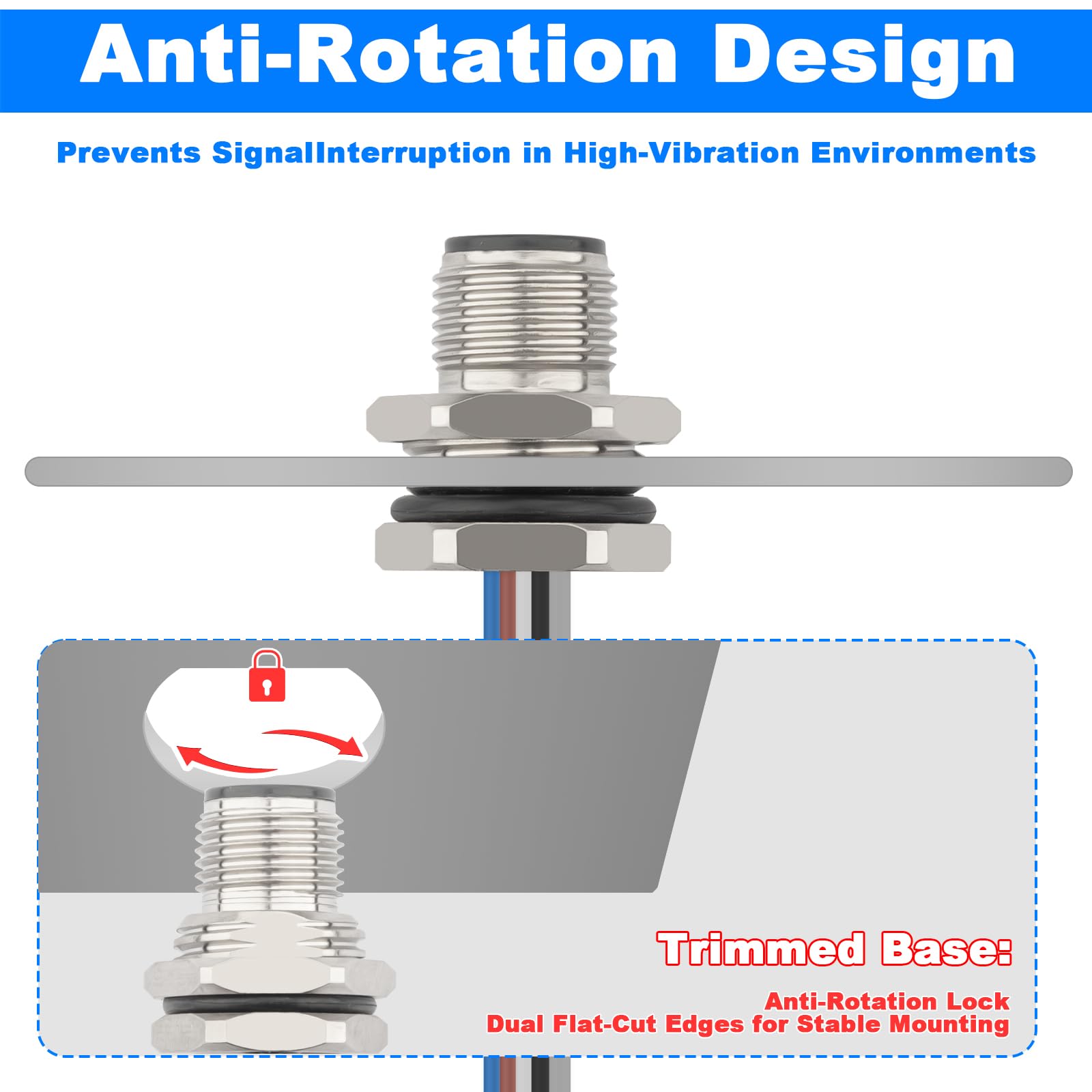

• ?Trimmed Base?Trimming base design perfectly solves the problem of circular bases rotating easily when fixed in place. In complex working conditions with high vibration and high dynamics, such as industrial automation production lines and robot operations, it can be firmly fixed in place to prevent connection loosening and signal interruption caused by base rotation, ensuring stable equipment operation and eliminating concerns about production stoppages or data transmission abnormalities caused by unstable connections.
• ?Front Mounting Structure?The M12 5-pin aerial connector cable has a front mounting design and can be fixed directly from the front of the device. There is no need to disassemble the equipment shell or operate from the inside, especially suitable for equipment with narrow space and complex internal structure. Compared with rear mounting (fixed from the inside), the flange surface of the front mounting is more uniformly stressed, the sealing pressure is more stable, and sealing failure is less likely to occur in long-term use.
• ?Wide Compatibility?16mm M12 Metal Chassis Thread Panel Connector Socket widely used in signal electronic connector of aviation,computer, various kinds of instruments and industrial cameras,electric bicycles,factory automation,can be easily connected to proximity switches,photoelectric barriers, flow monitoring devices,sensor devices and ctuator devices and field bus components.
Model: HM-7397
Color: Male
<p><b>Technical Parameters of M12 Series with Cable</b></p> <ul> <li>Number of pins: 5 Pin</li> <li>Connector locking system: Threaded type (screw)</li> <li>Termination: solder moulded-on cable</li> <li>Wire guage: 0.25mm²</li> <li>Degree go protection: IP67 Waterproof</li> <li>Mechanical operation: >100mating cycles</li> <li>temperature range: -25°~ +85°</li> <li>Rated voltage: 125V</li> <li>Rated impulse voltage: 1500V</li> <li>Pollution degree: 3</li> <li>0vervoltage categorie: II</li> <li>Material group: II</li> <li>Rated current (40°): 4A</li> <li>Contact resistance: <=10m? (Gold)</li> <li>Material of contact: Brass</li> <li>Contact plating: Gold</li> <li>Material of contact body: Nylon/PA</li> <li>Material of housing: PVC,PUR</li> <li>codding key: A:B:D</li> </ul>
• ?M12 Connector Cable?M12 Aviation Connector Cable,A Coded, 5Pin,Male,Straight,Front Mount,For Panel/Cable,Screw-Joint,Unshield,IP67 Waterproof. (Note: An additional 2-3 cm has been reserved for trimming to accommodate different devices.)
• ?High Quality?M12 aviation panel back mount flange socket sensor connector cable is made of professional high-quality PVC material, insulated and flame-retardant
• thread locking mechanism, anti-vibration locking design, 16mm threaded joint
• waterproof industrial circular connector with fully nickel-plated copper metal sleeves, pure gold-plated copper contacts, durable and corrosion-resistant, ensuring stable and reliable data and signal transmission, suitable for various durable application requirements.
• ?IP67 Waterproof?The Waterproof 16mm Aviation Wire Connector are IP67 Compliant. High elastic rubber ring and clamping nuts provide a perfect waterproof /dust-proof, prevent the network parts from moisture, dirt rain & snow and insects for quality connections.
• ?Trimmed Base?Trimming base design perfectly solves the problem of circular bases rotating easily when fixed in place. In complex working conditions with high vibration and high dynamics, such as industrial automation production lines and robot operations, it can be firmly fixed in place to prevent connection loosening and signal interruption caused by base rotation, ensuring stable equipment operation and eliminating concerns about production stoppages or data transmission abnormalities caused by unstable connections.
• ?Front Mounting Structure?The M12 5-pin aerial connector cable has a front mounting design and can be fixed directly from the front of the device. There is no need to disassemble the equipment shell or operate from the inside, especially suitable for equipment with narrow space and complex internal structure. Compared with rear mounting (fixed from the inside), the flange surface of the front mounting is more uniformly stressed, the sealing pressure is more stable, and sealing failure is less likely to occur in long-term use.
• ?Wide Compatibility?16mm M12 Metal Chassis Thread Panel Connector Socket widely used in signal electronic connector of aviation,computer, various kinds of instruments and industrial cameras,electric bicycles,factory automation,can be easily connected to proximity switches,photoelectric barriers, flow monitoring devices,sensor devices and ctuator devices and field bus components.
Model: HM-7397
Color: Male
