Brand: GTOMNI

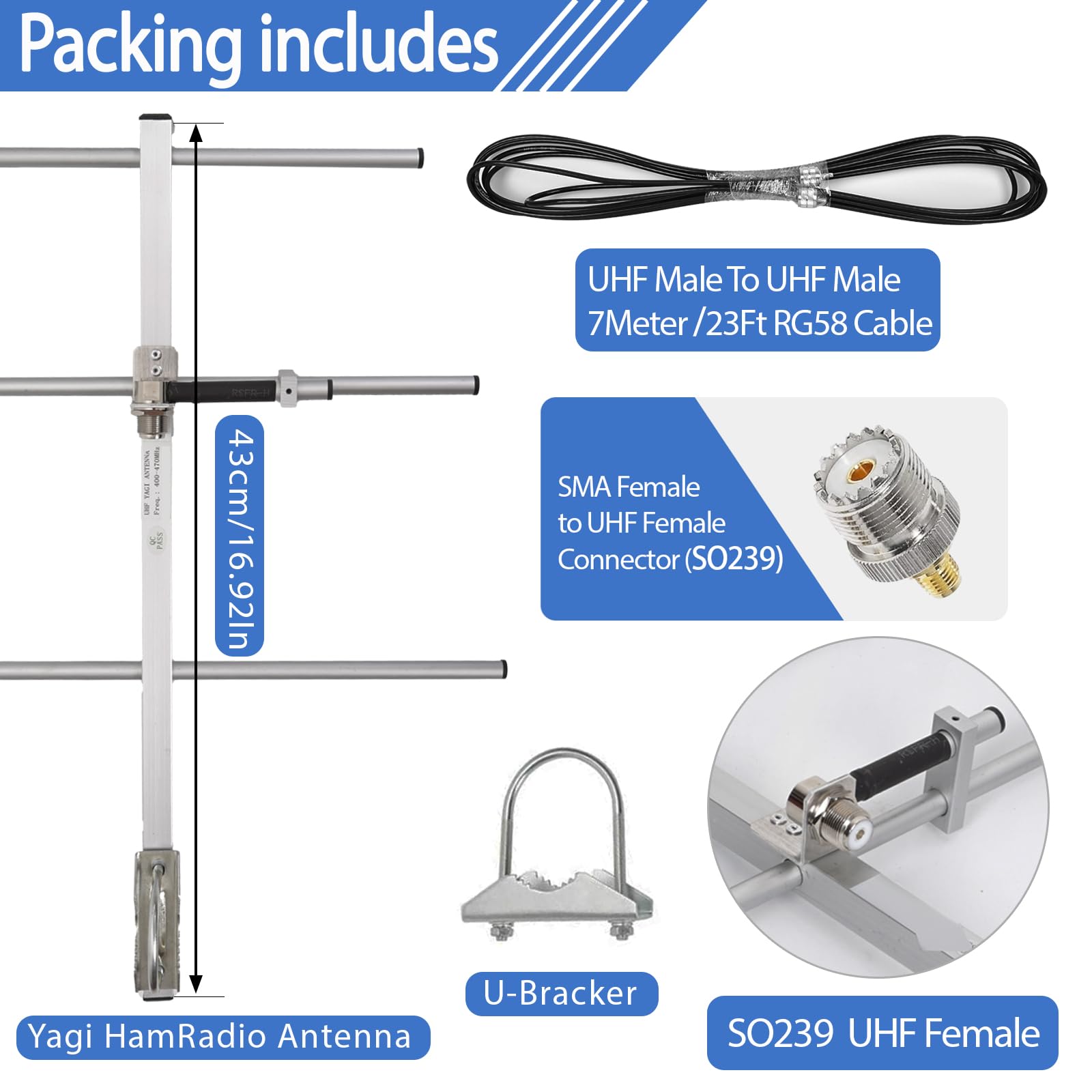

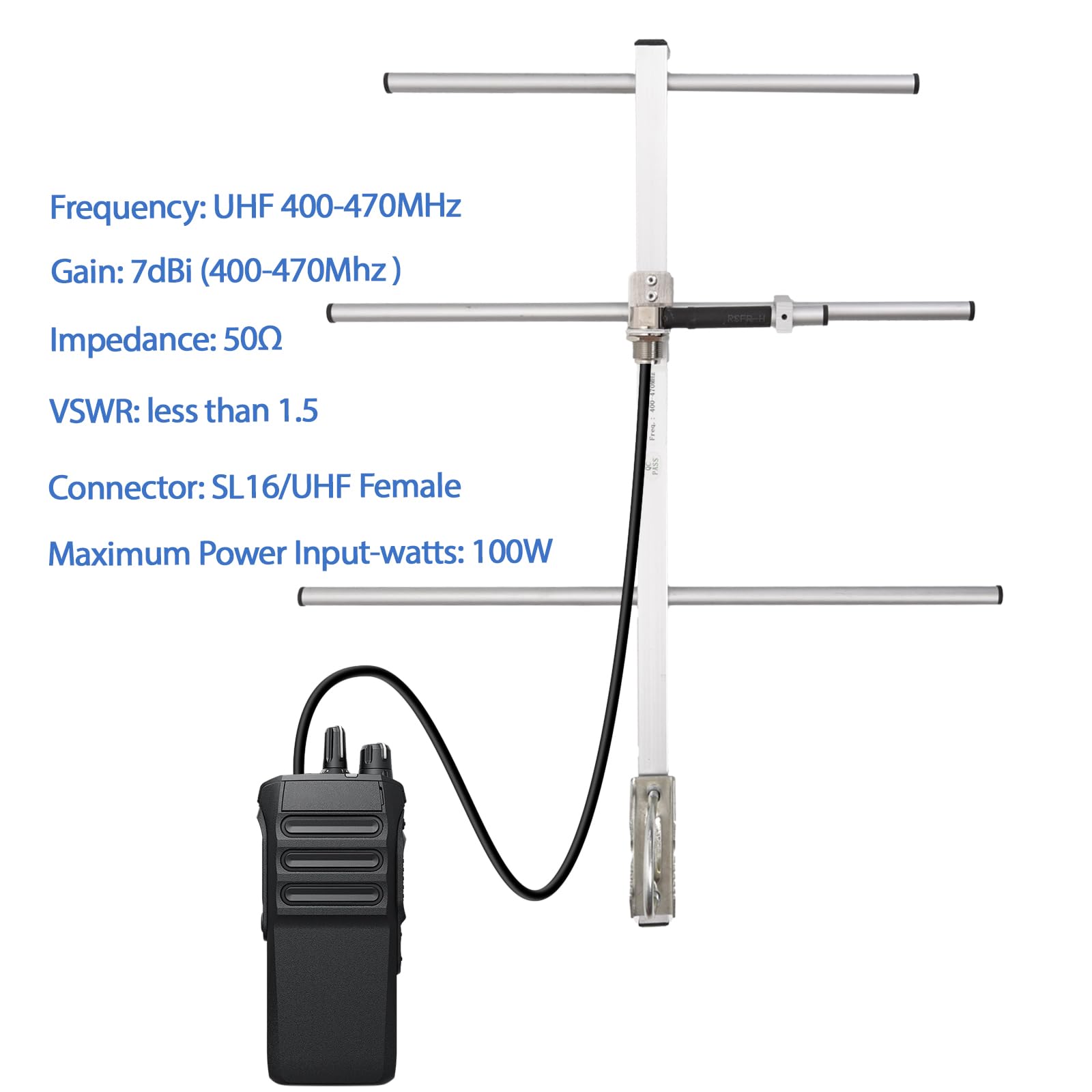

Electrical Specifications Frequency range: UHF 400-470MHz <br>Gain: 7dBi (430MHz) <br><br>Maximum Power Input-watts: 100 W<br> Impedance: 50? VSWR: less than 1.5 Connector: SL16 Female(UHF Female) Bandwidth:20MHz <br>Polarization: Horizontal 3dB Beam Width: 53° Vertical 3dB Beam Width: 45° Front To Back Ratio: >15 dB <br>Mechanical Specifications Material: Aluminium alloy Size: 430 x 380x 48mm Weight: 0.3Kg <br>Mounting hardware:Ø30?Ø40 mm Rated Wind Velocity:60 m/s <br><br>Features: High gain Strong directionality Strong anti-jamming Realize long distance communication Simple construction and easy assembly and disassembly <br><br>Packing inlcudes: 1x UHF 400-470MHz Yagi Antenna <br><br><b>Note: </b><br>1.If you need to return it, please make sure the returns have all original packaging and accessories,Thank you for your understand. <br><br>2.The Yagi antenna operates without the need for a grounding in most cases. <br>However, you can ground antenna via the outer conductor of the connector and the cable, or through the mounting hardware, recommend you install a lightning surge protector between the Yagi and a device to prevent a lightning strike to the antenna from damaging your device and equipment.<br><br>CONTACT Please Feel Free to contact us if you have question before or after you purchase.We Will do our best to help you!

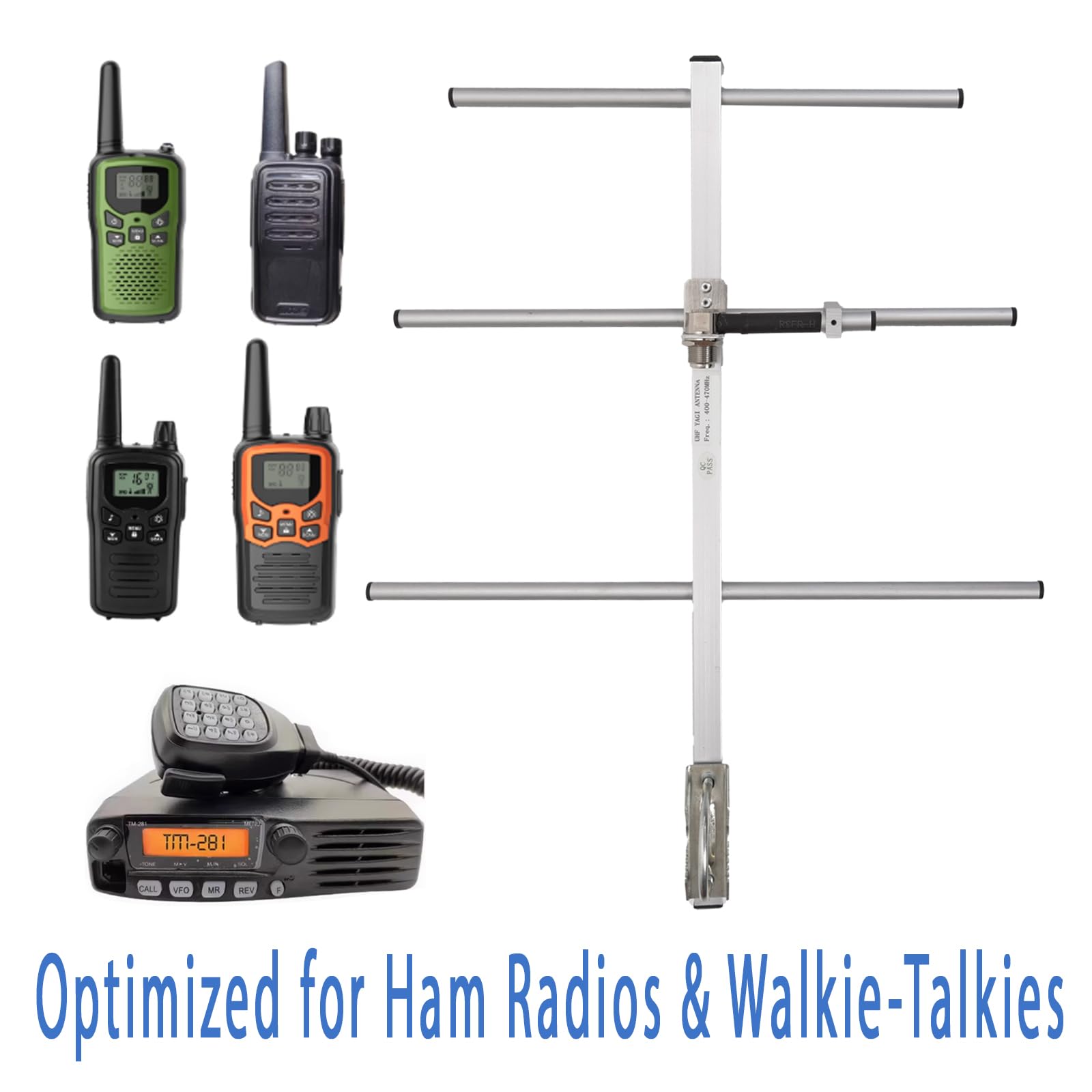

• Optimized for Ham & Walkie-Talkies: Specifically designed for high gain 7dBi, it can effectively enhance signal of your 2-way radio or transceiver. Frequency UHF 400-470MHz ham radios, it can work for most UHF 2-way radio or mobile transceivers like walkie-talkies and other transceiver devices, ensuring superior signal reception and transmission
• Built to Last: Crafted with durable aluminum alloy materials to withstand the elements, lightweight and compact, easy to assemble and install for outdoor adventures and harsh environments

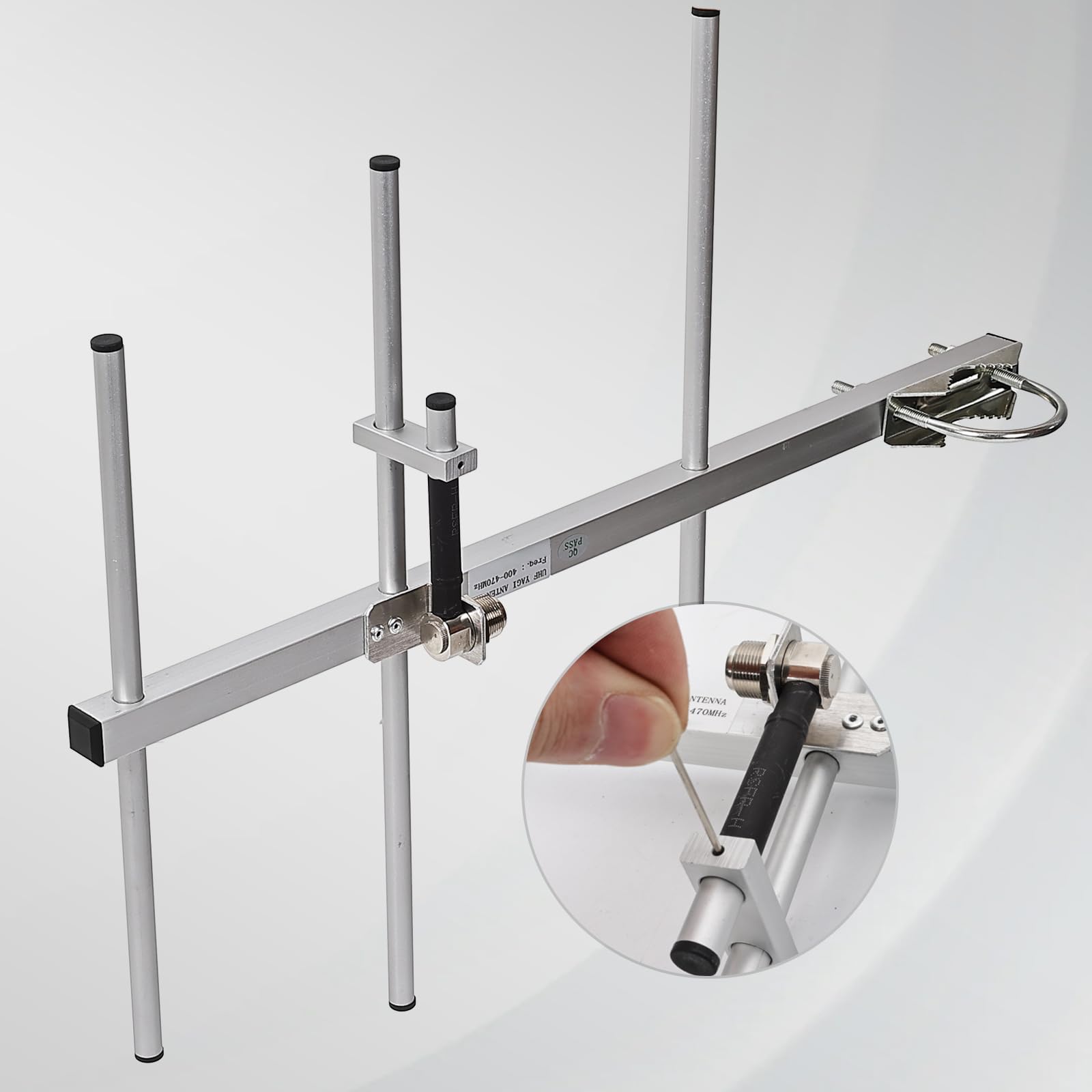

• Effortless Installation: Simple setup process with clear instructions included in the package, making it easy to get started with your communication needs and helps to install it easily in a few minutes
• Boosts Communication Range: Enhances your communication range and clarity, ensuring reliable connections even in remote locations. The longer SL16 female connector is suitable for coaxial cable with SL16 male connector. The antenna works best when the element is perpendicular to the ground
• High Performance Specifications: 7dBi outdoor Yagi antenna with 100W power capacity, 400-470MHz frequency range, and 50 impedance. It is a good choice whether to connect to the UHF handheld or mobile radio
• Directional Design Advantages: Features strong directionality with 53 horizontal and 45 vertical 3dB beam width, front to back ratio greater than 15dB, and strong anti-jamming capabilities for long distance communication

Model: TWAYRDIO-YG03
Color: Silver
