Brand: Global Caché

<b>Global Caché GC-100-18R Network Adapter</b><br><br>A large number of people use network-based automation and control software in keeping their homes safe and energy efficient. The Global Caché GC-100-18R connects and controls your home automated appliances or domotics to a network. It is engineered to seamlessly integrate with IR, Sony Control-S, RS232 serial, sensors, and relay contact closures via TCP/IP and HTTP network protocols. The network adapter provides two serial ports, three relay connections, and six independent IR outputs/sensor inputs. This open network-based system allows you to remotely control the TV, AV, HVAC, DVD, and smart sensors using one server without operator intervention. The GC-100-18R also features fan-free, silent operation and comes with an installed rack mount unit.<br><br><b>TECHNICAL SPECS:</b><li>Network Connection: RJ-45, 10 Base-T<li>Network Protocols: TCP, DHCP, HTTP<li>Serial Connections: 2<li>Relay Connections: 3<li>IR Outputs: 6<li>Connectors: Male DB9 Serial, 3.5mm stereo jack IR/Sensor, screw terminal plug Relay<li>Control Options for Serial: TV, AV, HVAC, security<li>Control Options for Relay: Switch-controlled (On/Off) contact closure, lights, curtain, pool, irrigation<li>Control Options for IR: 30kHz~500kHz audio, video, DVD<li>Control Options for Sensor: Video signal sensor, power detection 24V AC/DC, contact closure<li>Power Requirements: 9~18V DC at 300mA<li>Certifications: FCC (Part 15, Class B), C-tick, CE, RoHS compliant<li>Dimensions (LxDxH): 18 x 3 x 1.3"

Features:

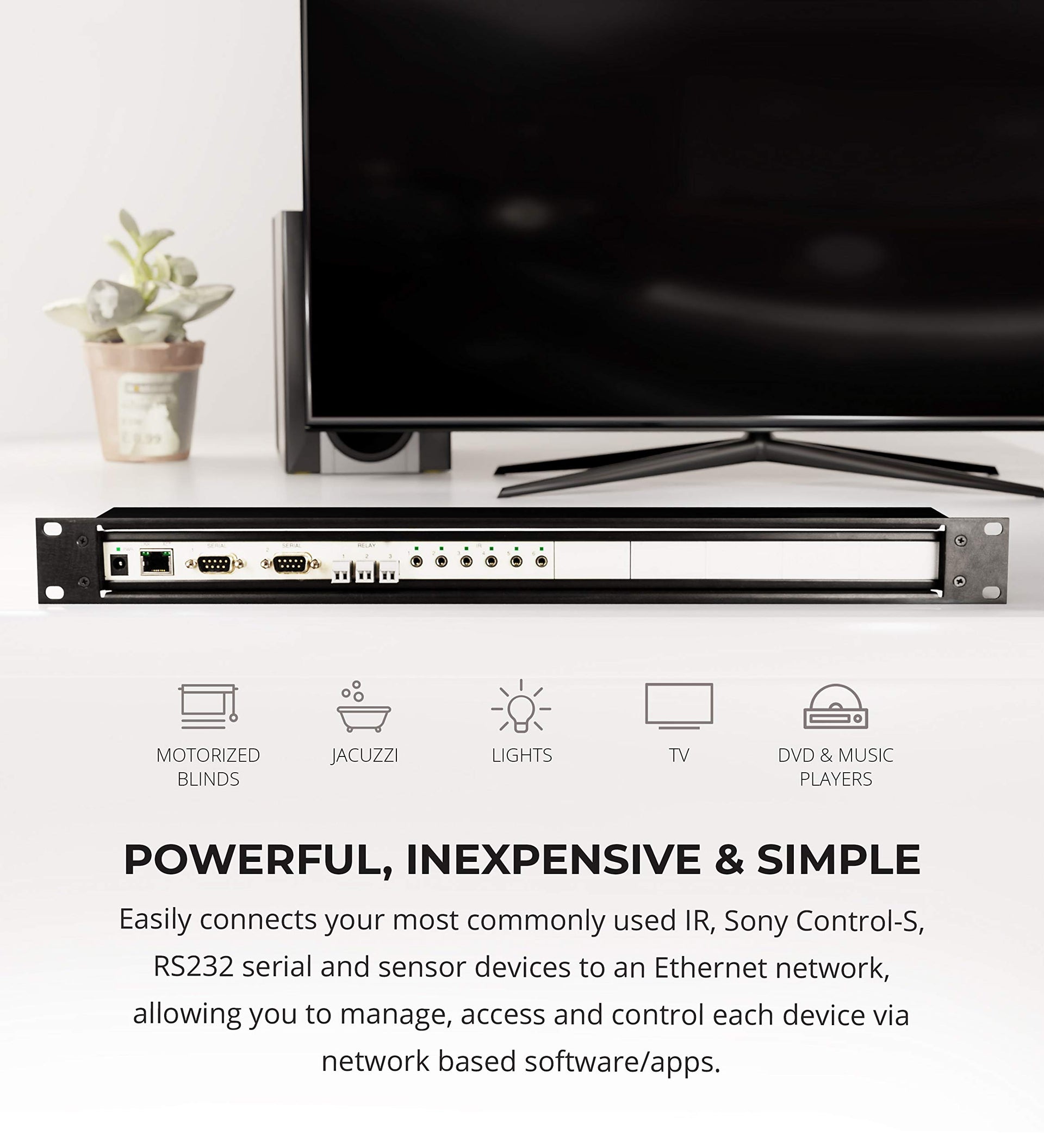

• PROVIDES MORE CONNECTIVITY - The Global Caché GC-100-18R offers an easy connection for your network-based IR, Sony Control-S, RS232 serial, sensors, and relay contact closures.

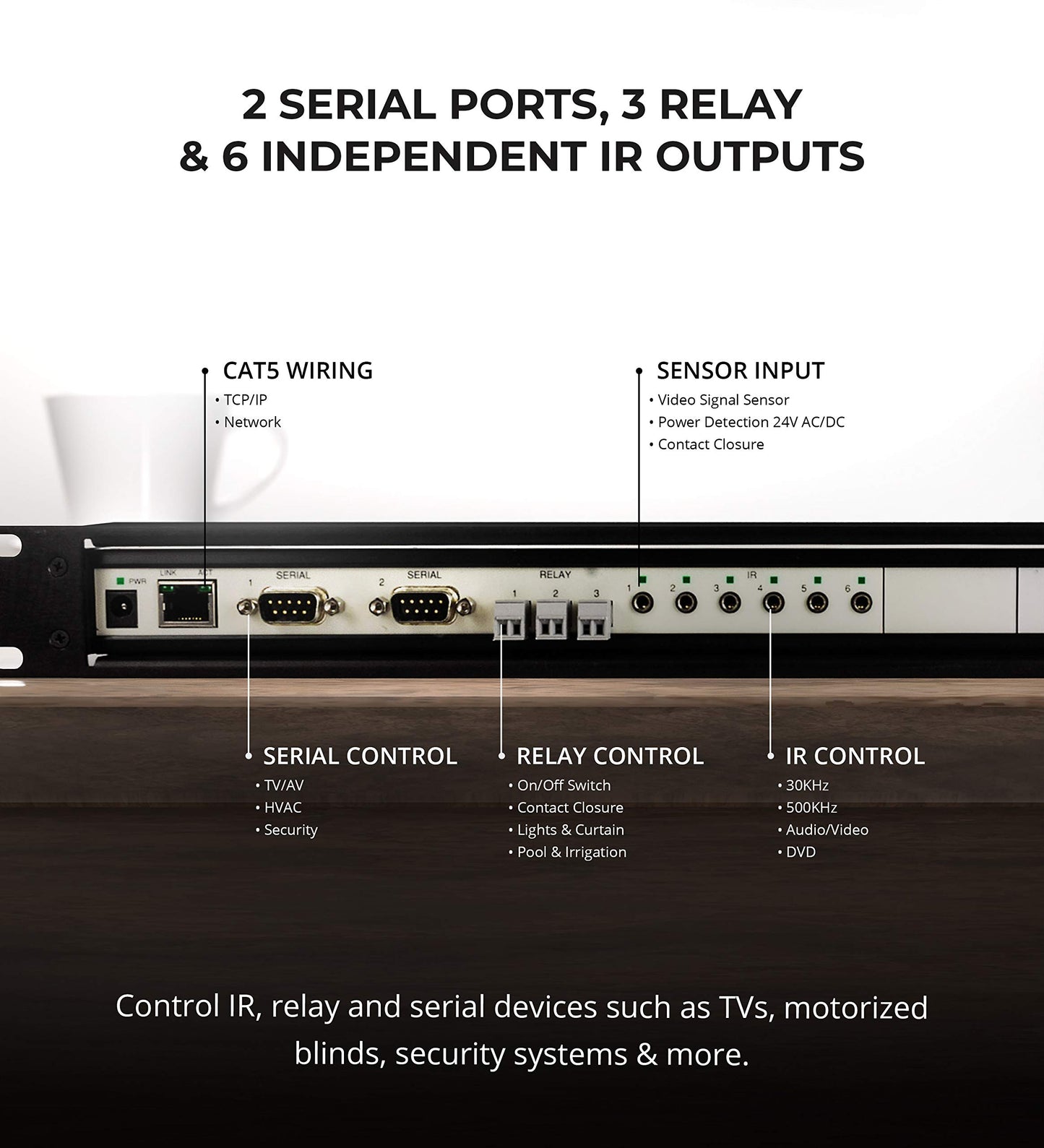

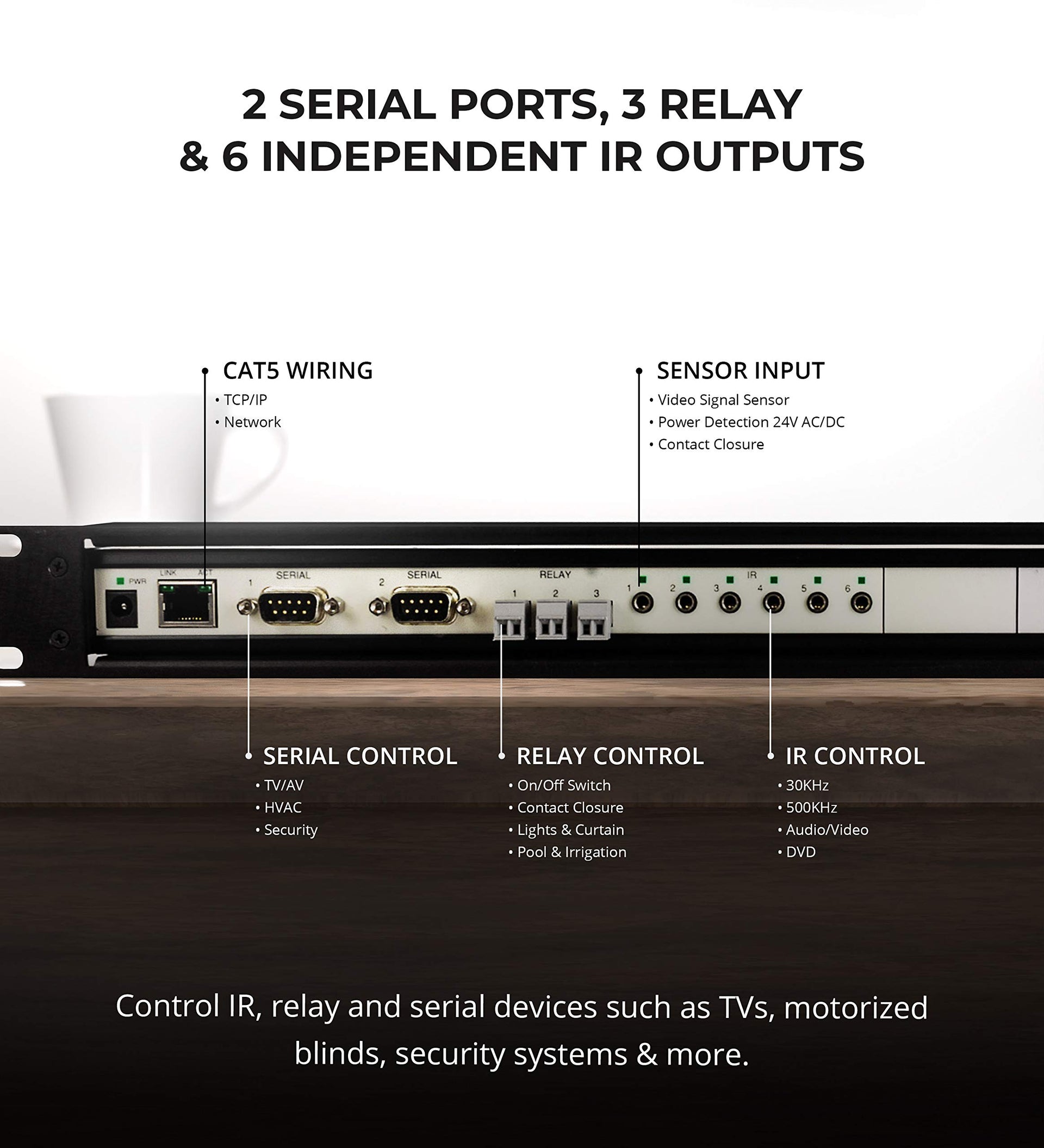

• OFFERS MORE CONTROL OPTIONS - The unit has 2 serial ports, 3 relay connections, and 6 independent IR output or sensor inputs. Conveniently switch on/off lights and contact closures with the GC-100-18R.

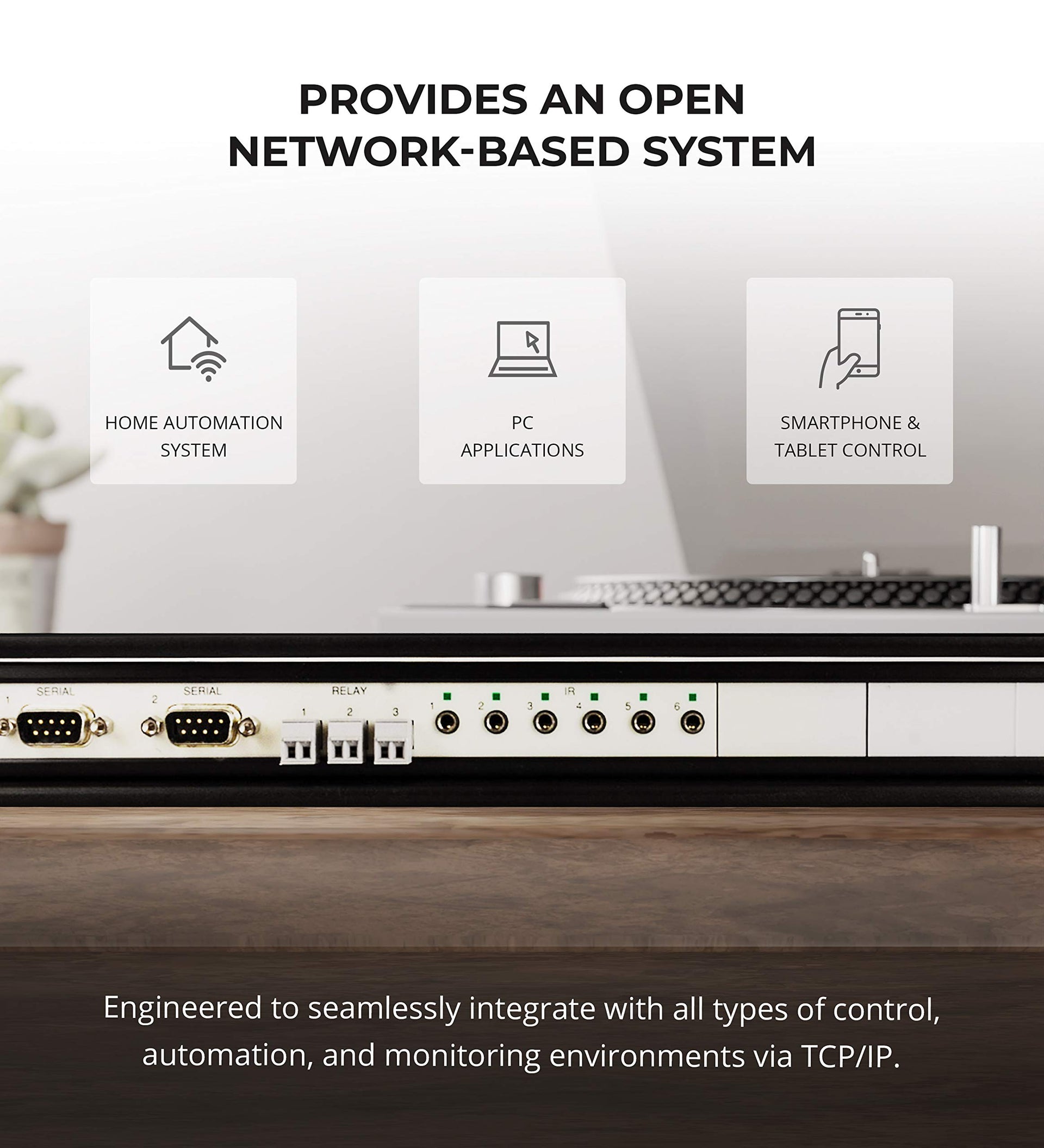

• PROVIDES AN OPEN NETWORK-BASED SYSTEM - It supports TCP, DHCP, and HTTP protocols allowing you to configure and manage sensor devices from a single server without operator intervention.
• INTEGRATES WITH AUTOMATED APPLIANCES SEAMLESSLY - The unit has an RJ-45 and 10 Base-T Ethernet for the network interface, which conforms with all types of Smart Controls and Monitoring environments.
• WORKS WITH VARIOUS CONTROL SOFTWARE - Remotely control serial, relay, infrared devices and sensors via MyURemote, tin:b Software, TouchControl, Touch Squid, Worried Cate Mote, iRidium, and more!

Product Details:

• Color: Black
• Model: GC-100-18
• Package Quantity: 1
