Brand: GIQITCK

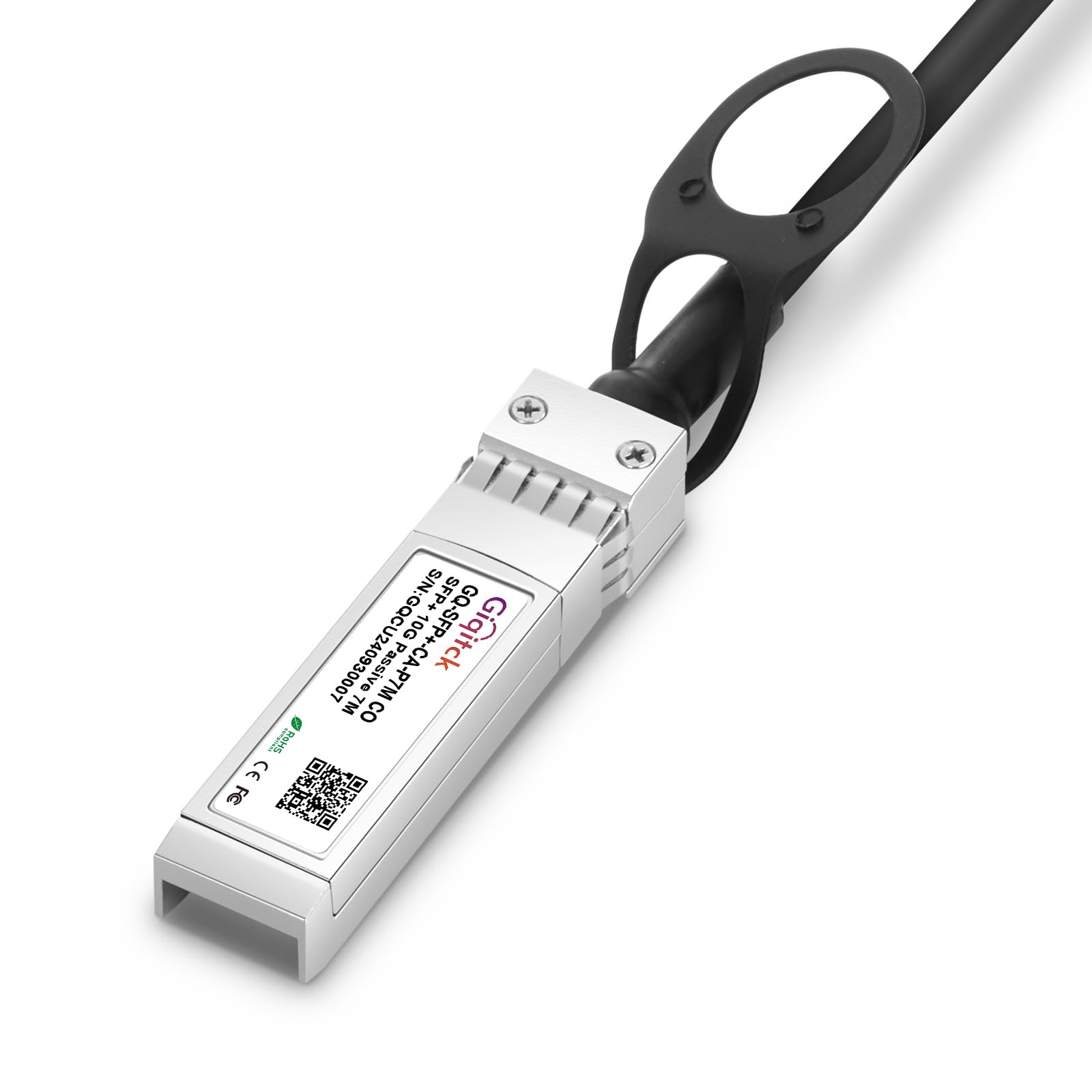

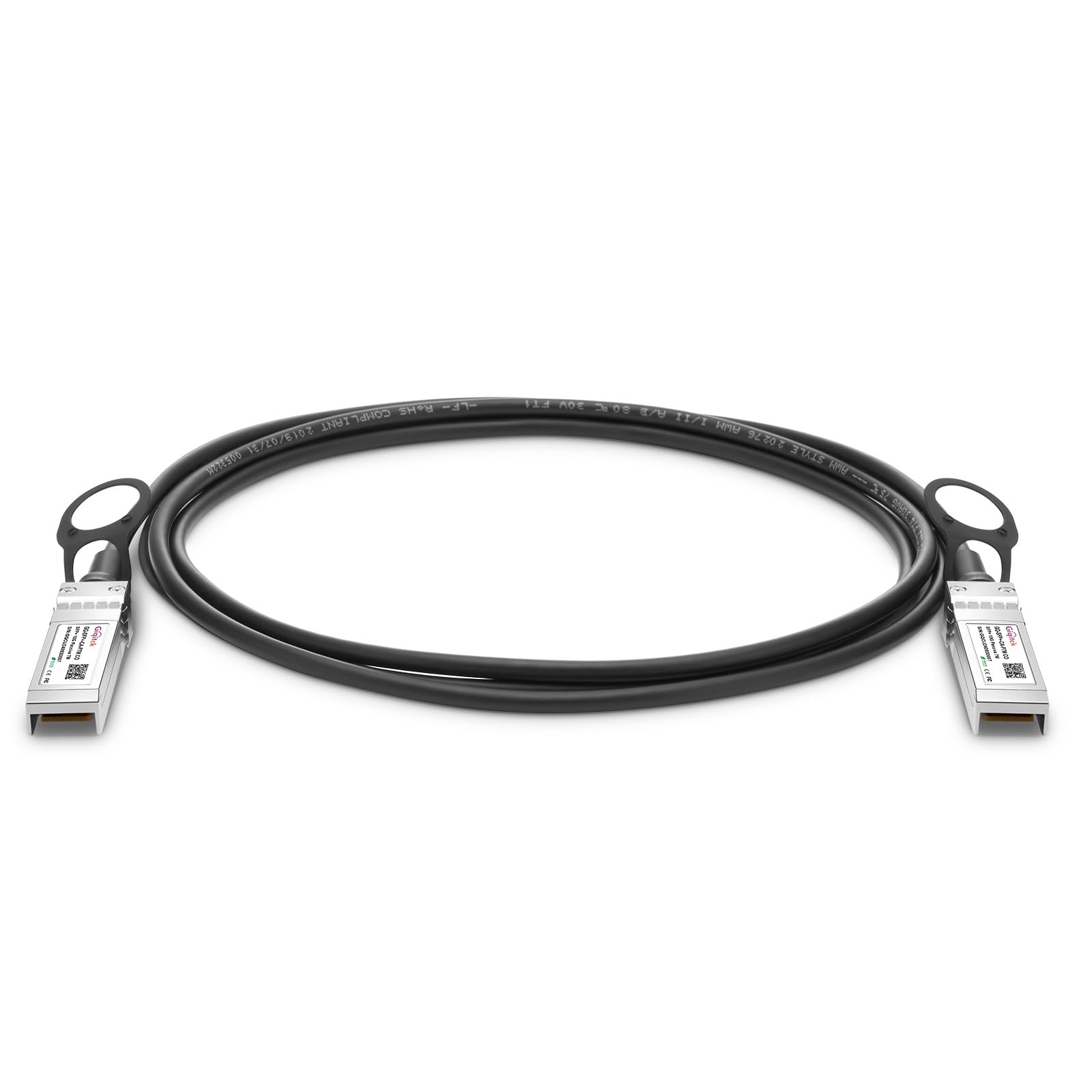

<b> The SFP+ passive cable assemblies are high performance, cost effective I/O solutions for 10G Ethernet and 10G Fiber Channel applications. SFP+ copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget. The high speed cable assemblies meet and exceed Gigabit Ethernet and Fiber Channel industry standard requirements for performance and reliability. <b> These assemblies are called “passive” copper cables because there isn’t any signal conditioning circuitry (e.g. crosstalk or echo cancellation) contained within the SFP+ connector. Sometimes these assemblies are referred to as “DAC” or “Direct Attached Copper” cables. Inside the SFP+ MSA footprint optical cables can be used that require optical transceivers or Active Optical Cables (AOC) that contain the transceiver as part of the cable. <b> 10G SFP+ DAC Twinax Cable for Cisco, Ubiquiti, D-link, Netgear, Mikrotik, Open Switch Devices. <b> Connector Type: SFP+ to SFP+ <b> Max Data Rate: 10Gbps <b> Minimum Bend Radius: 23mm <b> Wire AWG: 24AWG <b> Cable Length: 7m (23ft) <b> Jacket Material: PVC (OFNR) <b> Temperature: 0 to 70°C (32 to 158°F) <b> Protocols: 1x InfiniBand QDR, DDR, SDR, 10G Gigabit Ethernet, Fibre Channel

Features:

• 10G SFP+ to SFP+ Connetor direct attach copper cable, 10GBase-CU twinax cable, Passive,7 Meters(23ft), AWG24.
• SFP+ Cable Applied in 10G Ethernet Hub, Switches, Routers and Servers with SFP+ ports.
• Compatible with 200+ Vendors, such as compatible for Cisco, Fortinet, Ubiquiti, Netgear, D-link, Supermicro, Mikrotik, ZTE, Quanta, Solarflare, PaloAlto, F5, etc devices
• Featured with lower latency, lower power consumption, and lower cost, this 10G SFP+ passive direct-attach copper twinax cable is widely applied in data centers for high-performance computing network cabling systems.
• Plug and Play, this sfp+ to sfp+ dac cable is hot-swappable,no setup or technical expertise necessary. Easy installation, just plug dac cable module in, when pull it out, pull the ring to unlock it.

Product Details:

• Color: 7M
• Size: X1
• Model: GQ-SFP+-CA-P7MX1
• Package Quantity: 1
