Brand: REVOTECH

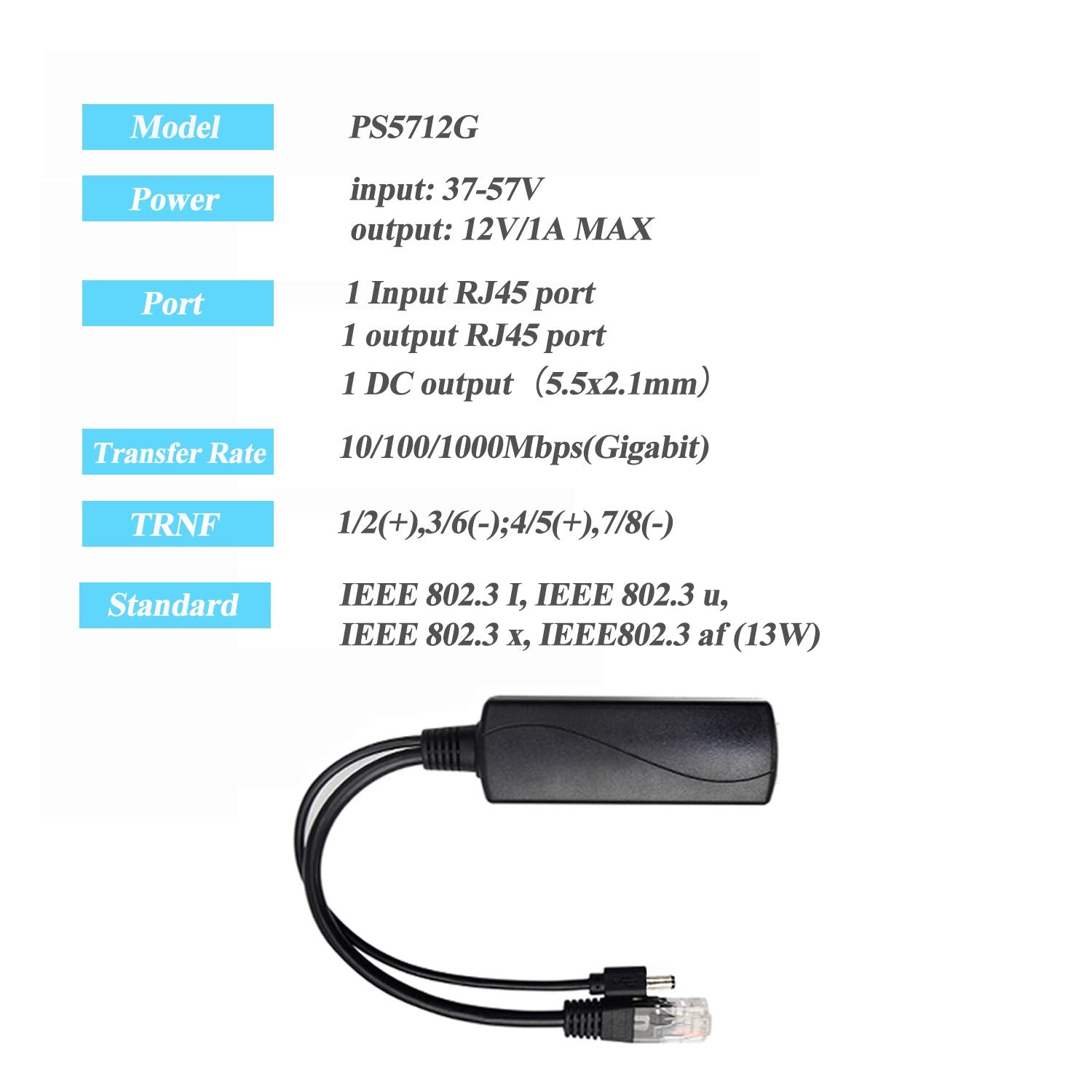

Overview?<br>PoE splitter is an economical and practical PoE remote power equipment base on IEEE802.3af standard. <br>It can separate the power and data via cable transmission and proper matching use with PoE switch or PSE injector which meet standard IEEE802.3af, Provides power and data at the same time for the terminal device does not support PoE.<br>PoE splitter, output voltage of 12V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other PoE practical place, and is not restricted by layout of power line.<br><br>Specifications?<br>Support international standard IEEE802.3 af(13W);<br>POE port Support 10/100/1000Mbps data transmission<br>PD support 37V-57V voltage transmission, Automatically detects power supply from PSE power supply module<br>12V power output, easy to access Poe network for non-PoE terminal<br>Support the isolation circuit protection, can effectively protect electrical equipment.<br>Support the short circuit, overvoltage protection<br>1500V high voltage isolation<br><br>Model: PS5712G<br>Transfer Rate: 10/100/1000Mbps(Gigabit)<br>Power: Input 48V DC /0.35A, Output 12V/1A<br>Standard: IEEE802.3 af(15.4W)<br>TRNF

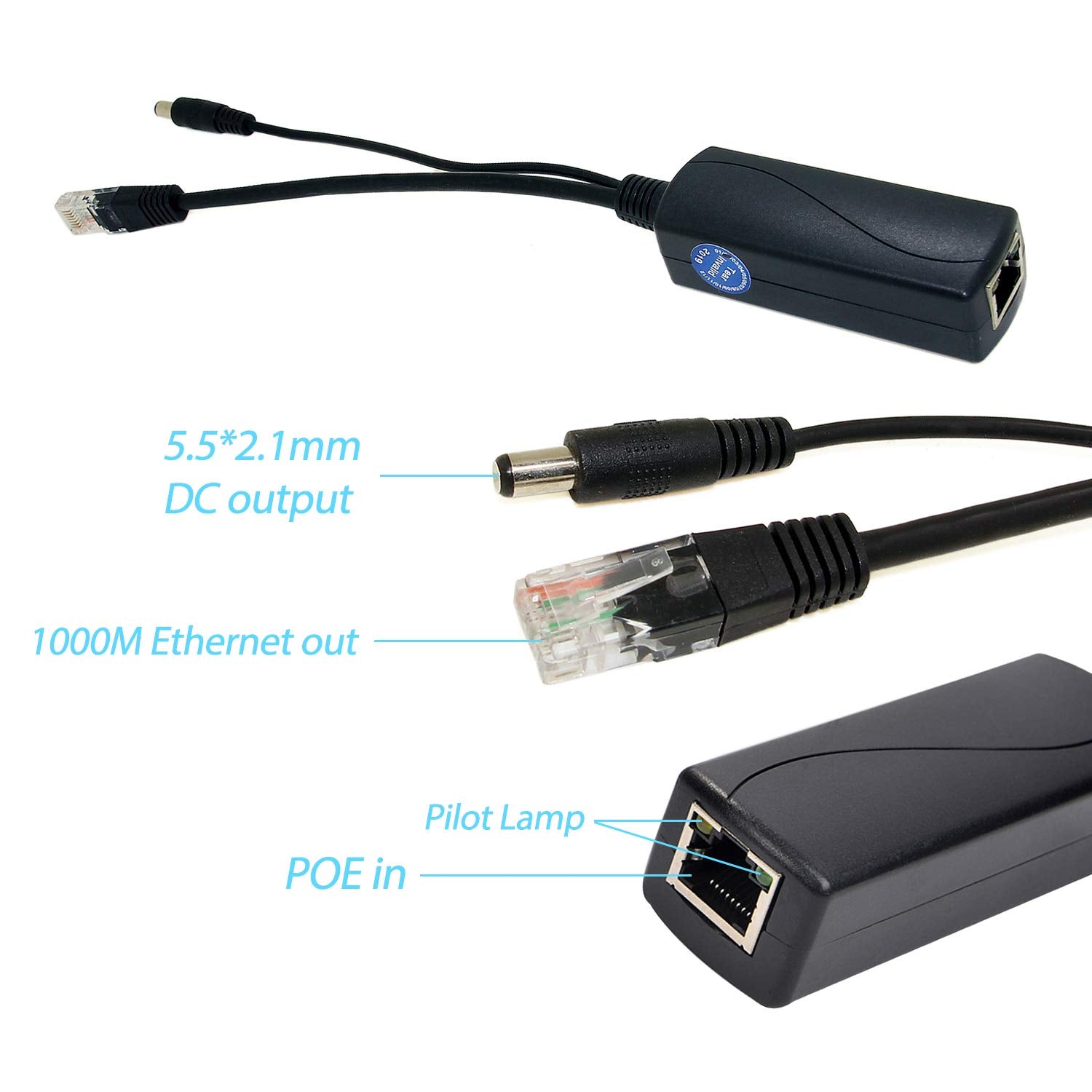

• ?PoE 48V to DC 12V/1A?Convert 48V PoE to DC 5.5*2.1 mm 12V/1A output. DC cable for power supply and RJ45 cable for netework. Non-PoE devices with DC 5.5*2.1 mm ports can enjoy the same convenience of POE power as POE devices.
• ?Max 12W DC Output?Auto detecte, appropriate power output to connected devices. Up to Max 12W (12V/1A) via DC 5.5*2.1 mm connector.
• ?Gigabit Speed up to 1000Mbps?Support fast gigabit transmission, compatible with 10/100/1000Mbps rates.
• ?Plug and Play ?Simply connect to terminal equipment and work, easy to use, avoid complex configuration.

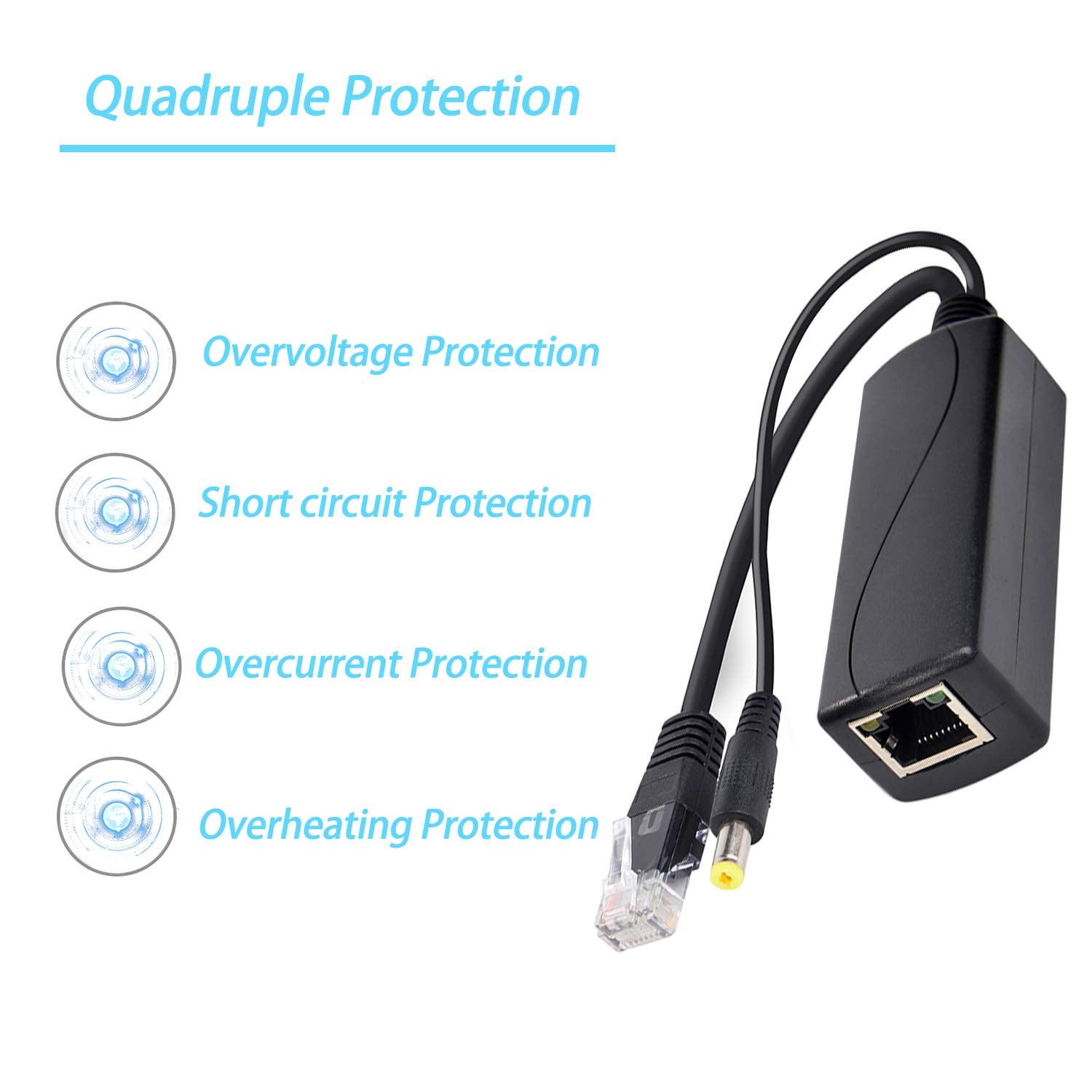

• ?Multiple Protection?Isolation circuit protection, Short circuit protection, Overvoltage protection, effectively protect your equipment.

Color: 12V 1A DC Plug PS5712G
