Brand: KGUSS

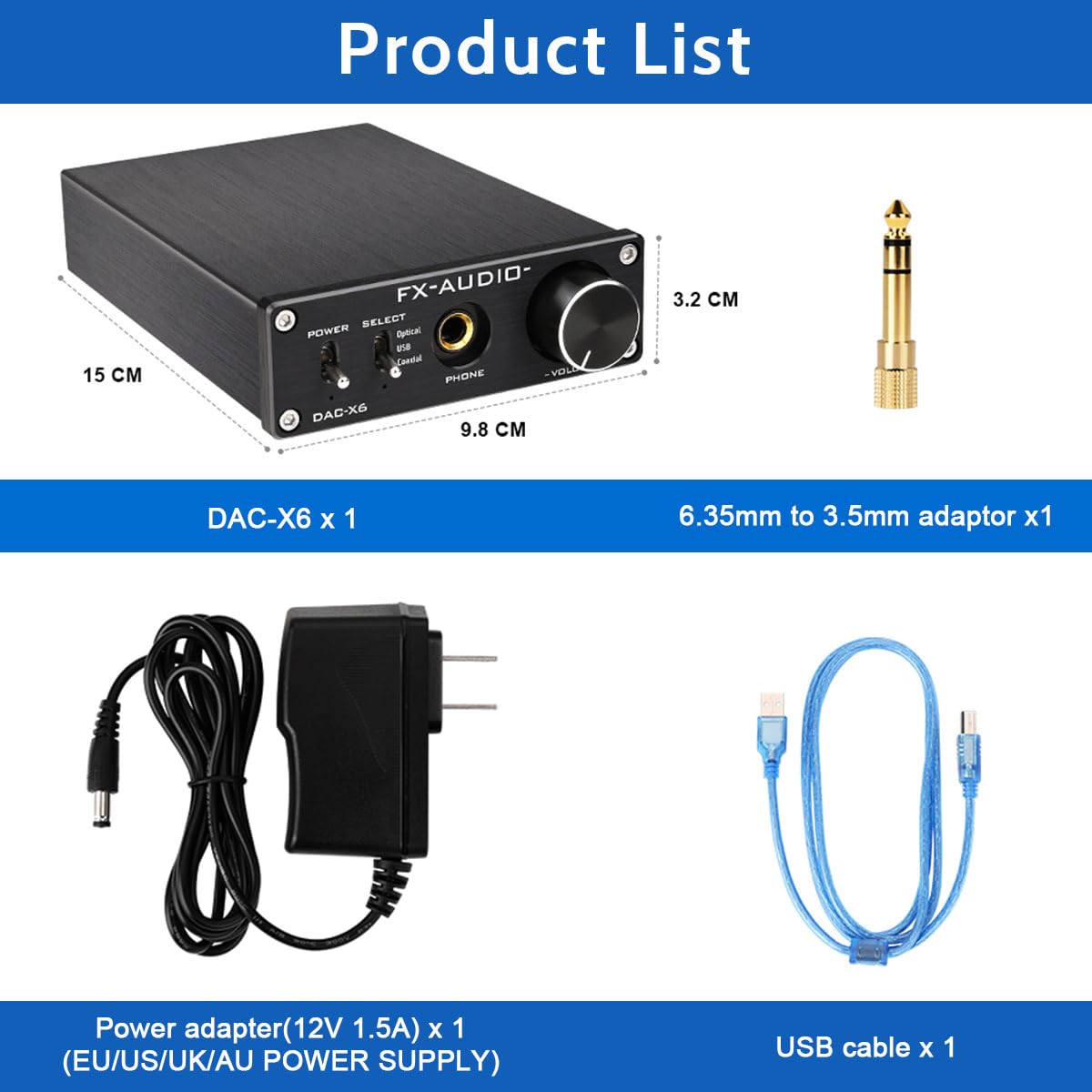

<p>DAC-X6 Optical/Coaxial/USB Decoder USB DAC AMP Audio Headphone Amplifier </p> <p><b>SPECIFICATIONS</b></p> <p><br></p> <p>Digital input :PC USB / Coaxial / Optical(with toggle switch)</p> <p></p> <p></p> <p></p> <p><br></p> <p>Output: 6.35mm headphone out / 2ch stereo power amp </p> <p><br></p> <p>Line level output: RMS 1.8V</p> <p><br></p> <p>Frequency response: ±3dB(20Hz-20khz?</p> <p><br></p> <p>Headphones Impedance:32?-600? </p> <p><br></p> <p>Headphone power output : 520mW@16??450mW@32??250mW@64??165mW@120?</p> <p><br></p> <p>SNR: -94dB</p> <p><br></p> <p>THD: 0.001%</p> <p><br></p> <p>Sampling rate :</p> <p>USB:24bit / 96kHz; 16bit / 192kHz</p> <p>Optical / Coaxial : 24bit / 192kHz</p> <p><br></p> <p>Adapter Voltage: 100-240ACV</p> <p><br></p> <p>Machine power / adapter output voltage: Dc12V 1A~3A </p> <p><br></p> <p>Size: 5.7 x 3.9 x1.4 in</p> <p>Weight:1.1lb</p> <p></p> <p></p> <p></p> <p></p> <p><br></p> <p><b>PRODUCT LIST</b></p> <p></p> <p></p> <p></p> <p></p> <p>*DAC-X6 ×1</p> <p>*Use guide×1</p> <p>*Power adapter(12V1.5A)×1</p> <p>*Certificate of conformity×1</p> <p>*6.5 to 3.5 joint ×1</p> <p>*USB Cable×1</p>
• Do your headphones need more power? If so, the FX-Audio DAC-X6 may be what you're looking for. This digital audio decoder ensures that every sound, whether in games or music, is delivered with unparalleled clarity. The DAC's versatile inputs and outputs, combined with a headphone amp, make it the perfect companion for the 16 Ohm to 300 Ohm headphones.

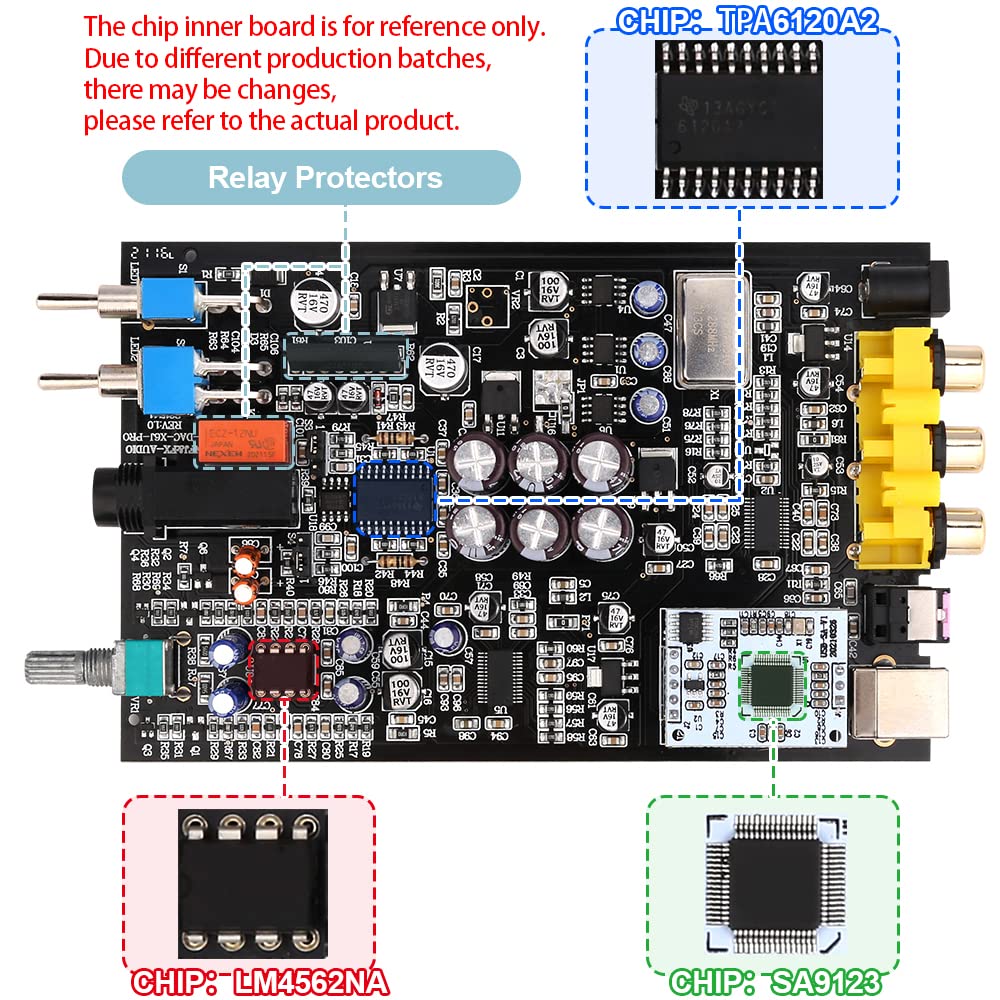

• Chipset: The mini amps chip uses TPA6120A2+LM4562NA+SA9123+CS4398+CS8416 to provide strong guarantee for tone input and output.The op amp can be freely replaced and upgraded, so there's actual upgradability with this. At the same time, a relay protectors may protect the headphones and speakers.

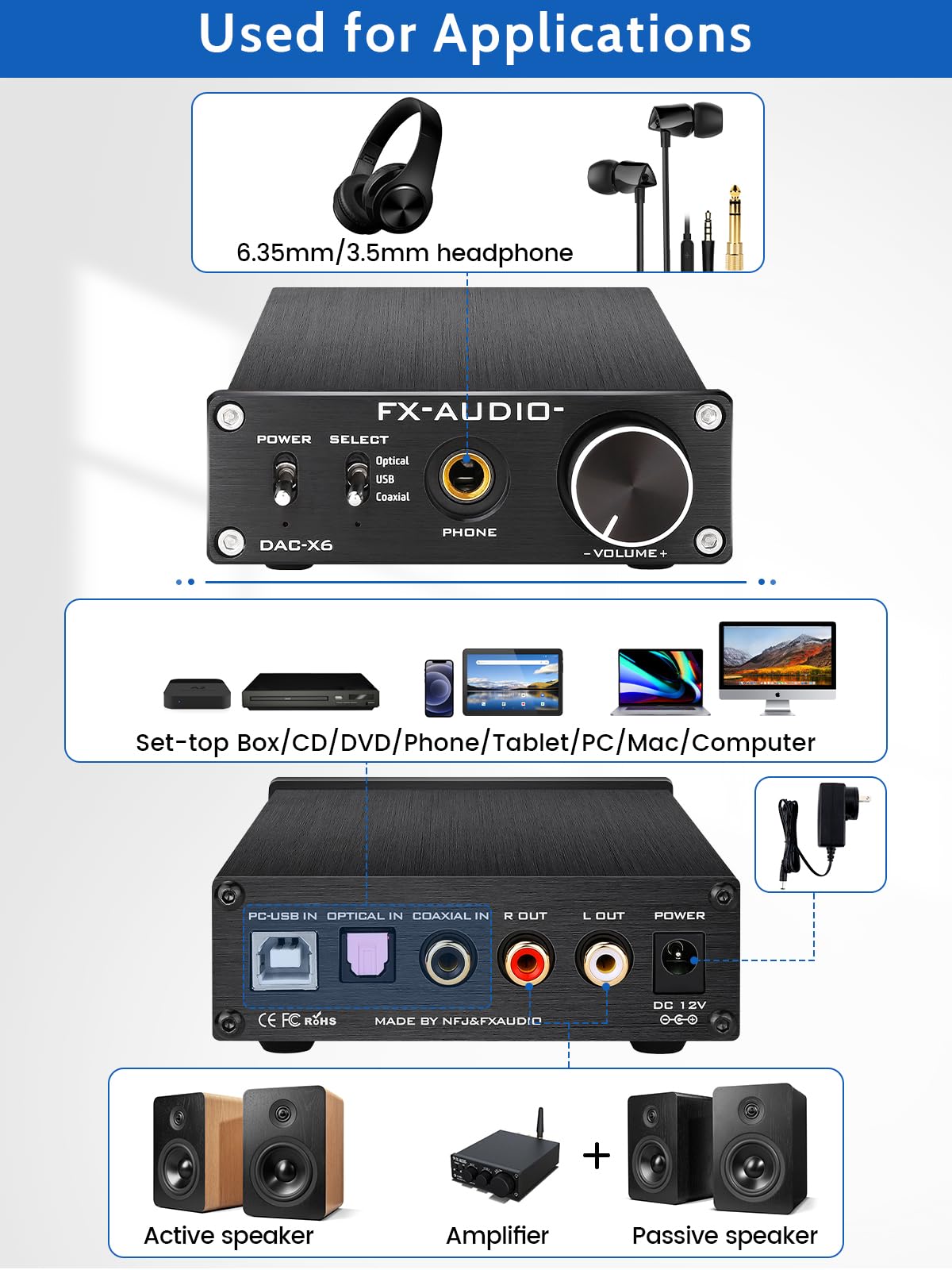

• The rear panel has a Type-B USB input, a Toslink optical and a coaxial digital input that can be connected to Computer/PC/TV/X-BOX/PS5/DVD/DCD

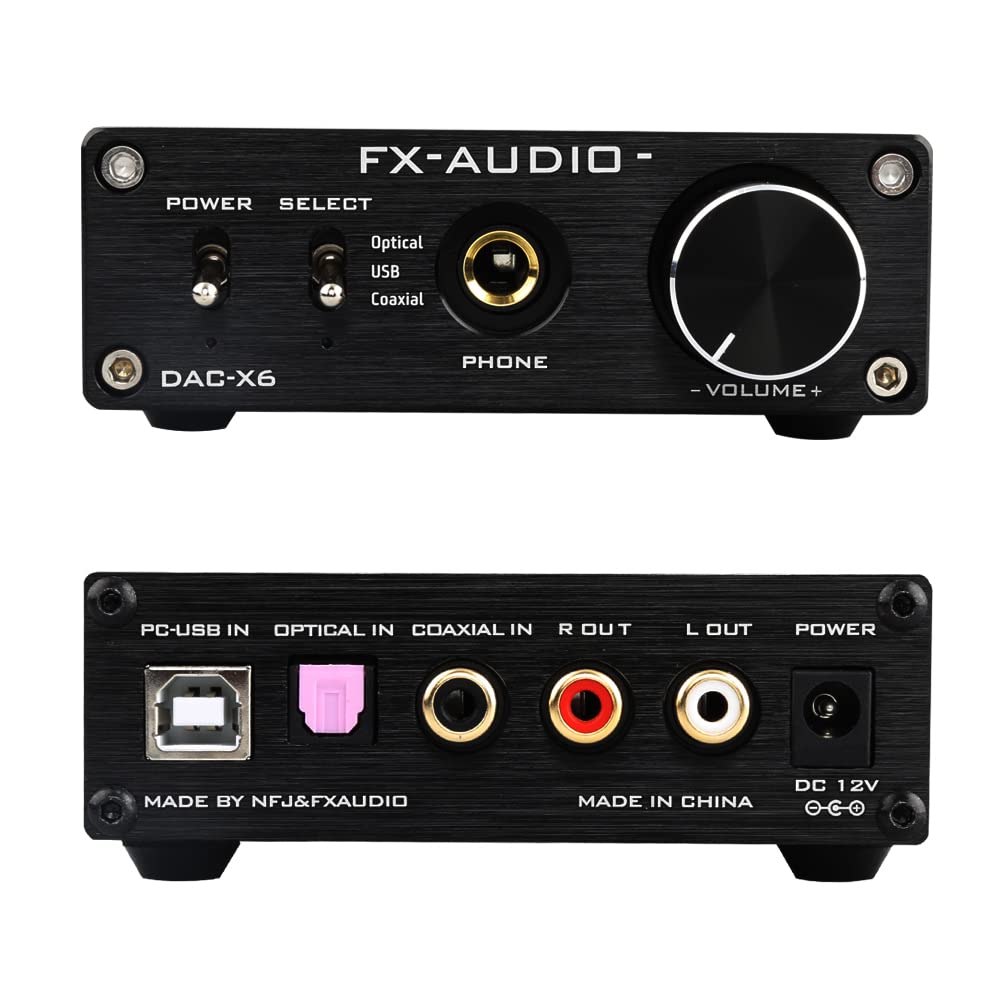

• Plus the two RCA pre outs to connected to power amplifier, tube vacuum amp, active speaker. The attractive brushed aluminum front panel has a large volume knob and two mini toggle switches - one for power, and the other is a 3way input selector.
• Plug-n-play, No Driver Needed The device is simple to set up and requires no special software, app, or driver installation, as it is a true plug-and-play digital audio adapter. USB input supports 24bit/96kHz and 6bit 192kHz. Optical/Coaxial inputs supports 24bit 192kHz.
• This unit can be your first foray into the world of external DAC and amps. Its simple design gives you just the features you need, plenty of connections and plenty of power, without coloring the audio. It really is a great addition to your PC setup whether you're into music, movies, or gaming.
Model: mmpl-192khzdacconverter
Color: Black
<p>DAC-X6 Optical/Coaxial/USB Decoder USB DAC AMP Audio Headphone Amplifier </p> <p><b>SPECIFICATIONS</b></p> <p><br></p> <p>Digital input :PC USB / Coaxial / Optical(with toggle switch)</p> <p></p> <p></p> <p></p> <p><br></p> <p>Output: 6.35mm headphone out / 2ch stereo power amp </p> <p><br></p> <p>Line level output: RMS 1.8V</p> <p><br></p> <p>Frequency response: ±3dB(20Hz-20khz?</p> <p><br></p> <p>Headphones Impedance:32?-600? </p> <p><br></p> <p>Headphone power output : 520mW@16??450mW@32??250mW@64??165mW@120?</p> <p><br></p> <p>SNR: -94dB</p> <p><br></p> <p>THD: 0.001%</p> <p><br></p> <p>Sampling rate :</p> <p>USB:24bit / 96kHz; 16bit / 192kHz</p> <p>Optical / Coaxial : 24bit / 192kHz</p> <p><br></p> <p>Adapter Voltage: 100-240ACV</p> <p><br></p> <p>Machine power / adapter output voltage: Dc12V 1A~3A </p> <p><br></p> <p>Size: 5.7 x 3.9 x1.4 in</p> <p>Weight:1.1lb</p> <p></p> <p></p> <p></p> <p></p> <p><br></p> <p><b>PRODUCT LIST</b></p> <p></p> <p></p> <p></p> <p></p> <p>*DAC-X6 ×1</p> <p>*Use guide×1</p> <p>*Power adapter(12V1.5A)×1</p> <p>*Certificate of conformity×1</p> <p>*6.5 to 3.5 joint ×1</p> <p>*USB Cable×1</p>
• Do your headphones need more power? If so, the FX-Audio DAC-X6 may be what you're looking for. This digital audio decoder ensures that every sound, whether in games or music, is delivered with unparalleled clarity. The DAC's versatile inputs and outputs, combined with a headphone amp, make it the perfect companion for the 16 Ohm to 300 Ohm headphones.
• Chipset: The mini amps chip uses TPA6120A2+LM4562NA+SA9123+CS4398+CS8416 to provide strong guarantee for tone input and output.The op amp can be freely replaced and upgraded, so there's actual upgradability with this. At the same time, a relay protectors may protect the headphones and speakers.
• The rear panel has a Type-B USB input, a Toslink optical and a coaxial digital input that can be connected to Computer/PC/TV/X-BOX/PS5/DVD/DCD
• Plus the two RCA pre outs to connected to power amplifier, tube vacuum amp, active speaker. The attractive brushed aluminum front panel has a large volume knob and two mini toggle switches - one for power, and the other is a 3way input selector.
• Plug-n-play, No Driver Needed The device is simple to set up and requires no special software, app, or driver installation, as it is a true plug-and-play digital audio adapter. USB input supports 24bit/96kHz and 6bit 192kHz. Optical/Coaxial inputs supports 24bit 192kHz.
• This unit can be your first foray into the world of external DAC and amps. Its simple design gives you just the features you need, plenty of connections and plenty of power, without coloring the audio. It really is a great addition to your PC setup whether you're into music, movies, or gaming.
Model: mmpl-192khzdacconverter
Color: Black
