Brand: funxwe

Key Features:

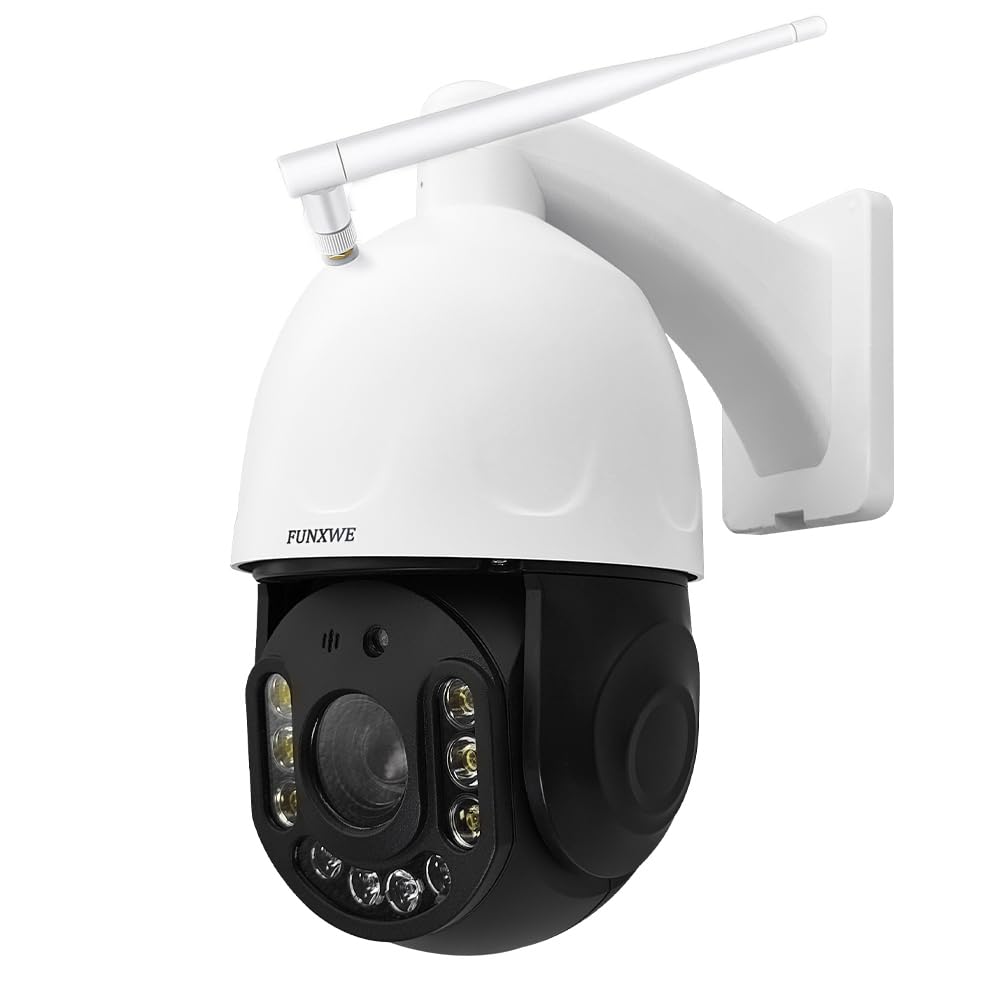

1. 8.0 Megapixels 1/2.8" SonyIMX415 low lux CMOS sensor, 30X optical zoom, auto focus, view angle 61.4~3.6 degrees.

2. Video resolution: main stream 3840x2160@15fps, sub stream 1280x720@25fps. Video compression format: H.264/H.265

3. Pan/Tilt: horizon 0~355 degrees, vertical 0~90 degrees, control rotation remotely. Support preset points to control the camera cruise function, etc.

4. Built-in microphone and speaker, support two-way audio, sound detection and alarm. Support color night vision, infrared distance 390ft (120m).

5. Support max 256 GB micro SD card(not included) for alarm record, timing record, 24/7 loop recording, etc. Support cloud storage.

6. Auto tracking: support motion detection and humanoid detection auto tracking, can set 4 independent detection regions, and set 1~100 sensitivity.

7. Motion detection: push real-time notification to App, send pictures to email, save pictures or record video to SD card, FTP server, trigger siren alert.

8. Wireless or wired connection, connect the camera by WiFi or Ethernet cable to the Internet, view remotely on phone App, tablet, PC software, browser, etc.

9. Support 2.4GHz, 5GHz dual-band WiFi, and Bluetooth connection. WiFi name(SSID) and password should not contain any special characters, like: ~, !, @, ...

10. AP mode: Support P2P(peer-to-peer) connect App directly by WiFi hotspot, no need router, P2P wireless distance no more than 65ft(20m).

11. Support Onvif 2.4(backward compatible), work with NVR, Blue Iris, VLC (not fully compatible with the third-party software). Support RTSP, DDNS settings.

12. Support to connect the PoE splitter(not included) to work as a PoE camera, must connect with a 48V PoE splitter first, then connect to the PoE switch.

13. Power supply: DC12V 2A, 5.5*2.5mm power interface. Operating temperature -30?~+60?(-22?~+140?), humidity 10%~90%, non-condensing.

14. Power consumption: day 4W, night 15W. Product type: durable ABS plastic shell, vandal-proof, waterproof level IP66.

15. Package Included: IP Camera, Power adapter with 10ft power cord, Antenna, Bracket, Screws, Ethernet cable, and Manual.

Frequently-used PTZ preset point number

Set Cruise:
When you have set at least 3 preset points between 1-16, you can call the special preset “76” to start cruising, the camera will rotate to the preset points 1-16 that have been recorded until the camera is manually controlled.
Call preset point 76: Start cruising.

Set Auto Tracking:
Call preset point 66 or 67: turn on the humanoid tracking.
Call preset point 68: turn off the humanoid tracking.
When you call the “66” preset point to start humanoid tracking, the camera will record the current position as the guard point. When there is 15 seconds after the no pan-tilt operation or tracking ends, the camera will return to the guard point position. When using humanoid tracking, you can choose lens zoom or lens not zoom.

Set Guard Position:
Set preset point 86: record the current position of the camera as the guard position. When the camera stops operating for one minute, the camera will return to the guard position.
Call preset point 86: turn on the guard position function.
Call preset point 87: turn off the guard position function.

If you need more preset numbers or have any questions, please get the contact information in the box.

• 8.0 Megapixels, 30X optical zoom with auto-focus, 3840x2160 resolution, zoom in/out to see clearer details. PTZ rotation: horizontal pan 355°, vertical tilt 90°. Support Onvif 2.4, work with NVR, Blue Iris, support RTSP, DDNS settings. Support 2.4GHz, 5GHz dual WiFi, and Bluetooth connection.
• Two-way Audio, Color Night Vision: Camera has built-in microphone and speaker, support two way audio, support sound detection and motion detection siren alert. Built-in 6 pcs dual-light beads, 4 high-power laser beads, support color night vision, spotlight alert, IR distance 390ft (120meters).

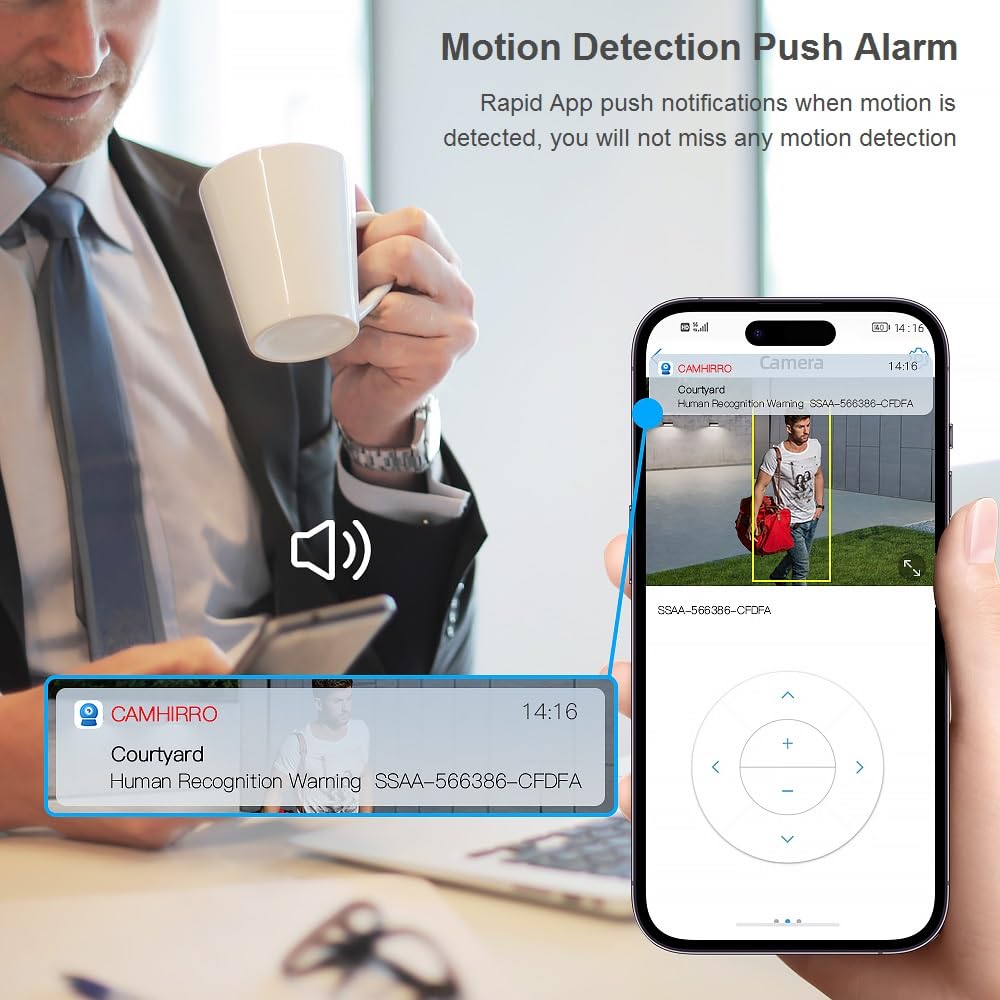

• Motion Detection, Auto Tracking: Push real-time alert notifications to App, send pictures to email, save pictures and record video to TF card, FTP server, trigger siren alert. Support motion detection and humanoid detection auto tracking, can follow people’s movement automatically.

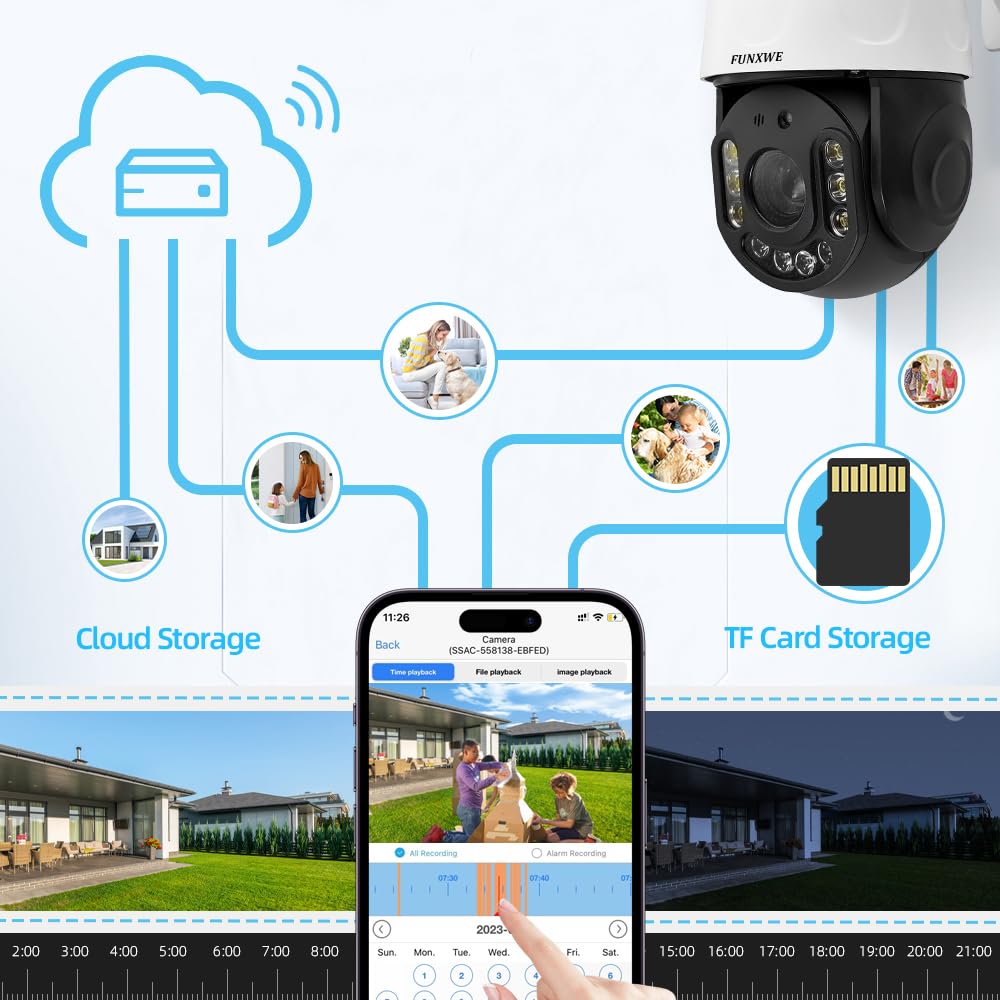

• Memory Card, Cloud Storage: Built-in TF card slot, support max 256GB TF Card(not included) for detection alarm recording, timing recording, 24/ 7 loop recording, intelligent playback remotely etc. Automatically overwrite the earliest record file when SD card is full. Support cloud storage.
• Free App: Camhipro and Camhi for iOS iPhone Android smartphone tablet, HiP2P client software for Windows and Mac computer, support to view on browser. Durable ABS plastic shell, waterproof level IP66. Lifetime technical support and spare parts replacement warranty.
