Description
Brand: Zerone

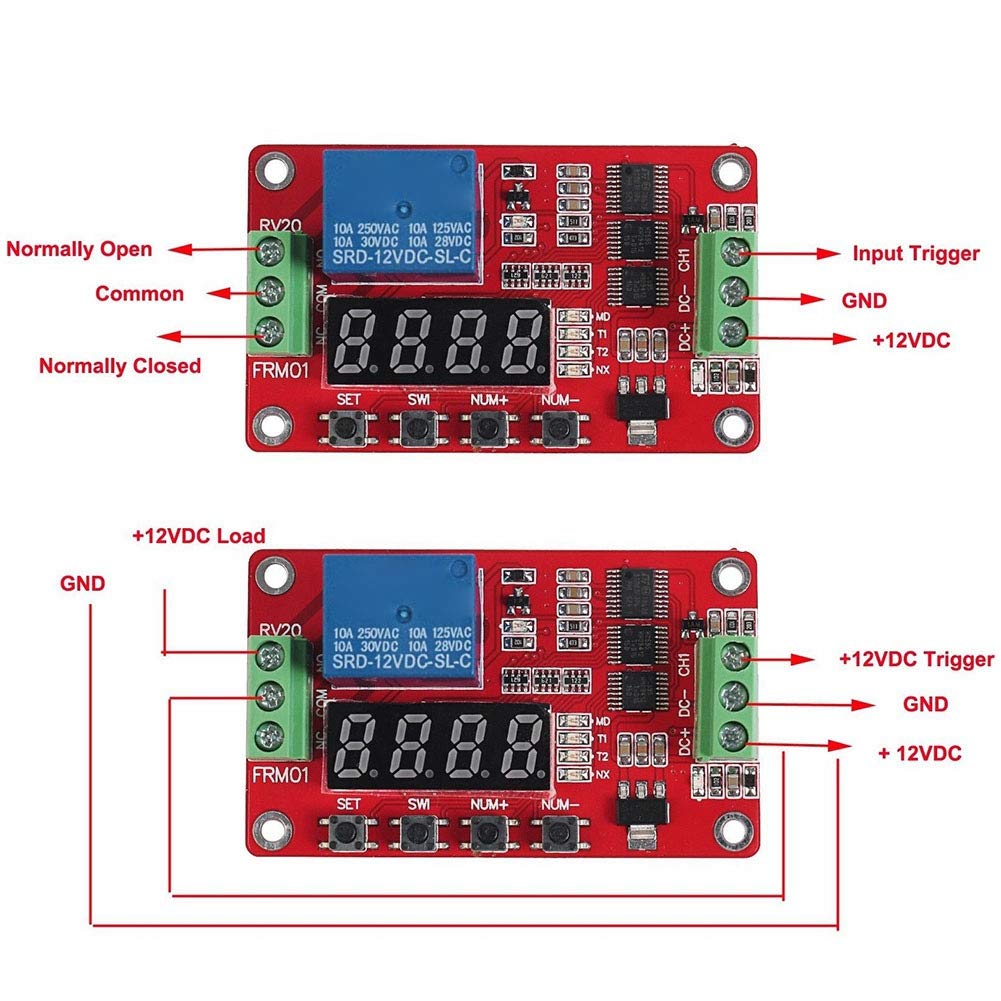

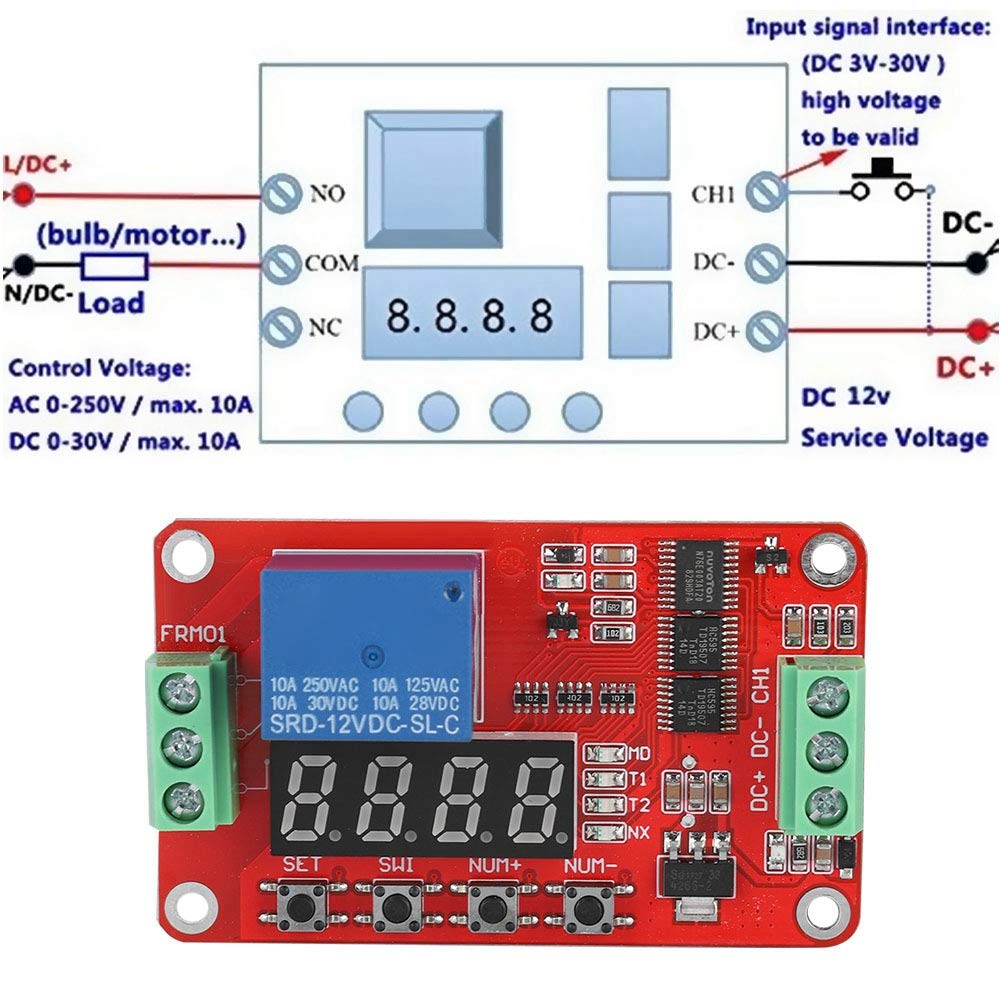

Features:<br> Infinite loop timing mode 1/2: After power relay does not operate to a high level pulse signal CH1 interface, the delay time T1 reaches the relay energized, pull off the relay arrival time T2, and then repeat the above condition, the extension when the time between T1 and T2 in 0.1 seconds - 270 hours adjustable, repeat CH1 interface to a high level pulse signal, the above functions can be re-started.<br> Finite loop timing mode 1: 15/2: 16 on the basis of functionality, increasing the number of cycles function, this time between T1 and T2 in 0.1 seconds -9999 seconds adjustable cycles NX adjustable between 1-9999 times, repeating to CH1 interface a high pulse signal, the above functions can be re-started.<br> <br> <br> Specification:<br> Module Interface :<br> Module control terminal: There are 3-wire interfaces, all interfaces are terminal, user-friendly.<br> DC +: DC power positive (with 5V, 12V and 24V modules to choose from)<br> DC -: DC Electricity Supply negative<br> CH1: input detection interface, high effective<br> Relay outputs: There are 3-wire interfaces, all interfaces are terminals.<br> NO: normally open relay interface and relay before the vacant after
• Timing Pick/off: After powered, time delay relay pull T1, T1 between 0.1 seconds - 270 hours adjustable, CH1 interface to a high level pulse , then repeat the functions.
• Timing pull off again: After power relay to not pull, the delay time T1 reaches the relay is energized, pull the relay off after T2 arrival time, delay time T1 and T2 in 0.1 seconds - 270 hours between adjustable, CH1 interface to a high pulse , repeat the functions.

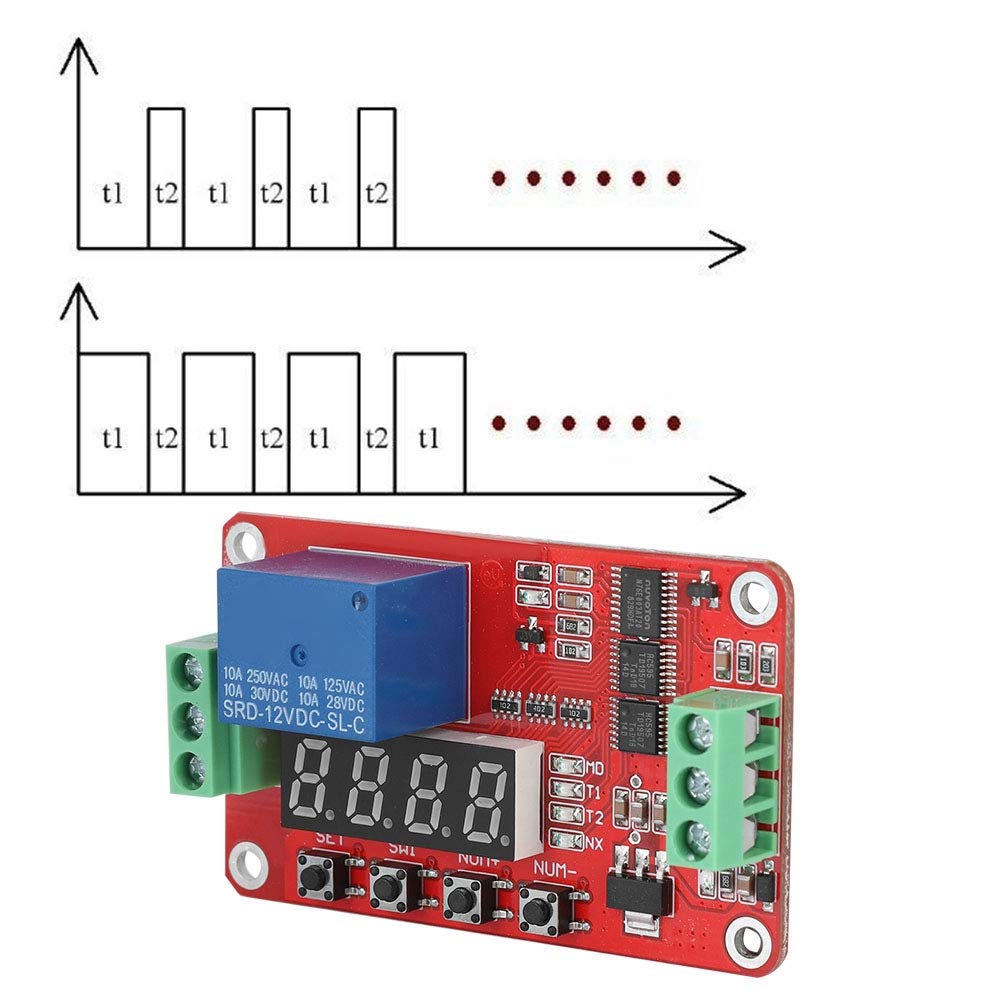

• Infinite loop timing mode 1/2: After power relay to not pull, after the delay time T1 reaches the relay is energized, pull the relay off after time T2 arrives, and then repeat the condition, the delay time T1 and T2 at 0.1 adjustable between second - 270 hours, giving a high level pulse CH1

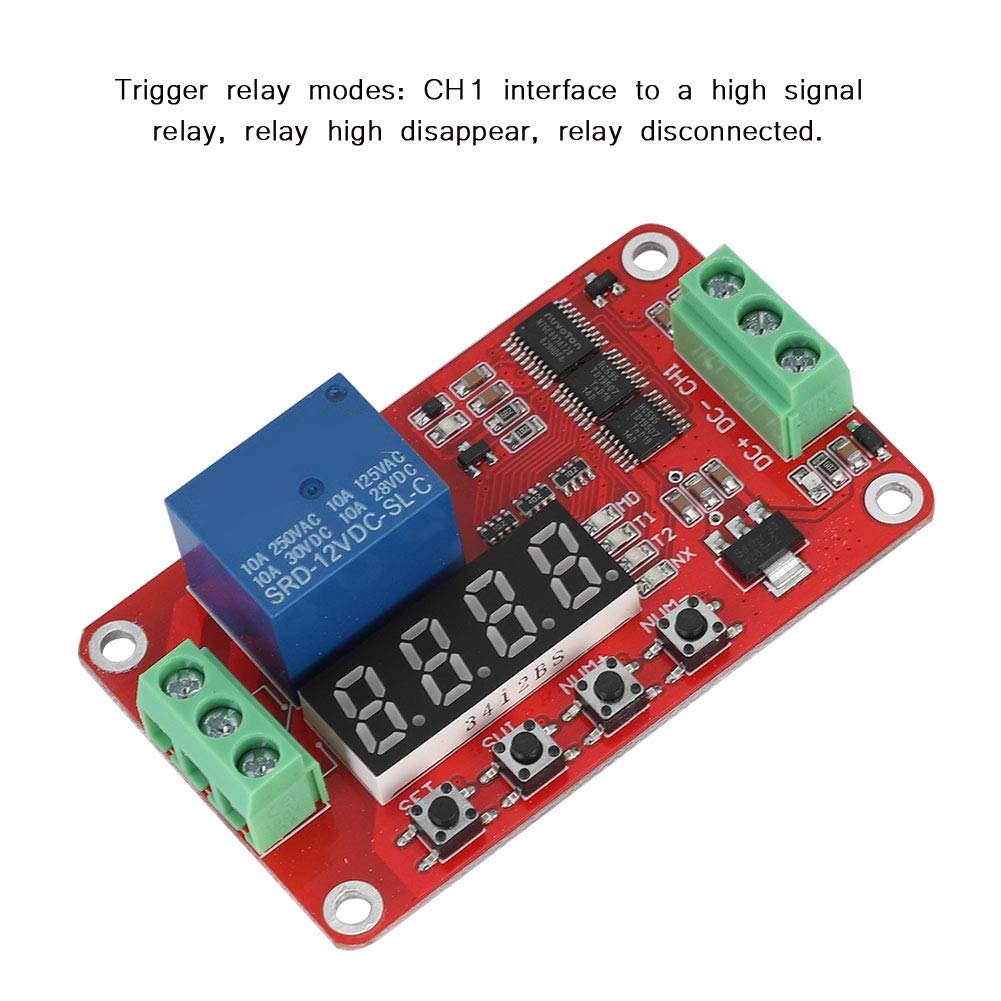

• Latching/ relay modes: CH1 interface to relay a high level pulse , relay gives a high pulse relay disconnected.
• Pull/ the timing: After power relay does not act, a high-level interface to CH1 pulse , the delay time relay pull T1, T1 between 0.1 seconds - 270 hours adjustable, repeating a high level interface to CH1 pulse , then repeat the function.
Color: default
Features:<br> Infinite loop timing mode 1/2: After power relay does not operate to a high level pulse signal CH1 interface, the delay time T1 reaches the relay energized, pull off the relay arrival time T2, and then repeat the above condition, the extension when the time between T1 and T2 in 0.1 seconds - 270 hours adjustable, repeat CH1 interface to a high level pulse signal, the above functions can be re-started.<br> Finite loop timing mode 1: 15/2: 16 on the basis of functionality, increasing the number of cycles function, this time between T1 and T2 in 0.1 seconds -9999 seconds adjustable cycles NX adjustable between 1-9999 times, repeating to CH1 interface a high pulse signal, the above functions can be re-started.<br> <br> <br> Specification:<br> Module Interface :<br> Module control terminal: There are 3-wire interfaces, all interfaces are terminal, user-friendly.<br> DC +: DC power positive (with 5V, 12V and 24V modules to choose from)<br> DC -: DC Electricity Supply negative<br> CH1: input detection interface, high effective<br> Relay outputs: There are 3-wire interfaces, all interfaces are terminals.<br> NO: normally open relay interface and relay before the vacant after
• Timing Pick/off: After powered, time delay relay pull T1, T1 between 0.1 seconds - 270 hours adjustable, CH1 interface to a high level pulse , then repeat the functions.
• Timing pull off again: After power relay to not pull, the delay time T1 reaches the relay is energized, pull the relay off after T2 arrival time, delay time T1 and T2 in 0.1 seconds - 270 hours between adjustable, CH1 interface to a high pulse , repeat the functions.
• Infinite loop timing mode 1/2: After power relay to not pull, after the delay time T1 reaches the relay is energized, pull the relay off after time T2 arrives, and then repeat the condition, the delay time T1 and T2 at 0.1 adjustable between second - 270 hours, giving a high level pulse CH1
• Latching/ relay modes: CH1 interface to relay a high level pulse , relay gives a high pulse relay disconnected.
• Pull/ the timing: After power relay does not act, a high-level interface to CH1 pulse , the delay time relay pull T1, T1 between 0.1 seconds - 270 hours adjustable, repeating a high level interface to CH1 pulse , then repeat the function.
Color: default
