Description
Brand: Walfront

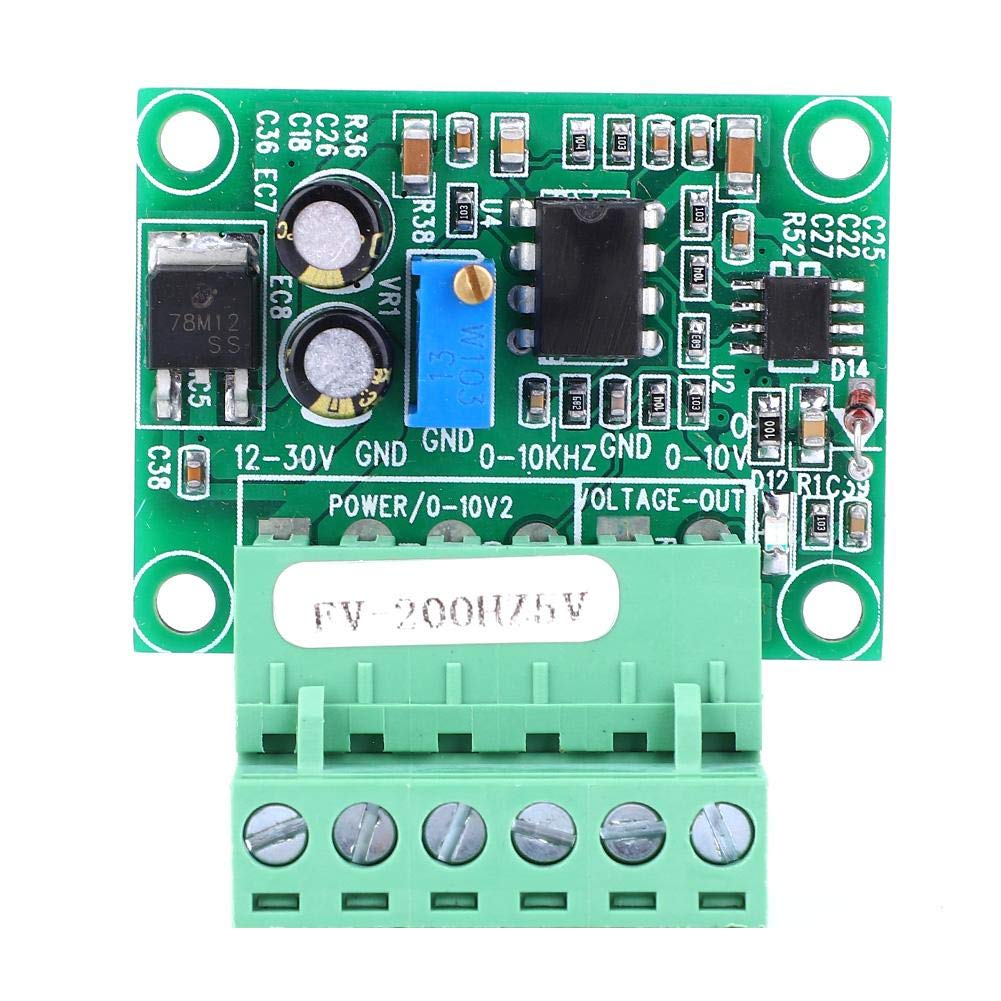

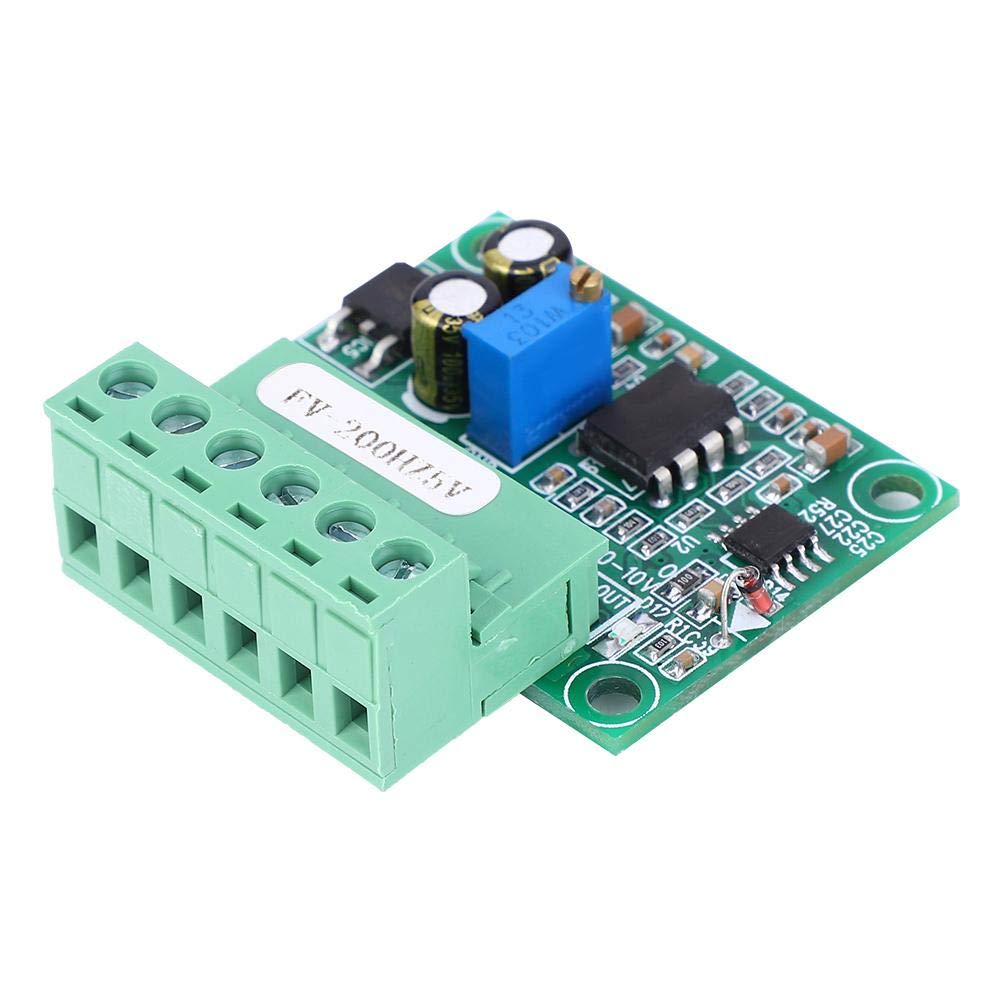

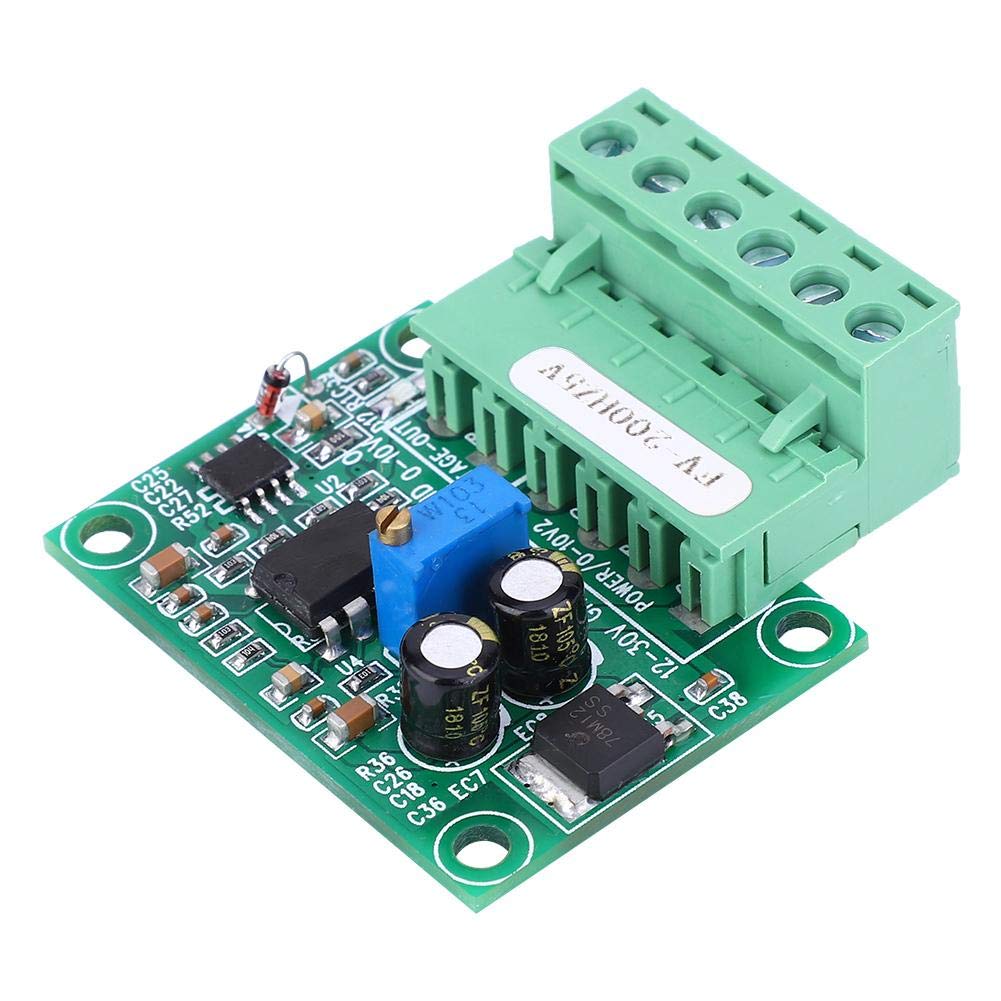

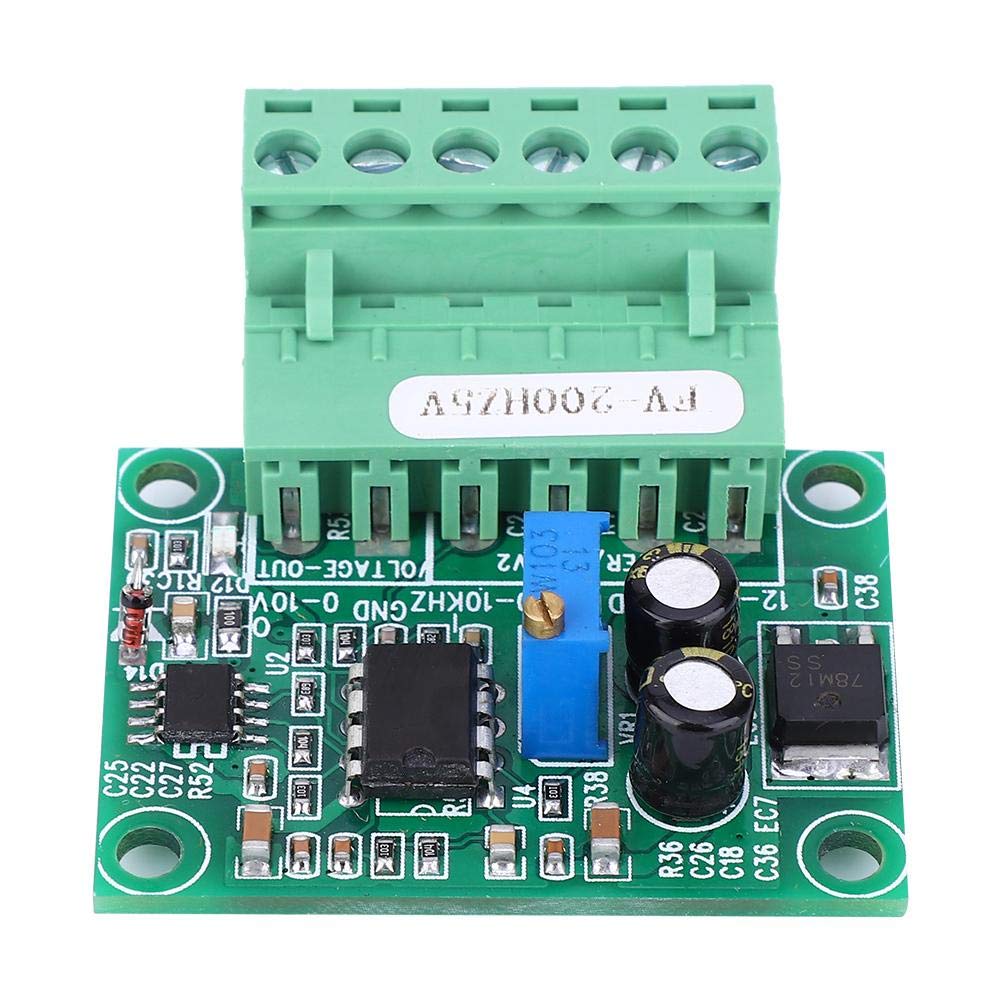

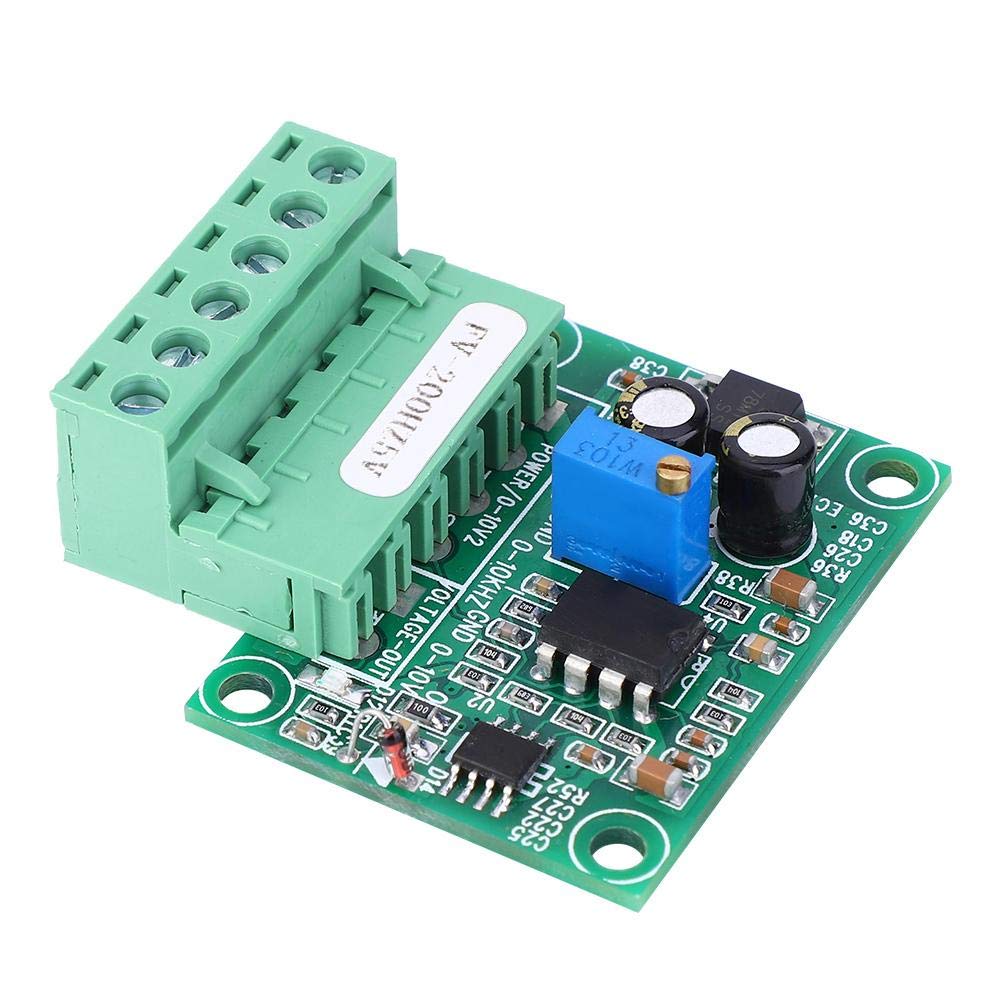

<p> <b>Specification:</b><br> Condition: Brand New<br> Item Type: Frequency To Voltage Conversion Module<br> Model: FV-200Hz5V<br> Function: Input 0-200Hz frequency is converted to 0-5V<br> Output Current: 5MA<br> Response Time: 0.3-0.5 seconds<br> Size: Approx. 4.5 x 4.7 x 1.7cm / 1.8 x 1.9 x 0.7in<br> <br> <b>Package List:</b><br> 1 x Frequency To Voltage Conversion Module<br> <br> <b>Precautions for use:</b><br> 1. The multi-turn potentiometer on the board is used to calibrate the corresponding relationship between frequency and voltage.<br> 2. The input power supply voltage range is 12-30VDC. It is recommended that the power supply voltage be 15-24VDC. When the 12V level is used, the power supply cannot be powered by 12VDC. At least 15VDC power supply is required. If you need to use 12V power supply, you can also order 12VDC. Powered converter. At 24 levels, the power supply needs to be powered by 24VDC<br> 3. The input is isolated by diaphragm. Guaranteed anti-interference ability.<br> 4. For use with PLC, support NPN type. Must have a ground wire.<br> 5. If you need to use an encoder, the encoder should be rotated at a constant speed for more than 0.5 seconds.<br> 6. Frequency and voltage conversion module, response time is about 0.3-0.5 seconds.<br> <br> <b>Identification and wiring:</b><br> 1. 12-30V--Power input positive<br> 2. GND--Power input negative (common ground wire)<br> 3. GND--Pulse frequency input negative (common ground wire)<br> 4. 0-10KHZ--Pulse frequency input positive<br> 5. GND--Pulse frequency input negative (common ground wire)<br> 6. 0-10V-- Analog 0-10V level output<br> <br> <b>Correspondence & Linear Relationship:</b><br> 20Hz is converted to 0.5V<br> 100Hz is converted to 2.5V<br> 200Hz is converted to 5V </p>
• QUICK RESPONSE-- Frequency and voltage conversion module has the characteristic of quick response, response time is about 0.3-0.5 seconds.
• APPLICATION-- When using the correspondence, if there is a deviation, you can adjust the blue potentiometer on the board to adjust. At the time of shipment, we have adjusted the F/V potentiometer to a certain correspondence. It is generally not recommended to adjust it by itself.
• APPLICATION-- This module is mainly designed to convert interface between PLC and frequency, Or movement control card and converter interface matching control .
• FEATURE-- If the input is turbine , etc., due to matching, an 817 diaphragm and a resistor must be added to match the flowmeter to normal function.
• -- Frequency to Voltage Converter is made of electronic elements for long service life. Input pulse level is 5V 12V 24V can be directly input, no string resistor. However, the input frequency should be maintained for more than 0.5 seconds.
Model: FV-200Hz5V
Color: Blue
<p> <b>Specification:</b><br> Condition: Brand New<br> Item Type: Frequency To Voltage Conversion Module<br> Model: FV-200Hz5V<br> Function: Input 0-200Hz frequency is converted to 0-5V<br> Output Current: 5MA<br> Response Time: 0.3-0.5 seconds<br> Size: Approx. 4.5 x 4.7 x 1.7cm / 1.8 x 1.9 x 0.7in<br> <br> <b>Package List:</b><br> 1 x Frequency To Voltage Conversion Module<br> <br> <b>Precautions for use:</b><br> 1. The multi-turn potentiometer on the board is used to calibrate the corresponding relationship between frequency and voltage.<br> 2. The input power supply voltage range is 12-30VDC. It is recommended that the power supply voltage be 15-24VDC. When the 12V level is used, the power supply cannot be powered by 12VDC. At least 15VDC power supply is required. If you need to use 12V power supply, you can also order 12VDC. Powered converter. At 24 levels, the power supply needs to be powered by 24VDC<br> 3. The input is isolated by diaphragm. Guaranteed anti-interference ability.<br> 4. For use with PLC, support NPN type. Must have a ground wire.<br> 5. If you need to use an encoder, the encoder should be rotated at a constant speed for more than 0.5 seconds.<br> 6. Frequency and voltage conversion module, response time is about 0.3-0.5 seconds.<br> <br> <b>Identification and wiring:</b><br> 1. 12-30V--Power input positive<br> 2. GND--Power input negative (common ground wire)<br> 3. GND--Pulse frequency input negative (common ground wire)<br> 4. 0-10KHZ--Pulse frequency input positive<br> 5. GND--Pulse frequency input negative (common ground wire)<br> 6. 0-10V-- Analog 0-10V level output<br> <br> <b>Correspondence & Linear Relationship:</b><br> 20Hz is converted to 0.5V<br> 100Hz is converted to 2.5V<br> 200Hz is converted to 5V </p>
• QUICK RESPONSE-- Frequency and voltage conversion module has the characteristic of quick response, response time is about 0.3-0.5 seconds.
• APPLICATION-- When using the correspondence, if there is a deviation, you can adjust the blue potentiometer on the board to adjust. At the time of shipment, we have adjusted the F/V potentiometer to a certain correspondence. It is generally not recommended to adjust it by itself.
• APPLICATION-- This module is mainly designed to convert interface between PLC and frequency, Or movement control card and converter interface matching control .
• FEATURE-- If the input is turbine , etc., due to matching, an 817 diaphragm and a resistor must be added to match the flowmeter to normal function.
• -- Frequency to Voltage Converter is made of electronic elements for long service life. Input pulse level is 5V 12V 24V can be directly input, no string resistor. However, the input frequency should be maintained for more than 0.5 seconds.
Model: FV-200Hz5V
Color: Blue
