Description
Brand: KNACRO

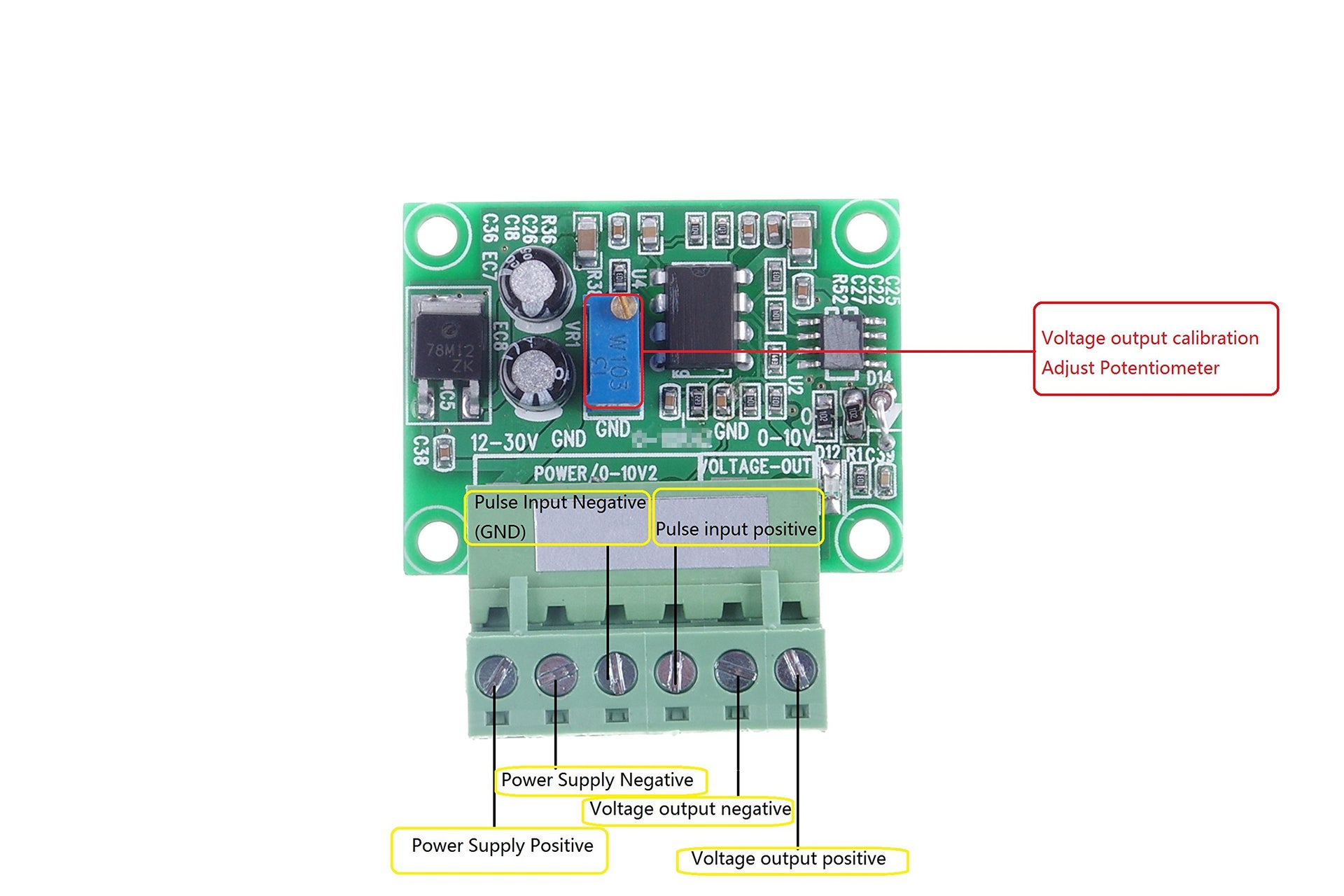

0 to 1KHz frequency pulse signal into 0-5V analog voltage signal.<br> Can be used for PLC and inverter interface between the conversion, or motion control card and inverter interface matching control occasions.<br> Input pulse level is 5V / 12V / 24V can be directly input, no need to string resistance. But the input signal frequency, to maintain more than 0.5 seconds.<br> The output current is 5mA. The input power supply voltage range is DC12-30V.<br> <br> Instructions for use:<br> 1, multi-turn potentiometer is used to calibrate the frequency and voltage of the corresponding relationship.<br> 2, the input power supply voltage range of DC12-30V.<br> 4, for the use of PLC, support NPN type. Must have ground wire.<br> 5, if used with the encoder, the encoder constant speed required to continue to rotate more than 0.5 seconds.<br> 6, F / V conversion module, the response time of about 0.3-0.5 seconds<br> <br> Note:<br> 1. Accuracy is 1%, can not be accurate to the decimal point after the two digits, if the use of high precision requirements are not recommended.<br> 2. You can adjust the blue potentiometer on the board to calibrate (in the factory, we have F / v potentiometer to adjust a certain correspondence, generally do not recommend self adjustment).<br> 3. If the signal input is turbine flow, due to signal matching reasons, to add a 817 optical coupler and a resistor in order to make the flow meter to function properly.<br> <br> Package Included:<br> 1*Frequency To Voltage Conversion Module
• Module function: 0Hz to 1KHz frequency pulse signal into 0-1V analog voltage signal.
• Can be used for PLC and inverter interface between the conversion, or motion control card and inverter interface matching control occasions.
• Input pulse level is 5V / 12V / 24V can be directly input, no need to string resistance. But the input signal frequency, to maintain more than 0.5 seconds.
• The output current is 5mA. The input power supply voltage range is DC12-30V.
• Potentiometer is used to calibrate the frequency and voltage of the corresponding relationship.
Color: Multicolor
0 to 1KHz frequency pulse signal into 0-5V analog voltage signal.<br> Can be used for PLC and inverter interface between the conversion, or motion control card and inverter interface matching control occasions.<br> Input pulse level is 5V / 12V / 24V can be directly input, no need to string resistance. But the input signal frequency, to maintain more than 0.5 seconds.<br> The output current is 5mA. The input power supply voltage range is DC12-30V.<br> <br> Instructions for use:<br> 1, multi-turn potentiometer is used to calibrate the frequency and voltage of the corresponding relationship.<br> 2, the input power supply voltage range of DC12-30V.<br> 4, for the use of PLC, support NPN type. Must have ground wire.<br> 5, if used with the encoder, the encoder constant speed required to continue to rotate more than 0.5 seconds.<br> 6, F / V conversion module, the response time of about 0.3-0.5 seconds<br> <br> Note:<br> 1. Accuracy is 1%, can not be accurate to the decimal point after the two digits, if the use of high precision requirements are not recommended.<br> 2. You can adjust the blue potentiometer on the board to calibrate (in the factory, we have F / v potentiometer to adjust a certain correspondence, generally do not recommend self adjustment).<br> 3. If the signal input is turbine flow, due to signal matching reasons, to add a 817 optical coupler and a resistor in order to make the flow meter to function properly.<br> <br> Package Included:<br> 1*Frequency To Voltage Conversion Module
• Module function: 0Hz to 1KHz frequency pulse signal into 0-1V analog voltage signal.
• Can be used for PLC and inverter interface between the conversion, or motion control card and inverter interface matching control occasions.
• Input pulse level is 5V / 12V / 24V can be directly input, no need to string resistance. But the input signal frequency, to maintain more than 0.5 seconds.
• The output current is 5mA. The input power supply voltage range is DC12-30V.
• Potentiometer is used to calibrate the frequency and voltage of the corresponding relationship.
Color: Multicolor
