Description
Brand: NooElec
<p>A high-quality, high-performance bandstop filter designed for software defined radio (SDR) applications. Designed and manufactured by Nooelec in North America, with a full 2-year product warranty. <p>Broadcast FM can be particularly problematic due to the high-powered transmitters used for broadcasting in some areas. These signals can overload the front end of an SDR, causing imaging and a number of other issues. <p>We designed Flamingo FM to provide sufficient attenuation for broadcast FM frequencies (>40dB typical) while ensuring adjacent bands, such as the important VHF airband (108-137MHz) are minimally affected. The -3dB rolloff of the filter is 80MHz and 115MHz. Minimal out-of-band insertion loss means the filter can stay in place for most any application. As a true bandstop filter, you are able to pass-through DC (bias power) when it is required. <p>DC current handling is 250mA (min), and the maximum recommended signal level is 18dBm (5Vp-p), so there is no issue using the filter for higher-power applications. Typical performance characteristics can be found on the downloads tab of the product page on our website. <p>Flamingo FM has its filter circuitry fully shielded with an EMI frame, and has its front end protected by an ESD diode meant for RF applications. <p>2 mounting holes are available on the PCB for various mounting options, and the SMA hardware (washer and nut) is included.

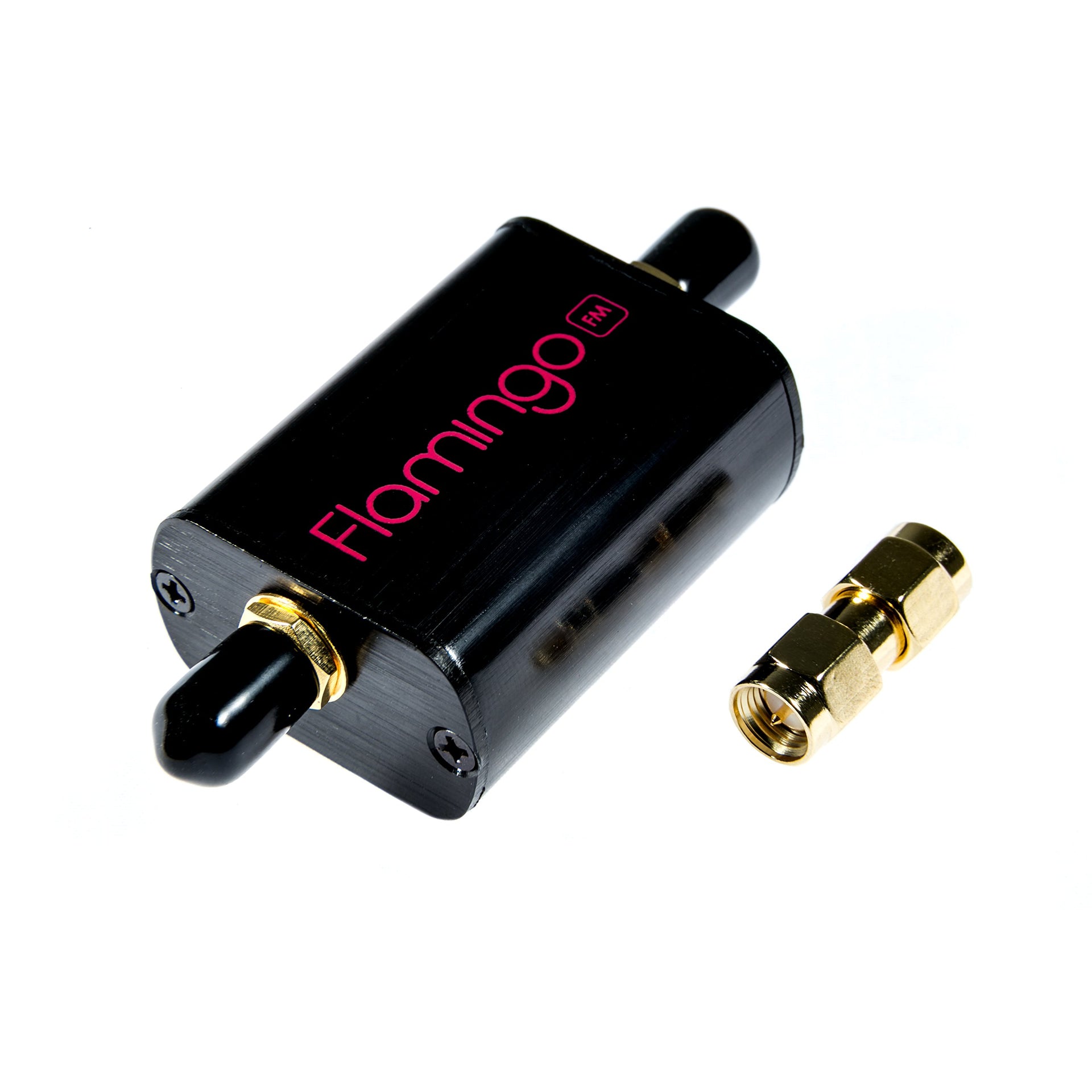

• A high-quality, high-performance bandstop filter designed for software defined radio (SDR) applications. Includes free male SMA-male SMA barrel connector!
• Flamingo FM was designed to provide approximately 40dB attenuation for broadcast FM frequencies, while ensuring that adjacent bands are minimally affected. The -3dB rolloff of the filter is 80MHz and 115MHz, which means the VHF airband (108-137MHz) is minimally affected. The minuscule out-of-band insertion losses means the filter can stay in place for most any application

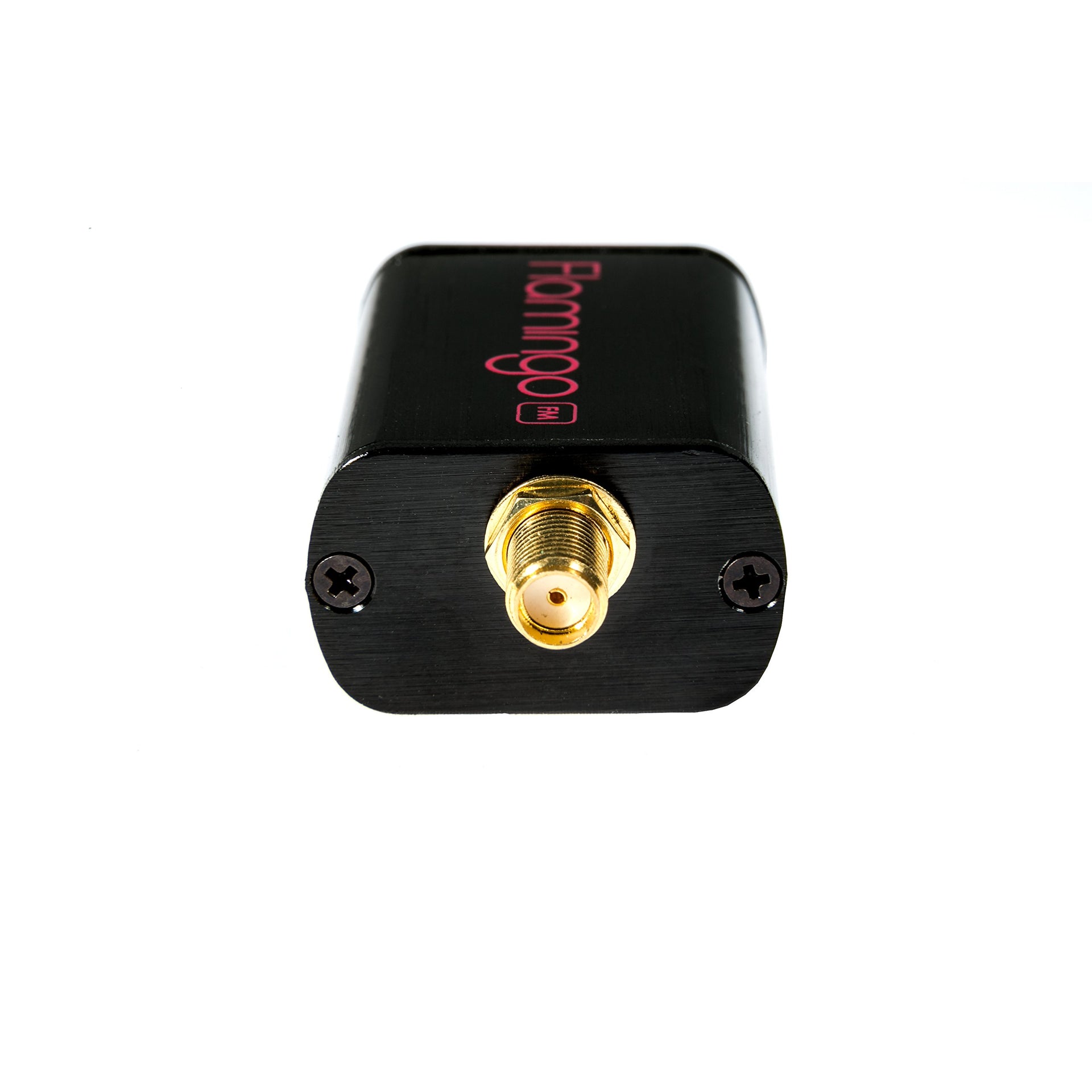

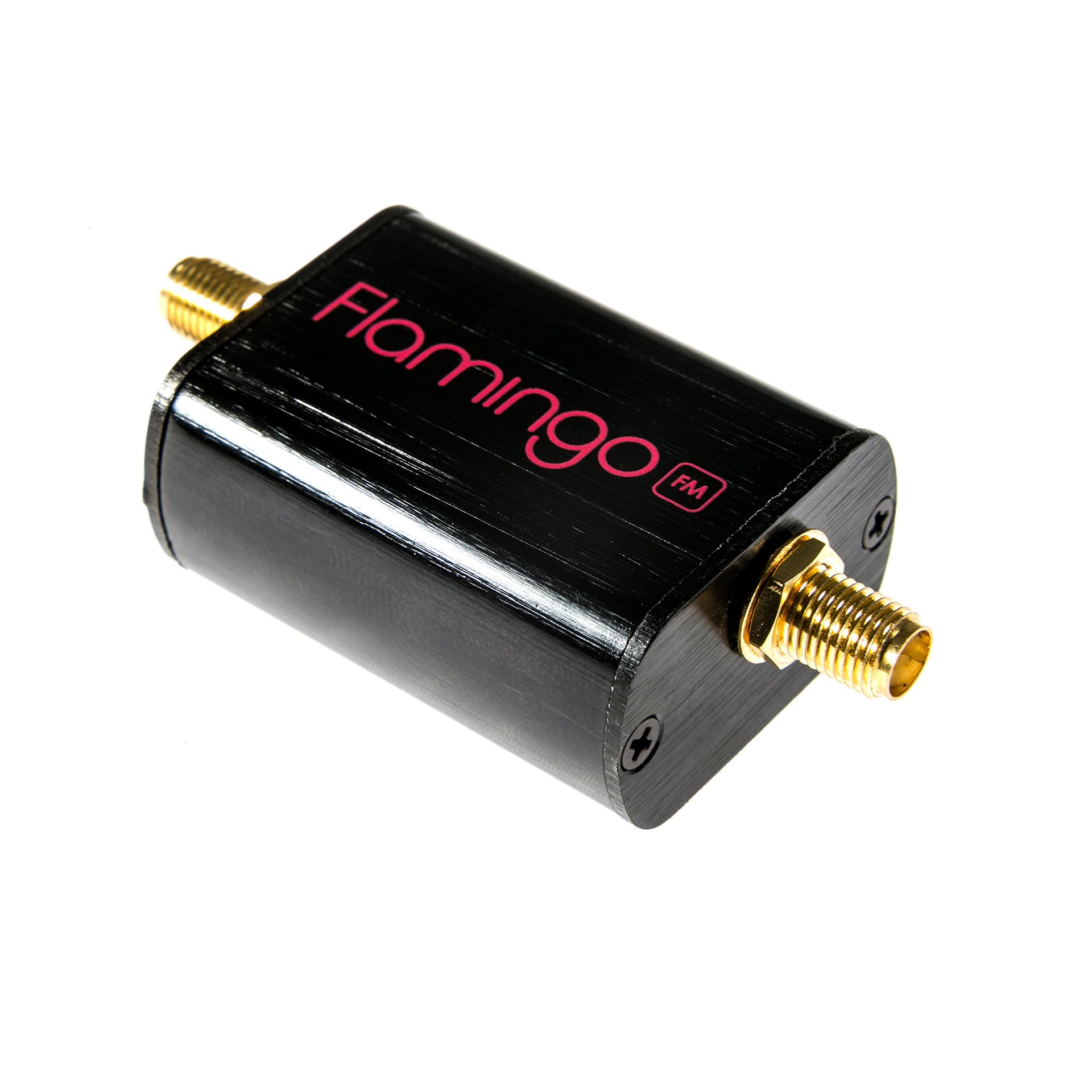

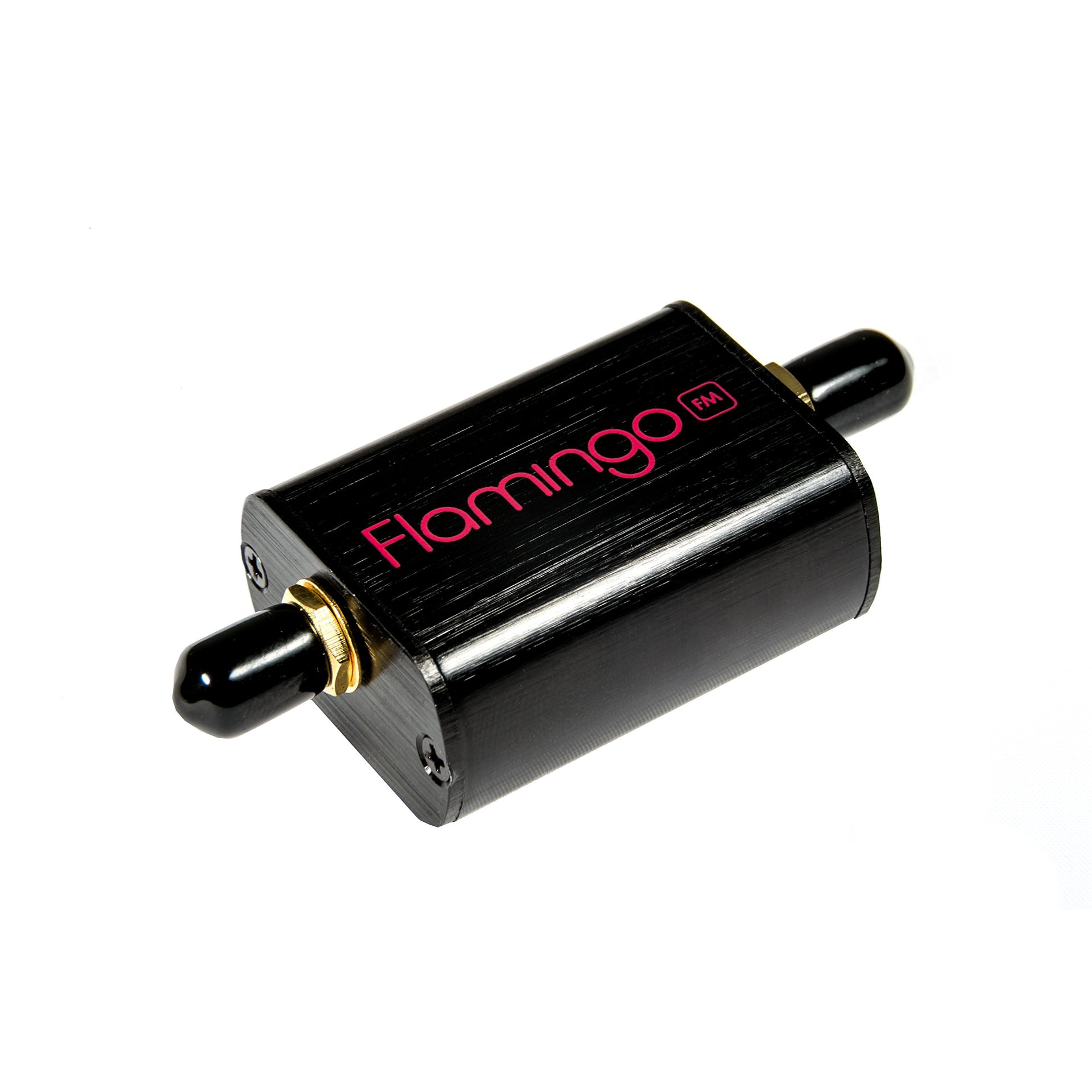

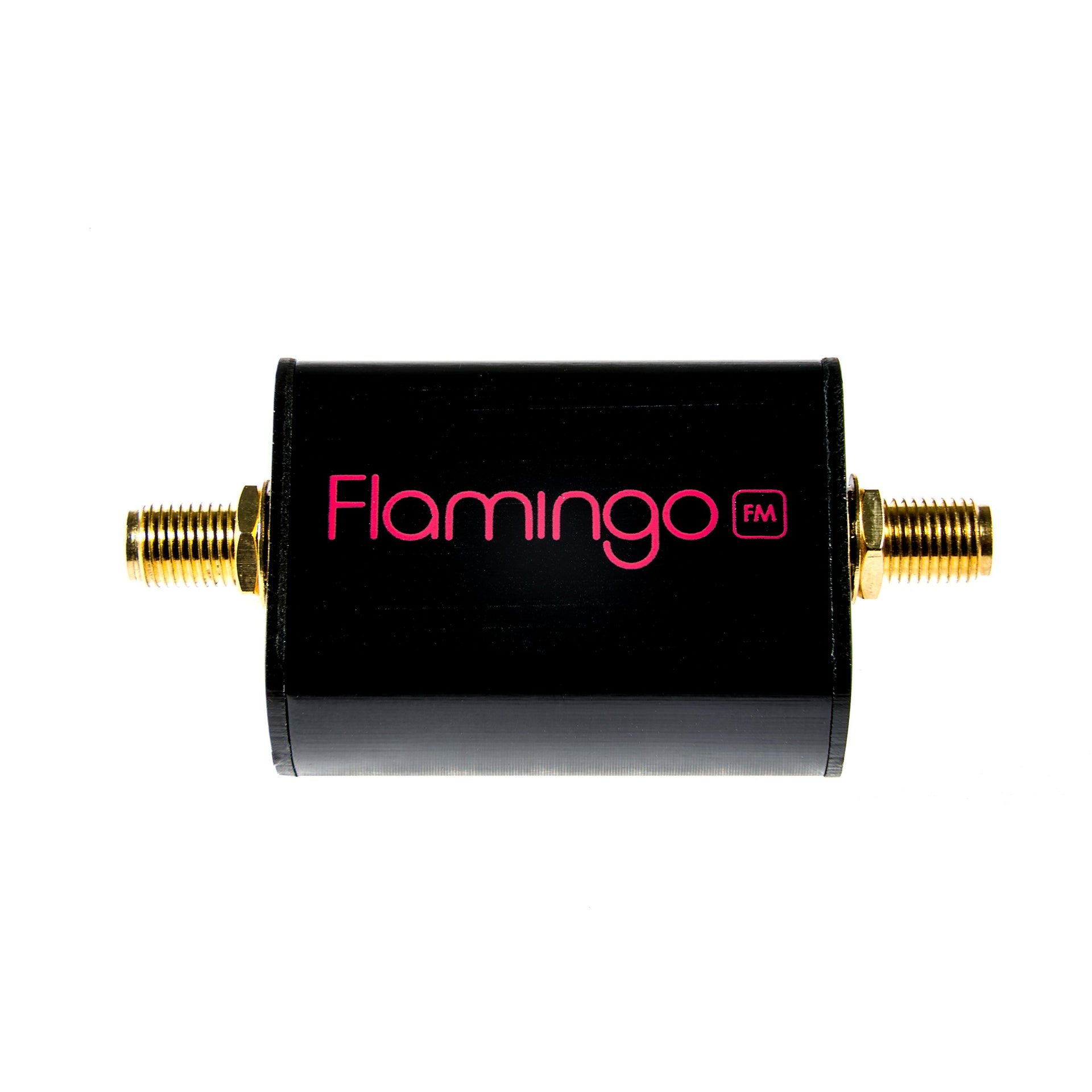

• The filter is fully EMI shielded, and installed in a custom black anodized aluminum enclosure for further protection and isolation. The front end is protected by an RF-rated ESD diode, which provides protection not just for your filter, but also the radio or SDR behind it
• Flamingo FM is a proper bandstop filter, so you are able to pass-through DC (bias-tee) power when required. DC current handling is 250mA (min), and the maximum recommended signal level is 18dBm (5Vp-p), so there is no issue using the filter for higher-power applications
Model: Flamingo FM
Color: Black
<p>A high-quality, high-performance bandstop filter designed for software defined radio (SDR) applications. Designed and manufactured by Nooelec in North America, with a full 2-year product warranty. <p>Broadcast FM can be particularly problematic due to the high-powered transmitters used for broadcasting in some areas. These signals can overload the front end of an SDR, causing imaging and a number of other issues. <p>We designed Flamingo FM to provide sufficient attenuation for broadcast FM frequencies (>40dB typical) while ensuring adjacent bands, such as the important VHF airband (108-137MHz) are minimally affected. The -3dB rolloff of the filter is 80MHz and 115MHz. Minimal out-of-band insertion loss means the filter can stay in place for most any application. As a true bandstop filter, you are able to pass-through DC (bias power) when it is required. <p>DC current handling is 250mA (min), and the maximum recommended signal level is 18dBm (5Vp-p), so there is no issue using the filter for higher-power applications. Typical performance characteristics can be found on the downloads tab of the product page on our website. <p>Flamingo FM has its filter circuitry fully shielded with an EMI frame, and has its front end protected by an ESD diode meant for RF applications. <p>2 mounting holes are available on the PCB for various mounting options, and the SMA hardware (washer and nut) is included.
• A high-quality, high-performance bandstop filter designed for software defined radio (SDR) applications. Includes free male SMA-male SMA barrel connector!
• Flamingo FM was designed to provide approximately 40dB attenuation for broadcast FM frequencies, while ensuring that adjacent bands are minimally affected. The -3dB rolloff of the filter is 80MHz and 115MHz, which means the VHF airband (108-137MHz) is minimally affected. The minuscule out-of-band insertion losses means the filter can stay in place for most any application
• The filter is fully EMI shielded, and installed in a custom black anodized aluminum enclosure for further protection and isolation. The front end is protected by an RF-rated ESD diode, which provides protection not just for your filter, but also the radio or SDR behind it
• Flamingo FM is a proper bandstop filter, so you are able to pass-through DC (bias-tee) power when required. DC current handling is 250mA (min), and the maximum recommended signal level is 18dBm (5Vp-p), so there is no issue using the filter for higher-power applications
Model: Flamingo FM
Color: Black
