Brand: ADnet

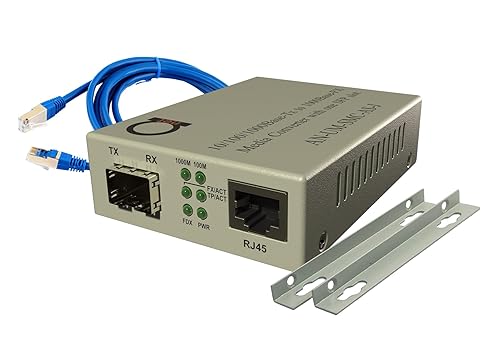

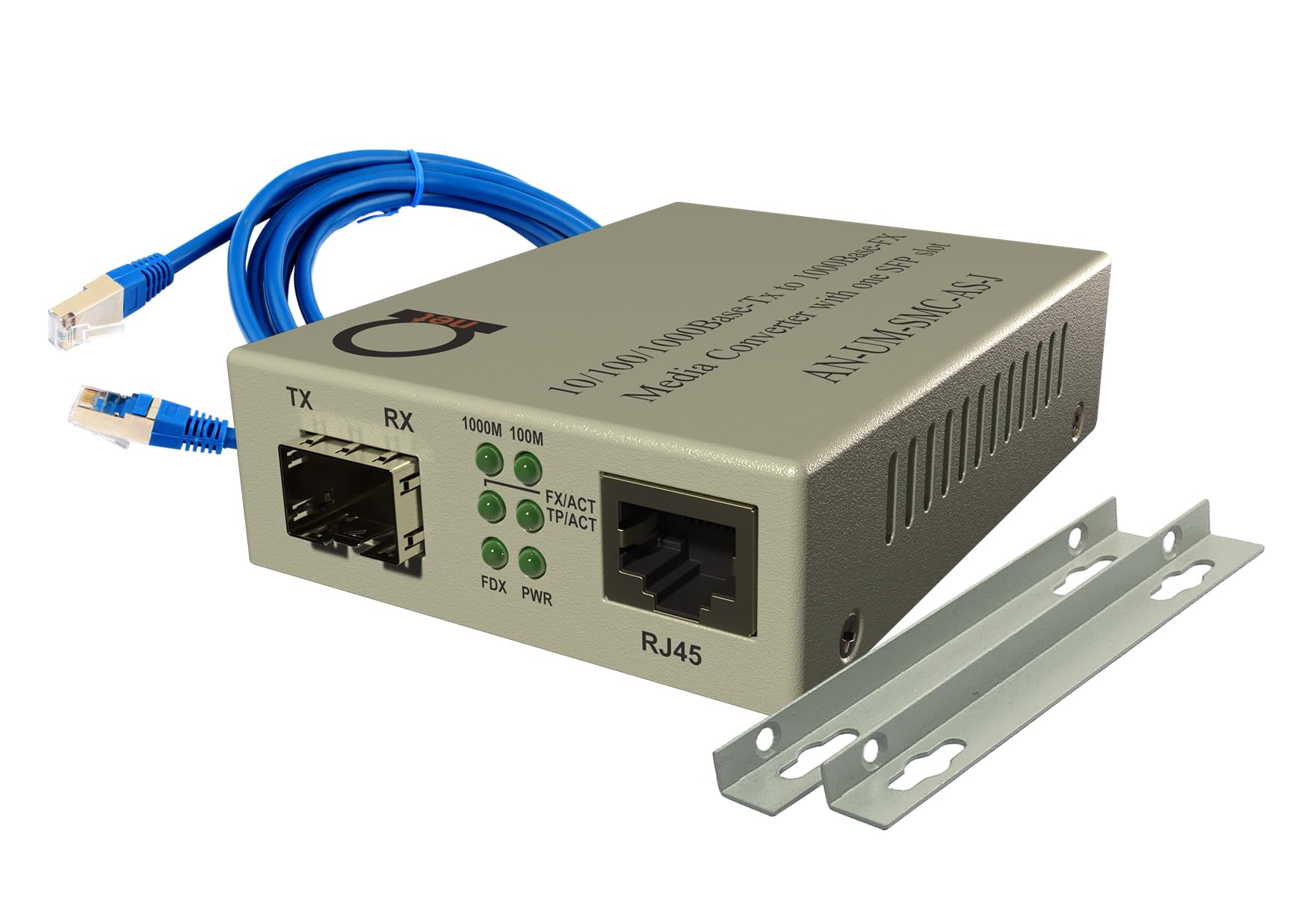

<p><b>Looking For Flexibility to Choose Your Own Fiber SFP miniGBIC module with Media Converter?</b></p> <p><b> AN-UM-SMC-AS-J is Designed Just For That - Use Any Standard SFP Module You Have In Hand to Plug In SFP slot and You Are Done - It Works! </b></p> <p> Changing Distance, or Fiber Type? Again, <b> Change SFP module </b>, While Keeping Same Media Converter! </p> <p><b> But Wait, There is More!</b></p> <p> AN-UM-SMC-AS <b> Will Automatically Detect </b> 10 Mbit/s or 100 Mbit/s Fast Ethernet or 1000 Mbit/s Gigabit port - You just need plug in the cables and it will work right away! </p> <p> All These Important Features Are <b>All Supported:</b></p> <ul> <li>Provides 1 slot for SFP miniGbic (Gigabit Type) modules, all major SFP brands are supported </li> <li>One 10/100/1000Base-T RJ-45 port autosensing featured</li> <li>Supporting hot-swap of SFP modules</li> <li>Standards: IEEE802.3z/ab 100/1000/1000Base-T 1000Base-LX/SX (depends on SFP module used) </li> <li>Power supply: 100 to 240VAC 50 to 60Hz</li> <li>Dimensions: 70.5mm(L)X94mm(W)X26.5mm(H)</li> <li>Environment: Relative humidity; 5% to 90%</li> <li>Operating temperature: 0 to 70 degree celsius </li> <li>CE, FCC, ROHS
• [ Adaptive Speed ]: Automatically adapts to 10 Mbit/s, 100 Mbit/s (Fast Ethernet) or 1000 Mbit/s (Gigabit) Speed and Extends in over Fiber - Distance and Fiber Type Depends on SFP Module You Choose

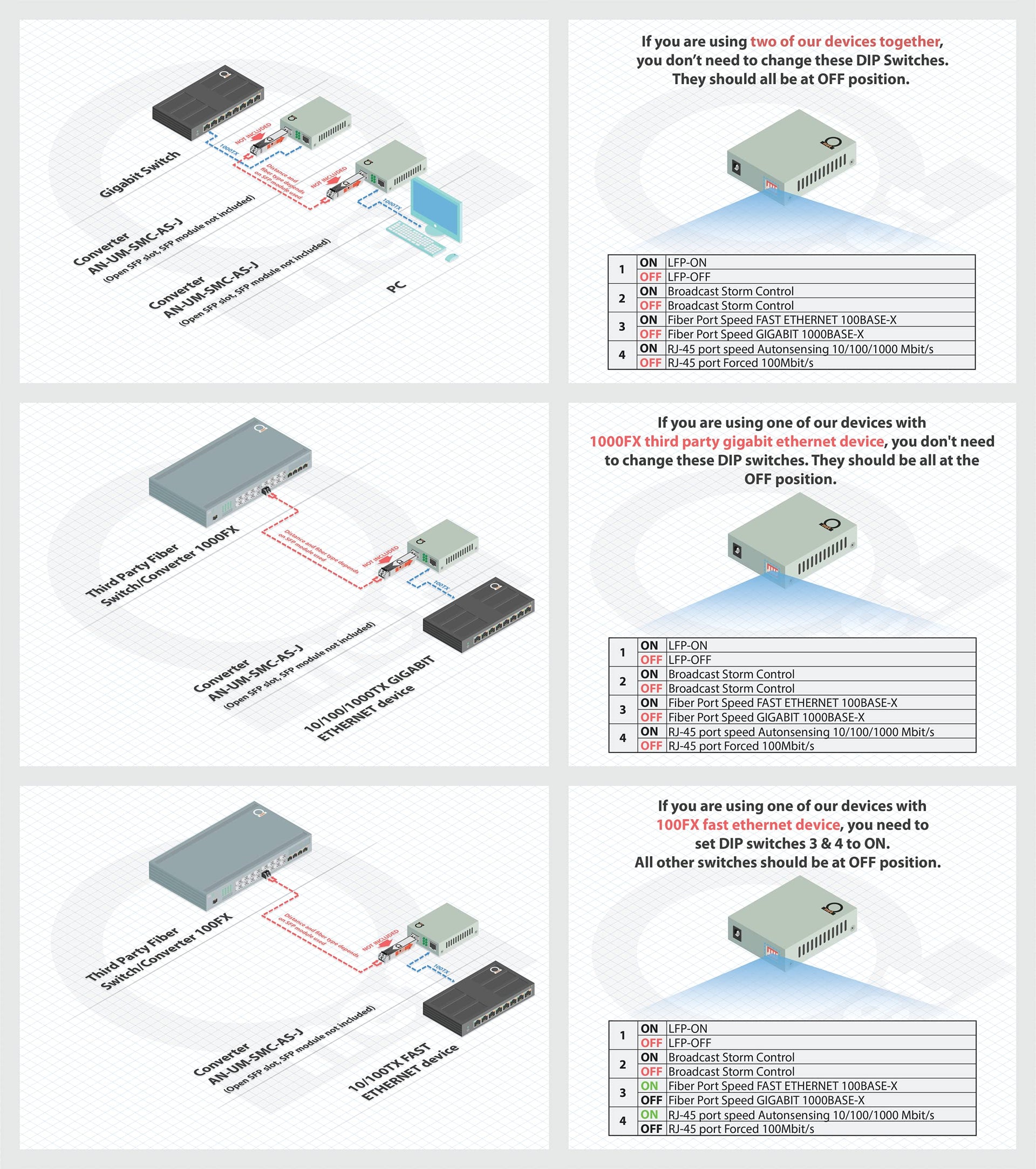

• [ Versatile Compatibility ]: Supports both 155M (100FX/SX/LX/…) Fast Ethernet and 1.25G (1000FX/LX/SX/…) Gigabit Speed SFP transceivers (IMPORTANT - the default setting is 1000M (Gigabit SFP), change the DIP switch setting if you use 155M (Fast Ethernet) SFP transceiver.

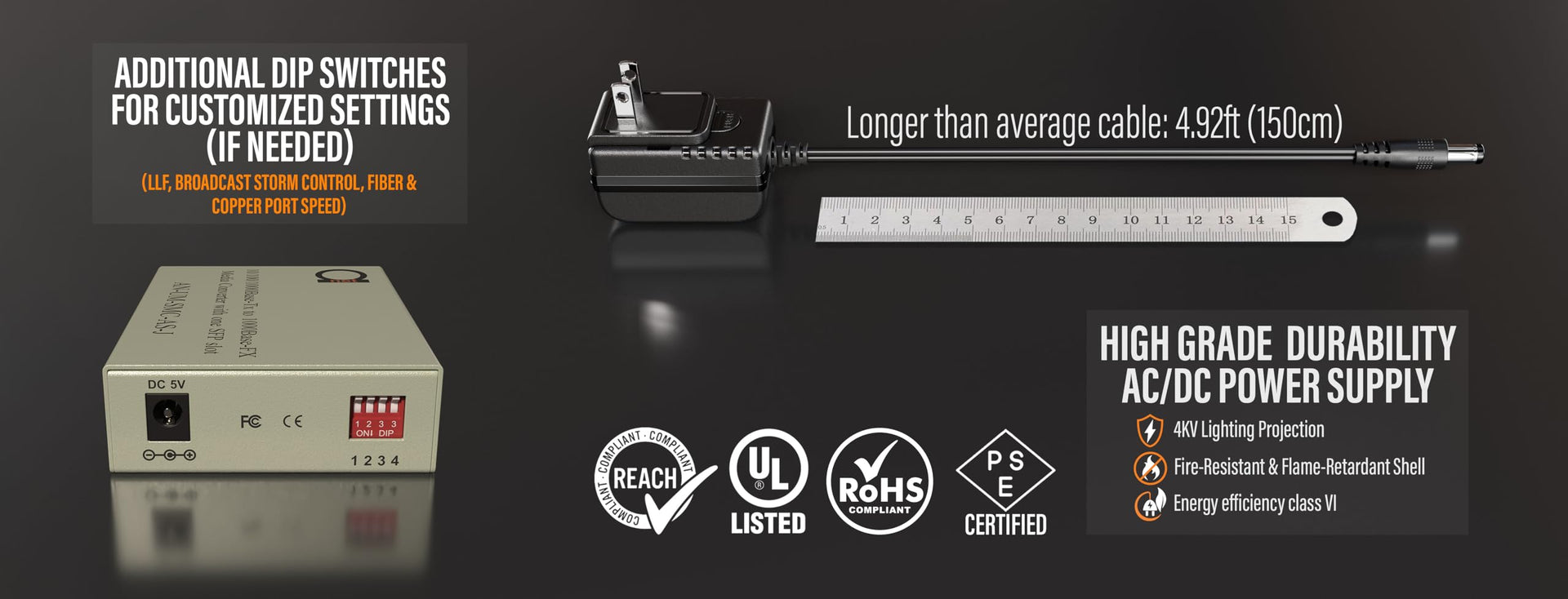

• [ Enhanced Performance & Control ]: Features Jumbo Frame and LLF Feature for superior TCP throughput, with customizable settings including forced 100Mbit RJ-45 port speed and broadcast storm control, all easily adjustable via DIP switch.
• [ Effortless Integration]: SFP Media Converter from Fiber Optic to Ethernet, offers a seamless plug-and-play experience. Just connect the optical and UTP ports, and the device activates instantly, bypassing complicated configurations.

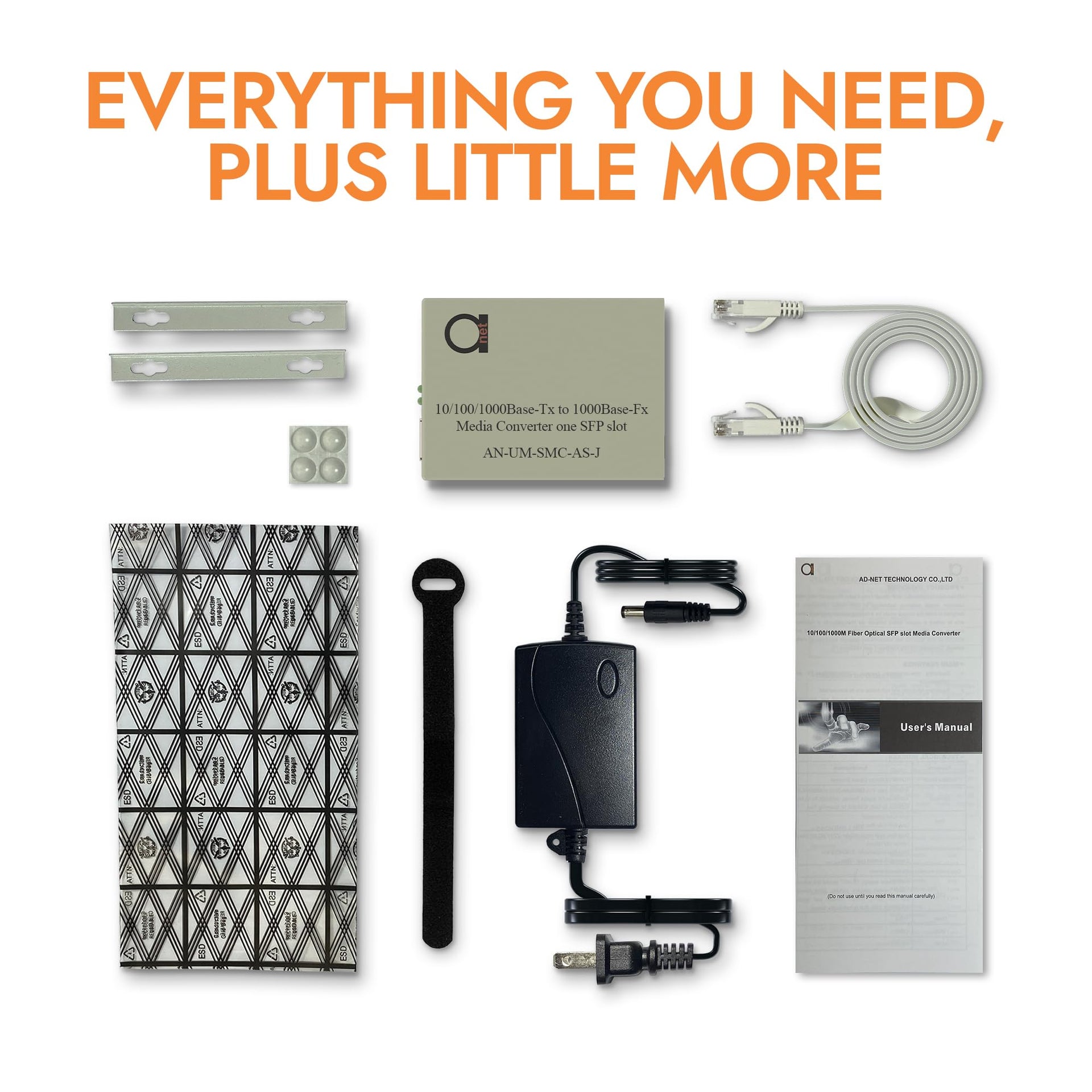

• [Included Extras]: Each unit comes with a 1m UTP RJ-45 Cat6 Patch Cable (color may vary based on stock) and a handy wall mount set, for your convience.
Color: Beige
<p><b>Looking For Flexibility to Choose Your Own Fiber SFP miniGBIC module with Media Converter?</b></p> <p><b> AN-UM-SMC-AS-J is Designed Just For That - Use Any Standard SFP Module You Have In Hand to Plug In SFP slot and You Are Done - It Works! </b></p> <p> Changing Distance, or Fiber Type? Again, <b> Change SFP module </b>, While Keeping Same Media Converter! </p> <p><b> But Wait, There is More!</b></p> <p> AN-UM-SMC-AS <b> Will Automatically Detect </b> 10 Mbit/s or 100 Mbit/s Fast Ethernet or 1000 Mbit/s Gigabit port - You just need plug in the cables and it will work right away! </p> <p> All These Important Features Are <b>All Supported:</b></p> <ul> <li>Provides 1 slot for SFP miniGbic (Gigabit Type) modules, all major SFP brands are supported </li> <li>One 10/100/1000Base-T RJ-45 port autosensing featured</li> <li>Supporting hot-swap of SFP modules</li> <li>Standards: IEEE802.3z/ab 100/1000/1000Base-T 1000Base-LX/SX (depends on SFP module used) </li> <li>Power supply: 100 to 240VAC 50 to 60Hz</li> <li>Dimensions: 70.5mm(L)X94mm(W)X26.5mm(H)</li> <li>Environment: Relative humidity; 5% to 90%</li> <li>Operating temperature: 0 to 70 degree celsius </li> <li>CE, FCC, ROHS
• [ Adaptive Speed ]: Automatically adapts to 10 Mbit/s, 100 Mbit/s (Fast Ethernet) or 1000 Mbit/s (Gigabit) Speed and Extends in over Fiber - Distance and Fiber Type Depends on SFP Module You Choose
• [ Versatile Compatibility ]: Supports both 155M (100FX/SX/LX/…) Fast Ethernet and 1.25G (1000FX/LX/SX/…) Gigabit Speed SFP transceivers (IMPORTANT - the default setting is 1000M (Gigabit SFP), change the DIP switch setting if you use 155M (Fast Ethernet) SFP transceiver.
• [ Enhanced Performance & Control ]: Features Jumbo Frame and LLF Feature for superior TCP throughput, with customizable settings including forced 100Mbit RJ-45 port speed and broadcast storm control, all easily adjustable via DIP switch.
• [ Effortless Integration]: SFP Media Converter from Fiber Optic to Ethernet, offers a seamless plug-and-play experience. Just connect the optical and UTP ports, and the device activates instantly, bypassing complicated configurations.
• [Included Extras]: Each unit comes with a 1m UTP RJ-45 Cat6 Patch Cable (color may vary based on stock) and a handy wall mount set, for your convience.
Color: Beige
