Brand: INTELLINET NETWORK SOLUTIONS

Features:

• Connects 10/100Base-TX Ethernet over RJ45 to 100Base-FX single-mode fiber through an SC port, creating a 100 Mbps Fast Ethernet link between copper and fiber network segments for device extension or media conversion in mixed cabling setups.
• WDM technology sends and receives over a single fiber strand by using separate wavelengths, with TX 1310 nm and RX 1550 nm, helping reduce fiber usage while supporting bi-directional single-mode Fast Ethernet connections through one SC fiber port.
• Supports single-mode SC fiber links up to 20 km or 12.4 miles, while the 10/100 RJ45 port supports runs up to 100 m or 300 ft. with Cat5e or better cable, making it suitable for extending network connections across longer fiber spans.
• RJ45 port supports Auto MDI/MDI-X for easier integration with existing copper network equipment and also handles jumbo frames up to 1.6 KBytes, helping simplify deployment when connecting different Ethernet devices and cabling types.

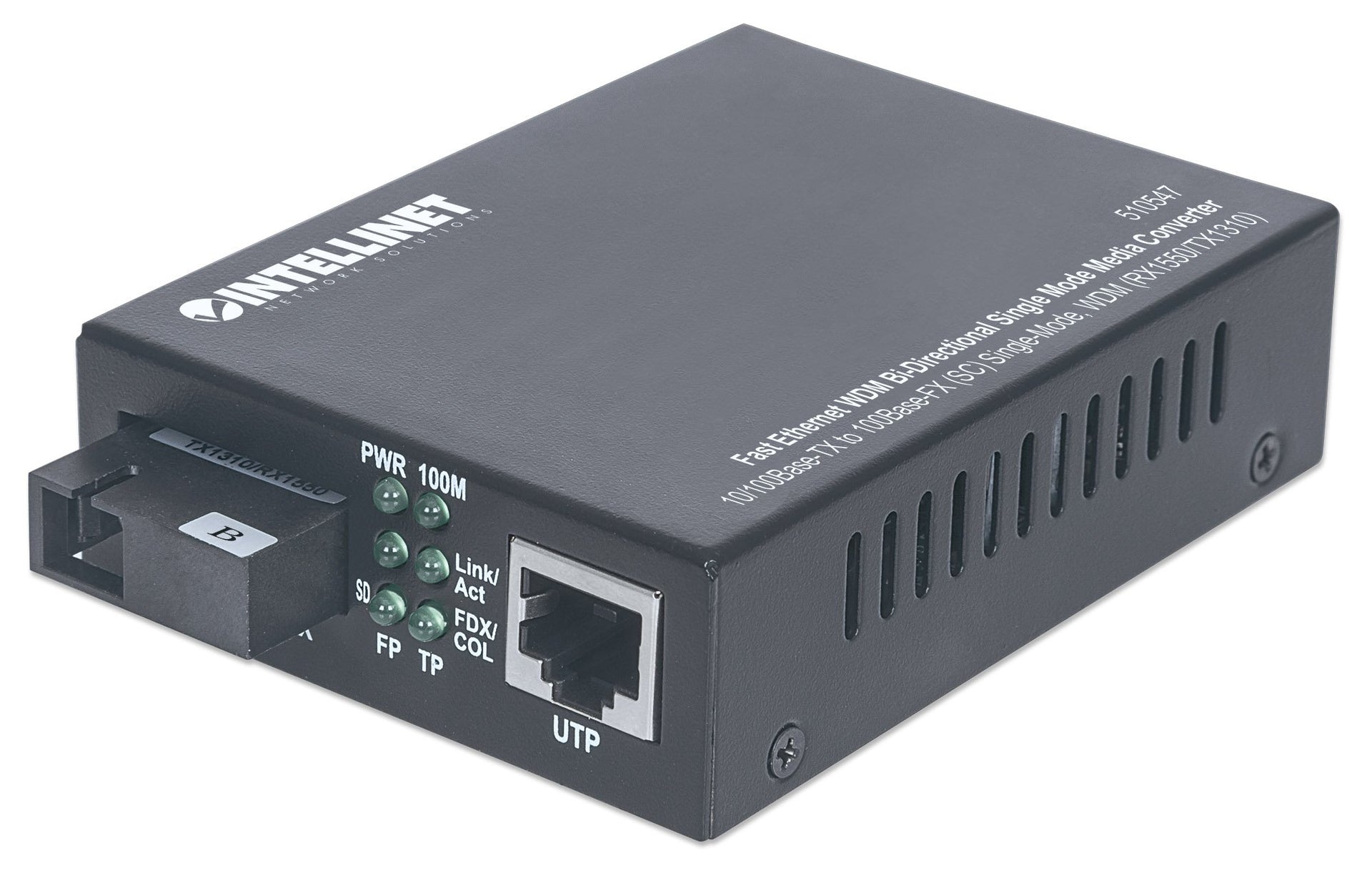

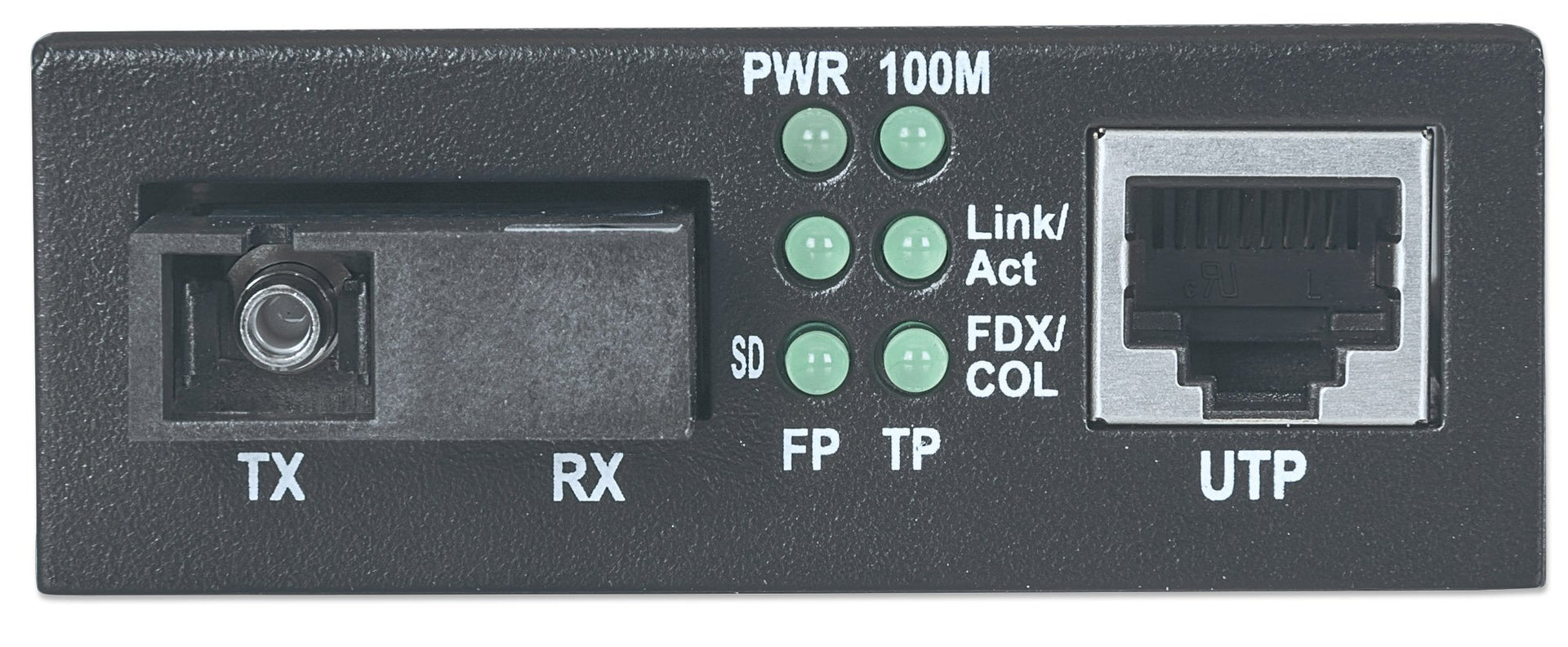

• Front-panel status LEDs show power, link and activity, full duplex or collision, 100 Mbps RJ45 link speed, and fiber link status, giving clear visual feedback during installation, troubleshooting, and day-to-day monitoring of network connections.

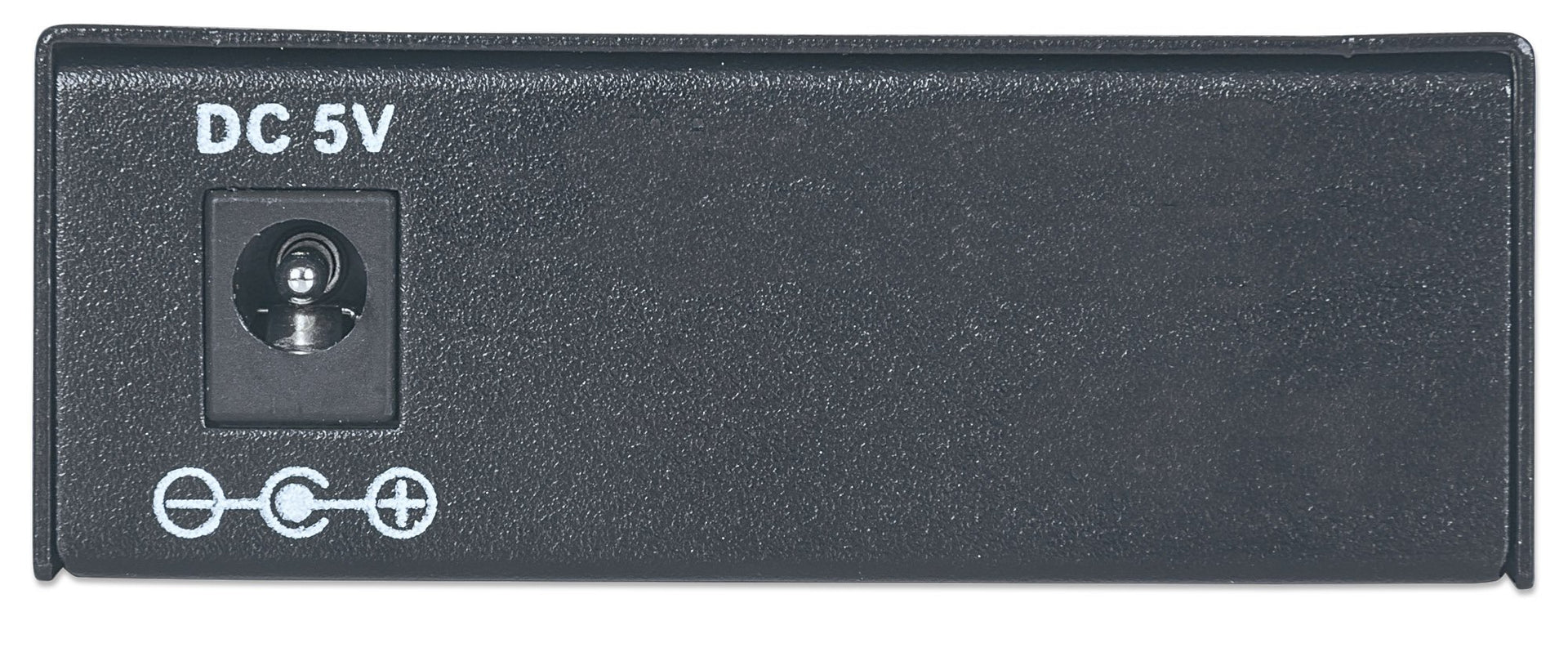

• Use as a stand-alone converter with its external power adapter or install it in the 14-slot Media Converter Chassis, model 507356

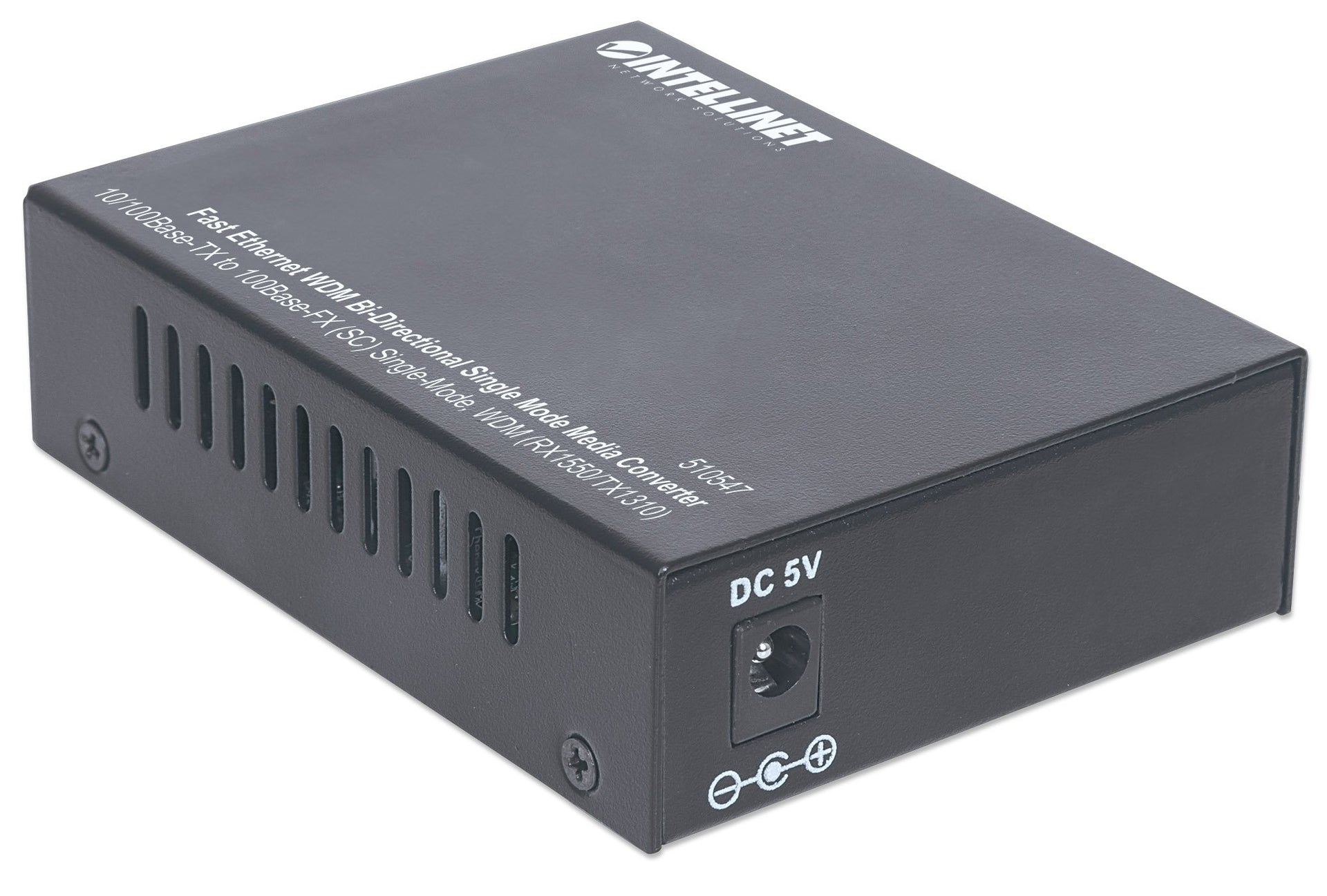

• the compact metal housing measures 4.13 x 2.72 x 0.98 inches and weighs 0.4 lb for flexible placement.
• This WDM converter must be paired with the corresponding Fast Ethernet WDM Bi-Directional Single Mode Media Converter, model 510530, for proper operation, making it the RX1550/TX1310 side of a matched one-fiber single-mode converter link.

Product Details:

• Size: 10/100Base-TX to 100Base-FX (SC) Single-Mode,WDM
• Model: 510547
• Package Quantity: 1
