Description
Brand: OLYCOM

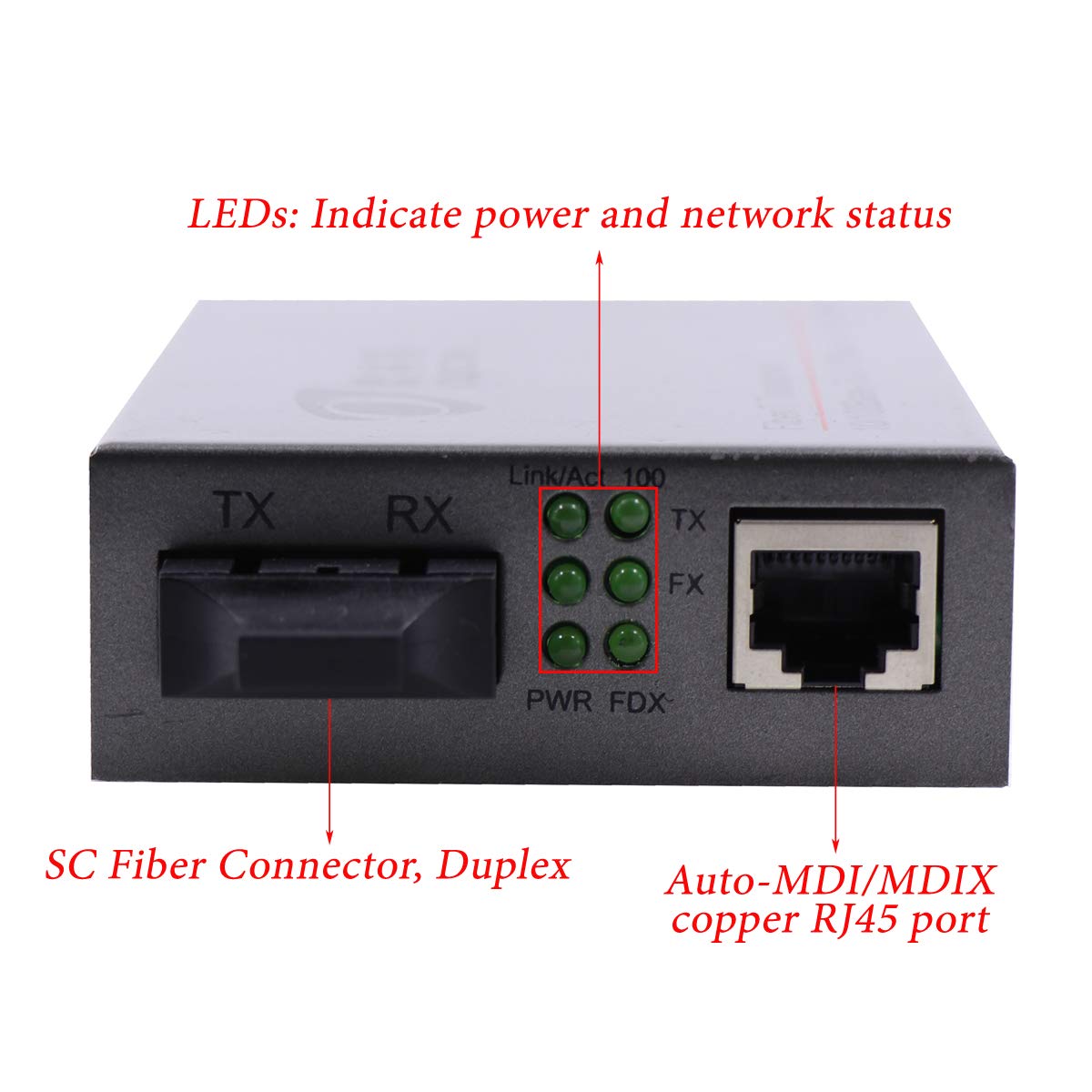

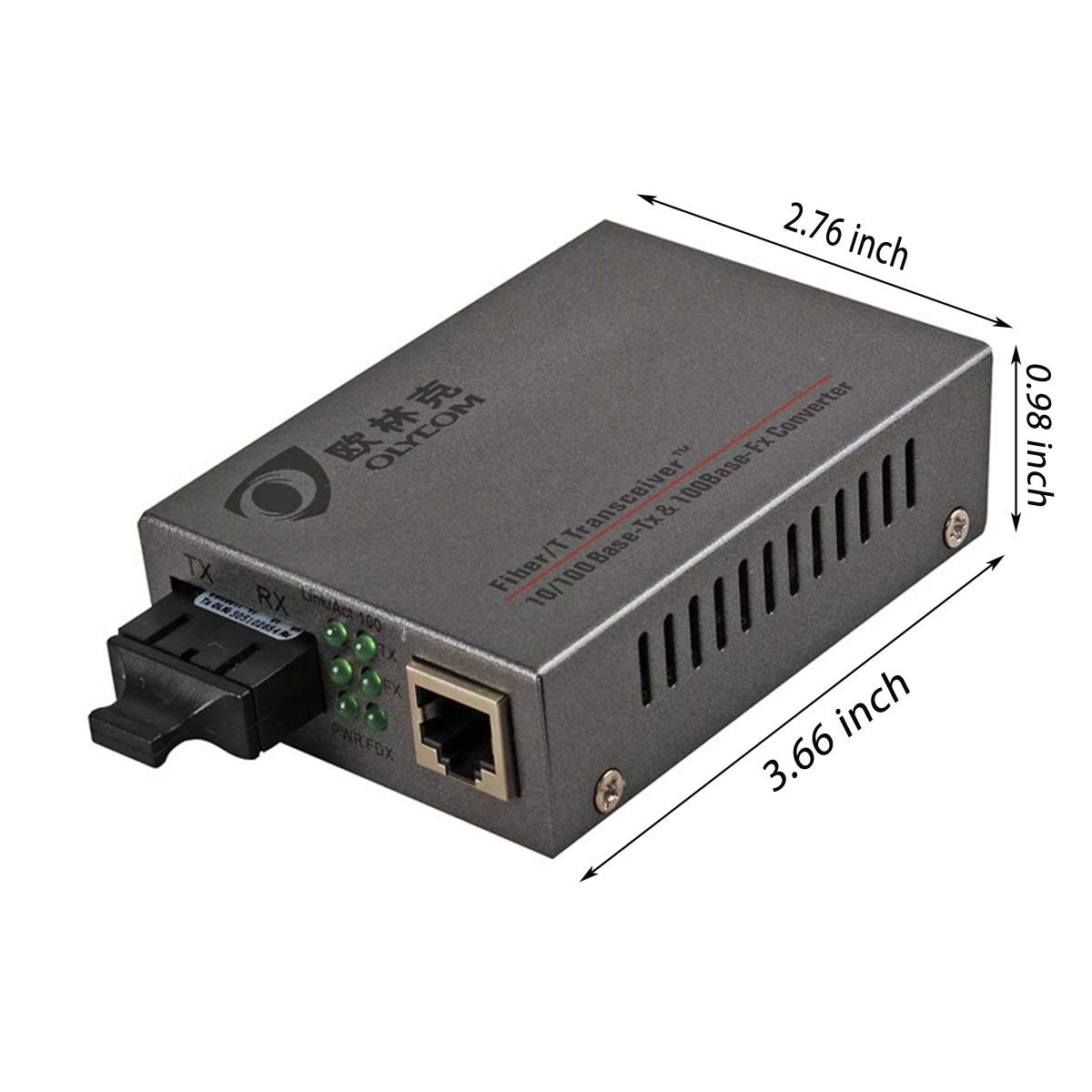

<p><b>Main Features</b></p> <ul> <li>100BASE-FX FIBER to 10/100BASE-T COPPER Ethernet conversion</li> <li>Auto-MDI/MDIX copper RJ45 port</li> <li>1600byte super data packet transmission</li> <li>Full duplex-flow control, half duplex-back pressure</li> <li>Full-positioned LEDs to indicate power and network status</li> <li>Standard : IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree</li> </ul> <p><b>Ethernet port </b></p> <ul> <li>Copper RJ45 port</li> <li>10/100M Auto-sensing</li> </ul> <p><b>Optical Port</b></p> <ul> <li>MM, Duplex, 2km, SC connector,1310nm</li> <li>SM, Duplex, 40km, SC connector, 1310nm wavelength </li> <li>SM, Duplex, 60km, SC connector, 1550nm</li> <li>SM, Duplex, 80km, SC connector, 1550nm</li> </ul> <p><b>Specification</b></p> <ul> <li>Conversion Mode / Delay Time:Store-and-Forward < 10us, straight-through<0.9us</li> <li>Dimensions : 2.76 inch*3.66 inch * 0.98 inch (W*D*H)</li> <li>Weight?0.3 kg</li> <li>Input Voltage?DC5V1A with External power adapter</li> <li>Power Consumption?<2.5W</li> <li>MTBF?50,000 hours</li> <li>BER?<1/1000000000</li>
• ?OPTICAL PORT?Fast Ethernet,SC Connector,1310nm wavelength,up to 40km Transmission Distance via Duplex Singlemode Cable
• ?ETHERNET PORT?10/100Mbps, Full duplex-flow control, Half duplex-back pressure
• Connect UTP CAT5 Cable,Supports MDI/MDI-X auto sensing.
• ?STANDARD?Complies with IEEE IEEE 802.3/802.3u/802.3z/802.3ab. The LED indicators for TX, FXL/TXL,POWER, FDX can dynamic feedback link connection state and fault detection to easily monitor network status.

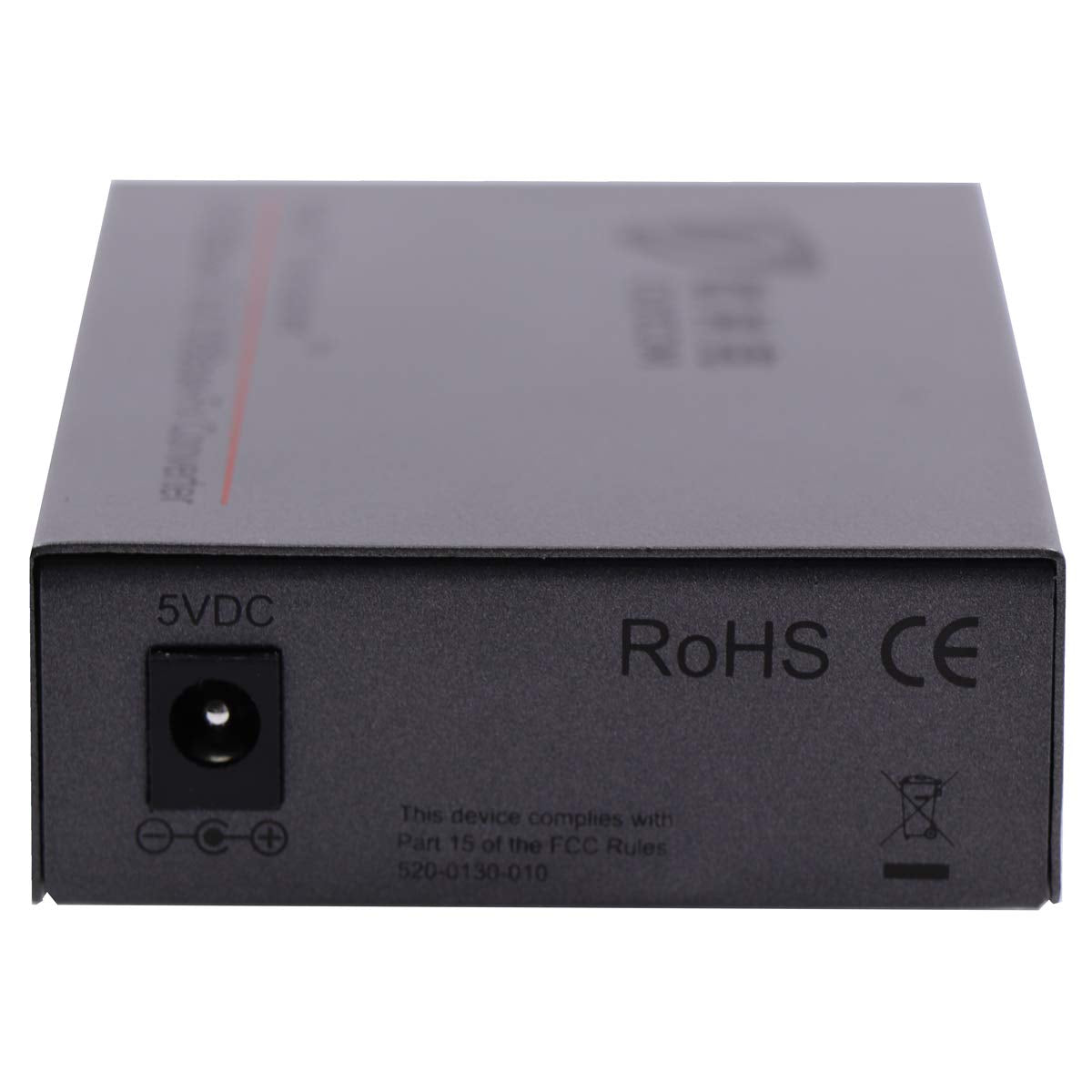

• ?AVAILABLE FOR RACK?Can work with 2U 19" 14 slots chassis,support wide power supply voltage (100V-240V).Standalone operating voltage is 5VDC /1.0A.
Color: Grey
<p><b>Main Features</b></p> <ul> <li>100BASE-FX FIBER to 10/100BASE-T COPPER Ethernet conversion</li> <li>Auto-MDI/MDIX copper RJ45 port</li> <li>1600byte super data packet transmission</li> <li>Full duplex-flow control, half duplex-back pressure</li> <li>Full-positioned LEDs to indicate power and network status</li> <li>Standard : IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree</li> </ul> <p><b>Ethernet port </b></p> <ul> <li>Copper RJ45 port</li> <li>10/100M Auto-sensing</li> </ul> <p><b>Optical Port</b></p> <ul> <li>MM, Duplex, 2km, SC connector,1310nm</li> <li>SM, Duplex, 40km, SC connector, 1310nm wavelength </li> <li>SM, Duplex, 60km, SC connector, 1550nm</li> <li>SM, Duplex, 80km, SC connector, 1550nm</li> </ul> <p><b>Specification</b></p> <ul> <li>Conversion Mode / Delay Time:Store-and-Forward < 10us, straight-through<0.9us</li> <li>Dimensions : 2.76 inch*3.66 inch * 0.98 inch (W*D*H)</li> <li>Weight?0.3 kg</li> <li>Input Voltage?DC5V1A with External power adapter</li> <li>Power Consumption?<2.5W</li> <li>MTBF?50,000 hours</li> <li>BER?<1/1000000000</li>
• ?OPTICAL PORT?Fast Ethernet,SC Connector,1310nm wavelength,up to 40km Transmission Distance via Duplex Singlemode Cable
• ?ETHERNET PORT?10/100Mbps, Full duplex-flow control, Half duplex-back pressure
• Connect UTP CAT5 Cable,Supports MDI/MDI-X auto sensing.
• ?STANDARD?Complies with IEEE IEEE 802.3/802.3u/802.3z/802.3ab. The LED indicators for TX, FXL/TXL,POWER, FDX can dynamic feedback link connection state and fault detection to easily monitor network status.
• ?AVAILABLE FOR RACK?Can work with 2U 19" 14 slots chassis,support wide power supply voltage (100V-240V).Standalone operating voltage is 5VDC /1.0A.
Color: Grey
