Description
Brand: FainWan
you can instead use this pin as a 2.8 V input with VIN disconnected.)
VIN This is the main 2.6 V to 5.5 V power supply connection. The SCL and SDA level shifters pull the I²C lines high to this level.
GND The ground (0 V) connection for your power supply. Your I²C control source must also share a common ground with this board.
SDA Level-shifted I²C data line: HIGH is VIN, LOW is 0 V
SCL Level-shifted I²C clock line: HIGH is VIN, LOW is 0 V
XSHUT This pin is an active-low shutdown input; the board pulls it up to VDD to enable the sensor by default. Driving this pin low
puts the sensor into hardware standby. This input is not level-shifted.
• Advantage: A time-of-flight ranging system integrated into a compact module
• Strong point: A carrier for the VL53L0X
• Accuracy: Range from ±3% at best to over ±10% in less optimal conditions
• Maximum Sensoring Distance: 2m
• Working Voltage: 2.6V - 5.5V

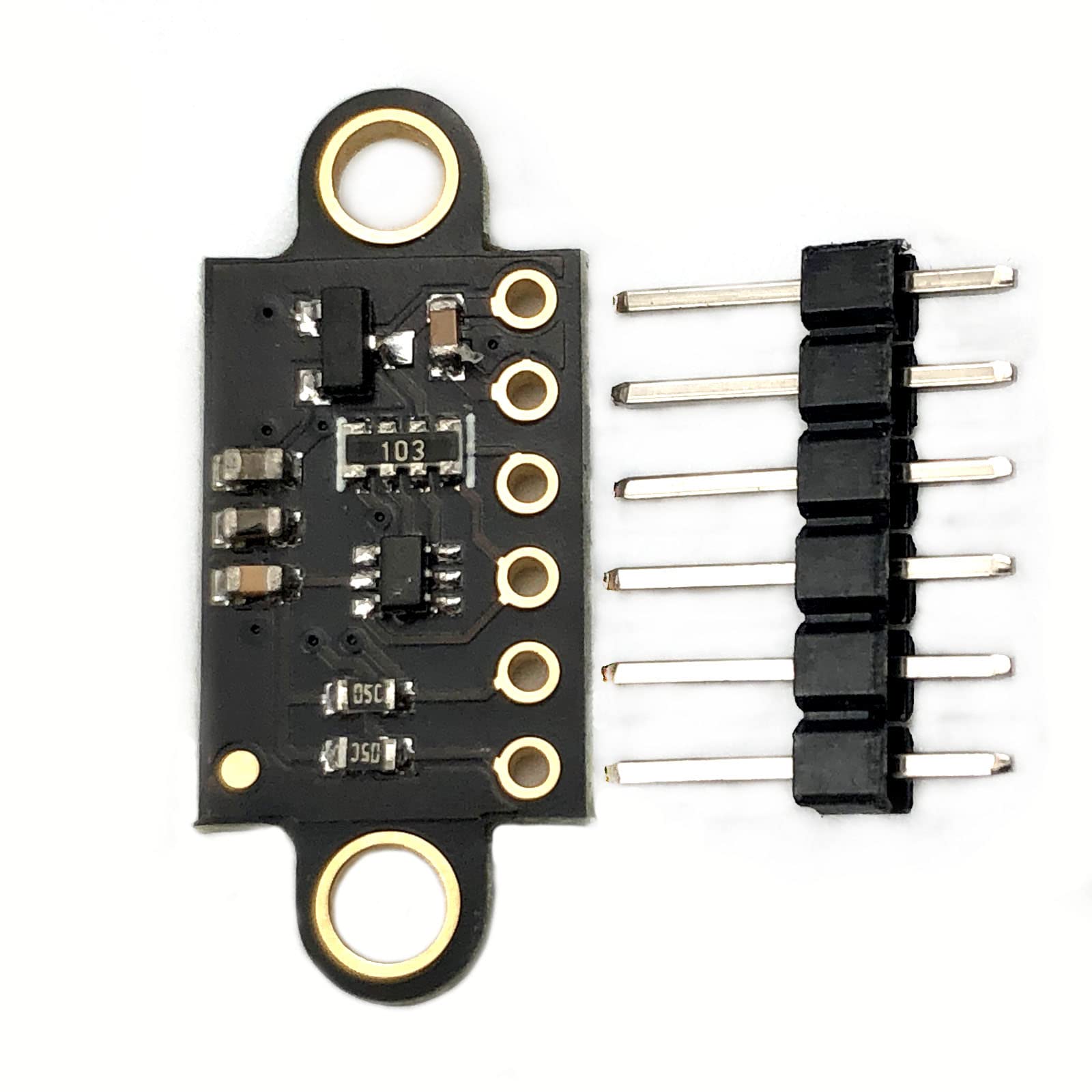

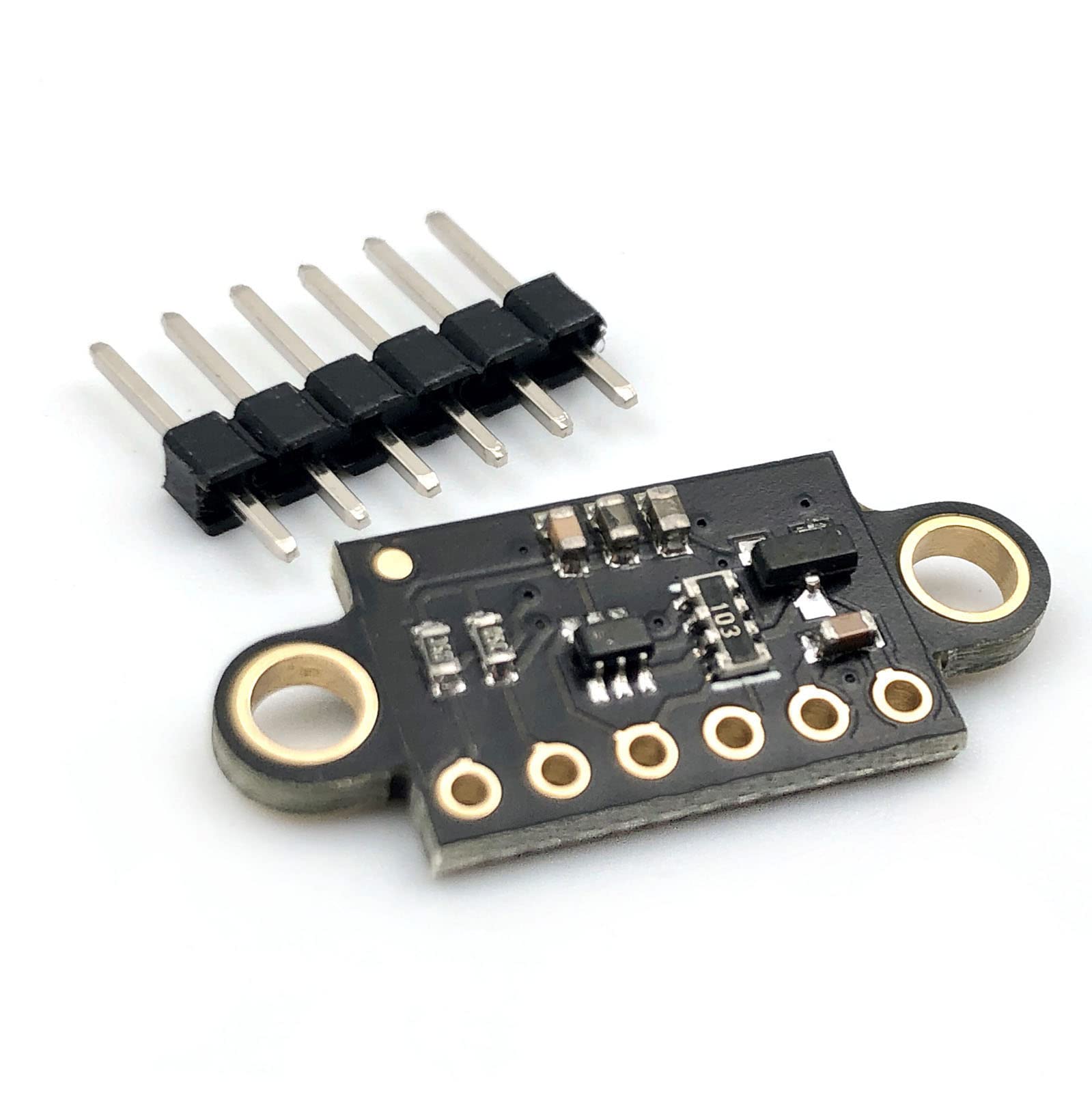

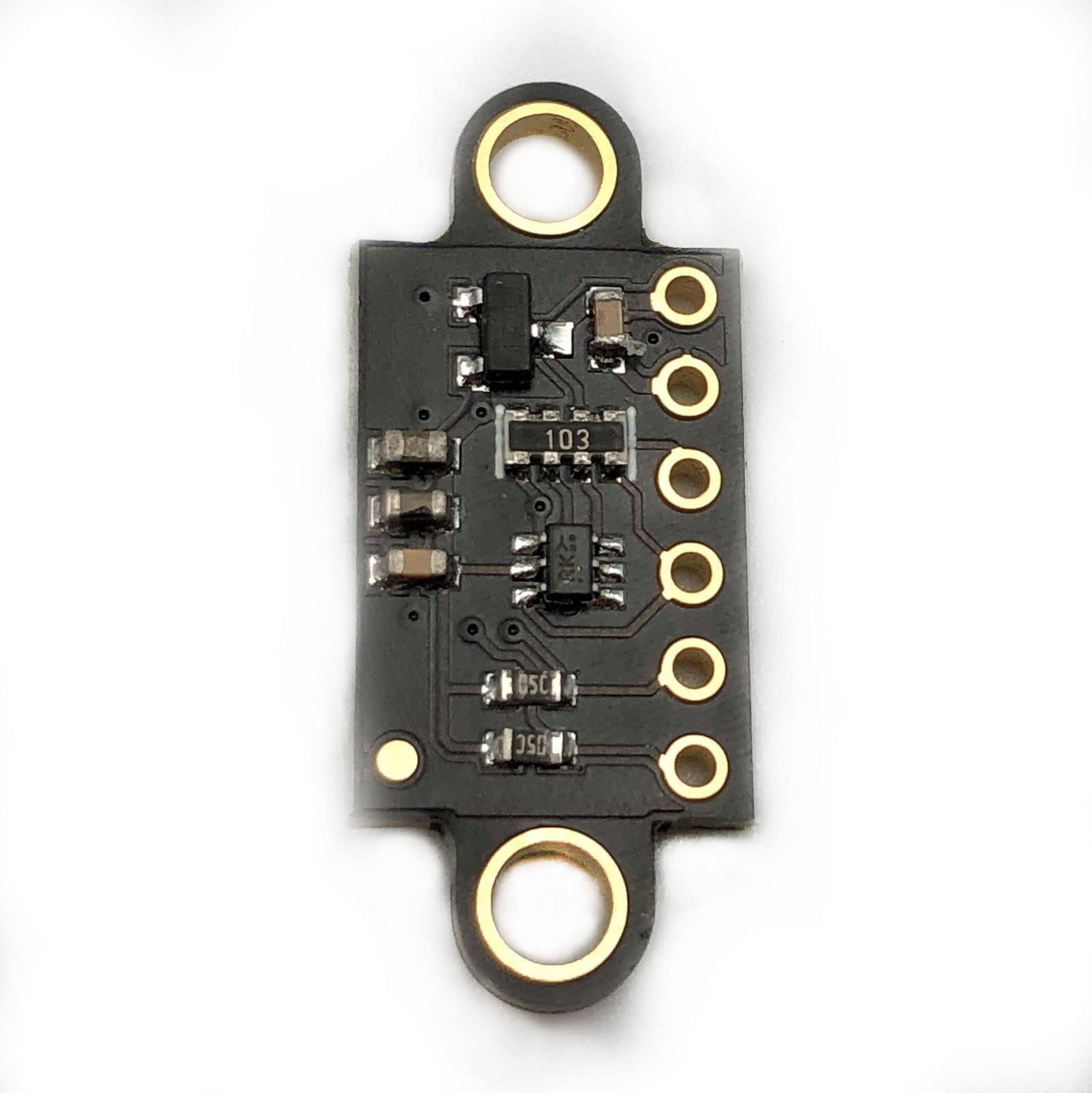

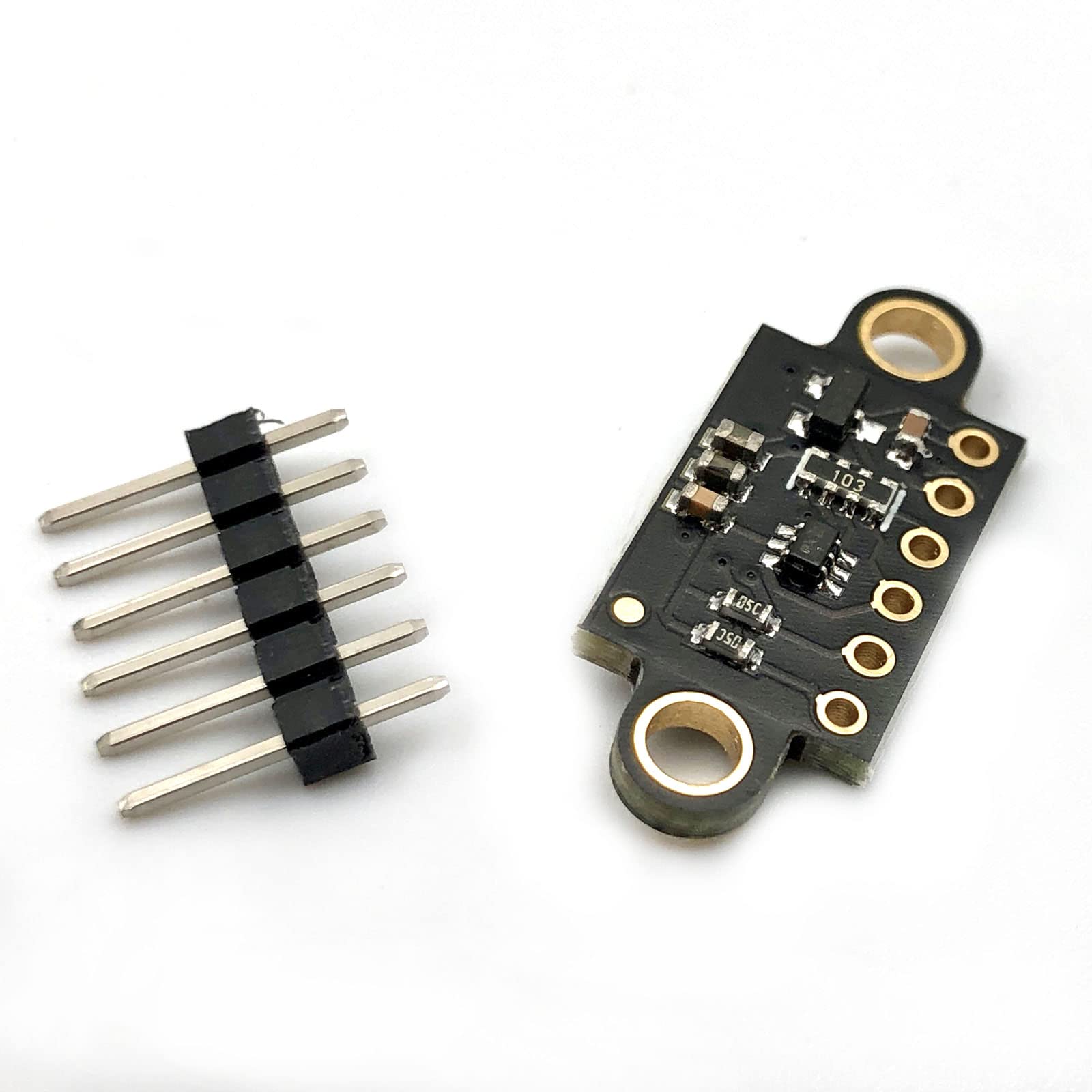

VL53L0X Time-of-Flight Flight Distance Measurement Sensor Breakout for Ar-duino
Descriptions:
Ranging measurements are available through the sensors I²C (TWI) interface, which is also used to configure sensor settings,
and the sensor provides two additional pins: a shutdown input and an interrupt output.
The VL53L0X is a great IC, but its small, leadless, LGA package makes it difficult for the typical student or hobbyist to use.
It also operates at a recommended voltage of 2.8 V, which can make interfacing difficult for microcontrollers operating at 3.3 V or 5 V.Our breakout board addresses these issues, making it easier to get started using the sensor, while keeping the overall size as small as possible.

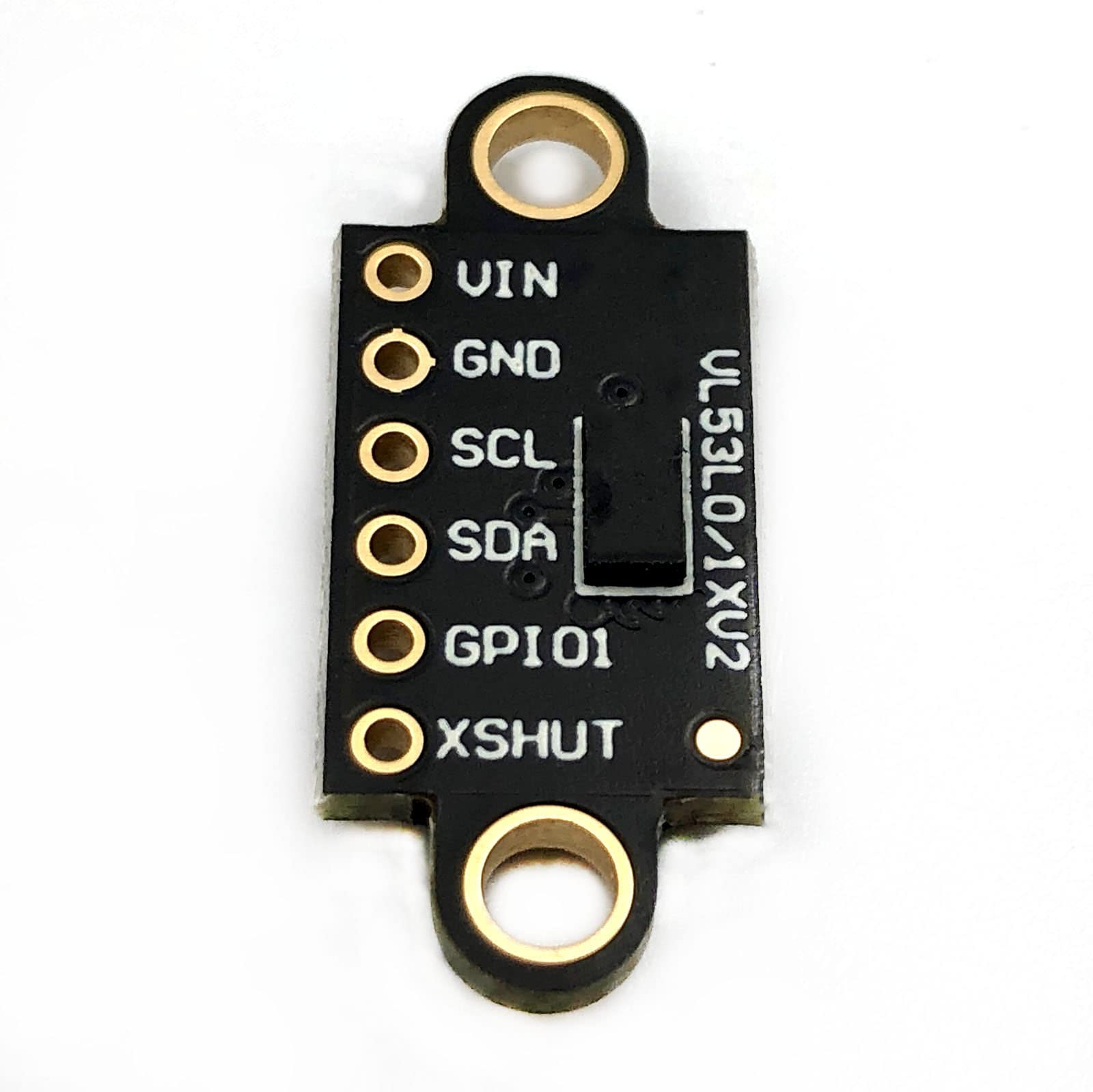

PIN Description
VDD Regulated 2.8 V output. Almost 150 mA is available to power external components. (If you want to bypass the internal regulator,you can instead use this pin as a 2.8 V input with VIN disconnected.)
VIN This is the main 2.6 V to 5.5 V power supply connection. The SCL and SDA level shifters pull the I²C lines high to this level.
GND The ground (0 V) connection for your power supply. Your I²C control source must also share a common ground with this board.
SDA Level-shifted I²C data line: HIGH is VIN, LOW is 0 V
SCL Level-shifted I²C clock line: HIGH is VIN, LOW is 0 V
XSHUT This pin is an active-low shutdown input; the board pulls it up to VDD to enable the sensor by default. Driving this pin low
puts the sensor into hardware standby. This input is not level-shifted.
Package included:
1* VL53L0X Time-of-Flight Flight Distance Measurement Sensor Breakout for Ar-duino• Advantage: A time-of-flight ranging system integrated into a compact module
• Strong point: A carrier for the VL53L0X
• Accuracy: Range from ±3% at best to over ±10% in less optimal conditions
• Maximum Sensoring Distance: 2m
• Working Voltage: 2.6V - 5.5V
