Brand: EXVIST

<p><b>Advantages</b></p> <p><ul> <li>This adapter's design is based on indutrial electric circuit, DC-DC power chip and 3.5 synchronized current.</li> <li>It's well compatible with 4G IoT M.2(NGFF) module like HUAWEI, ZTE, AIRCARD, LONGSUNG, YUGA, QUECTEL, MEIG, SIMCOM, SAMSUNG, HUAYU, DTT etc. etc.</li> <li>It's equipped with M.2(NGFF) factor, USB 3.0 connector(USB 2.0 compatible) and NANO SIM card slot(Push-Push Type).</li> <li>The hot-plugginig for SIM card is supported but doesn't support dual SIM cards as the module doesn't support it).</li> <li>With DC-DC power chip equipped, the voltage source will be stable to power on module and UIM/SIM card continuously.</li> <li>It also adopts high current as it is another key factor to make sure module is always online even under severe environment.</li> </ul></p> <p><b>Specificiation</b></p> <p><b>Basics</b></p> <p><ul><li>Model: 4GM2A</li> <li>Dimension: 78.2mm(L)x31.5mm(W)</li> <li>The design of NGFF(M.2) is compliant with industrial criteria.</li> <li>Applicable for 4G modems with dimension 2242 or 5G modems with dimension 2252.</li> <li>LED indicator will be always on when it is working.</li> <li>Pure hardware desgin, no driver needed.</li></ul></p> <p><b>Package Contents</b></p> <p><ul><li>1x 4G LTE Industrial M.2(NGFF) to USB3.0 Adapter(Packed in Antistatic Bag)</li> <li>1x Matched Screw</li></ul></p>

Features:

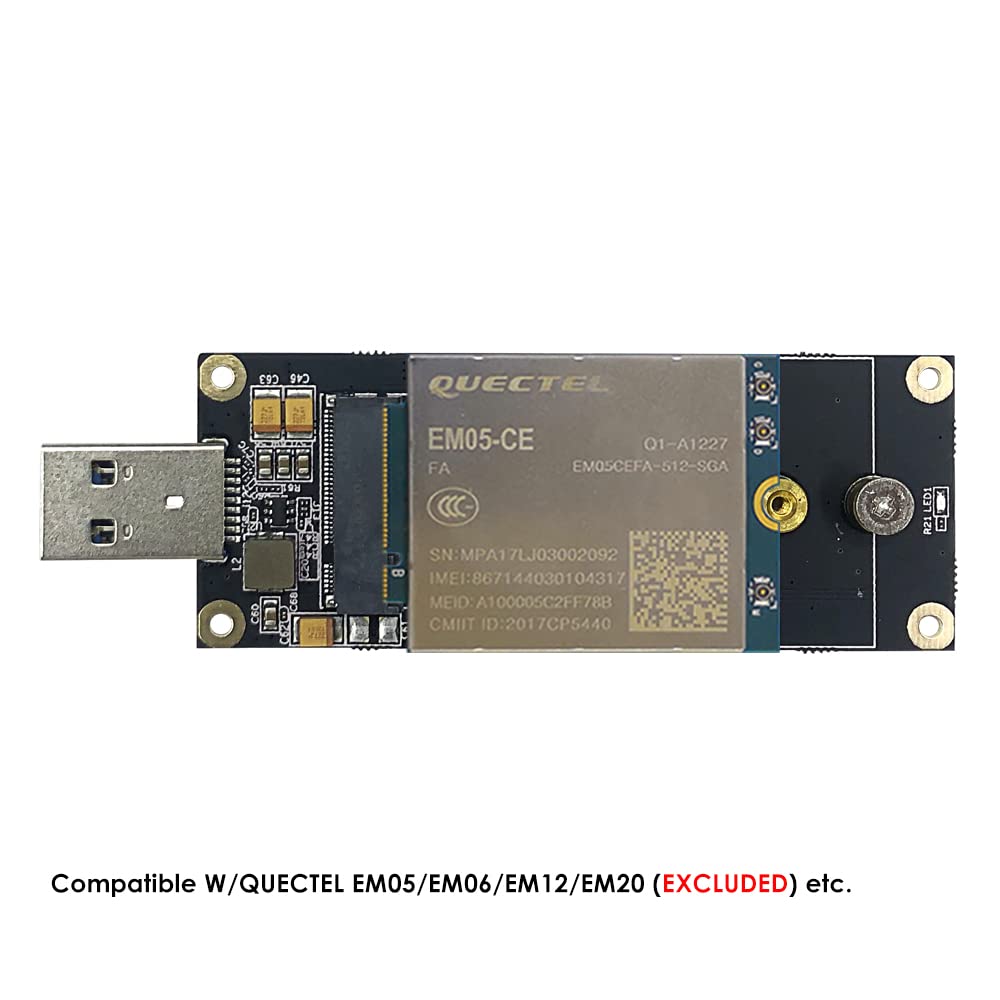

• Compatility - It's compatible with 4G IOT NGFF (M.2) modules from some brands, like Quectel EM05, EM06 etc.
• Application - It can be widely used for M2M IoT applications such as industrial router, home gateway, STB, industrial laptop, consumer laptop, industrial PDA, rugged tablet PC, video surveillance and digital signage etc.

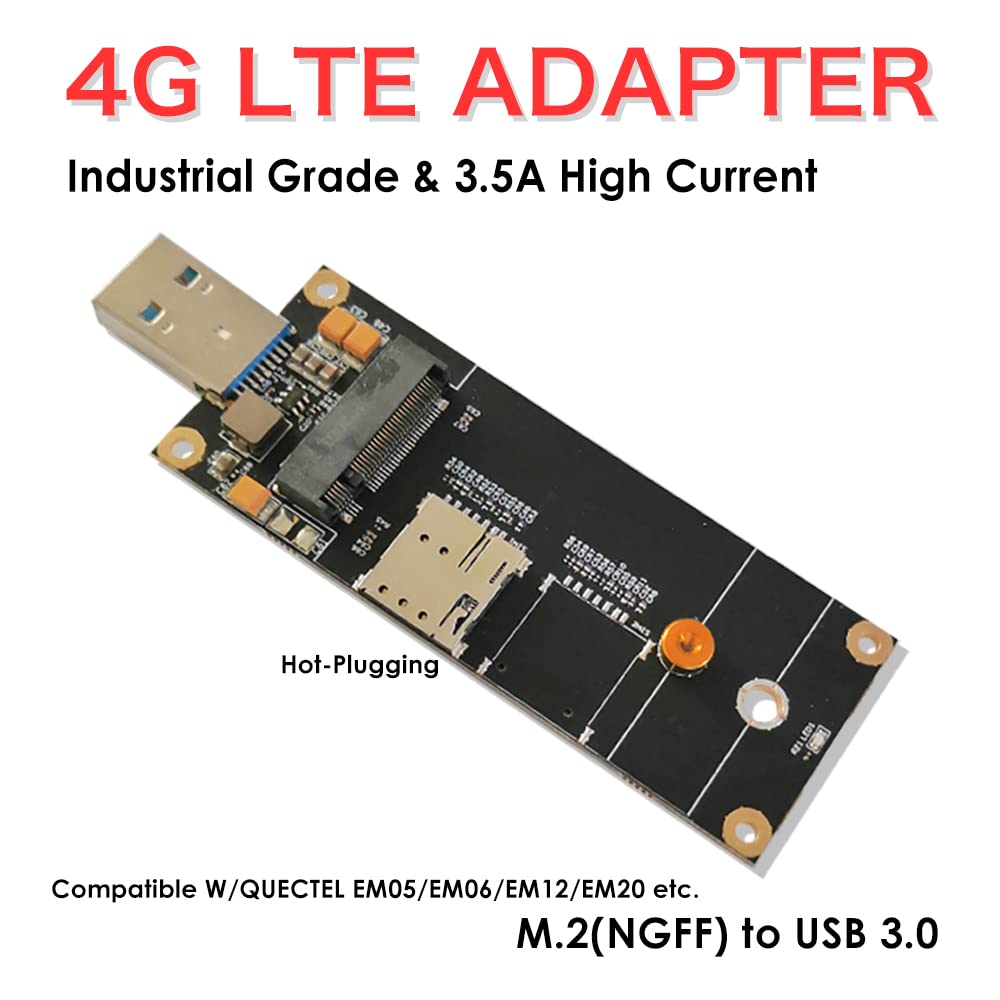

• Reliability - It adopts industrial electric circuit design, DC-DC power chip and 3.5A synchronized current to make sure the module can always be working fine and never offline even under severe environment.
• Principle - The interface definition of NGFF(M.2) is USB signal and 3.7V, the input voltage 5V by USB will be converted into 3.7V via DC-DC power chip to power on module and UIM/SIM card.

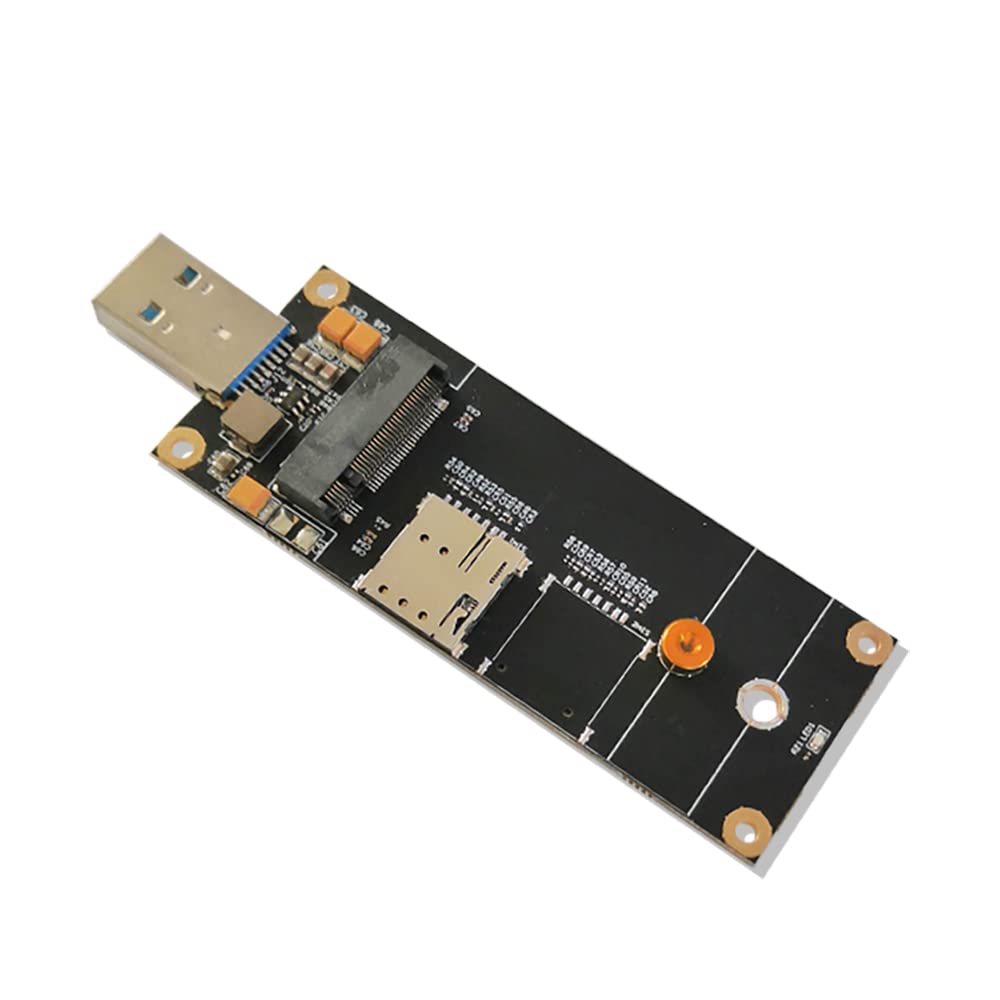

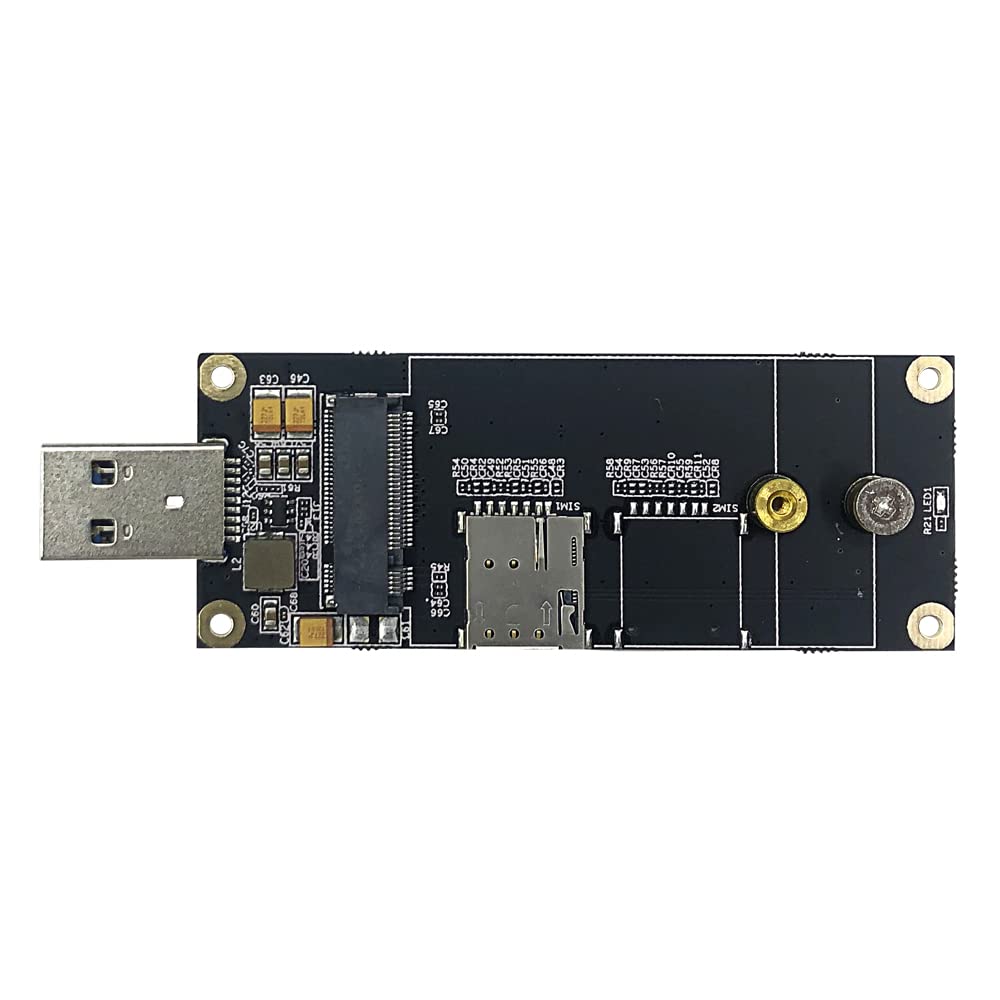

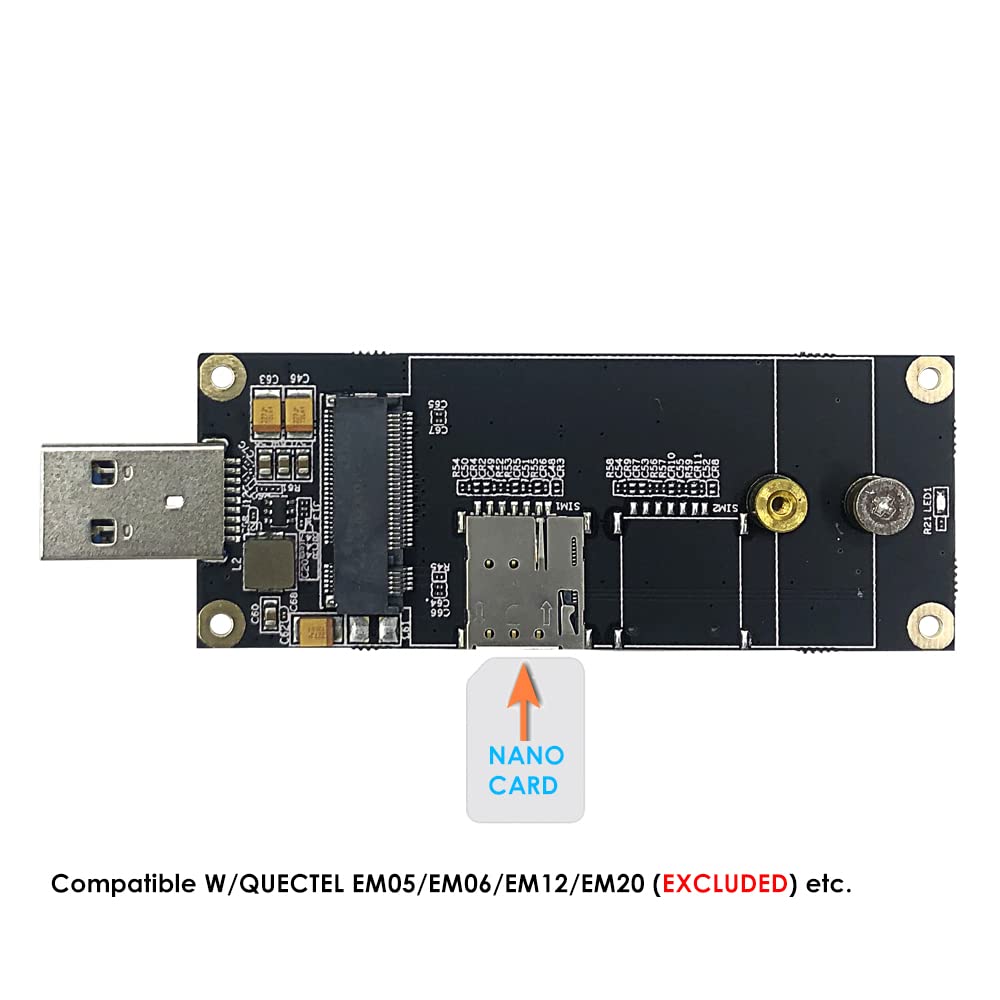

• Interfaces - There are M.2 (NGFF) for connecting 4G IOT module, USB 3.0 connector which can be compatible with USB3.0 and USB2.0 connector, NANO SIM card slot(Push-Push Type) which supports hot-plugging but not dual SIM cards.

Product Details:

• Color: 4GM2A
• Model: 4GM2A
• Package Quantity: 1
