Description
Brand: Evertech

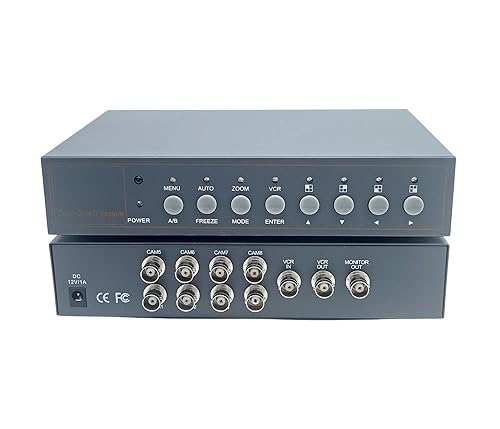

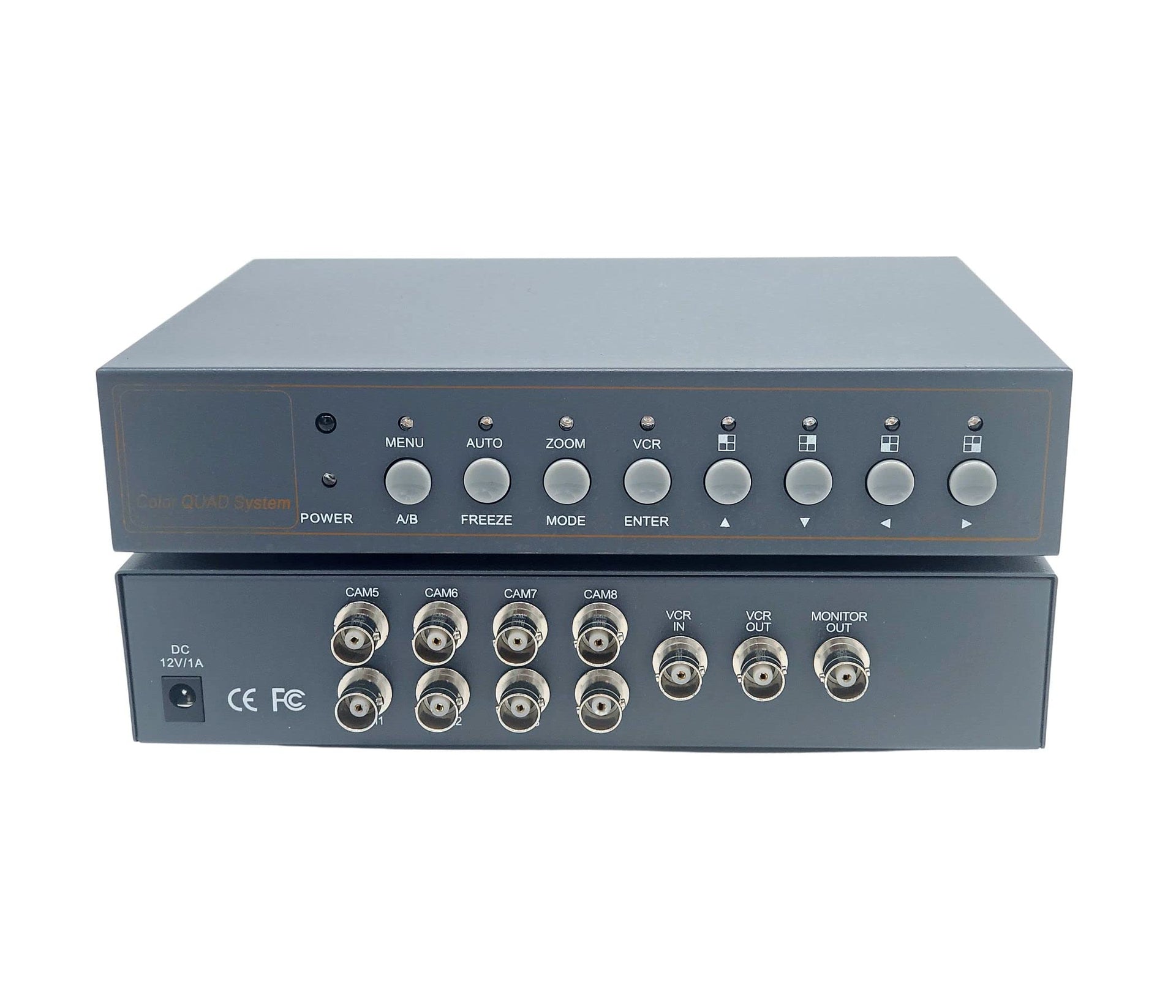

This is 8 Channel Digital Color Quad Processor Video Multiplexer with Remote Control and a standard power supply adapter (DC 12 Volt 2000 mA Adapter).

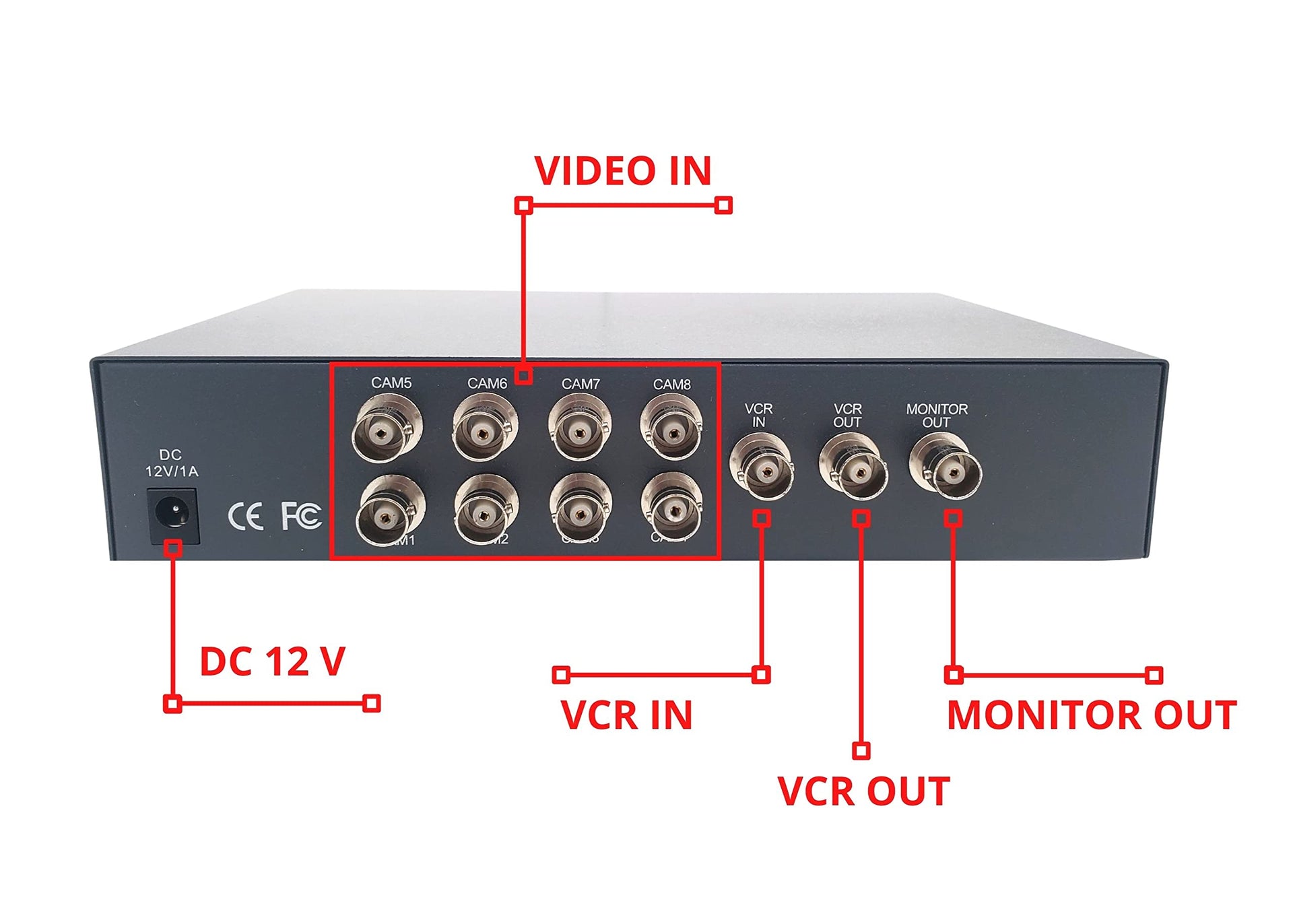

8 Channel BNC Video Inputs (Each Input Accepts Only Analog Security Cameras)
1 BNC Monitor
1 BNC VCR Out
1 BNC VCR In
NOT Compatible 720P/1080P AHD-TVI-CVI-SDI Cameras

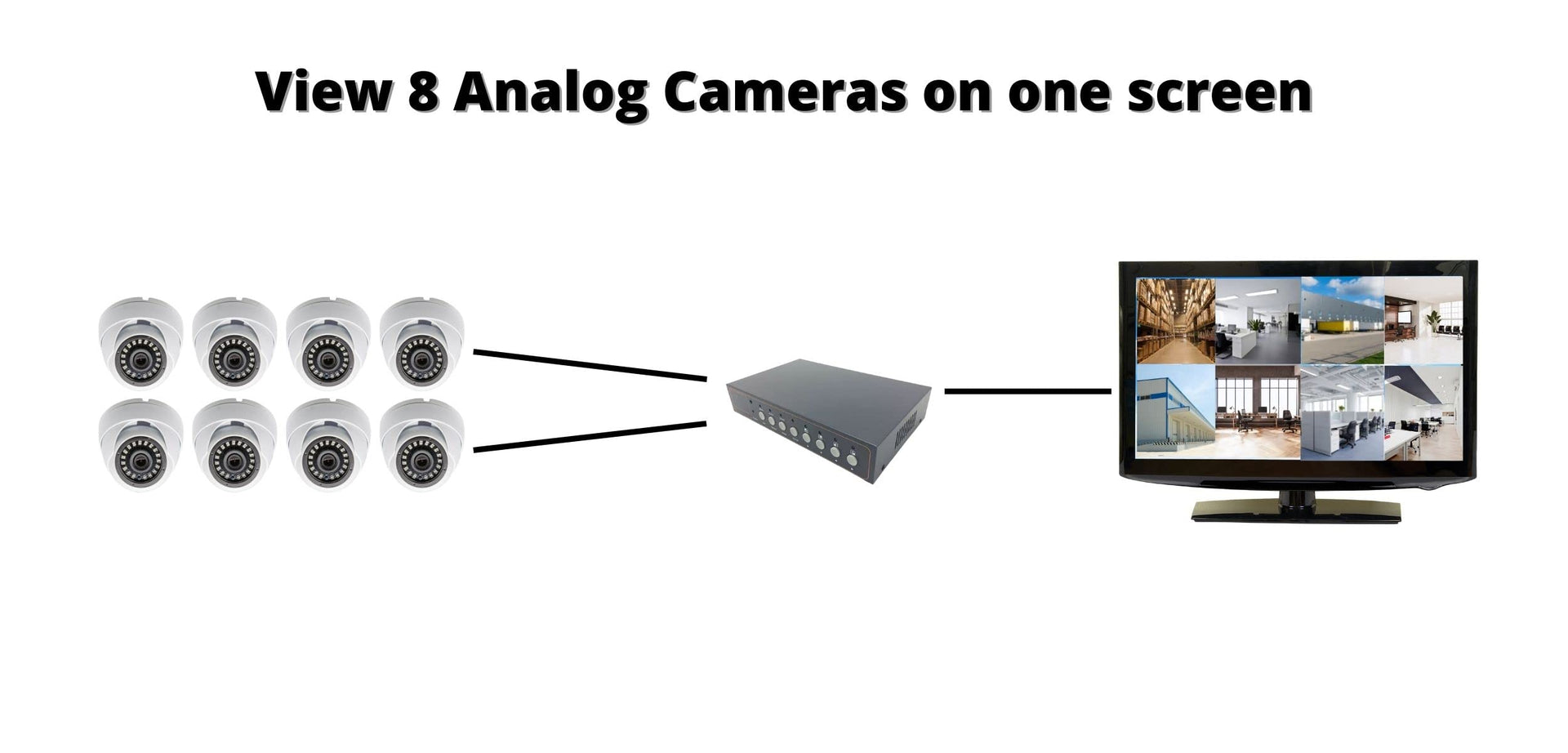

It allows you to view eight camera on one monitor, such as surveillance Monitor/home TV by remote control.
High Resolution Display Quality
NTSC/PAL
8 image split, Quad image, PIP image, Dual image display
High speed display in 8 image split
Each image quality can independently adjust
The image can auto switch each other
2 PIP functions and 1PIP function, each PIP position can be adjustable and display channel number can be edited
Dual Split function, each picture position can adjustable and display channel number can be edited
ZOOM function, zoomed area can be moved while zoom function is invoked
High Quality image freeze function, more than one image can freeze in different channel

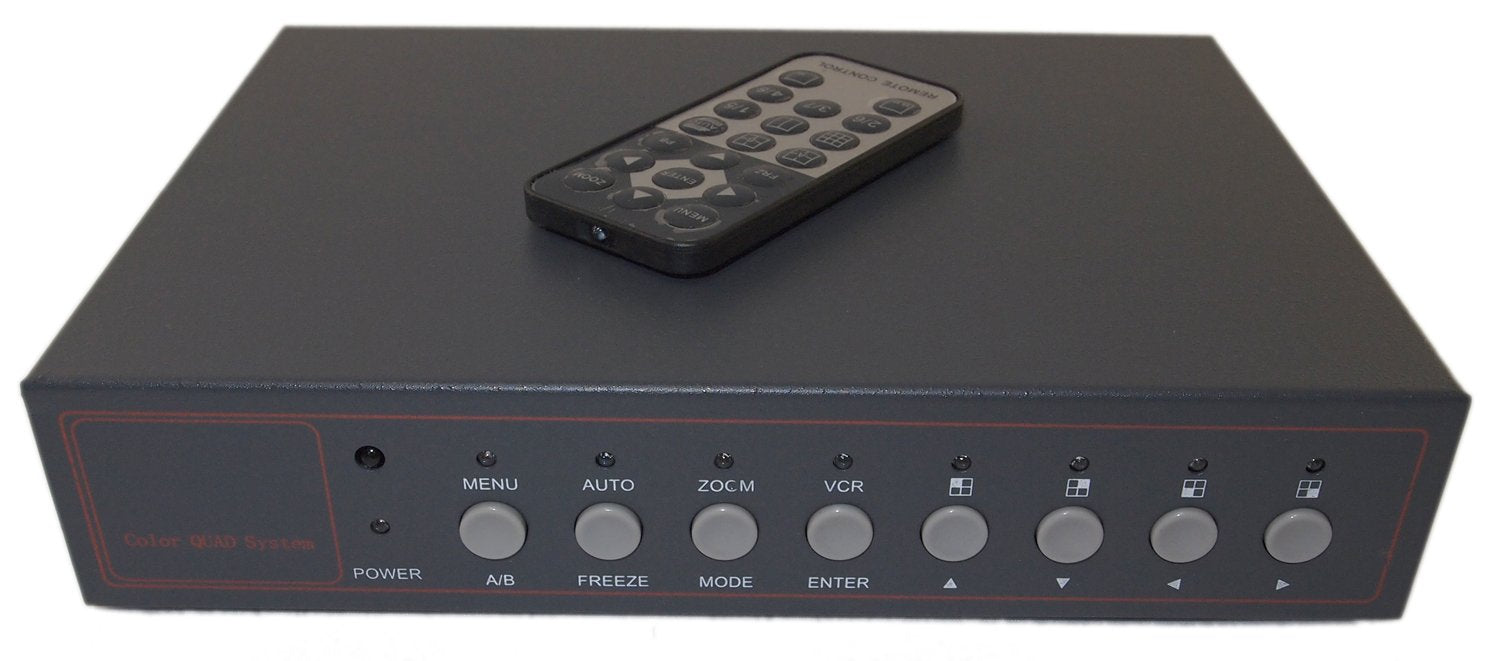

Support IR remote controller
Refresh rate : PAL: 200 feilds/sec NTSC: 240 feilds/sec
Resolution : PAL: 720x576 NTSC: 720x480
Video Input Port : 1.0 Vp-p75BNC
Video Input Signal : 1.0 Vp-p75 input
Video Output Signal : 1.o Vp-p75 output
Alarm Mode : Video loss alarm
Video Output Mode : Full screen, electronic amplification, 8 picture,/4 picture, Picture in Picture, Auto switch display mode
Operating Voltage : DC12V/1A

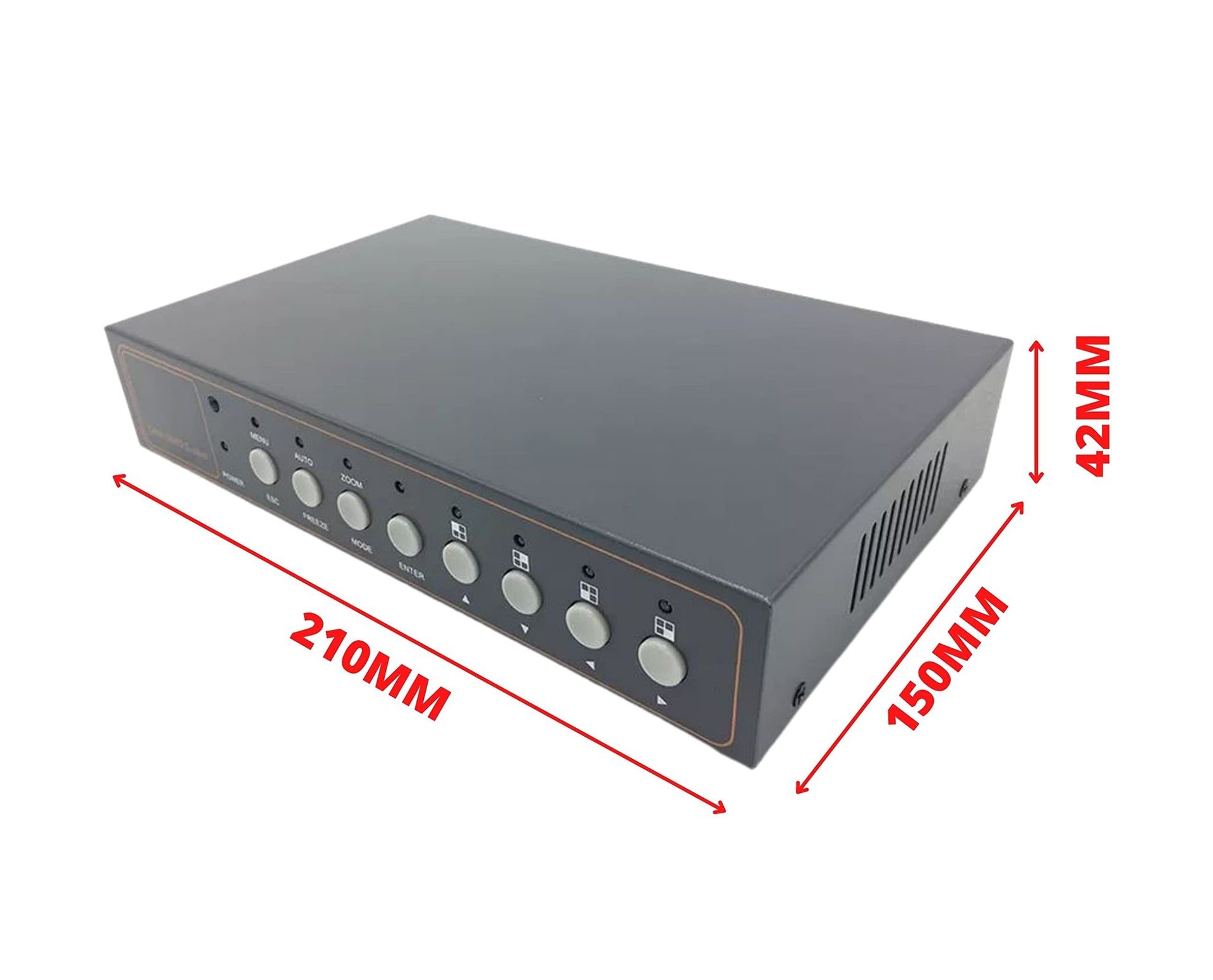

Environment Temperature : -30C-60C Dimension : 210mmx150mmx42mm (LxWxH)
Net Weight : 700gr
• 8 Channel CCTV Video Multiplexer Color Quad Processor compatible with all Analog Security Cameras. NOT Compatible with 720P/1080P AHD / TVI / CVI / HD-SDI CCTV Cameras.
• Multiple display modes: 8 camera view, 4 camera view, 2 camera view, single camera view, PIP (picture in picture)
• NTSC and PAL Video Format Supported. Resolution PAL: 720 x 576; NTSC: 720 x 480
• 8 Channel BNC Video Inputs, 1 BNC VCR In, 1 BNC VCR Out, 1 BNC Monitor. Image Freeze Function, Selectable Image Zoom Area, Video Loss Detection, Motion Detection, Auto sequence
• Power Supply adapter, remote control and user manual included.
• One year warranty and free technical support.
This is 8 Channel Digital Color Quad Processor Video Multiplexer with Remote Control and a standard power supply adapter (DC 12 Volt 2000 mA Adapter).
8 Channel BNC Video Inputs (Each Input Accepts Only Analog Security Cameras)
1 BNC Monitor
1 BNC VCR Out
1 BNC VCR In
NOT Compatible 720P/1080P AHD-TVI-CVI-SDI Cameras
It allows you to view eight camera on one monitor, such as surveillance Monitor/home TV by remote control.
High Resolution Display Quality
NTSC/PAL
8 image split, Quad image, PIP image, Dual image display
High speed display in 8 image split
Each image quality can independently adjust
The image can auto switch each other
2 PIP functions and 1PIP function, each PIP position can be adjustable and display channel number can be edited
Dual Split function, each picture position can adjustable and display channel number can be edited
ZOOM function, zoomed area can be moved while zoom function is invoked
High Quality image freeze function, more than one image can freeze in different channel
Support IR remote controller
Refresh rate : PAL: 200 feilds/sec NTSC: 240 feilds/sec
Resolution : PAL: 720x576 NTSC: 720x480
Video Input Port : 1.0 Vp-p75BNC
Video Input Signal : 1.0 Vp-p75 input
Video Output Signal : 1.o Vp-p75 output
Alarm Mode : Video loss alarm
Video Output Mode : Full screen, electronic amplification, 8 picture,/4 picture, Picture in Picture, Auto switch display mode
Operating Voltage : DC12V/1A
Environment Temperature : -30C-60C Dimension : 210mmx150mmx42mm (LxWxH)
Net Weight : 700gr
• 8 Channel CCTV Video Multiplexer Color Quad Processor compatible with all Analog Security Cameras. NOT Compatible with 720P/1080P AHD / TVI / CVI / HD-SDI CCTV Cameras.
• Multiple display modes: 8 camera view, 4 camera view, 2 camera view, single camera view, PIP (picture in picture)
• NTSC and PAL Video Format Supported. Resolution PAL: 720 x 576; NTSC: 720 x 480
• 8 Channel BNC Video Inputs, 1 BNC VCR In, 1 BNC VCR Out, 1 BNC Monitor. Image Freeze Function, Selectable Image Zoom Area, Video Loss Detection, Motion Detection, Auto sequence
• Power Supply adapter, remote control and user manual included.
• One year warranty and free technical support.
