Brand: ELP

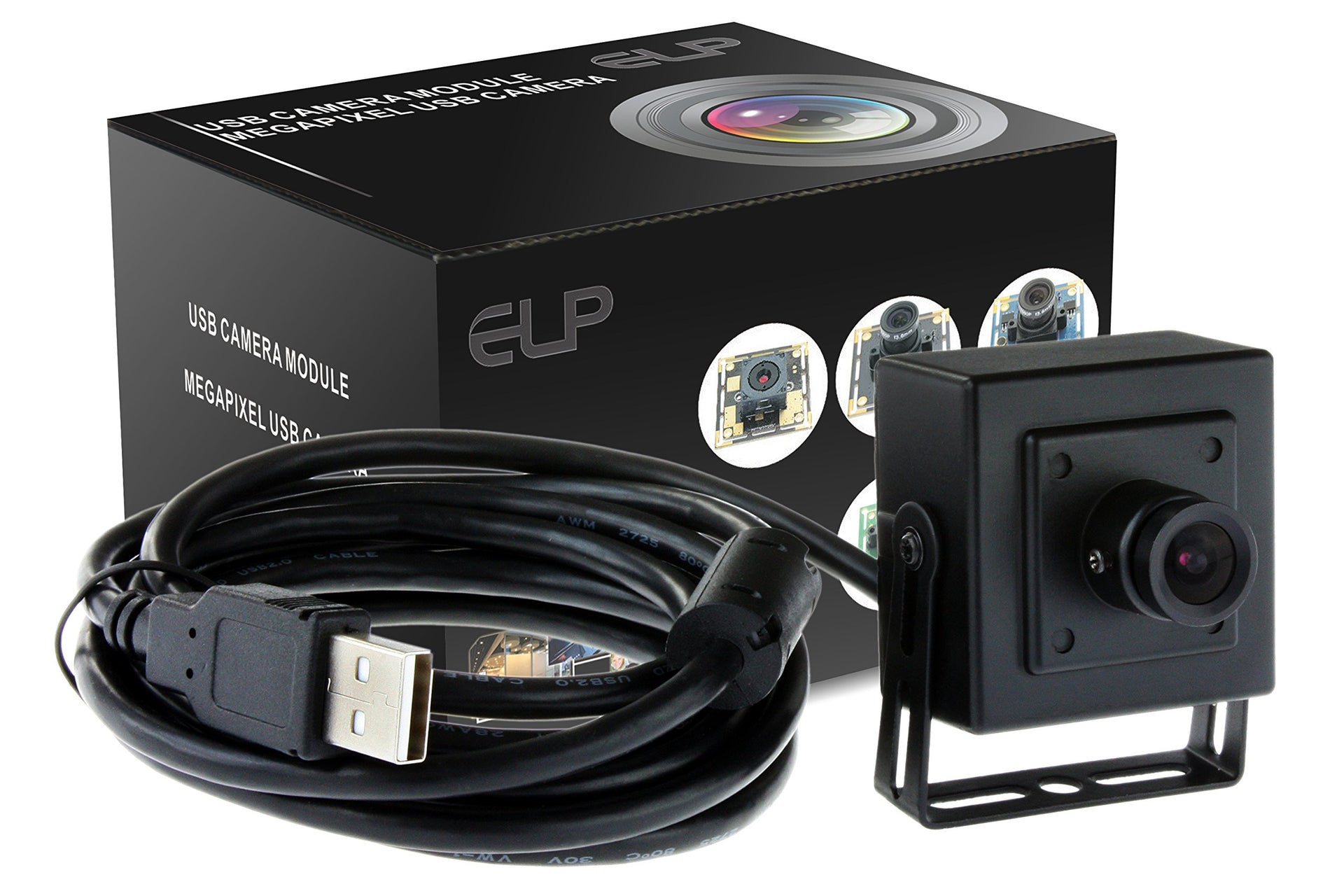

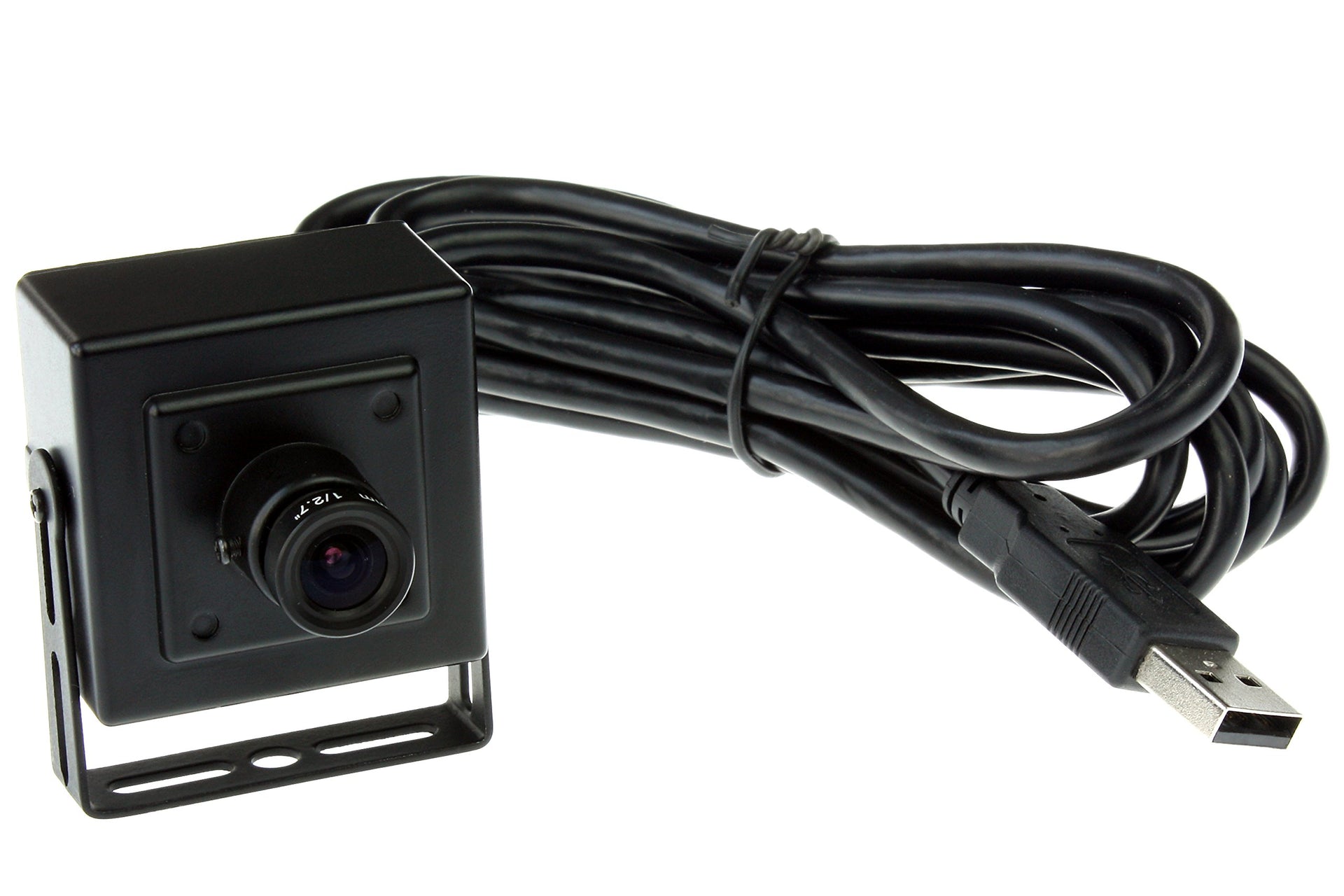

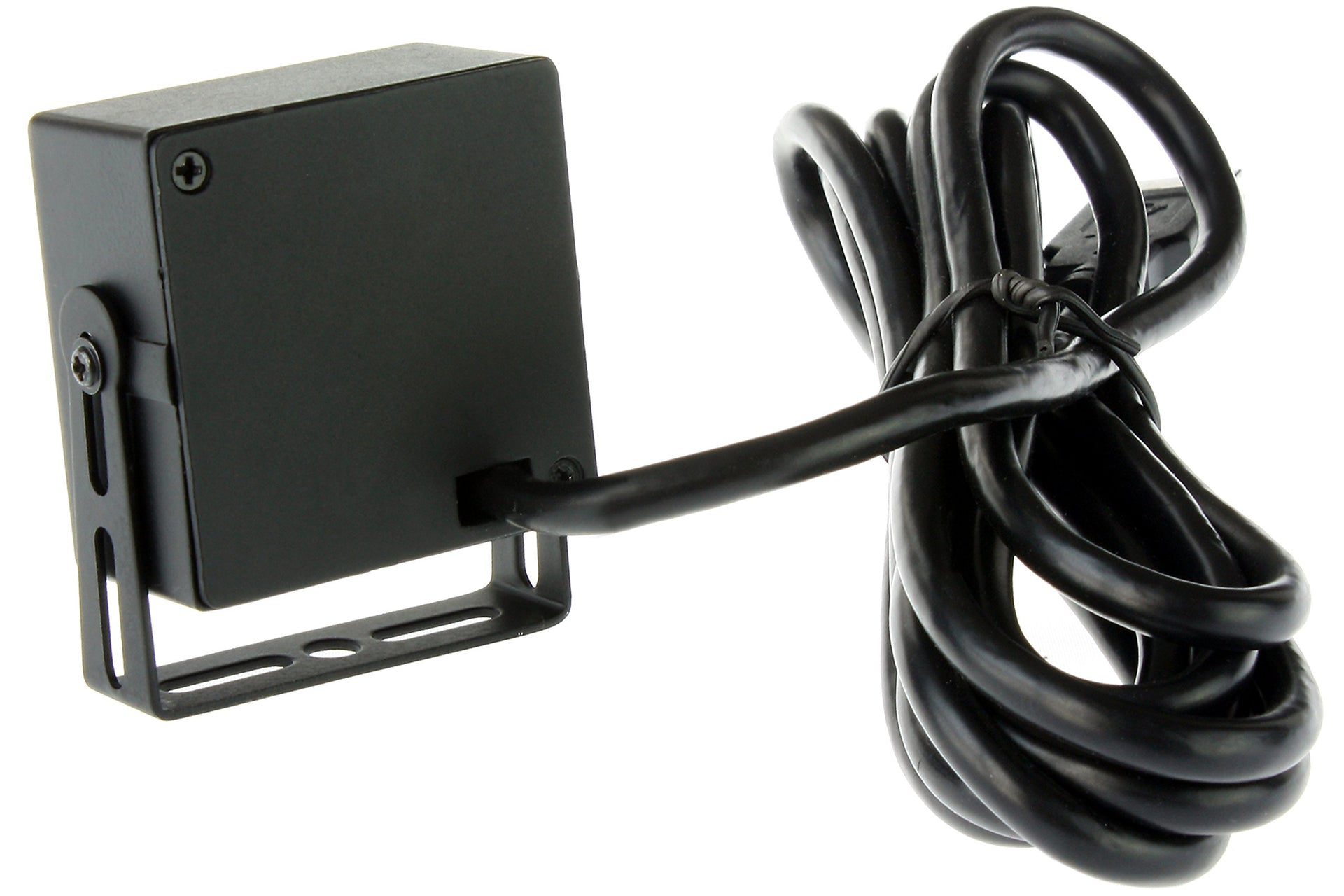

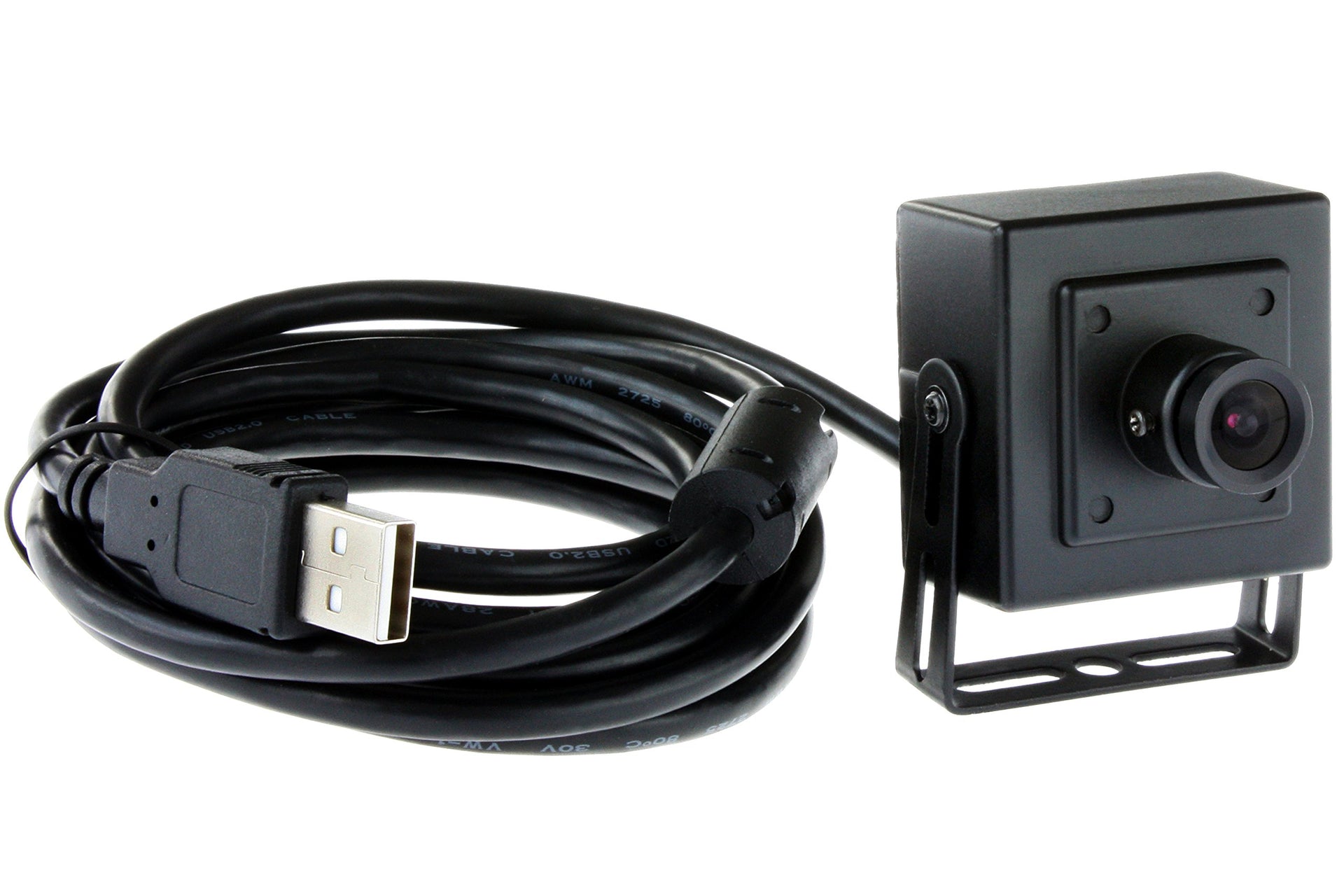

ELP HD 1.3Megapixel USB camera(model: ELP-USB130W01MT serials) adopt AR0130 HD sensor,can work with IR
Cut, good to use at night, And it has been widely used in Linux equiped, or those equiped which come with
linux?wince?Android prototype system etc.

Sensor:AR0130 1/3 CMOS Sensor
Picture format "YUY2 and MJPEG optional"/USB Protocal USB2.0 HS/FS
Auto exposure AEC Support/Auto white blance AEB Support

Effective Pixels:
1280(H)X960(V)/1280 (H) x 720 (V) pixels/960 (H) x 720 (V) pixels
800 (H) x 600 (V) pixels/640 (H) x 480 (V) pixels

Performance:
1280 (H) x 960(V) pixels MJPEG 15fps YUY2 8fps
1280 (H) x 720 (V) pixels MJPEG 30fps YUY2 10fps
960 (H) x 720 (V) pixels MJPEG 30fps YUY2 15fps
800 (H) x 600 (V) pixels MJPEG 30fps YUY2 20fps
640 (H) x 480 (V) pixels MJPEG 30fps YUY2 30fps

Adjustable parameters:
Brightness/Contrast/Color saturation /Definition/Gamma/WB
Night vision optional, can support IR Cut and IR board for IR night vision.
Voltage DC 5V/current 150mA/work temperature DEGREES(-20~70)/Size 32x32mm

Support OS
"WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above"

• 0.01lux Low illumination: low light performance---ideal for any lighting condition,can be clear visible in dim light.
• 2.1mm wide angle lens,mini black box metal housing,CMOS AR0130 sensor for high quality image and low pow consumption,1.3MP 960P High pixel technology for sharp image and accurate color reproduction.Max Resolution:1280 (H) x 960(V).
• High Frame Rate: deliver 30fps in 1280*720 resolution,good for high speed moving object capturing.High speed USB2.0 usb camera with Parameters changeable (Brightness, Contrast, Saturation, White Balance, Gamma, Definition, Exposure...)
• Plug&Play: UVC compliant, just connect the camera to PC, laptop, Android device with the included USB cable without extra drivers to be installed.Compatible with raspberry pi, Ubuntu, Opencv, Amcap and many other USB web camera software and hardware.
• UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.High speed USB 2.0 interface for high resolution PC camera interface.Low power consumption - ideal for portable equipment.
