Brand: E-Simpo

2pcs E-Simpo G23 7W LED Bulb PLS-13W Replacement G23d 2P LED PL Retrofit Horizontal Recessed Down Light Plug Play for INDUCTANCE/MAGNETIC ballast (Cold White, 7inch/180mm 7W)<br><br><b/>Specification</b> <br>Input Voltage: 110V 220V AC <br> Power: 7W LED, Can replace CFL 13W PL Lamp <br> Non-Dimmable <br>CRI>82 <bR> Base: G23d-2, G23 both fit. NOT Gx23 <BR> Brightness: 7W: 650-750Lumens; <br>Color Temperature: Warm White 3000-3500K; Cold White 6000-6500K <br><b/>Please check the PL Lamp fixture or table light fixture for allowed install length before you decide.</b> 180mm long, 7" <br><br><b/>Application:<br> 7W is used to Replace 2-Pin CFL PLS-13w. Great G23 led replacement lamp for OttLite fluorescent table lamp, and replace Osram 13w,clean bright non flickering light, it turned it on instantly, no buzzing noise.<br> <br><br><b/>Note:</b> <br>1. Please check if the inside ballast is inductive ballast or electronic ballast; <br>2. If it is inductive ballast, you can use this LED lamp directly, just plug and play. <br>3. If it is electronic ballast, the led driver can not work compatibly with the electronic ballast, so you have to bypass the electronic ballast(cut off the transformer). Otherwise the LED Lamp witll get flicking, burnt, smell, damaged. <br><Br><b/>How to bypass the ballast? <br>1. Turn Off the Power. <br>2. Find the Ballast. Usually it is embeded inside the ceiling fixture. Pls pull off the existing PL lamp, reflector. Leave wire in junction box. and find the ballast. <br>3. Normally, the Ballast has a black and white wire on the input side (AC input side, 100V -120V for North America). It also has two red and two blue output wires. To bypass this ballast, please cut all the Input and output wires, so total 6 wires cut. <br>4. Then, you can connect the two red wires to the black wire. <br>5. Next, connect the two blue wires to the white wire. now ballast is bypassed.</b>

Features:

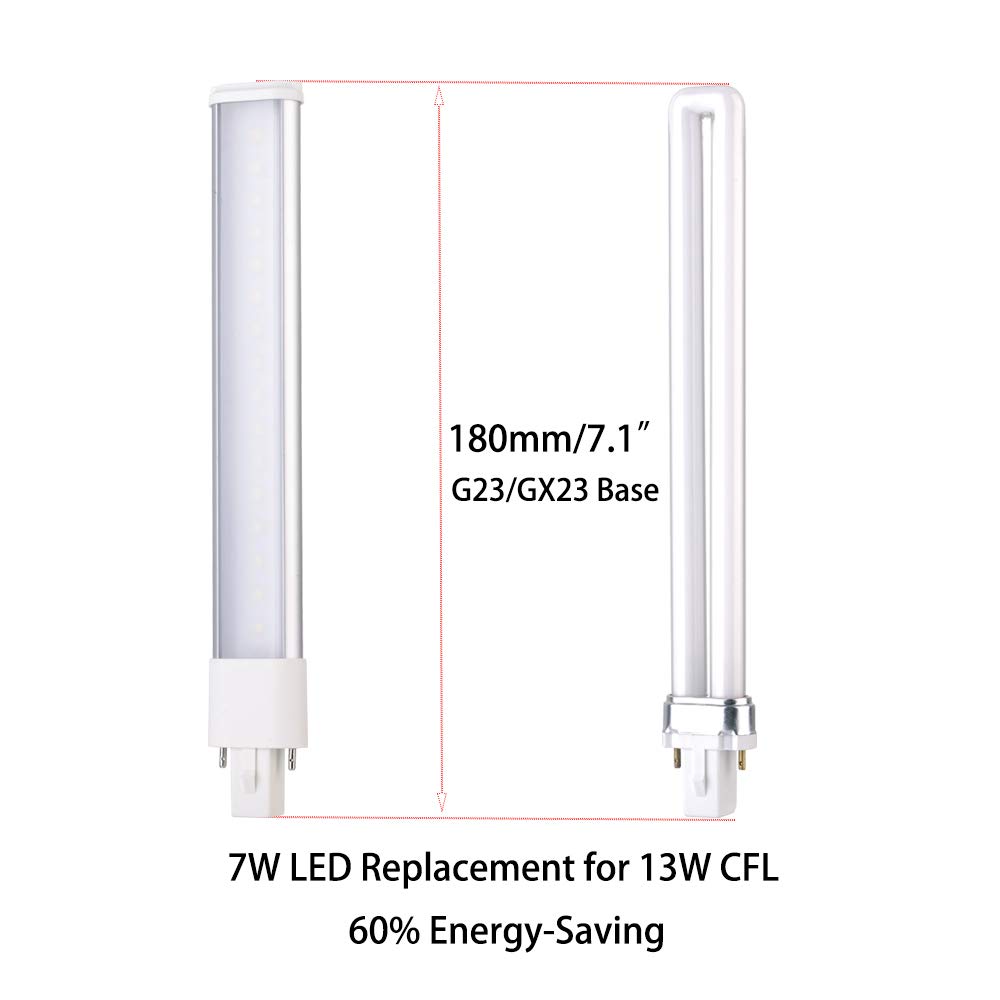

• 2pcs 7W 7.1" G23 LED Bulb, Cold white 6000-6500k, 7inch/180mm, Please Check the allowed installation length before you buy.
• Can Work with INDUCTANCE/magnetic Ballast, BUT CAN NOT work with Electronic Ballast,so if the fixture has an Electronic ballast directly, Please Remove/Bypass the ELECTRONIC ballast First!

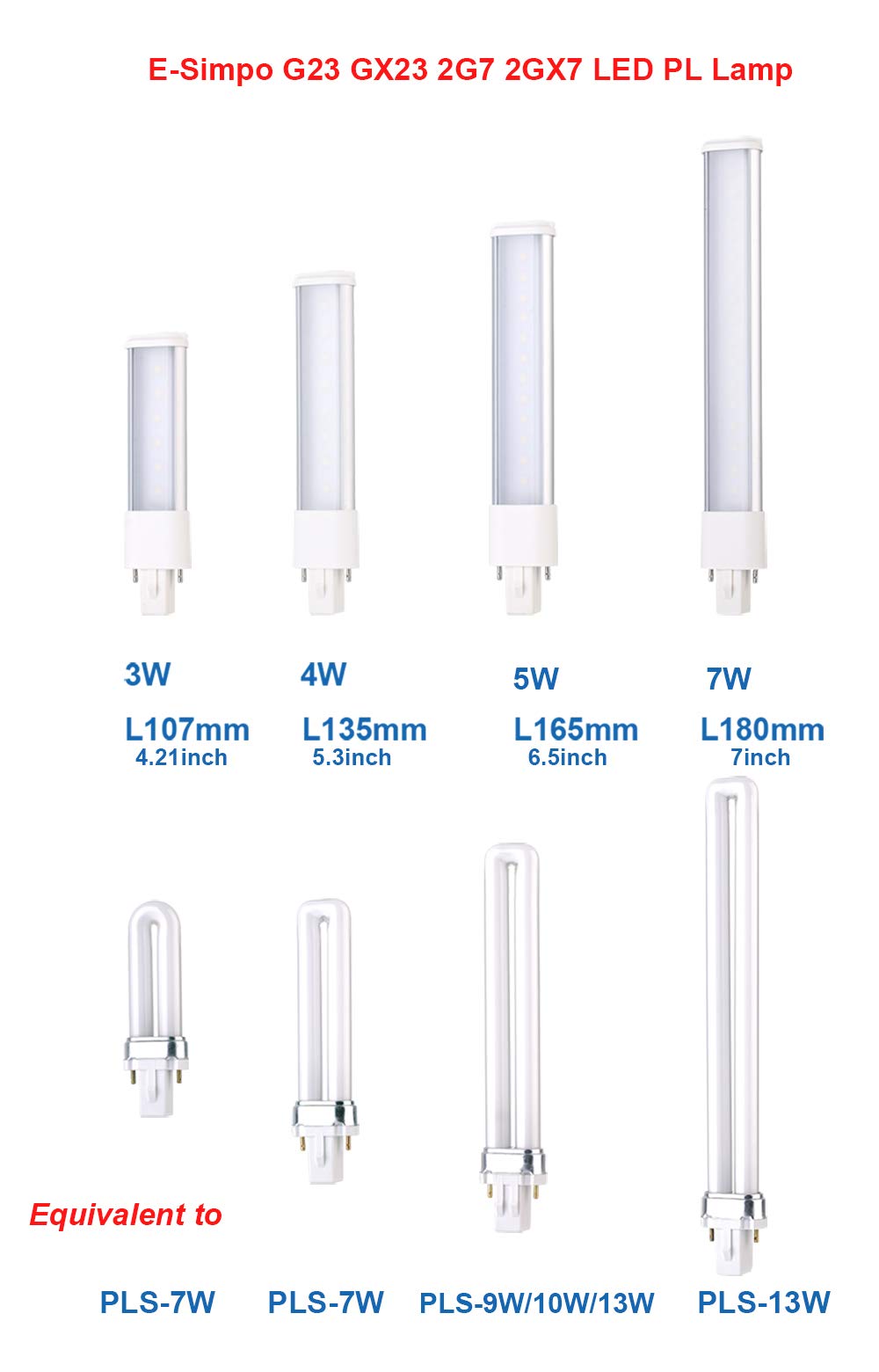

• Size: 5W 165mm/6.5"*D27mm/1.0" Designed to replace PL-S 9W 13W (Confirm acceptable length before ordering)
• Replace Compact Fluorescent Lamps/CFL widely used in Recessed/Surface-mounted Down lights, Recessed Cans, Table/Desk Lamps, Portables, Pendant Lamps, Ceiling Fixtures, Wall Washers, Wall Sconces, Family Rooms, Living Rooms, Kitchens, Dining Rooms, and Porches.
• Working voltage: AC 110V 220V Horizontal 180degree ONE Side Light

Product Details:

• Color: White
• Model: G23-CW-7W-180
• Package Quantity: 0
