Brand: E-Simpo

2pcs E-Simpo G23 3W LED Bulb PLS-7W Replacement G23d 2P LED PL Retrofit Horizontal Recessed Down Light Plug Play for INDUCTANCE/MAGNETIC ballast Daylight 6000K 85-135V AC (Cold White, 4.2in/107mm 3W) <br><br><b/>Specification</b> <br>Input Voltage: 85-135V AC <br> Power: 3W LED Dimmable<br>CRI>82 <bR> Base: G23d-2, G23 both fit. NOT Gx23 please identify the light socket base before buy. GX23 G23 both 2Pin in Parrall, but GX23 is with double tab, G23 single tab <BR> Brightness: 3W: 300-350Lumens; <br>Color Temperature: Warm White 3000-3500K; Cold White 6000-6500K <br><b/>Please check the PL Lamp fixture or table light fixture for allowed install length before you decide.</b> 107mm long 4.2" <br><br><b/>Application:<br> 3W is used to Replace 2-Pin CFL PLS-7W. Great G23 led replacement lamp for OttLite fluorescent table lamp, and replace PLS-7W or Osram 7w,clean bright non flickering light, it turned it on instantly, no buzzing noise.<br> <br><br><b/>Note:</b> <br>1. Please check if the inside ballast is inductive ballast or electronic ballast; <br>2. If it is inductive ballast, you can use this LED lamp directly, just plug and play. <br>3. If it is electronic ballast, the led driver can not work compatibly, so you have to bypass the electronic ballast(cut off the transformer). Otherwise the LED Lamp witll get flicking, burnt, smell, damaged. <br><Br><b/>How to bypass the ballast? <br>1. Turn Off the Power. <br>2. Find the Ballast. Usually it is embeded inside the ceiling fixture. Pls pull off the existing PL lamp, reflector. Leave wire in junction box. and find the ballast. <br>3. Normally, the Ballast has a black and white wire on the input side. It also has two red and two blue output wires. To bypass this ballast, please cut all the Input and output wires, so total 6 wires cut. <br>4. Then,connect two red wires to black wire. connect two blue wires to white wire. ballast bypassed!</b>

Features:

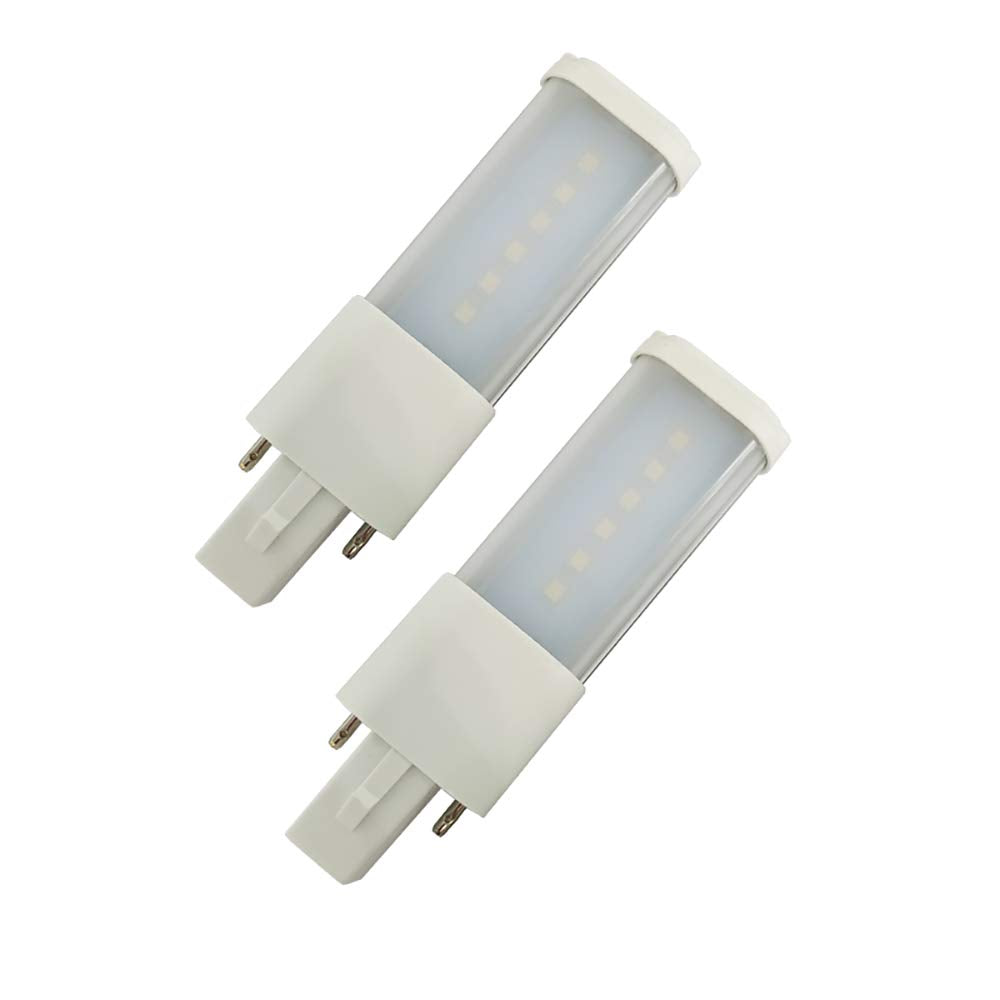

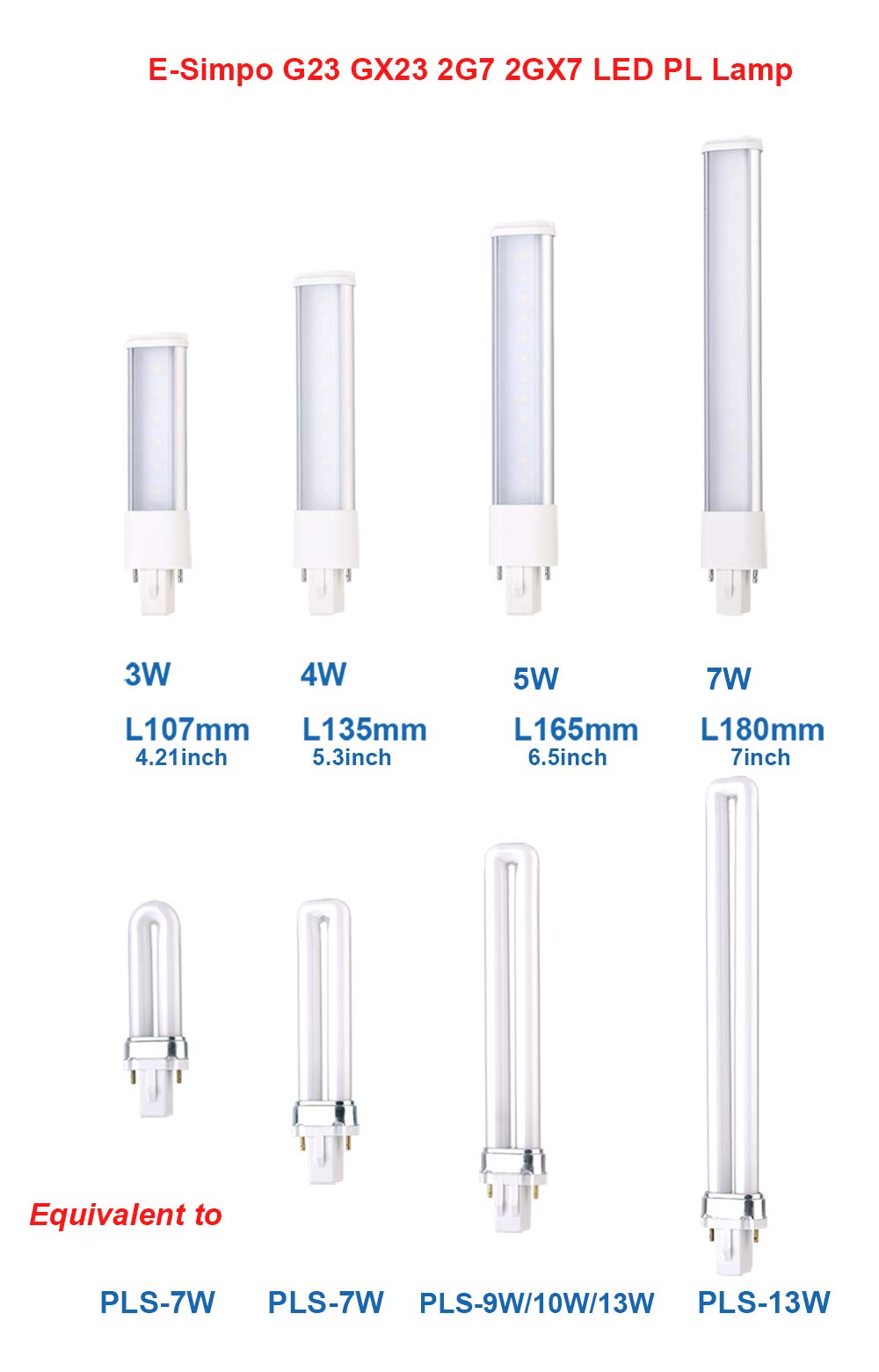

• 2pcs 3W G23 LED Bulb, used to replace G23 CFL PLS-7W
• Can Work with INDUCTANCE/magnetic Ballast, BUT CAN NOT work with Electronic Ballast,so if the fixture has an Electronic ballast directly, Please Remove/Bypass the ELECTRONIC ballast First!

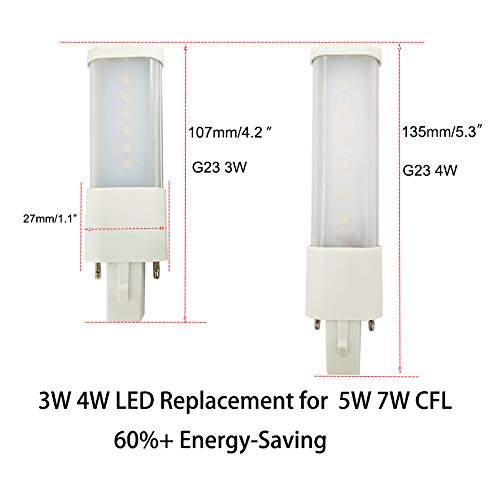

• Size: 3W 107mm/4.2"*D27mm/1.0" Designed to replace PLS-7W (Confirm acceptable length before ordering)
• Replace Compact Fluorescent Lamps/CFL widely used in Recessed/Surface-mounted Down lights, Recessed Cans, Table/Desk Lamps, Portables, Pendant Lamps, Ceiling Fixtures, Wall Washers, Wall Sconces, Family Rooms, Living Rooms, Kitchens, Dining Rooms, and Porches.
• Working voltage: AC 85-135V Please Confirm your installation voltage is 85-135V AC

Product Details:

• Color: Cold White
• Size: 4.2in/107mm 3W
• Model: G23-CW-3W-107
• Package Quantity: -1
