Brand: E-Simpo

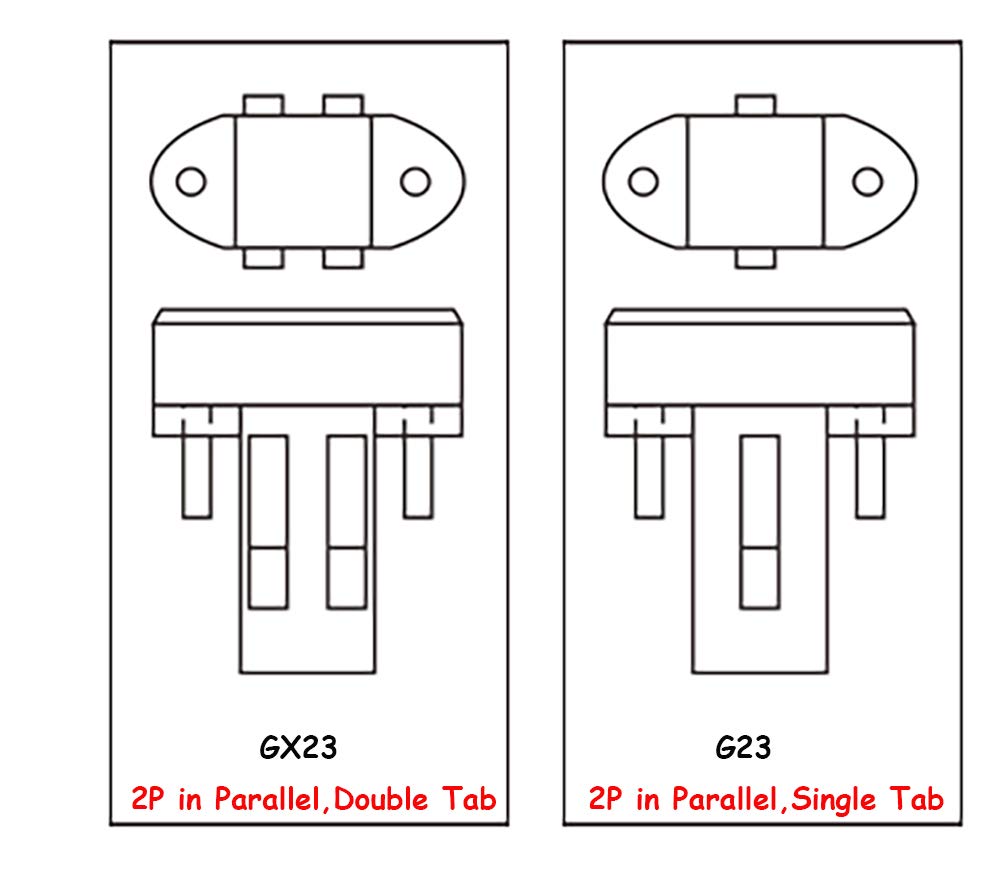

2pcs E-Simpo 5W GX23 LED Bulb 2-Pin LED PL Retrofit Lamp CFL 9W 13W Replacement 180° View Angle GX23 LED PL Horizontal Recessed Down Light Bulb(Need Bypass Ballast) (Cold White, GX23 5W)<br><br><b/>Specification</b> <br>Input Voltage: 85-300V AC <br> Power: 5W <br>NO Dimmable <br>CRI>82 <br>LED: SMD2835 <bR> Base: G23, Gx23 Optional. Please distiguish the base carefully before you buy. G23 has only one locking tab, GX23 has double locking tab. Both are 2Pin in Parallel. <BR> Brightness: 5W: 450-550Lumens; <br>Color Temperature: Warm White 3000-3500K; Cold White 6000-6500K <br><b/>Please check the PL Lamp fixture or table light fixture for allowed install length before you decide.</b> Size: 3W: L107mm*D27mm/ L4.2"*D1.0" 4W: L135*D27mm/L5.3"*D1.0" <br><br><b/>Application:<br> 5W is used to Replace 2-Pin CFL PL-S 7W 13w<br> <br><br><b/>Note:</b> <br>1. Please check if the inside ballast is inductive ballast or electronic ballast; <br>2. If it is inductive ballast, you can use this LED lamp directly, just plug and play. <br>3. If it is electronic ballast, the led driver can not work compatibly with the electronic ballast, so you have to bypass the electronic ballast. Otherwise the LED Lamp witll get flicking, burnt, smell, damaged. <br><Br><b/>How to bypass the ballast? <br>1. Turn Off the Power. <br>2. Find the Ballast. Usually it is embeded inside the ceiling fixture. Pls pull off the existing PL lamp, reflector. Leave wire in junction box. and find the ballast. <br>3. Normally, the Ballast has a black and white wire on the input side (AC input side, 100V -120V for North America). It also has two red and two blue output wires. To bypass this ballast, please cut all the Input and output wires, so total 6 wires cut. <br>4. Then, you can connect the two red wires to the black wire. <br>5. Next, connect the two blue wires to the white wire. now ballast is bypassed.</b>

Features:

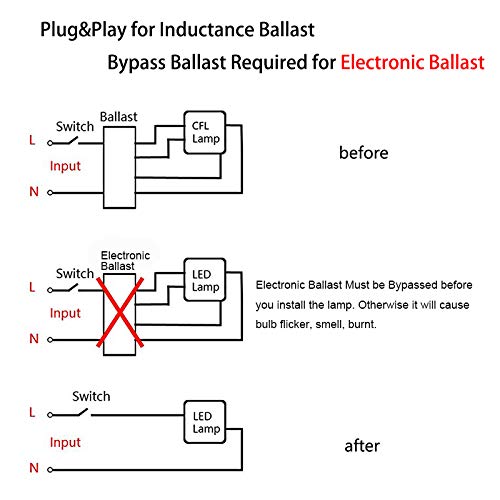

• 2pcs 5w GX23 LED Bulb, pl-13w bulb 2-Pin in Parallel,Double Tab.Can Work with Inductance Ballast, BUT CAN NOT work with Electronic Ballast,so if the fixture has an Electronic ballast, Please DON'T plug directly, BYPASS ballast First!
• 5W LED, Replace CFL 9W 13W Low heat, as we have not run all of the LED Power, make sure there is less light attenuation, and keep a longer life and sustainable light performance

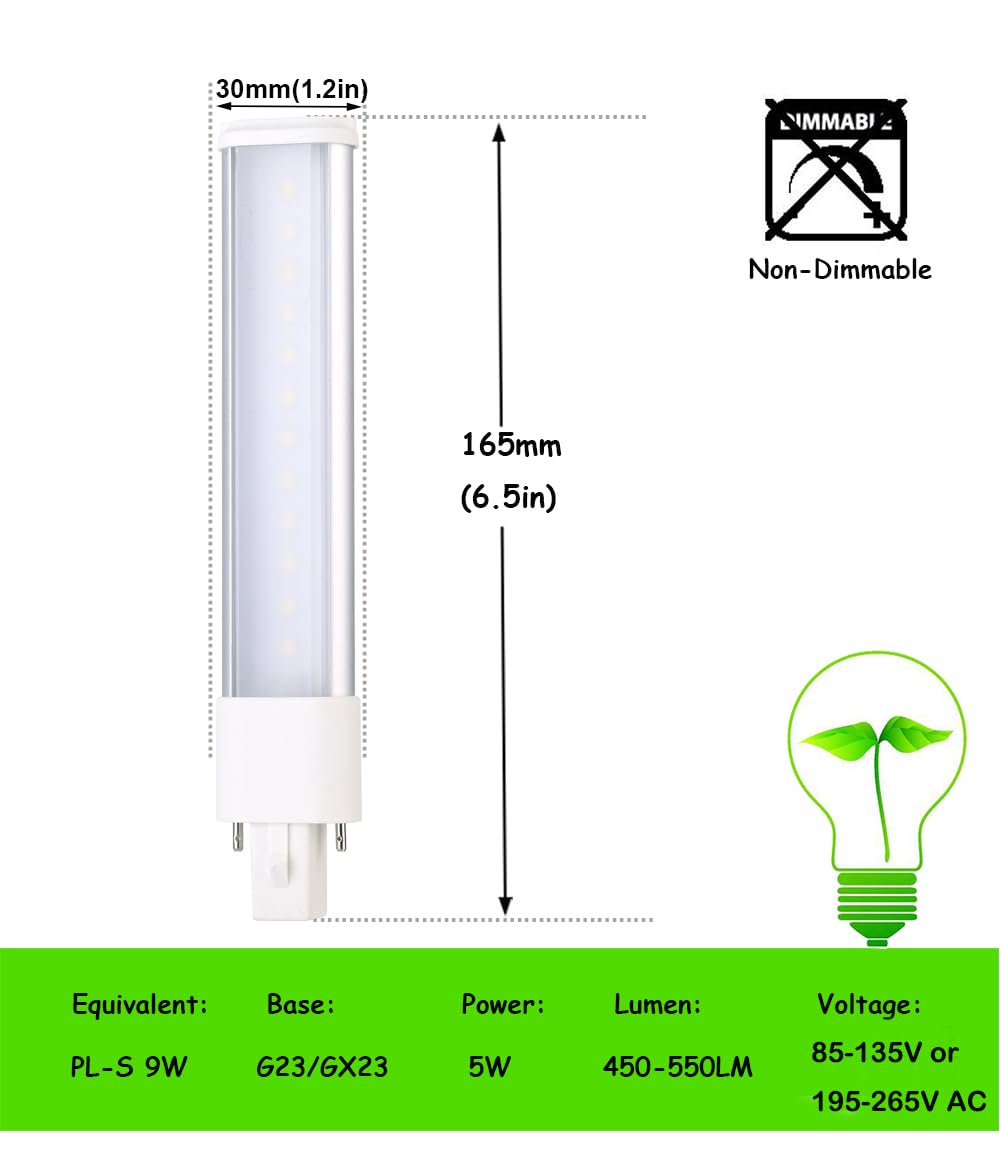

• 5W Length165mm/6.5"*D27mm/1.0"(Confirm acceptable length before ordering)

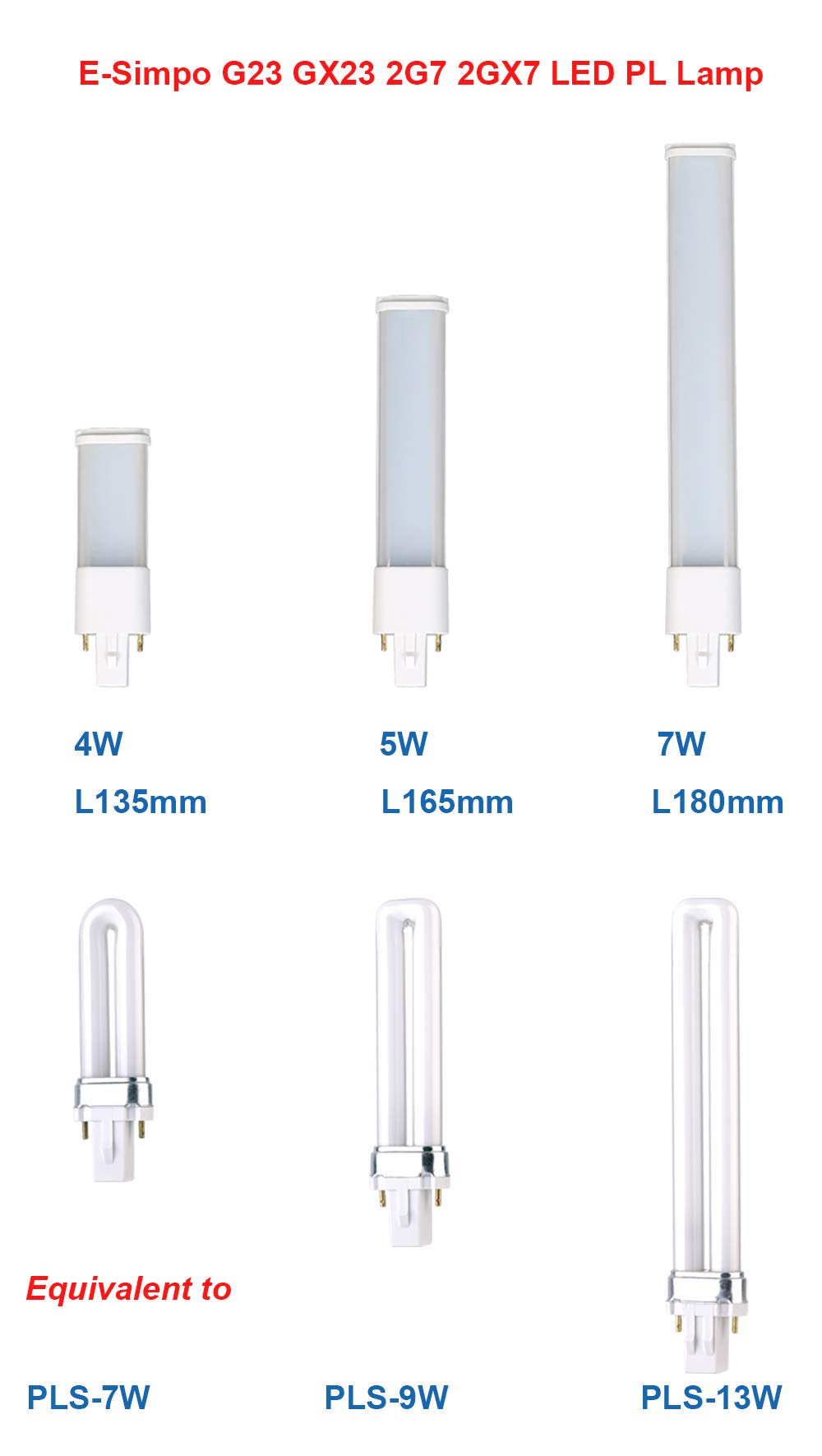

• Replace Compact Fluorescent Lamps/CFL widely used in Recessed/Surface-mounted Down lights, Recessed Cans, Table/Desk Lamps, Portables, Pendant Lamps, Ceiling Fixtures, Wall Washers, Wall Sconces, Family Rooms, Living Rooms, Kitchens, Dining Rooms, and Porches.
• 85-300V AC CRI>82 high brightness 2835 SMD, 180 Degree Beam Angle, Cold White 6000K Optional

Product Details:

• Color: White
• Size: 2 Count (Pack of 1)
• Package Quantity: 1
