Brand: E-Simpo

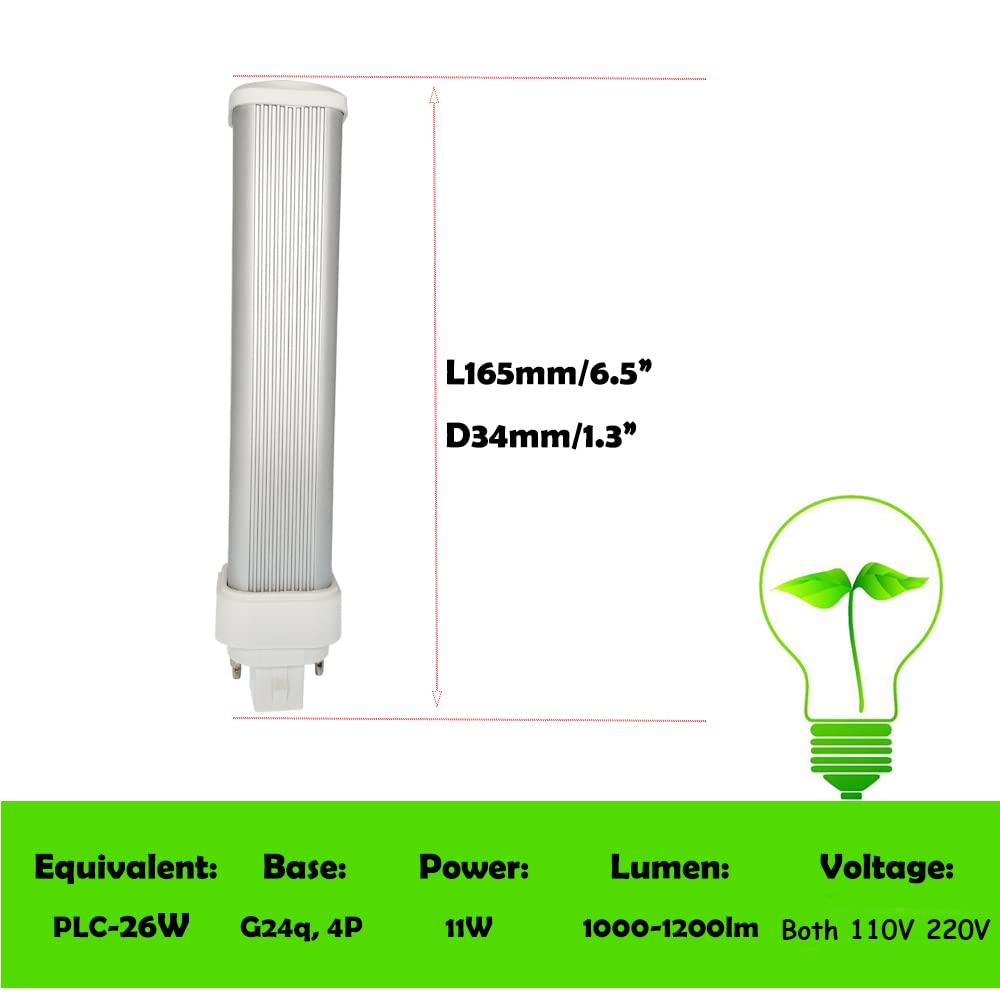

11W LED GX24Q 4-pin Base Light Bulb Replace PL-C 26W CFL GX24/G24Q Horizontal LED PL Retrofit Lamp Frosted 180D Side light Warm White 3500K (Remove/Bypass The Ballast) <br>1pcs G24Q 4Pin LED Bulb E-Simpo LED PL Horizontal Recessed 1000-1200lm, CFL 2U PL-C 26W Equivalent 180 Degree Beam (Need Remove/bypass the Ballast) <br><br><b/>Specification</b> <br>Input Voltage: 110/220V AC both work <br> Power: 11W LED, Can replace CFL G24Q 4-Pin 26W PLC Lamp <br> Non-Dimmable <br>CRI>82 <br>Horizontal Plug-in Bulb, 180degree view angle <bR> Base: G24q/GX24Q 4-Pin, compatible for G24q-1, G24q-2, G24q-3,GX24Q-1,GX24Q-2,GX24Q-3 <BR> Brightness: 11W 1000-1200LM; <br>Color Temperature: Warm White White 3000-3500k <br><b/>Application:<br> 11W is used to Replace PL-C 26W 2U CFL. which are widely used in Use in Recessed/Surface-mounted Downlights, Recessed Cans, Table/Desk Lamps, Portables, Pendant Lamps, Ceiling Fixtures, Wall Washers, Wall Sconces, Family Rooms, Living Rooms, Kitchens, Dining Rooms, and Porches. <br> <br><br><b/>Note:</b> <br>THE ELECTRONIC BALLAST IN YOUR FIXTURE MUST BE REMOVED OR BYPASSED FOR THESE ADAPTERS TO FUNCTION PROPERLY. CONSULT AN ELECTRICIAN IF YOU ARE UNSURE. DO NOT OPERATE A LED BULB WITH A BALLAST IN THE FIXTURE,Otherwise the LED Lamp witll get flicking, burnt, smell, damaged. <br><Br><b/>How to bypass the ballast? <br>1. Turn Off the Power. <br>2. Find the Ballast. Usually it is embeded inside the ceiling fixture. Pls pull off the existing PL lamp, reflector. Leave wire in junction box. and find the ballast. <br>3. Normally, the Ballast has a black and white wire on the input side (AC input side, 100V -120V for North America). It also has two red and two blue output wires. To bypass this ballast, please cut all the Input and output wires, so total 6 wires cut. <br>4. Then, you can connect the two red wires to the black wire. <br>5. Next, connect the two blue wires to the white wire. now ballast is bypassed.</b>

Features:

• 1pc 3000-3500K Warm White 11W Horizontal LED Lamp GX24Q 4-Pin Base Rotatable LED CFL PL-C 26W Replacement Bulb

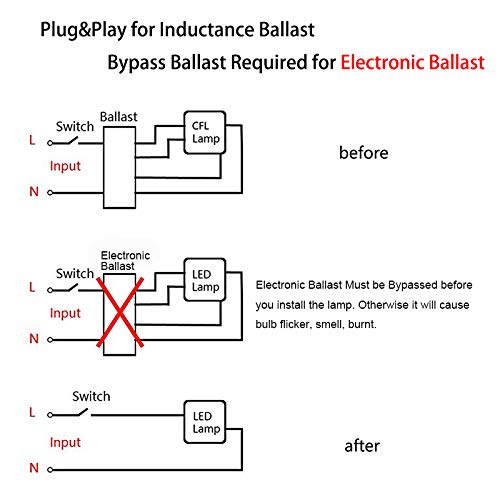

• Need Remove the ELECTRONIC Ballast. Why? THE ELECTRONIC BALLAST IN YOUR FIXTURE MUST BE REMOVED OR BYPASSED FOR THESE ADAPTERS TO FUNCTION PROPERLY. CONSULT AN ELECTRICIAN IF YOU ARE UNSURE. DO NOT OPERATE A LED BULB WITH A BALLAST IN THE FIXTURE,Otherwise the LED Lamp witll get flicking, burnt, smell, damaged.
• G24Q GX24Q Base (base depth: 15mm/ 0.59 inches) for G24Q-1 G24Q-2 G24Q-3 GX24q-1, GX24q-2 or GX24q-3 bases
• 180d horizontal view, side light, 360d view angle,full size of light
• Not dimmable
• Working voltage: AC 85-300V 50-60hz Aluminum Extrusion+Milky PC Cover
• Replace Compact Fluorescent Lamps/CFL widely used in Recessed/Surface-mounted Down lights, Recessed Cans, Table/Desk Lamps, Portables, Pendant Lamps, Ceiling Fixtures, Wall Washers, Wall Sconces, Family Rooms, Living Rooms, Kitchens, Dining Rooms, and Porches.

Product Details:

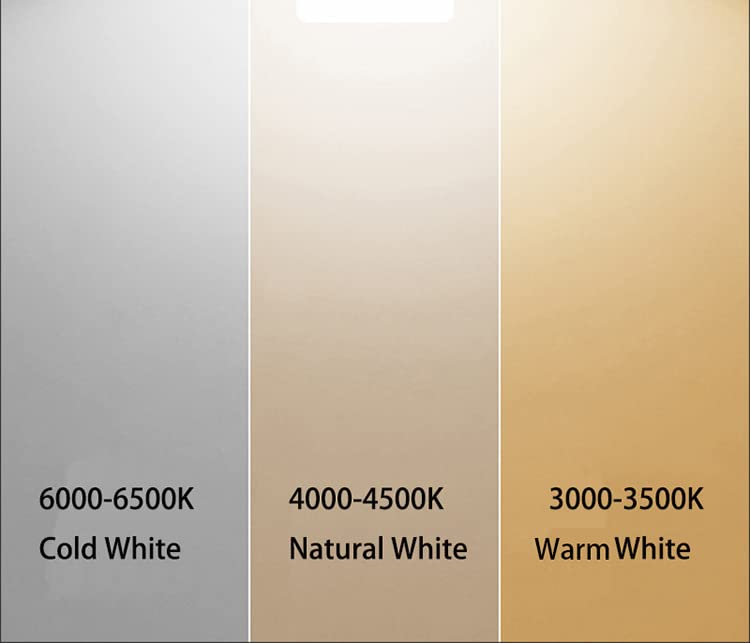

• Color: Warm White
• Size: Horizontal 11W
• Model: GX24Q-11W-PLC-WW-1pc
• Package Quantity: 0
