Brand: DZS Elec
Model: XL6009-P6
Product Name: XL6009 400KHz 4A Switch Current Step-On Power Converter Module
Module Type: Non-isolation Boost (BOOST)
Input Voltage: 3V-32V, The optimal operating voltage range is 5-32V
Output Voltage: 5V-35V (Step-up module, output voltage is higher than input voltage)
Input Current: 4A (max) Non-Load 18mA (The higher voltage, the greater no-load current.)
Conversion Efficiency: Max 94% (The larger voltage difference, the lower efficiency)
Switching Frequency: 400KHz
Output Ripple: 50mV (The higher voltage, the greater current and ripple)
Load Regulation: +/-0.5%
Voltage Regulation: +/-0.5%
Working Temperature: -40 to +85 degree Celsius
Size: 43x21x14mm(LxWxH)
Xl6009 booster module is a 4A switching current high performance BOOST module, with the third generation of high frequency switch technology as the core chip, the performance is far superior to LM2577. It can be used for booster power supply, DIY adjustable mobile power supply, booster charger, etc.
Attention:
Input operating voltage should not exceed 32V to avoid damage to the module.
Please check whether the negative terminal and positive terminal are connected correctly before operation.
If the output voltage is equal to the input voltage or no change in regulation, cut off the power, counterclockwise rotation of the potentiometer a few to a dozen turns, and then power on.
Package Include:

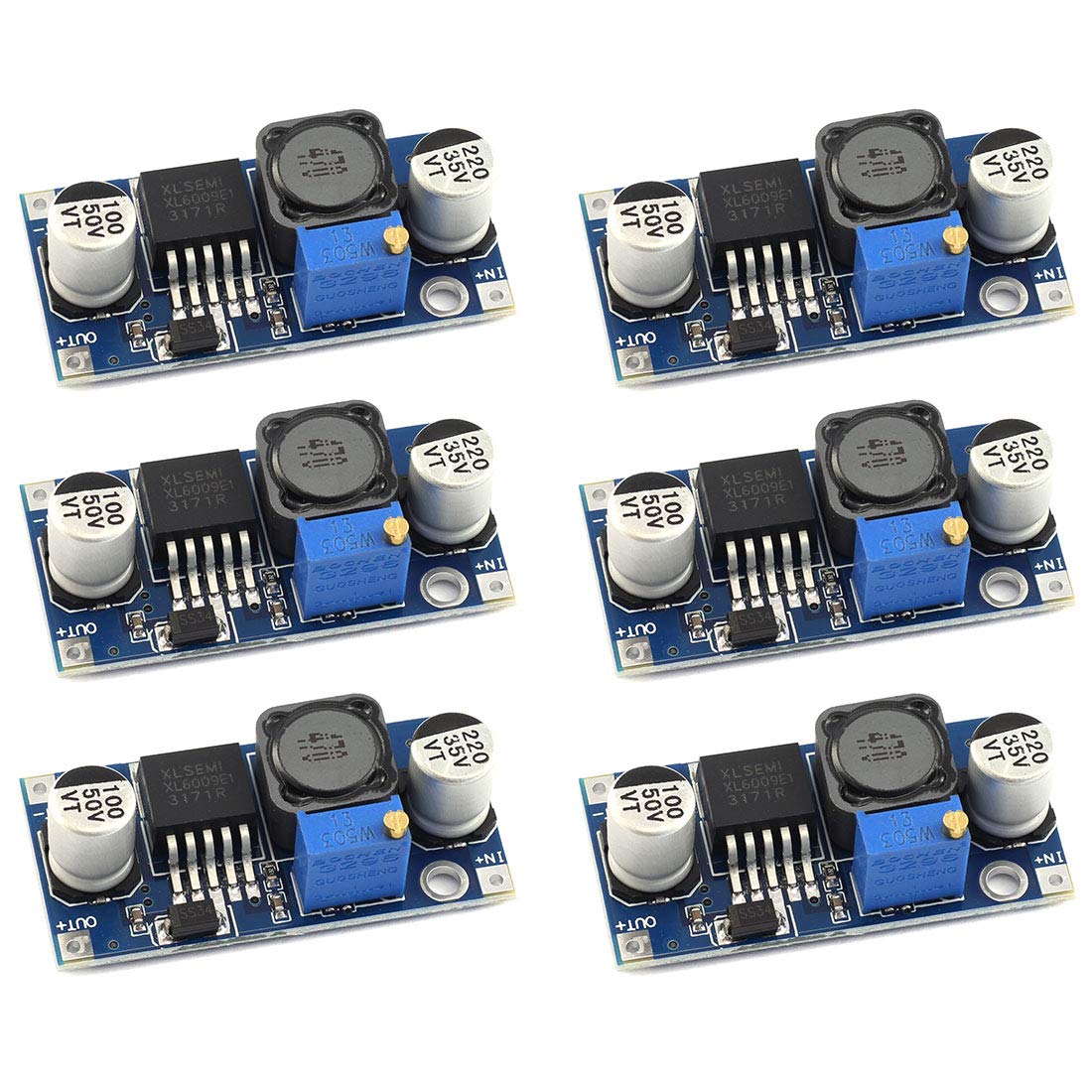

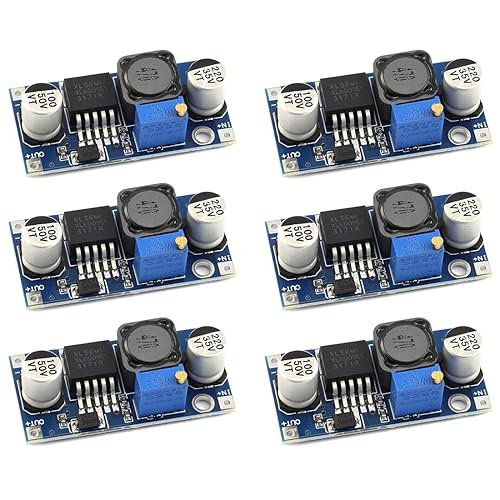

6pcs Xl6009 Booster Power Module
• XL6009 DC-DC Adjustable Booster Power Converter Module, High efficiency non-isolated booster module can be used for booster voltage stabilizer power supply, DIY adjustable mobile power supply, booster charger, etc.
• Input Voltage: 3V-32V, The optimal operating voltage range is 5-32V
• Output Voltage: 5V-35V Continuing Adjust (Step-up module, output voltage is higher than input voltage)
• Input Current: 4A (max) Non-Load 18mA (The higher voltage, the greater no-load current.)
• The booster power board is equipped with 4A high-efficiency MOSFET switch tube, with the conversion efficiency up to 94%.
• Ultra high switching frequency 400KHz, the filter capacitance with small capacity can achieve very good effect, smaller ripple and the volume.
Model: XL6009-P6
Product Name: XL6009 400KHz 4A Switch Current Step-On Power Converter Module
Module Type: Non-isolation Boost (BOOST)
Input Voltage: 3V-32V, The optimal operating voltage range is 5-32V
Output Voltage: 5V-35V (Step-up module, output voltage is higher than input voltage)
Input Current: 4A (max) Non-Load 18mA (The higher voltage, the greater no-load current.)
Conversion Efficiency: Max 94% (The larger voltage difference, the lower efficiency)
Switching Frequency: 400KHz
Output Ripple: 50mV (The higher voltage, the greater current and ripple)
Load Regulation: +/-0.5%
Voltage Regulation: +/-0.5%
Working Temperature: -40 to +85 degree Celsius
Size: 43x21x14mm(LxWxH)
Xl6009 booster module is a 4A switching current high performance BOOST module, with the third generation of high frequency switch technology as the core chip, the performance is far superior to LM2577. It can be used for booster power supply, DIY adjustable mobile power supply, booster charger, etc.
Attention:
Input operating voltage should not exceed 32V to avoid damage to the module.
Please check whether the negative terminal and positive terminal are connected correctly before operation.
If the output voltage is equal to the input voltage or no change in regulation, cut off the power, counterclockwise rotation of the potentiometer a few to a dozen turns, and then power on.
Package Include:
6pcs Xl6009 Booster Power Module
• XL6009 DC-DC Adjustable Booster Power Converter Module, High efficiency non-isolated booster module can be used for booster voltage stabilizer power supply, DIY adjustable mobile power supply, booster charger, etc.
• Input Voltage: 3V-32V, The optimal operating voltage range is 5-32V
• Output Voltage: 5V-35V Continuing Adjust (Step-up module, output voltage is higher than input voltage)
• Input Current: 4A (max) Non-Load 18mA (The higher voltage, the greater no-load current.)
• The booster power board is equipped with 4A high-efficiency MOSFET switch tube, with the conversion efficiency up to 94%.
• Ultra high switching frequency 400KHz, the filter capacitance with small capacity can achieve very good effect, smaller ripple and the volume.
