Description
Brand: DUTTY
Model: DT-001
Product parameters:
【Module name】400W boost constant current module
[Module properties]: non-isolated boost module (BOOST)
【Input voltage】: DC8.5V-50V
[Input current]: 1 (MAX) more than 8A, please strengthen heat dissipation
[Static working current]: 10mA (when 12V rises to 20V, the higher the output voltage, the higher the static current will increase)
[Output voltage]: 10-60V continuously adjustable (default output 19V shipment)
[Output current]: If 12A MAX exceeds 7A, please strengthen the heat dissipation (related to the input and output pressure difference, the larger the pressure difference, the smaller the output current)
【Constant current range】: 0.2-12A
[Output power]: = input voltage*10A, such as: input 12V*=60W, input 24V*=120W, input 36V*=180W, input 48V*=240W,
[Working temperature]: -40~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high)
【Working frequency】: 150KHz
[Conversion efficiency]: 96% (efficiency is related to input, output voltage, current, and differential pressure)
[Overcurrent Protection]: Yes (The input exceeds 1, the output voltage will be automatically reduced, and there is a certain range of error.)
[Input reverse connection protection]: None, (If you need a higher reverse connection current, please connect a diode in series with the input)
[Installation method]: 4 2.5mm screw holes
【Wiring method】: Wiring output

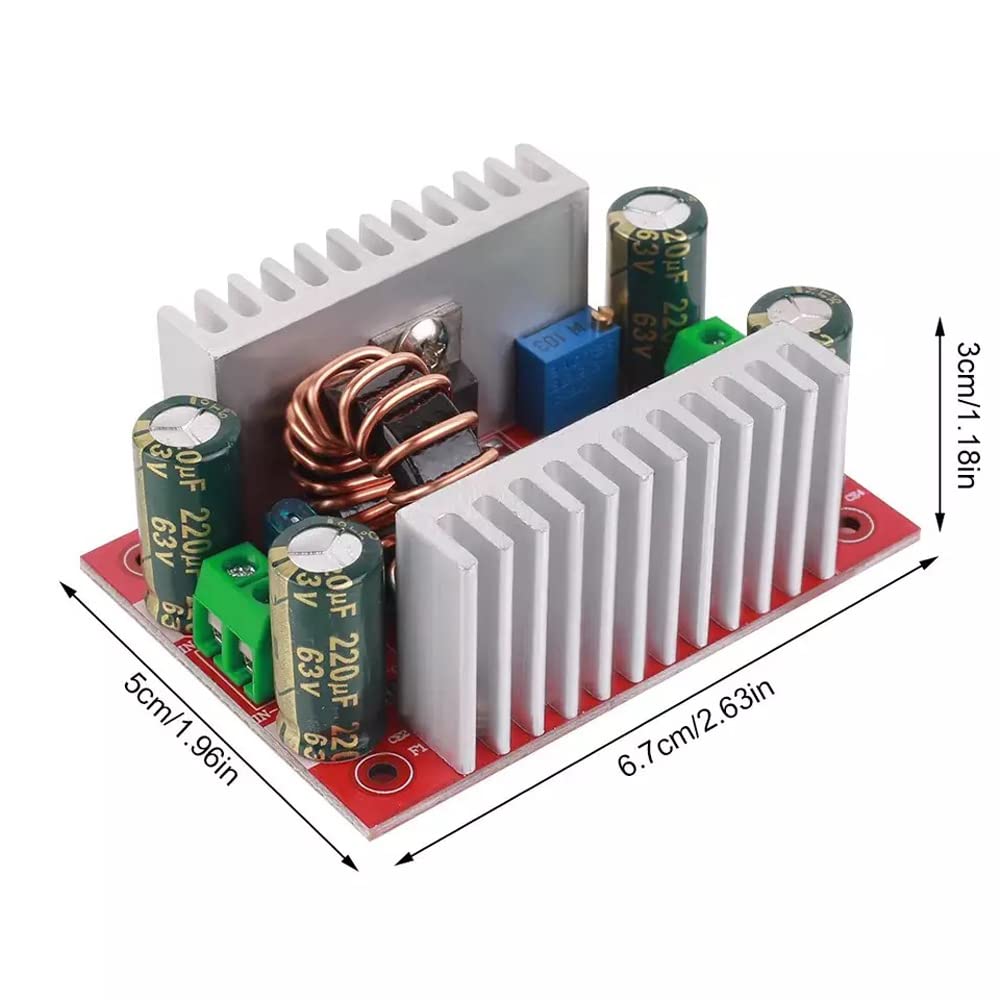

[module size]: length 67mm width 48mm height 28mm
[Module unit weight]: 60 grams
Products include
400WDC-DC high power constant voltage constant current boost power supply module*1
• Regulated power supply, the input is 12V, and the output can be adjusted from 12-50V
• As a vehicle power supply, power supply for your notebook computer, PDA or various digital products, and can set the output value according to your system voltage
• Solar panel voltage stabilization.
• Charge batteries, lithium batteries, etc.
• Drive high-power LED lights.
Color: DT-001
Model: DT-001
Product parameters:
【Module name】400W boost constant current module
[Module properties]: non-isolated boost module (BOOST)
【Input voltage】: DC8.5V-50V
[Input current]: 1 (MAX) more than 8A, please strengthen heat dissipation
[Static working current]: 10mA (when 12V rises to 20V, the higher the output voltage, the higher the static current will increase)
[Output voltage]: 10-60V continuously adjustable (default output 19V shipment)
[Output current]: If 12A MAX exceeds 7A, please strengthen the heat dissipation (related to the input and output pressure difference, the larger the pressure difference, the smaller the output current)
【Constant current range】: 0.2-12A
[Output power]: = input voltage*10A, such as: input 12V*=60W, input 24V*=120W, input 36V*=180W, input 48V*=240W,
[Working temperature]: -40~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high)
【Working frequency】: 150KHz
[Conversion efficiency]: 96% (efficiency is related to input, output voltage, current, and differential pressure)
[Overcurrent Protection]: Yes (The input exceeds 1, the output voltage will be automatically reduced, and there is a certain range of error.)
[Input reverse connection protection]: None, (If you need a higher reverse connection current, please connect a diode in series with the input)
[Installation method]: 4 2.5mm screw holes
【Wiring method】: Wiring output
[module size]: length 67mm width 48mm height 28mm
[Module unit weight]: 60 grams
Products include
400WDC-DC high power constant voltage constant current boost power supply module*1
• Regulated power supply, the input is 12V, and the output can be adjusted from 12-50V
• As a vehicle power supply, power supply for your notebook computer, PDA or various digital products, and can set the output value according to your system voltage
• Solar panel voltage stabilization.
• Charge batteries, lithium batteries, etc.
• Drive high-power LED lights.
