Brand: DSD TECH

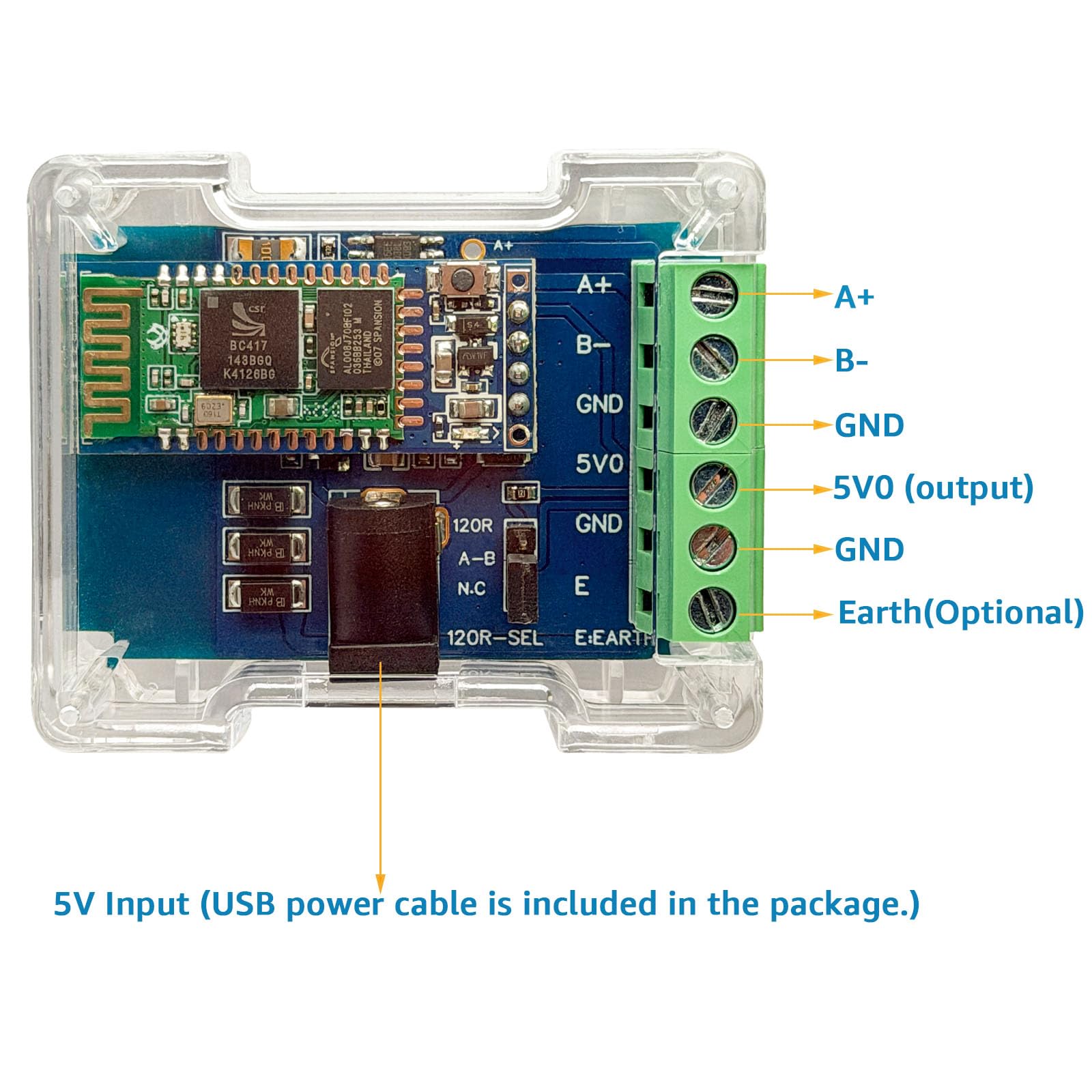

This is an RS485 to Bluetooth converter. With this converter, your computer or Android phone can connect to RS485 devices via Bluetooth.<br> <br> <b>Features</b><br> RS485 interface with terminal block interface<br> Half-duplex data communication<br> Bluetooth Class 2 Radio<br> Integrated antenna<br> Data encryption<br> Support Microsoft Windows Bluetooth COM port<br> LED indicator<br> Configuration via Serial Port<br> <br> <b>Specifications</b><br> Model NO: SH-B20<br> Bluetooth: Bluetooth v2.0 + EDR Class 2 Radio<br> Default Bluetooth Module Baud Setting : 9600 ,N,8,1<br> RS485:Half-duplex transceiver<br> Current draw:Max 90mA<br> Bluetooth authentication PIN : 1234<br> Distance: more than 20 meters<br> RS485 Signals:A+,B-,GND<br> Power supply: 5V DC<br> Operating temp: -20C to 85C<br> <br> <b>Typical Application - Microsoft Windows Bluetooth COM Port</b><br> This application requires install this Bluetooth adapter on Microsoft Windows, and Bluetooth connection to computer is required. A virtual<br> COM port is created for this adapter after installation. User application software can access this adapter’s RS485/RS422 interface using<br> the virtual COM port. Here are the steps to install this adapter on Microsoft Windows. The adapter’s authentication pin code is 1234.<br> <br> <b>Package Content</b><br> 1 x SH-B20 RS485 to Bluetooth Converter<br> 1 x USB A Power Cable<br> 1 x User Manual<br> <br> <b>About Warranty</b><br> DSD TECH offers a 24-month warranty on this RS485 to Bluetooth Converter. If you have any questions, please contact us and we will resolve your issue within 24hours.<br>

Features:

• Industrial-Grade Bluetooth 2.0 SPP Module: Powered by the reliable CSR BC417 chip, this adapter works seamlessly with built-in drivers on Windows Vista, 7, 8, and 10-no extra installation required.
• Wireless RS485 Connectivity: Easily connect and control RS485 devices via Bluetooth 2.0. Compatible with Android devices and Bluetooth-enabled computers, enabling stable and efficient wireless communication.

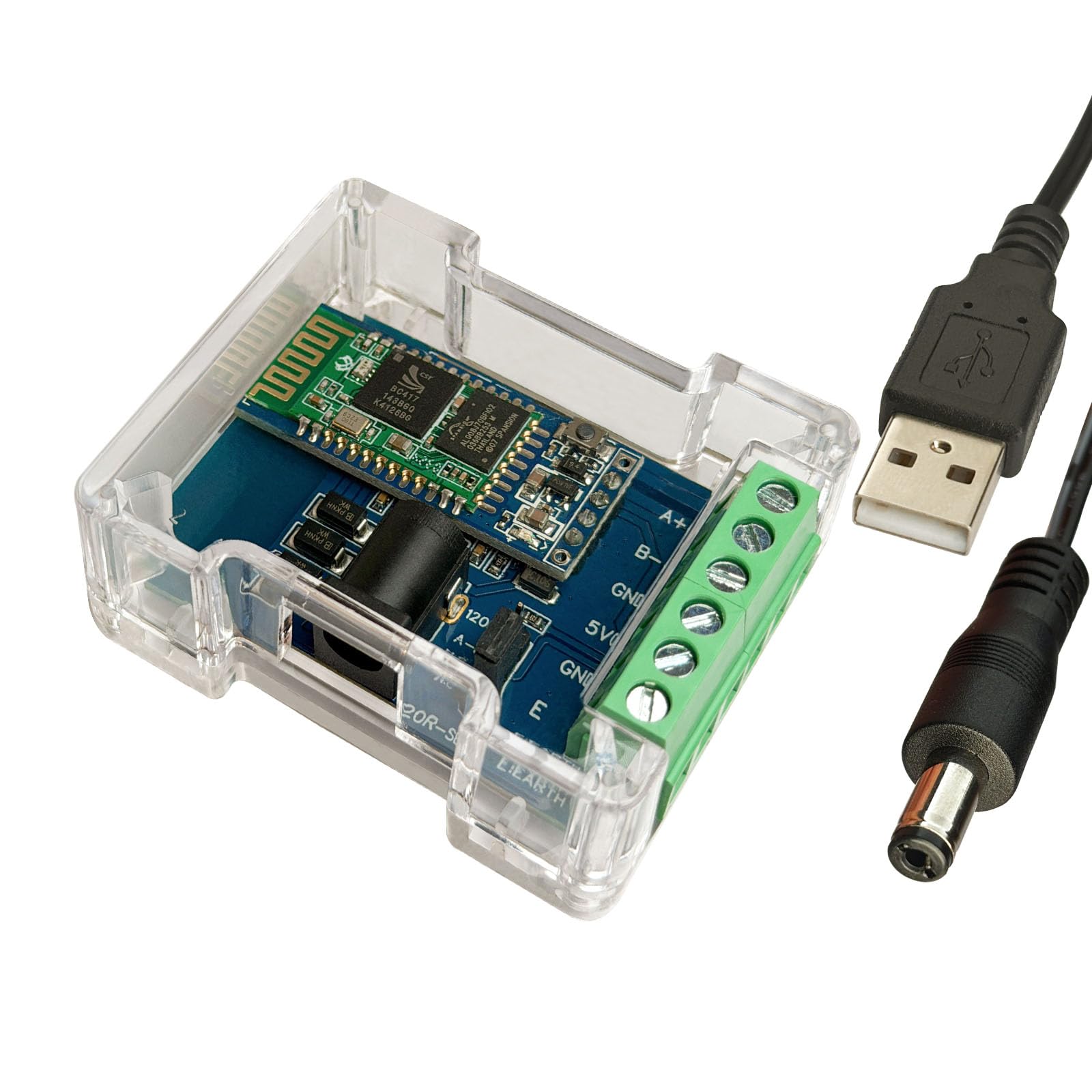

• Enhanced Protection & Flexible Power Supply: Designed with400W surge protectionand 15KV ESD static protectionfor safe and durable operation. Includes a USB power cable-simply power it using any standard USB charger or port.
• Configurable Settings with Free Software: Default pairing PIN:1234. Standard baud rate:9600, N, 8, 1. Supports transmission distances over 20 meters. Baud rate, Bluetooth name, and PIN can all be customized using the free setup software provided by DSD TECH.
• About DSD TECH: Established in 2009, DSD TECH specializes in industrial connectivity solutions, delivering 80+ products (USB/RS232/UART/RS485/CAN) to 100,000+ global clients across automation and communication sectors. Every device comes with lifetime support and 1 year product replacement service.

Product Details:

• Color: Multicoloured
• Size: Small
• Model: SH-B20
• Package Quantity: 1
