Description
Brand: Diitao
Model: DT20630
Instruction
Press + to view the disconnect voltage.
Press - to view the difference.
Press the "+" key twice. When the decimal point flashes, press the "+" or "-" key to set the disconnect voltage.
Double press the "-" key, and when the decimal point flashes, press the "+" or "-" key to set the difference.
Long press the "+" key, and when the LED screen flashes, press the "+" or "-" key to calibrate the input voltage.
Hold down the - key, and then press + or - to set the delay value T.
When the output voltage reaches the reconnection value, the load is reconnected after a delay of T minutes.
The delay time ranges from 000 to 010 minutes and is displayed as 000 or 001 or 005 or 010. The decimal point is not displayed.
Example:
Setting below 12.5V will stop, higher than 14V will start.
Set the protection value: Press the "+" key once to display the protection value. Double-click the "+" key and the decimal point flashes. Press "+" and "-" to change the value to 12.5.
Set the return difference: Press the "-" key once to display the return difference, double-click the "-" key, the decimal point flashes, press the "+" and "-" keys to change the value to 1.5.
If there is no operation in 3 seconds, the module will automatically save and exit the setting mode.
Tip: If you test a 3-second charging pack on a 10-watt LED, the display lights up for a few minutes and then the module runs out of power. The reason may be that the module is only suitable for a single cell, not a battery pack. The solution is a single battery connection.

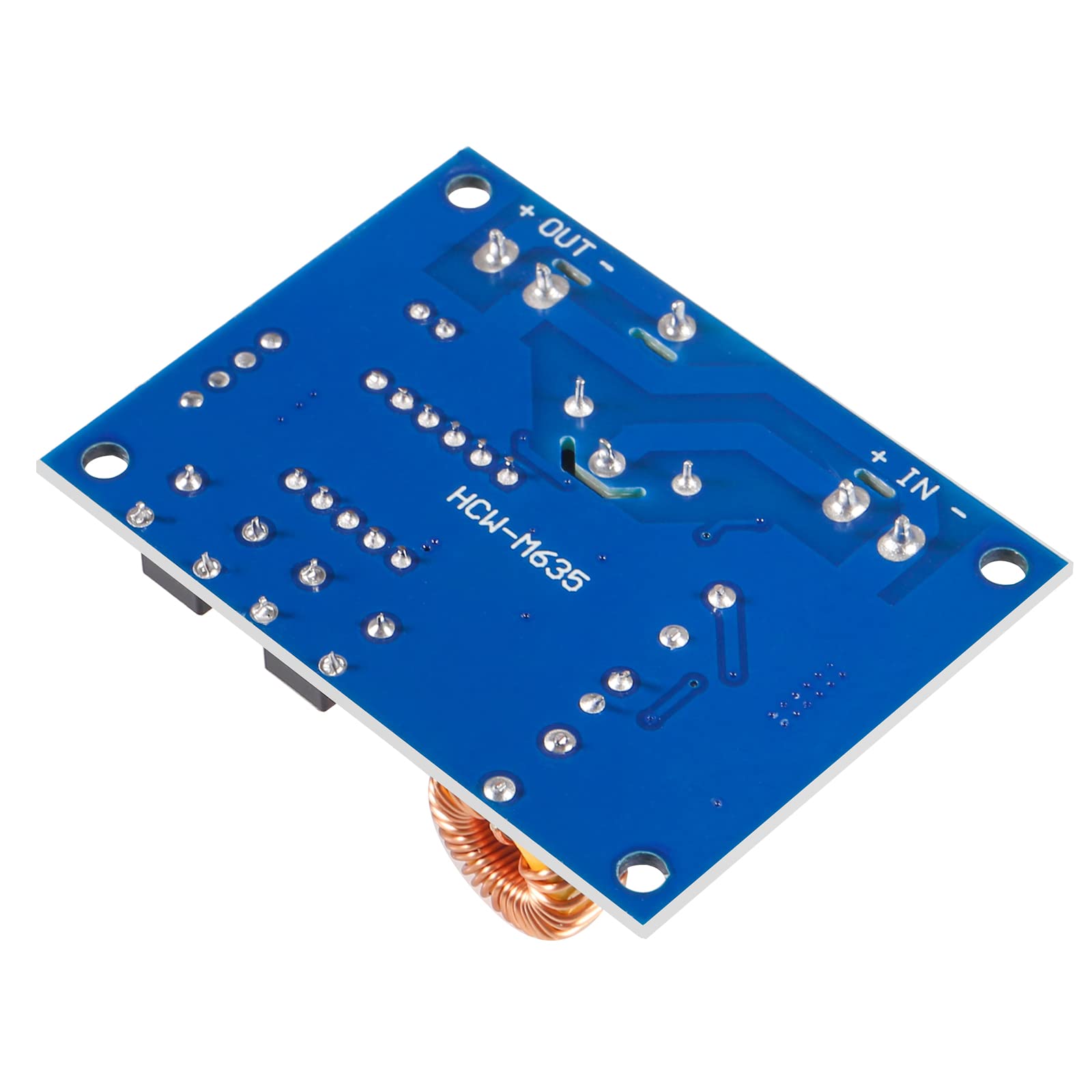

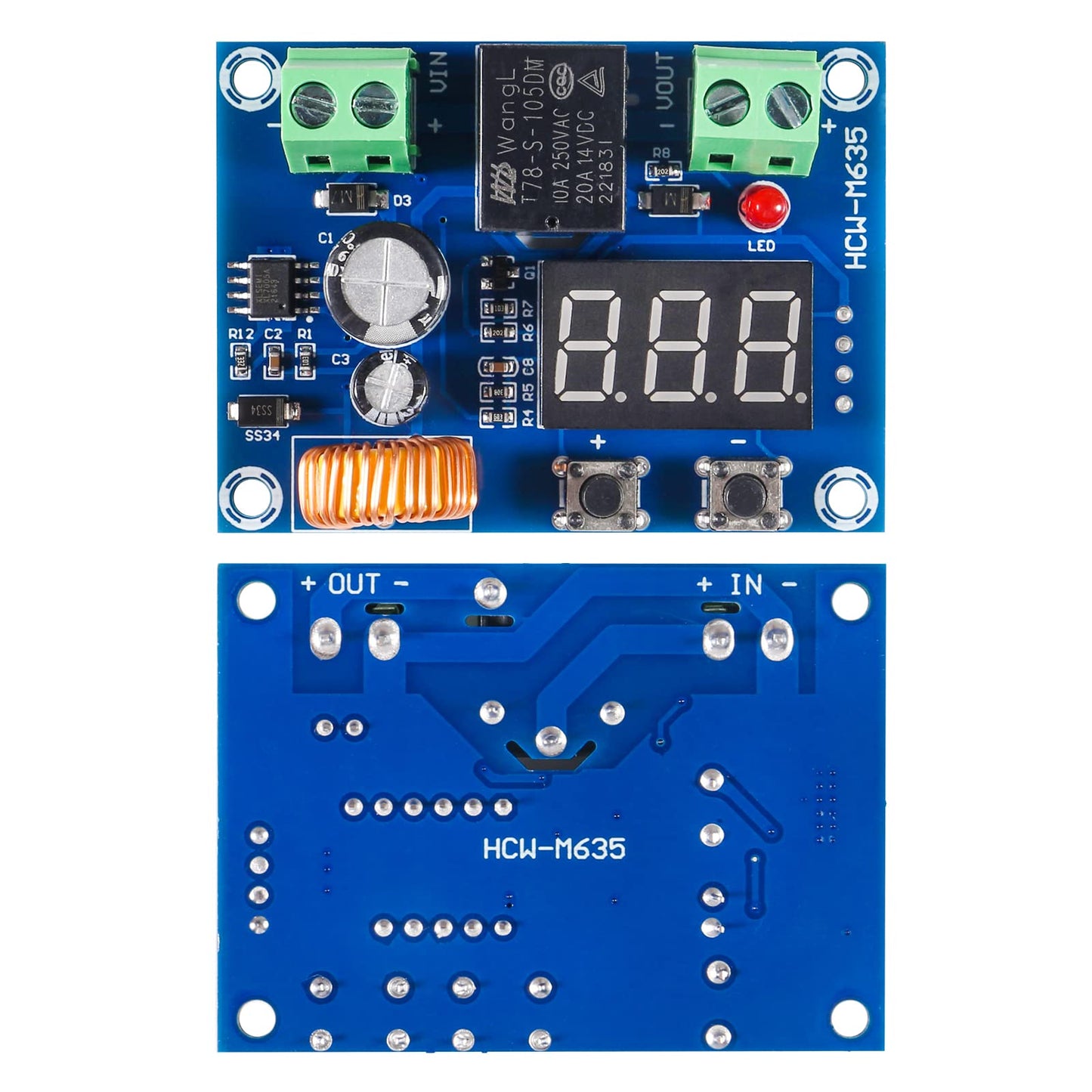

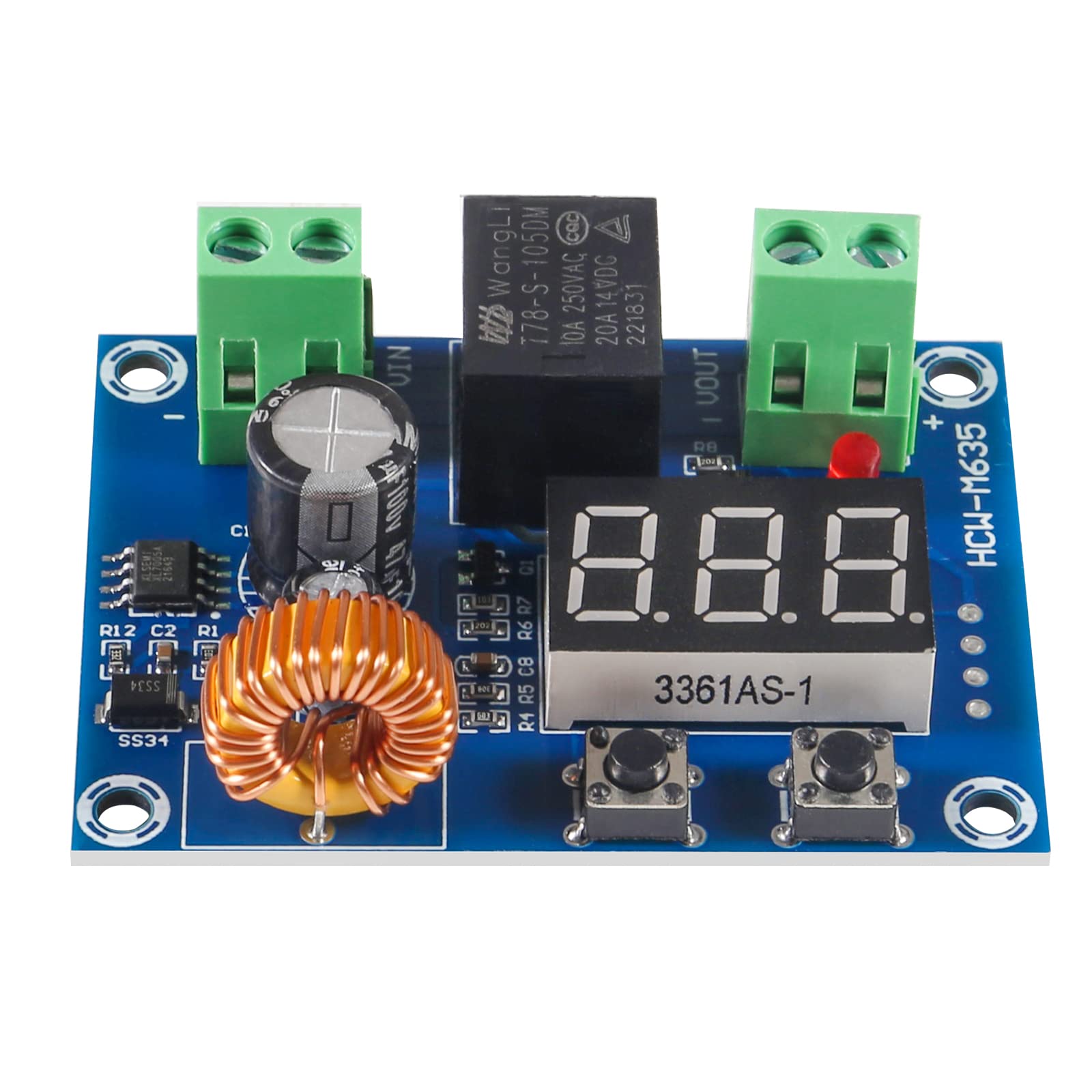

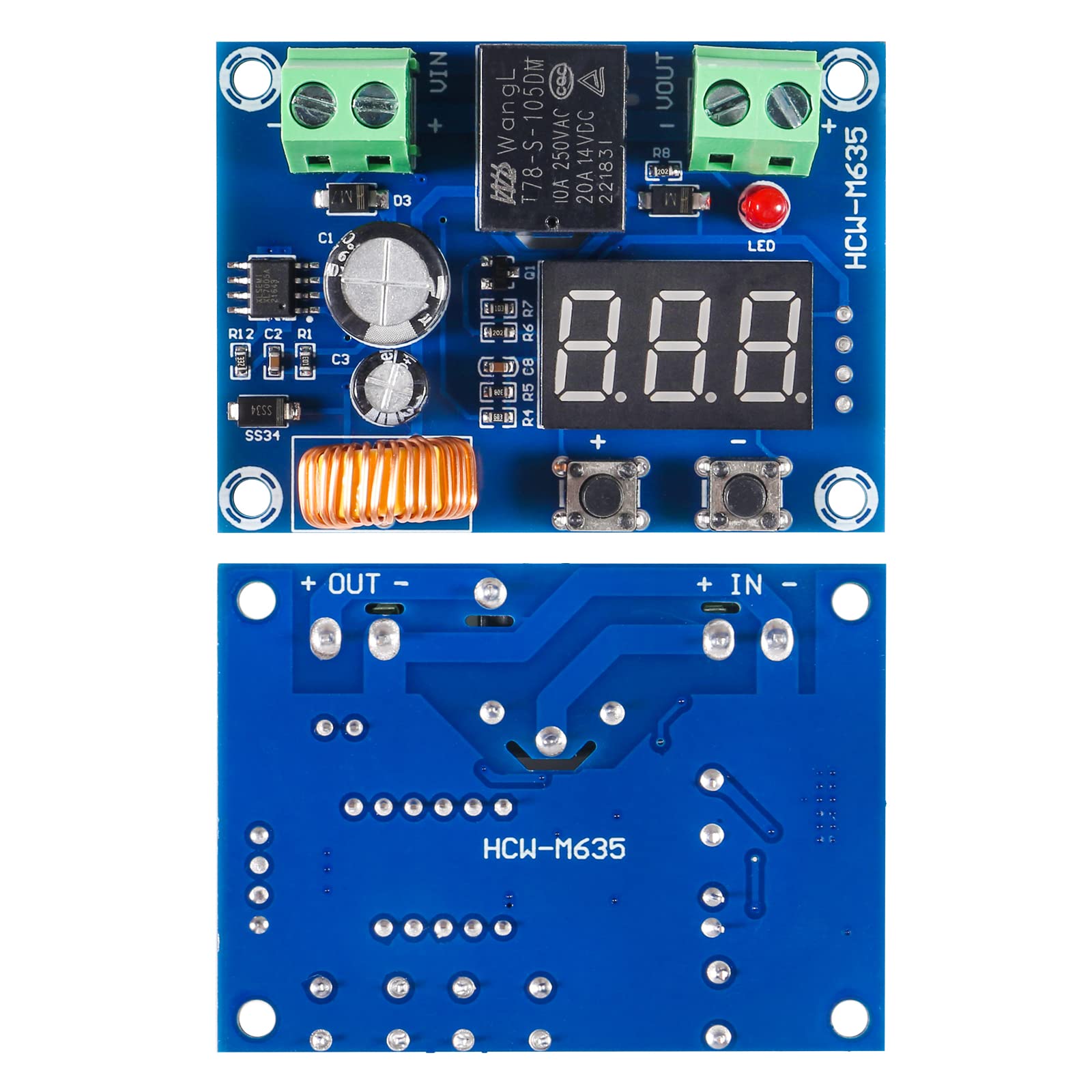

• Parameter:Board Size 57 X 42 X 19mm/2.24 X 1.65 X 0.75inch(LxWxH), Input Voltage Range:DC12-36V
• Power Consumption <1.5W
• Maximum Amperage before Breaker Trips: 20A
• Long Lifetime:Made of good material,the voltage protection module is of high quality and can use a long time

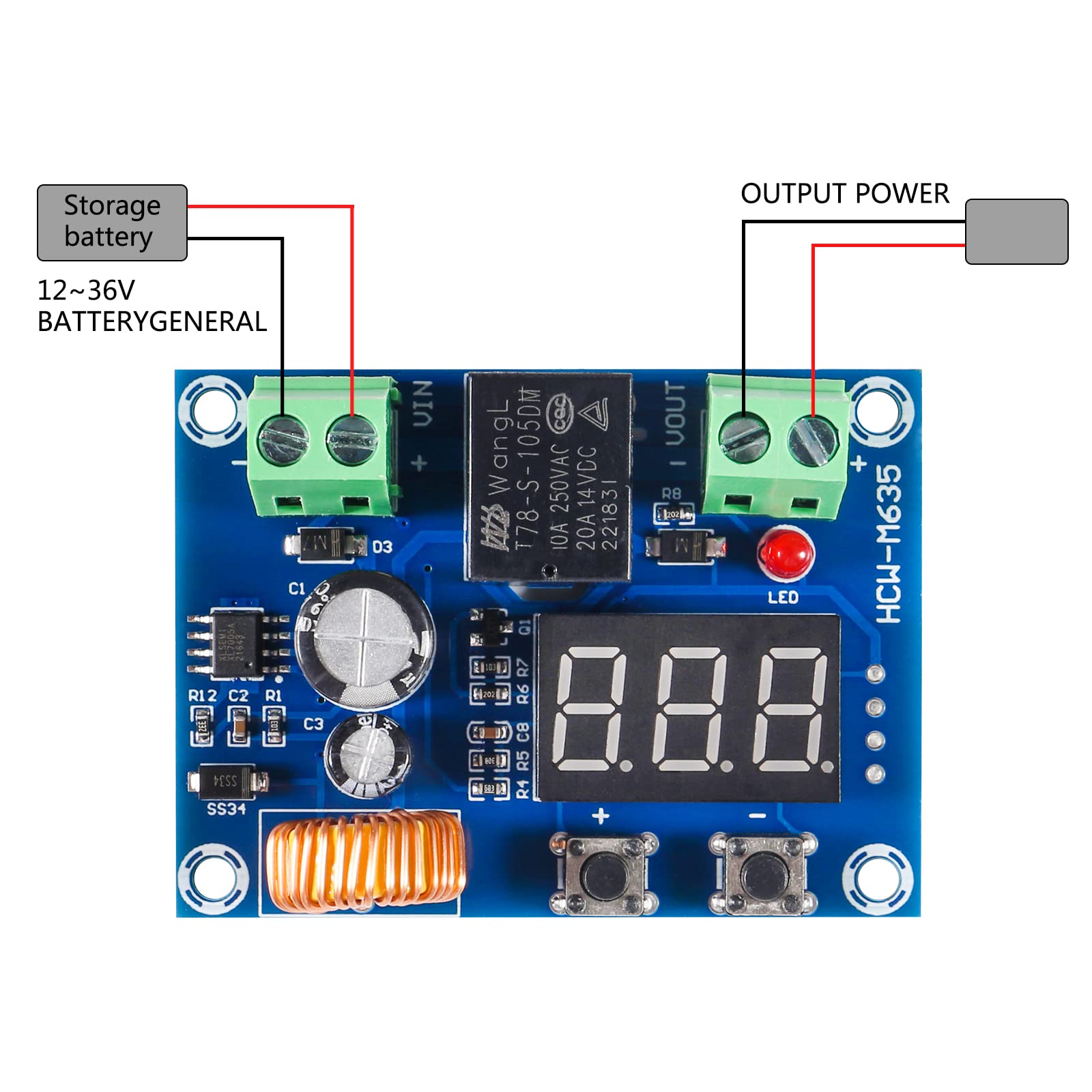

• Application:It's a protection switch module and can effectively protect the circuit.Suitable for all kinds of batteries
• Protect Circuit:With accurate display function, when it is close to the minimum voltage, the module can open or close in time. In addition, the settings can be maintained in the event of a power outage

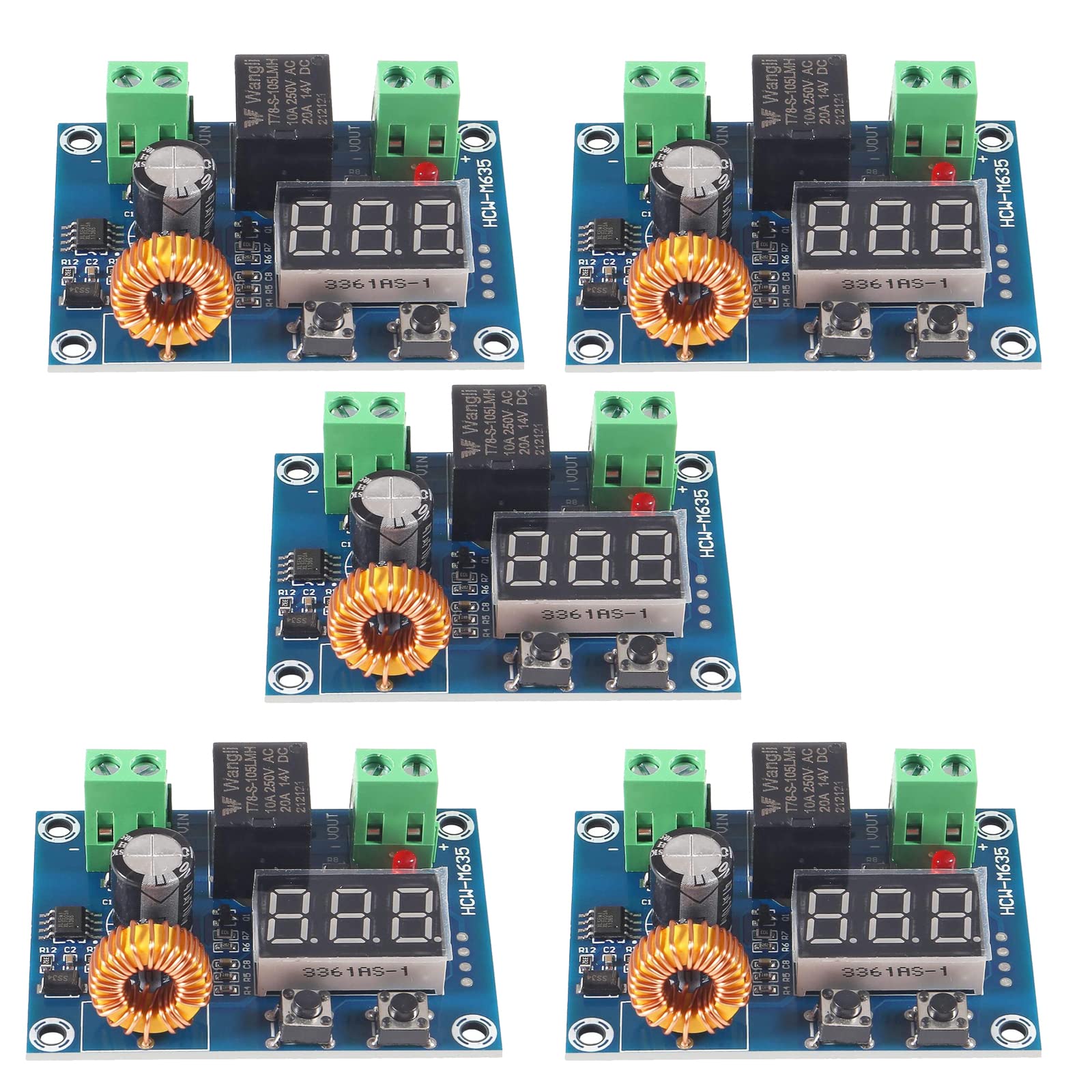

• Package Included:5pcs DC 12V-36V voltage protection module
Color: Blue
Power/Wattage: 5pcs
Model: DT20630
Instruction
Press + to view the disconnect voltage.
Press - to view the difference.
Press the "+" key twice. When the decimal point flashes, press the "+" or "-" key to set the disconnect voltage.
Double press the "-" key, and when the decimal point flashes, press the "+" or "-" key to set the difference.
Long press the "+" key, and when the LED screen flashes, press the "+" or "-" key to calibrate the input voltage.
Hold down the - key, and then press + or - to set the delay value T.
When the output voltage reaches the reconnection value, the load is reconnected after a delay of T minutes.
The delay time ranges from 000 to 010 minutes and is displayed as 000 or 001 or 005 or 010. The decimal point is not displayed.
Example:
Setting below 12.5V will stop, higher than 14V will start.
Set the protection value: Press the "+" key once to display the protection value. Double-click the "+" key and the decimal point flashes. Press "+" and "-" to change the value to 12.5.
Set the return difference: Press the "-" key once to display the return difference, double-click the "-" key, the decimal point flashes, press the "+" and "-" keys to change the value to 1.5.
If there is no operation in 3 seconds, the module will automatically save and exit the setting mode.
Tip: If you test a 3-second charging pack on a 10-watt LED, the display lights up for a few minutes and then the module runs out of power. The reason may be that the module is only suitable for a single cell, not a battery pack. The solution is a single battery connection.
• Parameter:Board Size 57 X 42 X 19mm/2.24 X 1.65 X 0.75inch(LxWxH), Input Voltage Range:DC12-36V
• Power Consumption <1.5W
• Maximum Amperage before Breaker Trips: 20A
• Long Lifetime:Made of good material,the voltage protection module is of high quality and can use a long time
• Application:It's a protection switch module and can effectively protect the circuit.Suitable for all kinds of batteries
• Protect Circuit:With accurate display function, when it is close to the minimum voltage, the module can open or close in time. In addition, the settings can be maintained in the event of a power outage
• Package Included:5pcs DC 12V-36V voltage protection module
Color: Blue
Power/Wattage: 5pcs
