Brand: Digilent

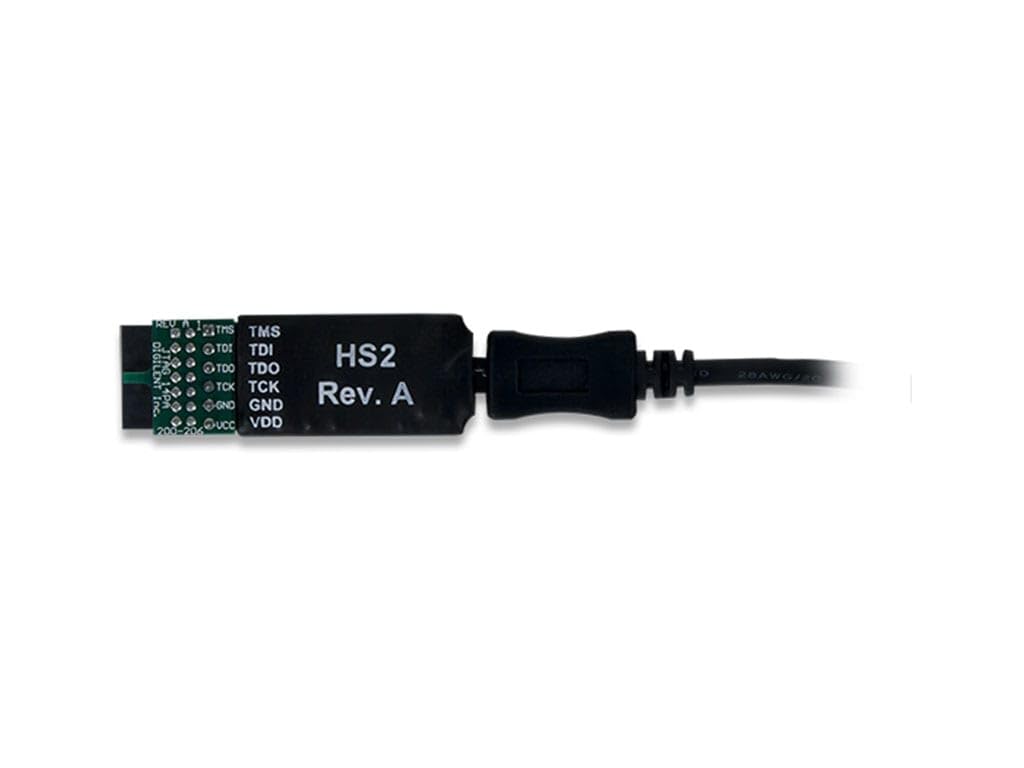

The joint test action group (JTAG) HS2 programming cable is a high-speed <br />programming solution for Xilinx field-programmable gate arrays (FPGAs). <br />The cable is fully compatible will all Xilinx tools and can be seamlessly <br />driven from iMPACT, ChipScope, and EDK. The HS2 attaches to target boards <br />using Digilent's 6-pin, 100-mil spaced programming header or Xilinx's 2x7, <br />2mm connector and the included adaptor. The PC powers the JTAG-HS2 through <br />the USB port and will recognize it as a Digilent programming cable when <br />connected to a PC, even if the cable is not attached to the target board. <br />The HS2 has a separate Vdd pin to supply the JTAG signal buffers. The <br />high-speed 24mA three-state buffers allow target boards to drive the HS2 <br />with signal voltages from 1.8V to 5V and bus speeds of up to 30MBit/sec. To <br />function correctly, the HS2's Vdd pin must be tied to the same voltage <br />supply that drives the JTAG port on the FPGA. The JTAG bus can be shared <br />with other devices as systems hold JTAG signals at high-impedance except <br />when actively driven during programming. The HS2 comes included with a <br />standard Type-A to Micro-USB cable that attaches to the end of the module <br />opposite the system board connector. The system board connector should hold <br />the small and light HS2 firmly in place.
Features:
- Small, complete, all-in-one JTAG programming solution for Xilinx FPGAs
- Compatible with IEEE 1149.7-2009 Class T0 - Class T4 (includes 2-Wire JTAG)
- High-Speed USB2 port that can drive JTAG/SPI bus at up to 30Mbit/sec
- JTAG/SPI frequency settable by user
- Uses micro-AB USB2 connector
Product Details:
- Size: 100 mils
- Model: BC82103
- Package Quantity: 1
