Brand: Generic

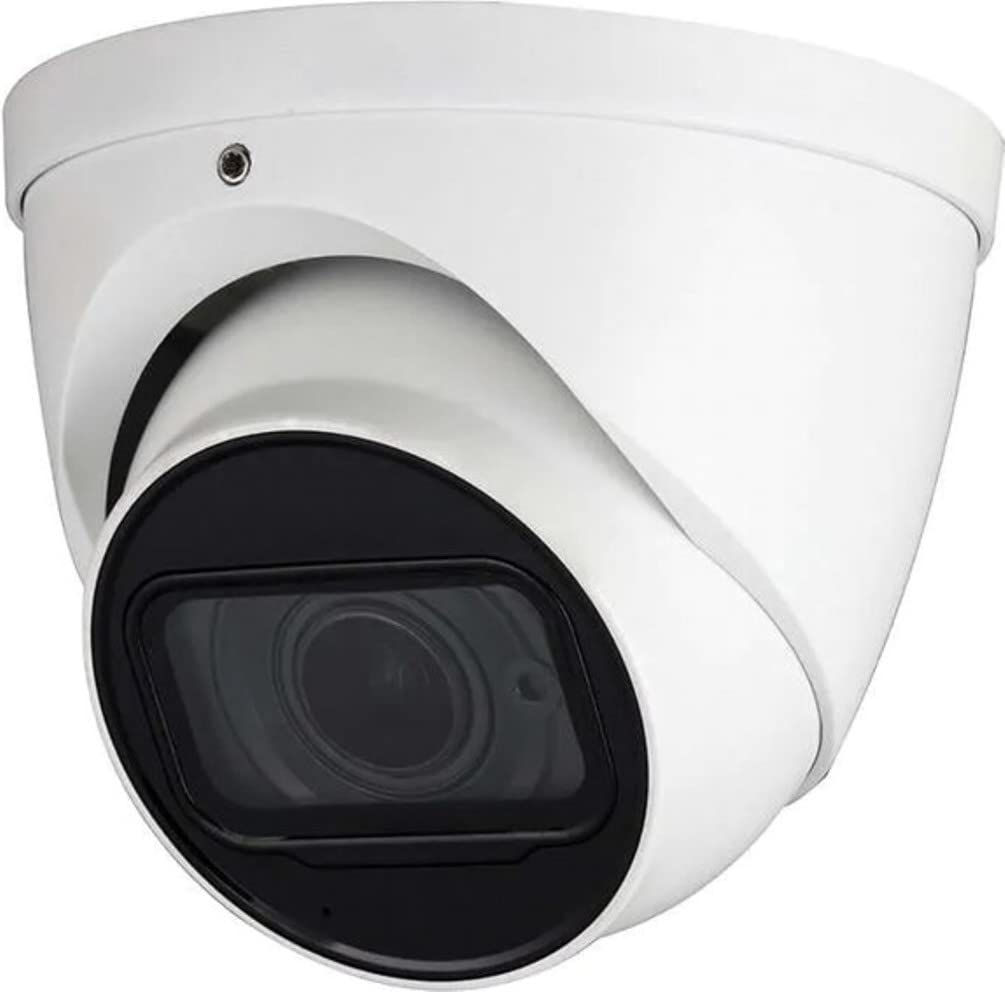

Diamond HCC3350T-IR/28 5MP HDCVI IR Turret Analog Camera, 1/2.7" CMOS Image Sensor, Max. 20fps@5MP, 2.8mm Fixed Lens, 1 IR LEDs, Up to 30m (98ft) IR Distance, Smart IR, IP67, DC12V
Key Features
- Max. 20fps@5MP
- CVI/CVBS/AHD/TVI switchable
- 2.8mm fixed lens
- 30m (98ft) Max. IR length, Smart IR
- IP67, DC12V
Specifications
- Image Sensor: 1/2.7" CMOS
- Effective Pixels: 2592(H)×1944(V), 5MP
- Electronic Shutter Speed: PAL: 1/25~1/100000s; NTSC: 1/30~1/100000s
- Minimum Illumination: 0.02Lux/F1.85, 30IRE, 0Lux IR on
- IR Distance: 30m (98.4ft)
- IR On/Off Control: Auto/Manual
- IR LEDs: 1
- Lens Type: Fixed-focal
- Mount Type: M12
- Focal Length: 2.8mm
- Max Aperture: F1.85
- Angle of View: Diagonal 116°, horizontal 93°, vertical 68°
- Iris Type: Fixed iris - Close Focus Distance: 0.8mm (2.62ft)
- DORI Distance: Detect 56m (184ft), Observe 22m (72ft), Recognize 11m (36ft), Identify 6m (20ft)
- Resolution: 5M (2592x1944); 4M (2560x1440); 1080P (1920x1080); 960H (960x576/960x480)
- Day/Night: Auto switch by ICR
- BLC Mode: BLC/HLC/DWDR
- WDR: DWDR
- White Balance: Auto/Manual
- Gain Control: Auto/Manual
- Noise Reduction: 2D
- Smart IR: Yes
- Mirror: Off/On
- Privacy Masking: Off/On (8 Area, Rectangle)
- Certifications: CE (EN55032, EN55024, EN50130-4), FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014), UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
- Video Port: Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Power Supply: 12V±30% DC
- Power Consumption: Max 3.7W (12V DC, IR on)
- Operating Conditions: -40°C~+60°C/<95% <95% (non-condensation)
- Storage Conditions: -40°C~+60°C/<95% (non-condensation)
- Casing: Inner core: metal+plastic; cover: plastic
- Dimensions: ?3.82"x3.38"
- Net Weight: 0.49lb
- Gross Weight: 0.62lb
• Max. 20fps@5MP
• CVI/CVBS/AHD/TVI switchable
• 2.8mm fixed lens
• 30m (98ft) Max. IR length, Smart IR
• IP67, DC12V
Diamond HCC3350T-IR/28 5MP HDCVI IR Turret Analog Camera, 1/2.7" CMOS Image Sensor, Max. 20fps@5MP, 2.8mm Fixed Lens, 1 IR LEDs, Up to 30m (98ft) IR Distance, Smart IR, IP67, DC12V
Key Features
- Max. 20fps@5MP
- CVI/CVBS/AHD/TVI switchable
- 2.8mm fixed lens
- 30m (98ft) Max. IR length, Smart IR
- IP67, DC12V
Specifications
- Image Sensor: 1/2.7" CMOS
- Effective Pixels: 2592(H)×1944(V), 5MP
- Electronic Shutter Speed: PAL: 1/25~1/100000s; NTSC: 1/30~1/100000s
- Minimum Illumination: 0.02Lux/F1.85, 30IRE, 0Lux IR on
- IR Distance: 30m (98.4ft)
- IR On/Off Control: Auto/Manual
- IR LEDs: 1
- Lens Type: Fixed-focal
- Mount Type: M12
- Focal Length: 2.8mm
- Max Aperture: F1.85
- Angle of View: Diagonal 116°, horizontal 93°, vertical 68°
- Iris Type: Fixed iris - Close Focus Distance: 0.8mm (2.62ft)
- DORI Distance: Detect 56m (184ft), Observe 22m (72ft), Recognize 11m (36ft), Identify 6m (20ft)
- Resolution: 5M (2592x1944); 4M (2560x1440); 1080P (1920x1080); 960H (960x576/960x480)
- Day/Night: Auto switch by ICR
- BLC Mode: BLC/HLC/DWDR
- WDR: DWDR
- White Balance: Auto/Manual
- Gain Control: Auto/Manual
- Noise Reduction: 2D
- Smart IR: Yes
- Mirror: Off/On
- Privacy Masking: Off/On (8 Area, Rectangle)
- Certifications: CE (EN55032, EN55024, EN50130-4), FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014), UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
- Video Port: Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Power Supply: 12V±30% DC
- Power Consumption: Max 3.7W (12V DC, IR on)
- Operating Conditions: -40°C~+60°C/<95% <95% (non-condensation)
- Storage Conditions: -40°C~+60°C/<95% (non-condensation)
- Casing: Inner core: metal+plastic; cover: plastic
- Dimensions: ?3.82"x3.38"
- Net Weight: 0.49lb
- Gross Weight: 0.62lb
• Max. 20fps@5MP
• CVI/CVBS/AHD/TVI switchable
• 2.8mm fixed lens
• 30m (98ft) Max. IR length, Smart IR
• IP67, DC12V
