Description
Brand: Envistia
Model: XL4015
• PWM buck (step-down) DC/DC voltage converter module with Constant Voltage and Constant Current control is capable of driving a 5A load with high efficiency, low ripple and excellent line and load regulation
• Provides either a Constant Voltage (CV) or Constant Current (CC) output with a variable output voltage range of 1.2V to 34V and variable output current from 0A to 5A peak
• Digital meter displays input and output voltages, output current and output power
• Operates in Constant Current (CC) or Constant Voltage (CV) mode, optimum for driving LEDs, laser diodes, charging batteries, and as a general purpose voltage and current source
• Screw terminal input connections, screw terminals or USB connector for the output
Color: Blue
Model: XL4015

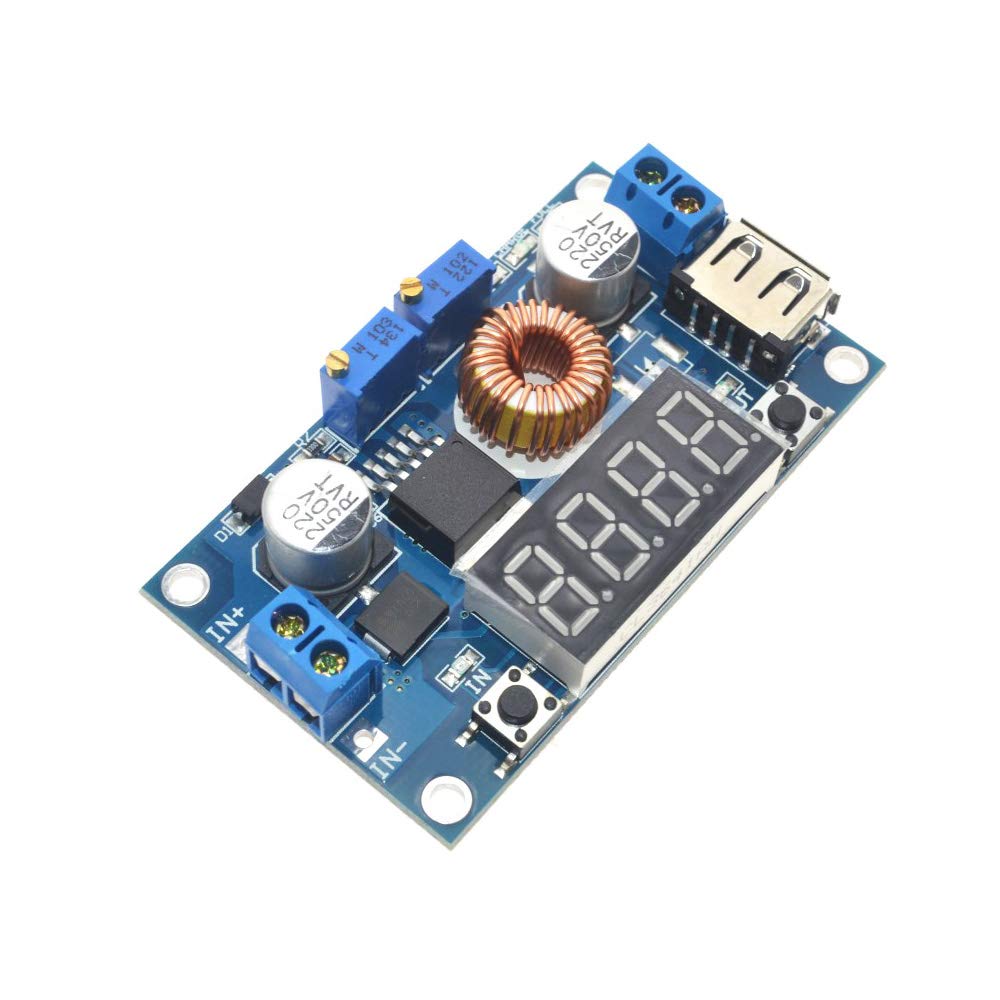

This PWM buck (step-down) DC/DC voltage converter module with Constant Voltage and Constant Current control is capable of driving a 5A load with high efficiency, low ripple and excellent line and load regulation.
It can provide either a Constant Voltage (CV) or Constant Current (CC) output. With a variable output voltage range of 1.2V to 34V and variable output current from 0A to 5A peak (4A continuous), it is ideal for use as an LED or laser diode current source/driver, a battery charger, a lab current/voltage source, or to regulate the output of solar panels or wind turbines to charge energy storage batteries.
The module features a meter that displays the input voltage and output voltage (V), output current (A), and output power (W), eliminating the need for external voltage, current and power meters for setup and monitoring.
Specifications:
- Input voltage range: 5V - 36VDC
- Output voltage range: 1.2V - 34VDC adjustable via onboard potentiometer
- (Input voltage must be at least 2V greater than output voltage)
- Output current: 0A - 5A peak, 4A continuous
- Output power: 75W maximum
- Voltmeter range: 1.2V to 40.0V, 0.1V display resolution
- Current meter range: 0.00A to 5.00A, 0.01A display resolution
- Power meter range: 0.0W to 99.9W, 0.1W display resolution
- Operating frequency: 180KHz
- High efficiency up to 96%
- Built in thermal shutdown, current limit, and output short protection

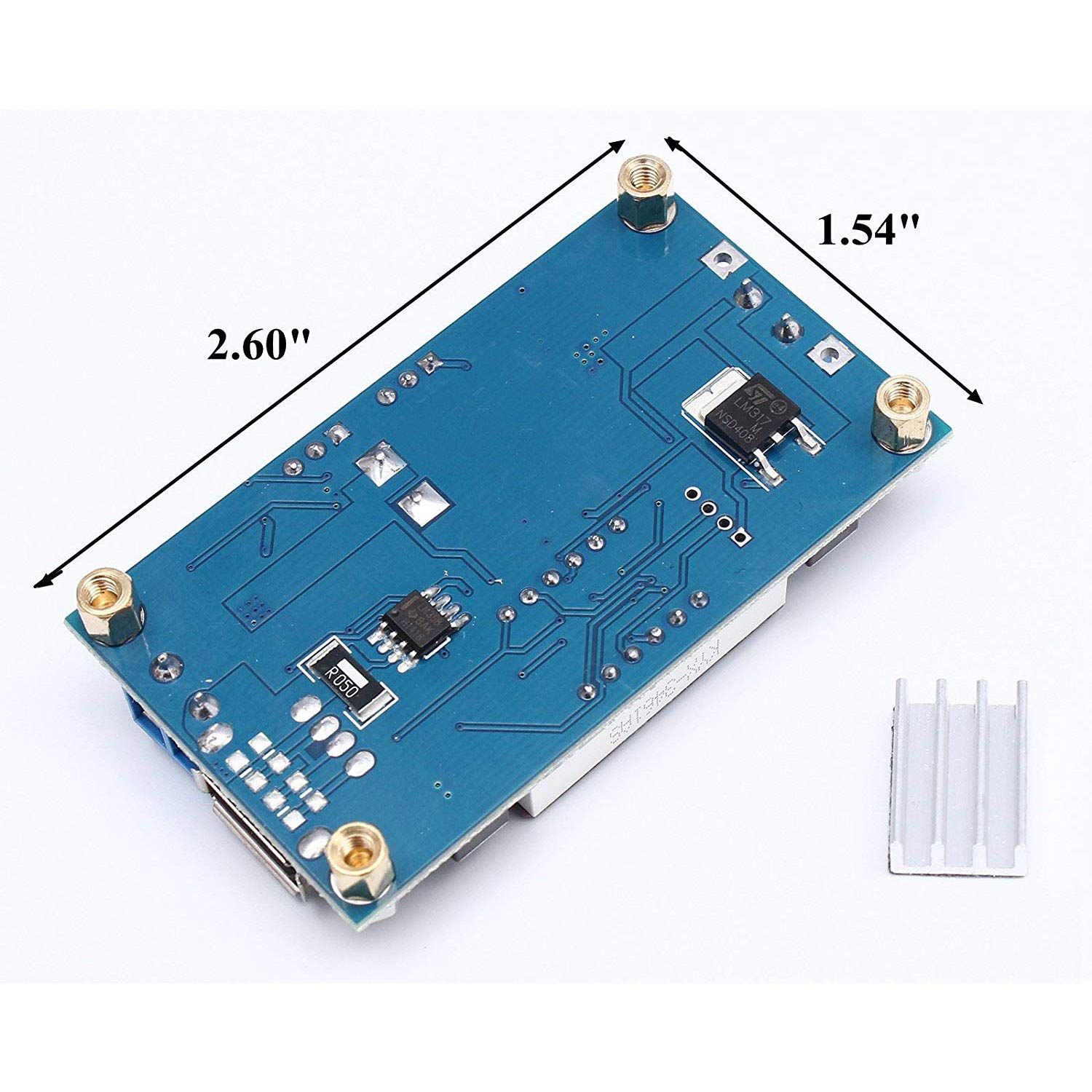

- Dimensions: 6.6 * 3.9 *1.8 cm LxWxH (2.6 x 1.5 x 0.7 inches, including standoffs)

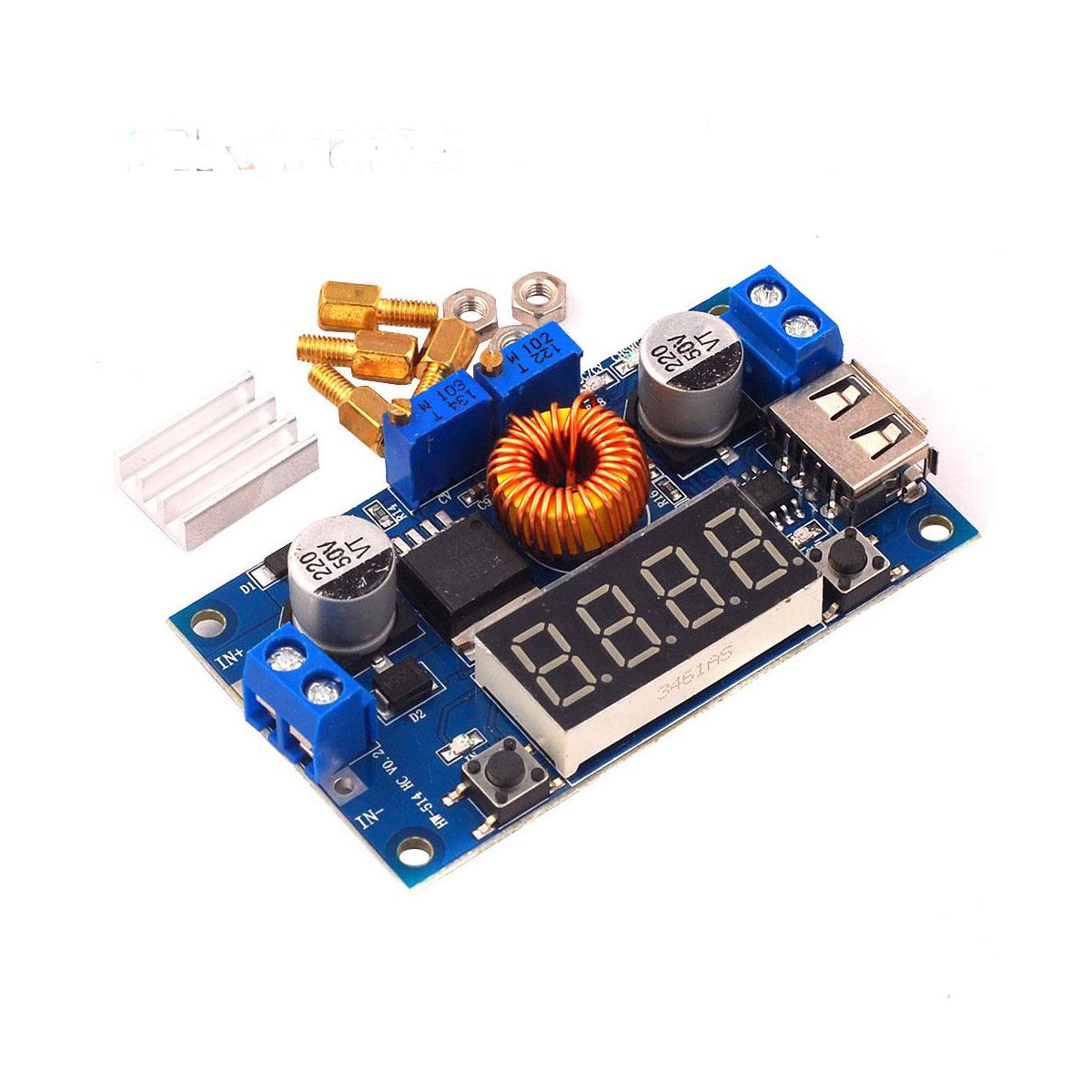

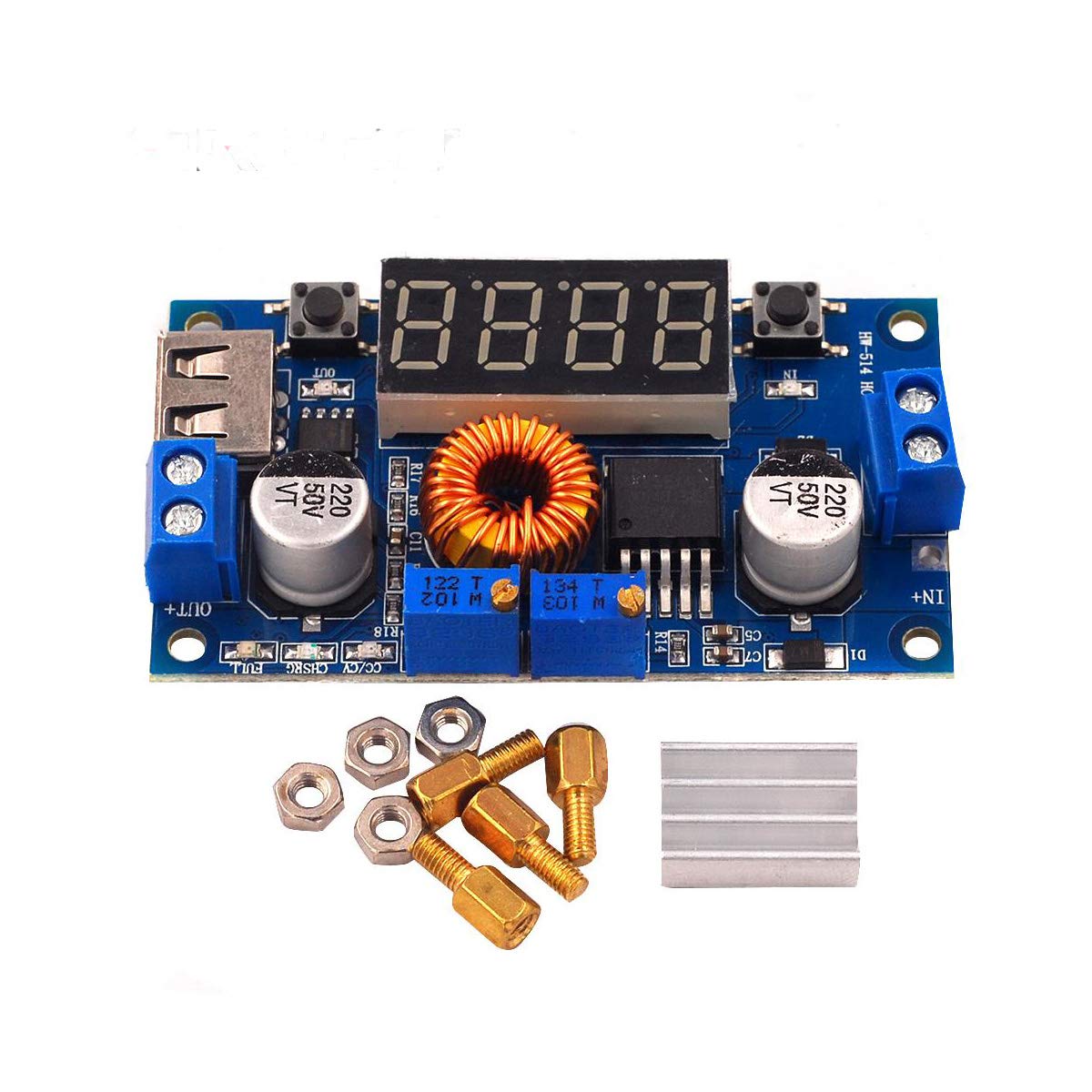

Package includes:
1x Step-down buck CC/CV Battery Charger LED Driver w/ Meter
4x Mounting standoffs and nuts
Installation and operation instructions
• PWM buck (step-down) DC/DC voltage converter module with Constant Voltage and Constant Current control is capable of driving a 5A load with high efficiency, low ripple and excellent line and load regulation
• Provides either a Constant Voltage (CV) or Constant Current (CC) output with a variable output voltage range of 1.2V to 34V and variable output current from 0A to 5A peak
• Digital meter displays input and output voltages, output current and output power
• Operates in Constant Current (CC) or Constant Voltage (CV) mode, optimum for driving LEDs, laser diodes, charging batteries, and as a general purpose voltage and current source
• Screw terminal input connections, screw terminals or USB connector for the output
Color: Blue
