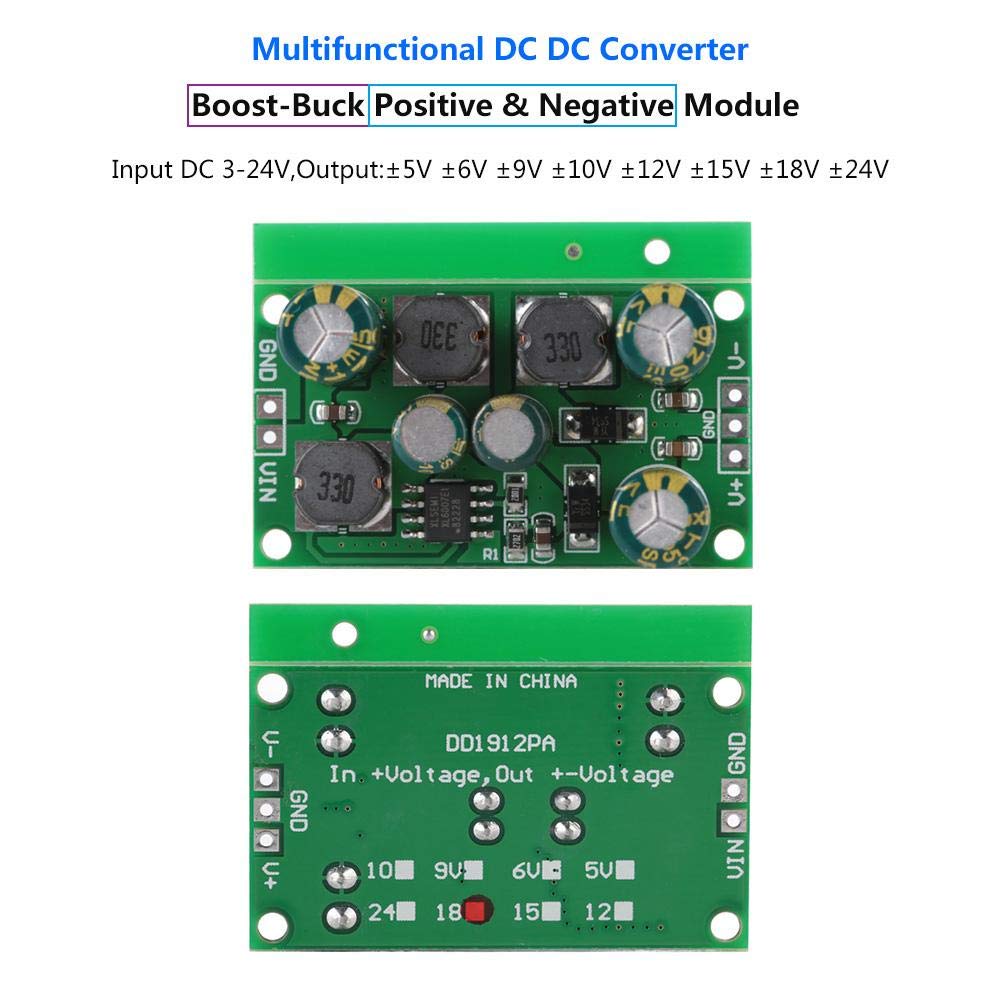

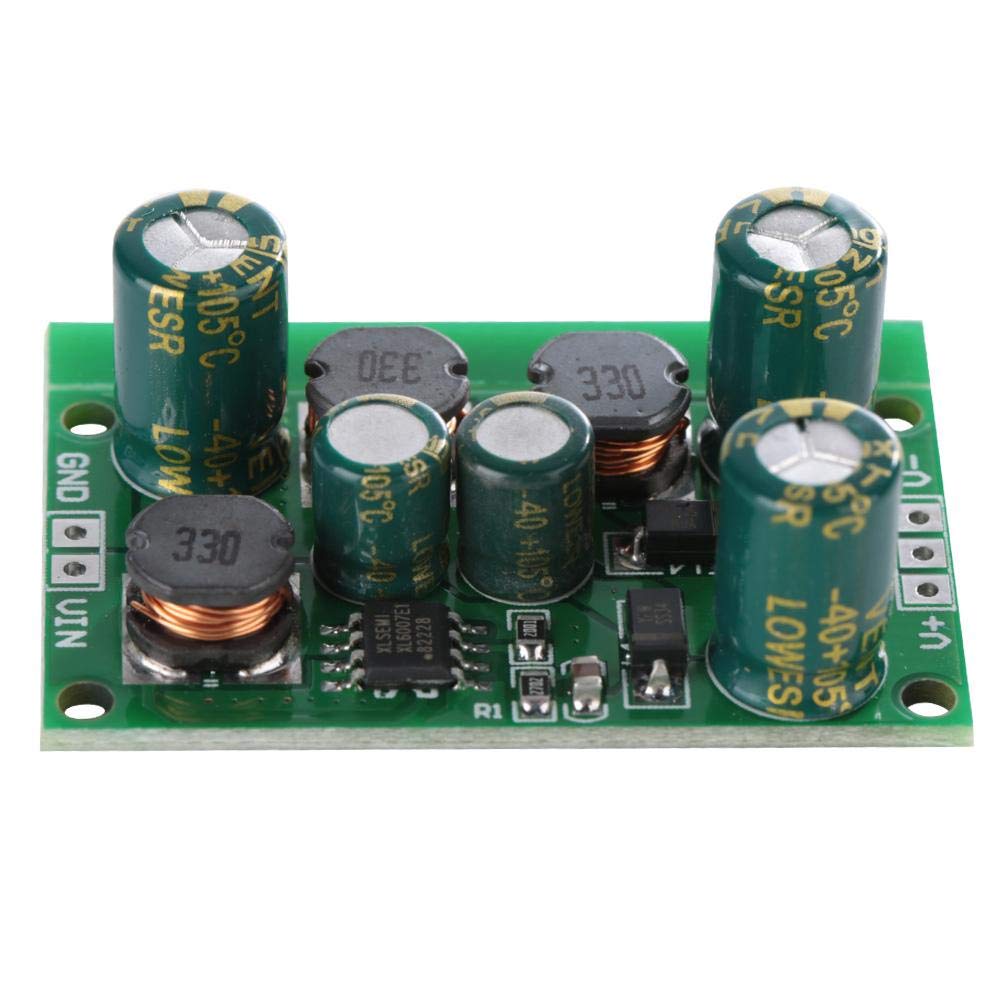

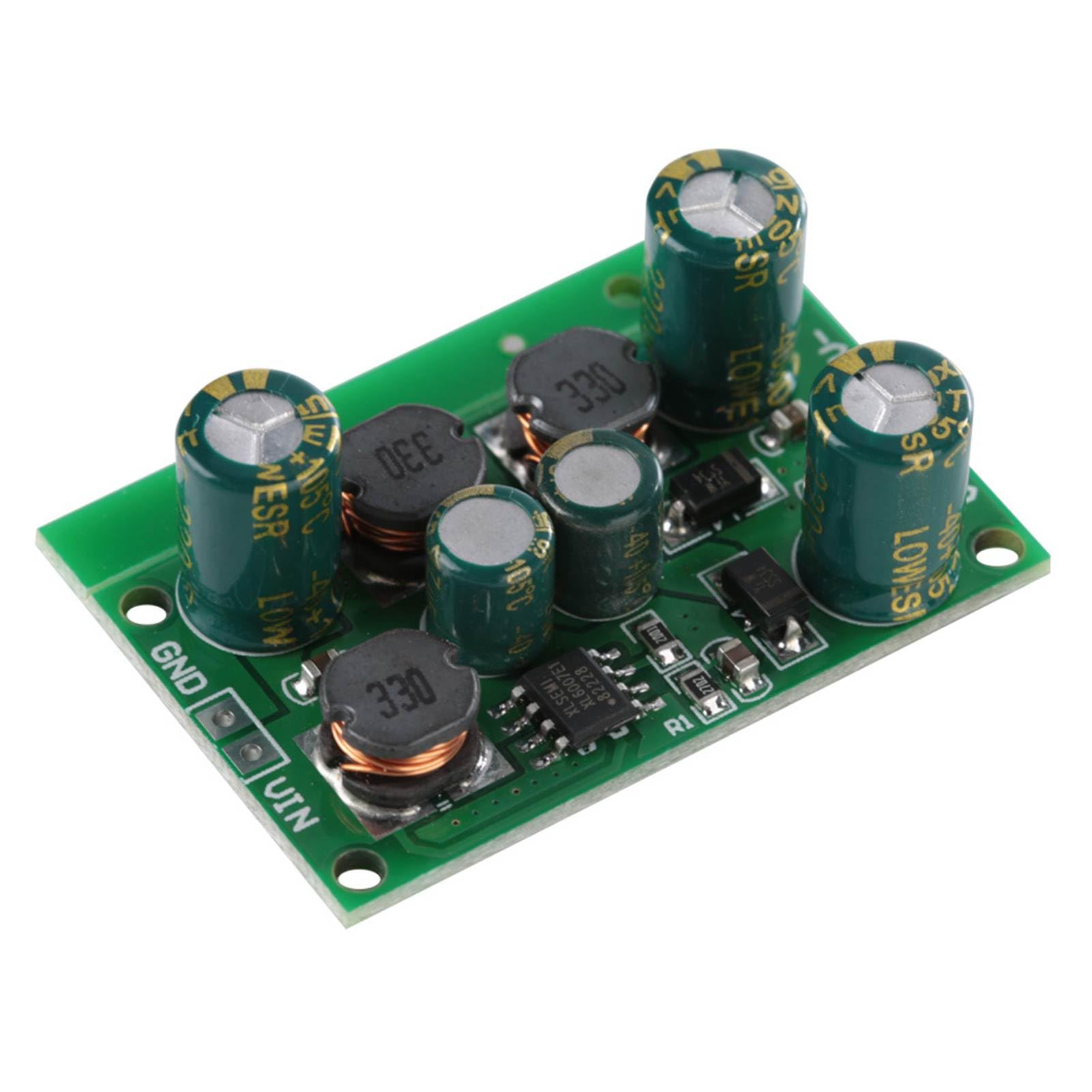

Description
Brand: YWBL-WH
Model: YWBL-WH14dhe9wf7p-01
Specification:
Input voltage: 3~24V

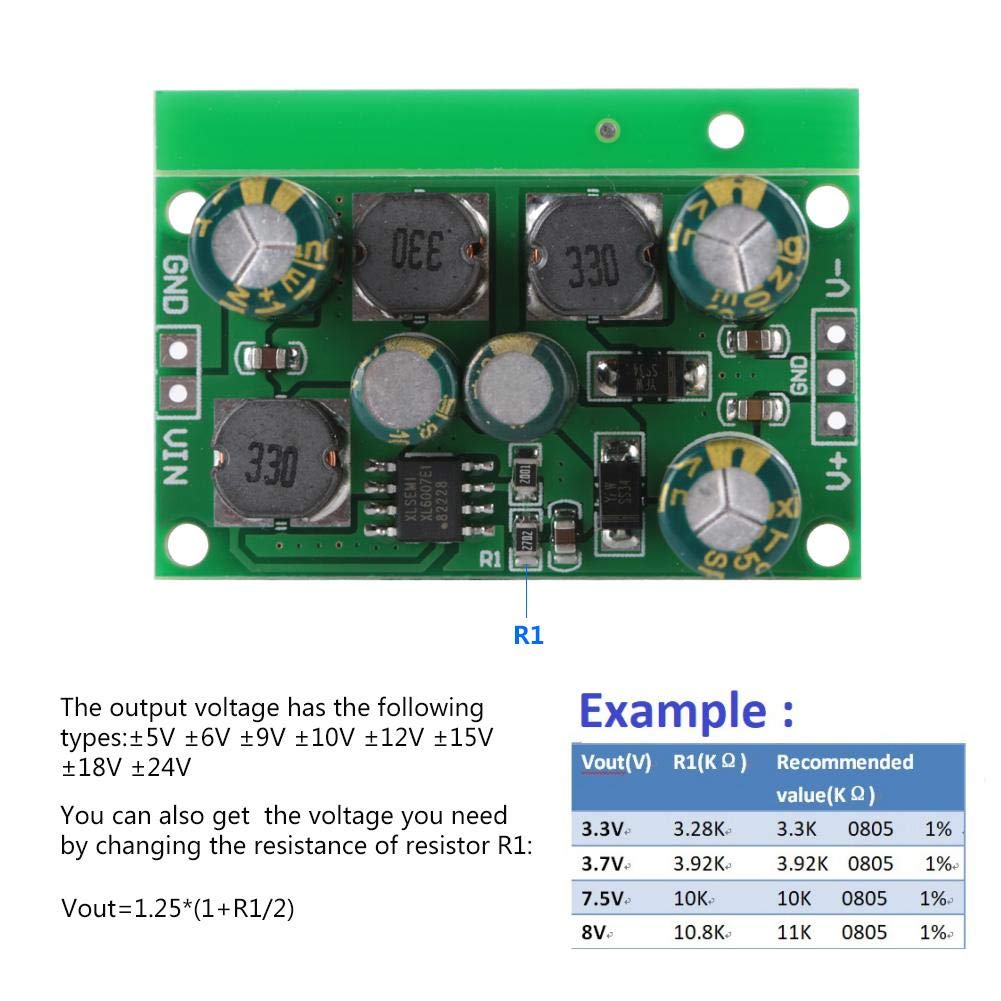

Output voltage: ±5V/±6V/±9V/±10V/±12V/±15V/±18V/±24V (Optional)
Maximum output power: 1-8W
Conversion efficiency :70-90%
Quiescent current: 3-4mA
Accuracy : Positive voltage ±3%, Negative voltage ±5%
Working frequency: 400kHz
Operating temperature: -40~85

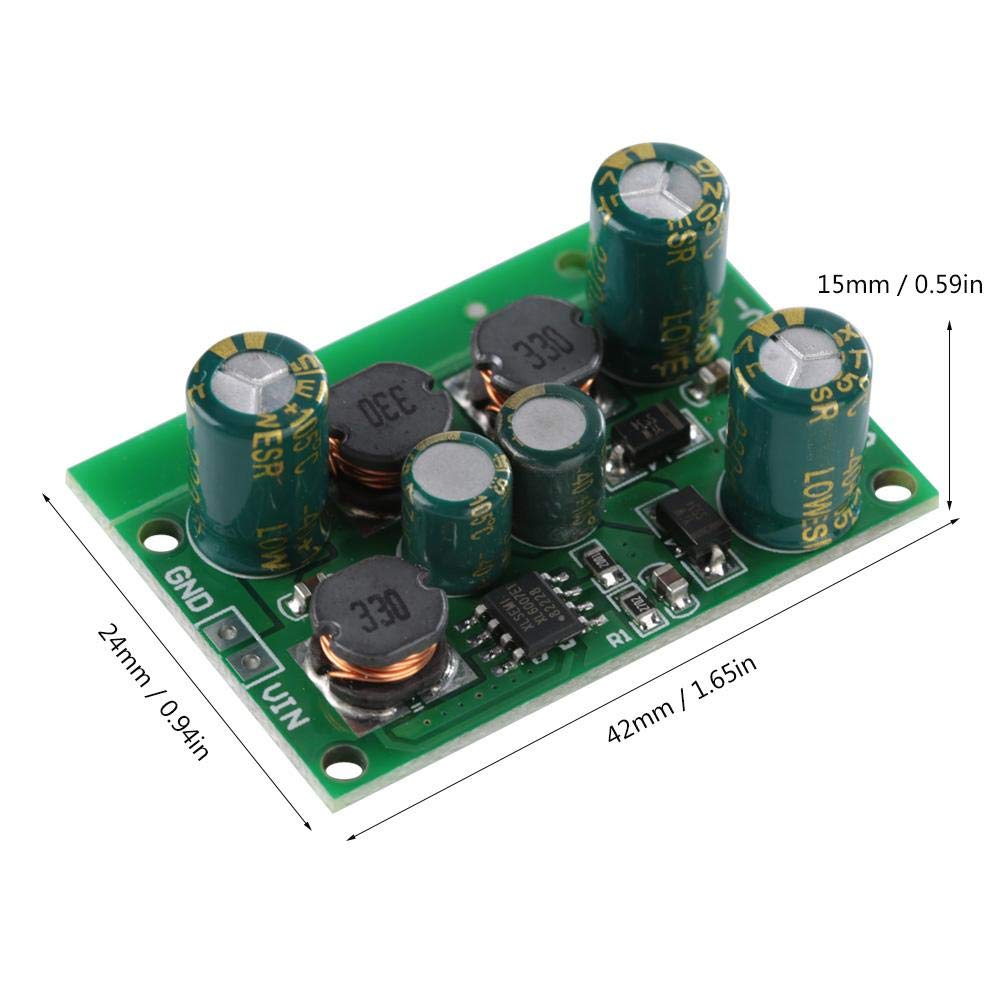

Size: 42×24×15mm / 1.65×0.94×0.59in
Weight: 12g (approx.)
Package List:
1 × Positive Negative Voltage Converter
• Detailed Specifications: Input voltage: 3~24V
• Output voltage: ±5V/±6V/±9V/±10V/±12V/±15V/±18V/±24V (optional)
• Maximum output power: 1-8W
• Conversion efficiency: 70-90%
• Quiescent current: 3-4mA
• Accuracy: ±3% for positive voltage, ±5% for negative voltage
• Operating frequency: 400kHz
• Operating temperature : -40~85°C.
• 90% Conversion Efficiency: The conversion efficiency of the boost regulator is up to 90%, and the output voltage is stable.
• Versatility: The boost converter has built-in frequency compensation, function, thermal shutdown function and current limit function.
• Widely Used: The boost converter can be used in ADC, DAC, operational amplifier, audio equipment, LCD power supply, etc.
• Product Description: This boost converter supports both positive and negative output voltages and is manufactured with electronic components for
Color: green,black,silver
Power/Wattage: Output voltage ±5VDC
Model: YWBL-WH14dhe9wf7p-01
Specification:
Input voltage: 3~24V
Output voltage: ±5V/±6V/±9V/±10V/±12V/±15V/±18V/±24V (Optional)
Maximum output power: 1-8W
Conversion efficiency :70-90%
Quiescent current: 3-4mA
Accuracy : Positive voltage ±3%, Negative voltage ±5%
Working frequency: 400kHz
Operating temperature: -40~85
Size: 42×24×15mm / 1.65×0.94×0.59in
Weight: 12g (approx.)
Package List:
1 × Positive Negative Voltage Converter
• Detailed Specifications: Input voltage: 3~24V
• Output voltage: ±5V/±6V/±9V/±10V/±12V/±15V/±18V/±24V (optional)
• Maximum output power: 1-8W
• Conversion efficiency: 70-90%
• Quiescent current: 3-4mA
• Accuracy: ±3% for positive voltage, ±5% for negative voltage
• Operating frequency: 400kHz
• Operating temperature : -40~85°C.
• 90% Conversion Efficiency: The conversion efficiency of the boost regulator is up to 90%, and the output voltage is stable.
• Versatility: The boost converter has built-in frequency compensation, function, thermal shutdown function and current limit function.
• Widely Used: The boost converter can be used in ADC, DAC, operational amplifier, audio equipment, LCD power supply, etc.
• Product Description: This boost converter supports both positive and negative output voltages and is manufactured with electronic components for
Color: green,black,silver
Power/Wattage: Output voltage ±5VDC
