Brand: XWST

Model: XWST

XWST DCDC Power Supply Boost Module Technical Specification:

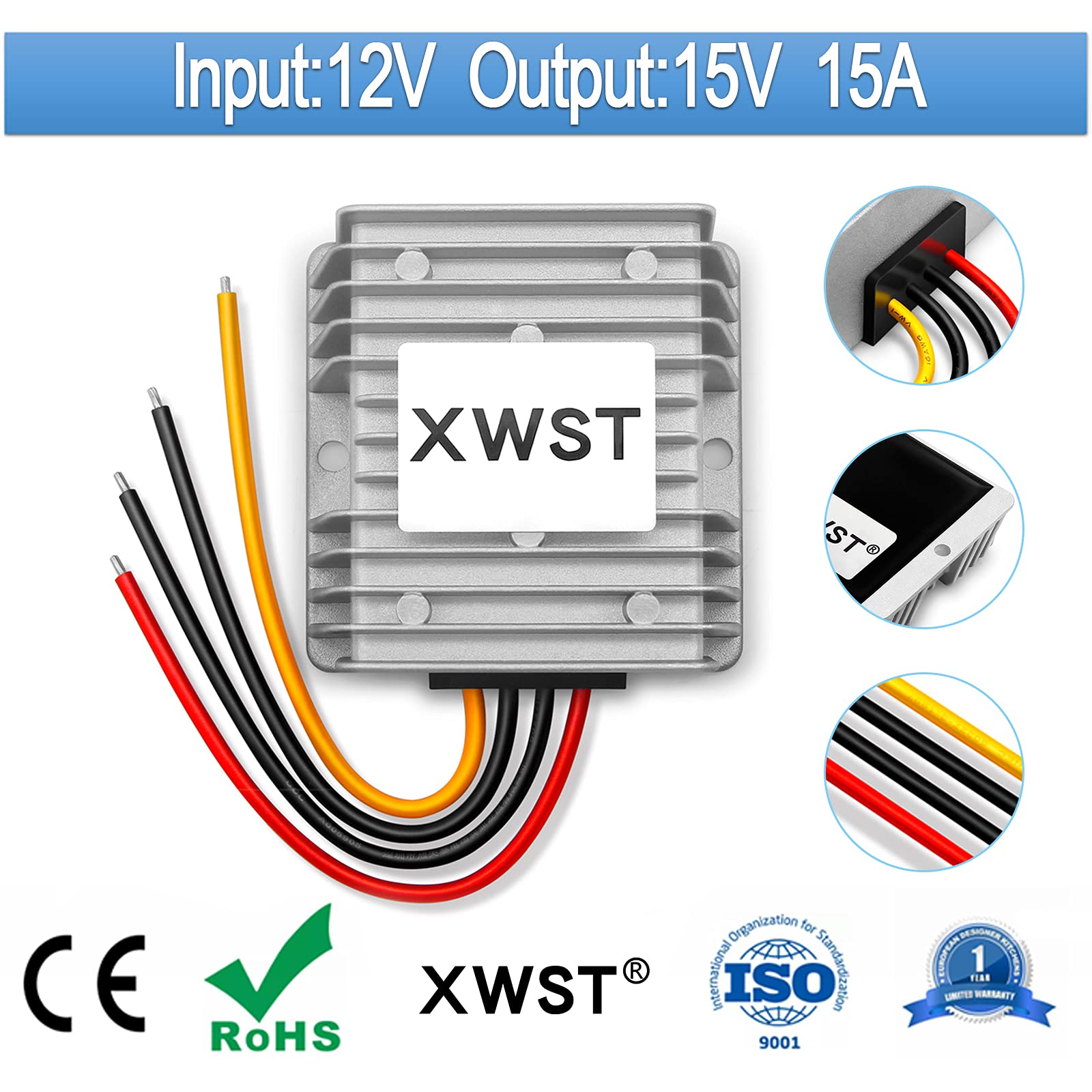

Input Voltage: DC 9V~13V (12V)
Output Voltage: DC 15V
Output Current: 15A
Output Power: 225W
Conversion Efficiency: >93%
No Load Voltage Range: Set voltage ±3%
Load Regulation: ±3%
Quiescent Power Dissipation: <10mA
Operating Temperature: -25~65℃
Storage Temprature: -40~80℃
Operating Humidity: 10%~90%
Waterproofing Grade: IP67
Over-current Protection: Yes
Over-temperature Protection: Yes
Short-circuit Protection: No

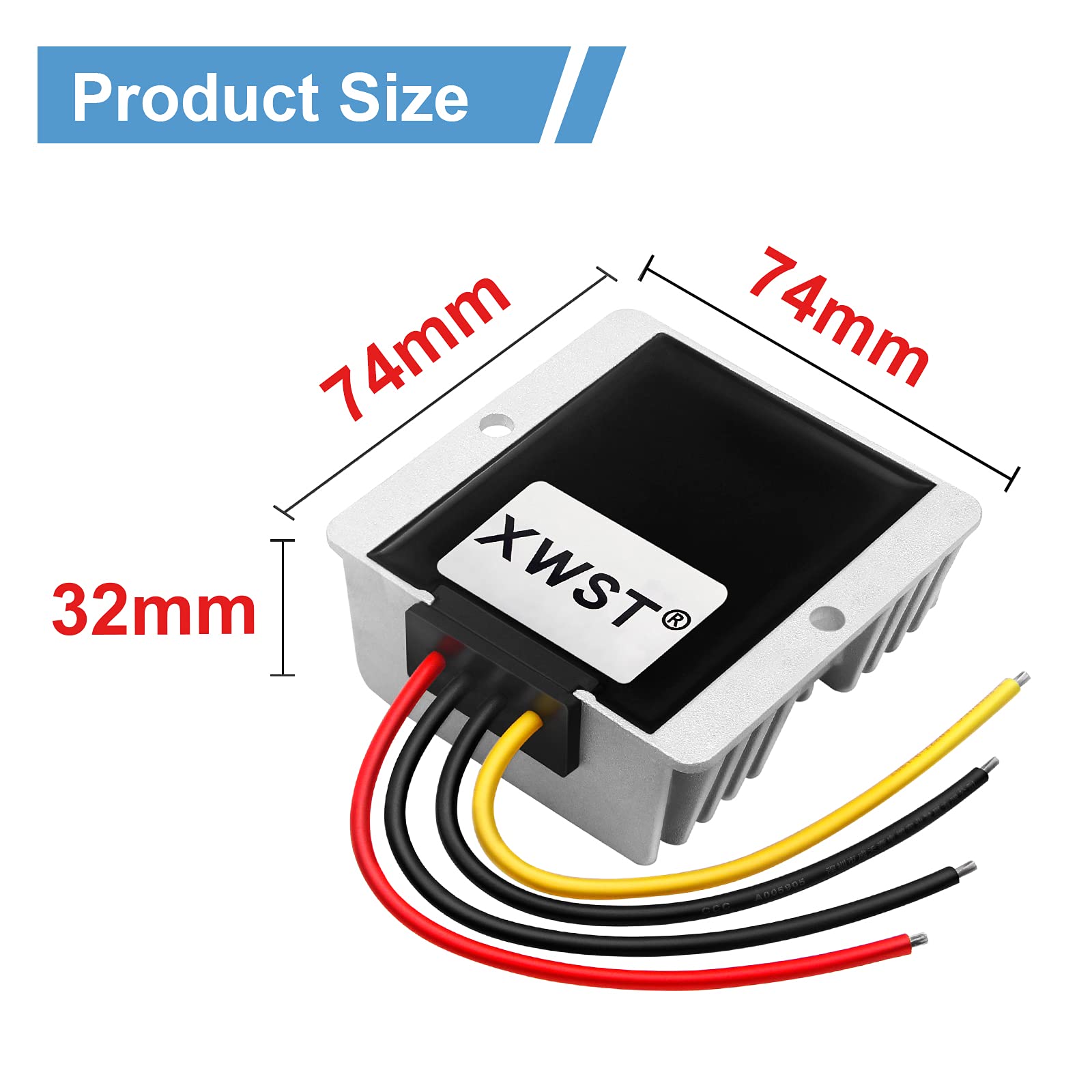

Size: 74mm x74mm x 32mm
Net Weight: 260g
Material:aluminium shell
Note:

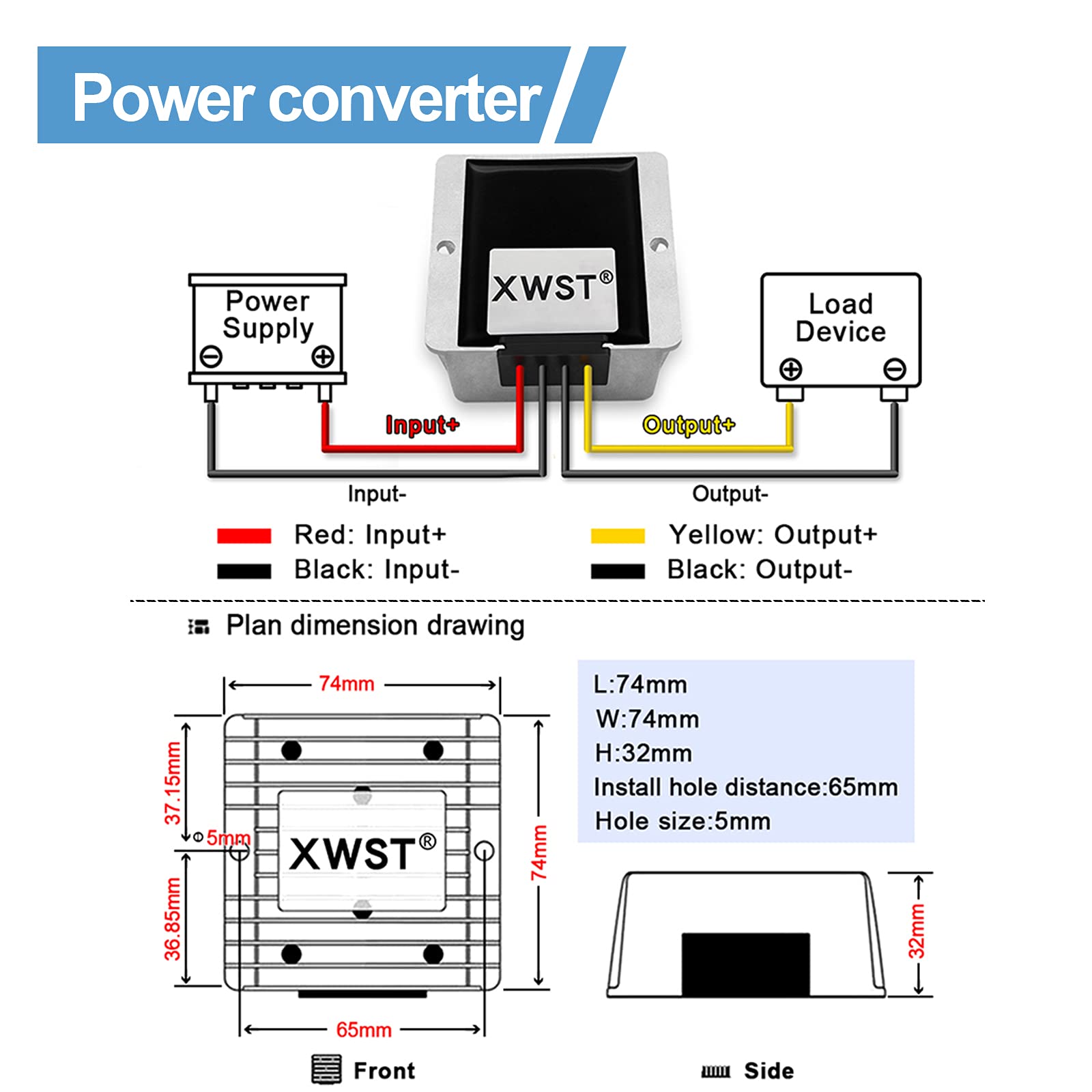

1. Connect the wiring in strict according with the wiring instruction.
2. Use short and thick input & output wire to ensure output enough voltage and power.
3. If there are multiple output wire, do not combine the load.
4. Leave a margin for the power supply to ensure it can long-term stably working.
Package Included:
1x DC-DC Converter


• PARAMETER --- XWST DC-DC converter input voltage range is DC 9~13V (12V)
• output voltage is DC 15V
• output current is 15A
• output power is 225W.
• APPLICATION --- the 15v boost converter module can be used in integrated wiring for monitoring fire alarming system
• car radio, audio
• bus, minibus, truck display screen, taxi advertising screen
• LCD television, LED
• solar power generation system
• interphone, etc.
• PROTECTION --- this voltage boost comes with over-current protection, over-temperature protection
• adopts potting technology, characterized by waterproof, dust-proof, moisture-proof and shock-proof, can be used in various situations such as car, outdoor, underground, etc.
• FEATURE --- the boost power module adopts high-integrated chip, stable and reliable
• synchronous rectification technology, with conversion efficiency of over 93% and low heat generated.
• NOTE --- Leave a margin for the power supply to ensure it can long-term stably working.

Color: multicolor
