Description
Brand: Tuidudi
• Parameter: Power Supply Module input volt range is DC 5.3-32V
• Output volt range is DC 1.2-32V which is variable. Output current can reach to 8A and Output Power can reach to 120W for long-time use. If enhance heat dissipation, this converter can reach 12A and 160W output.

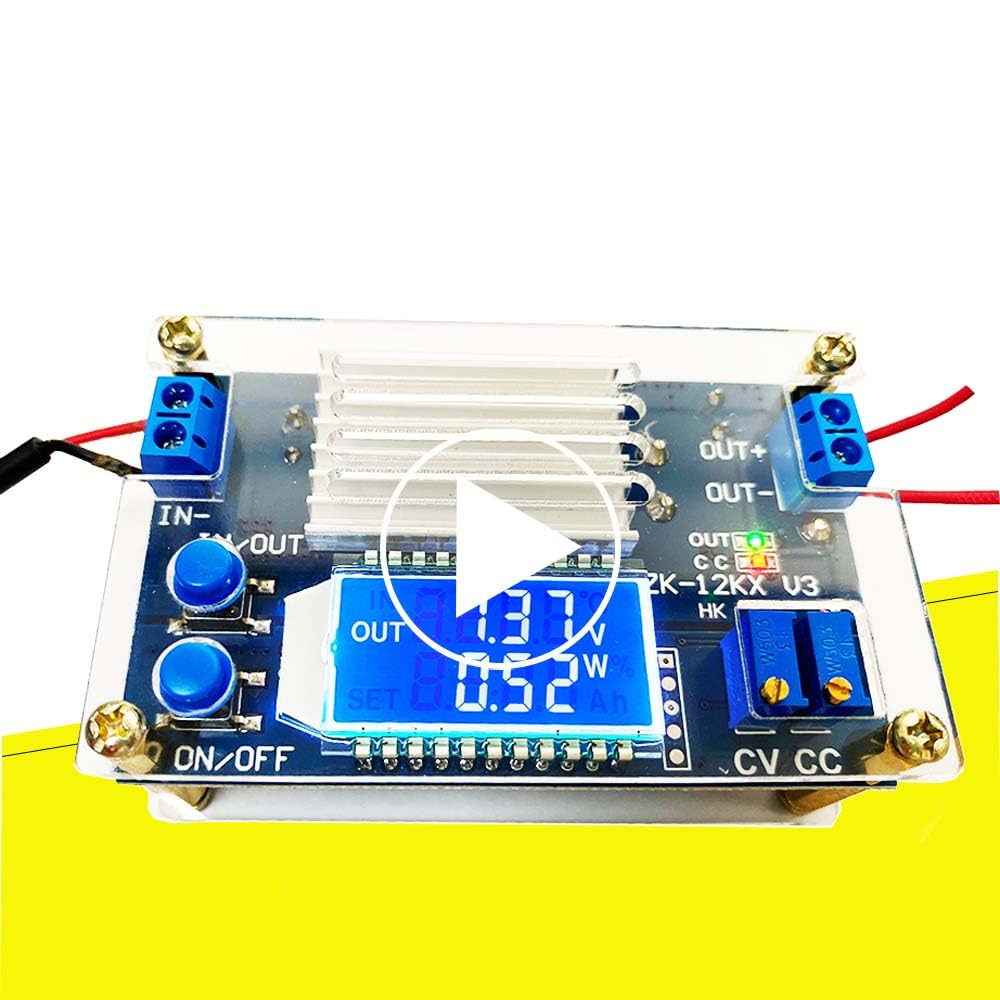

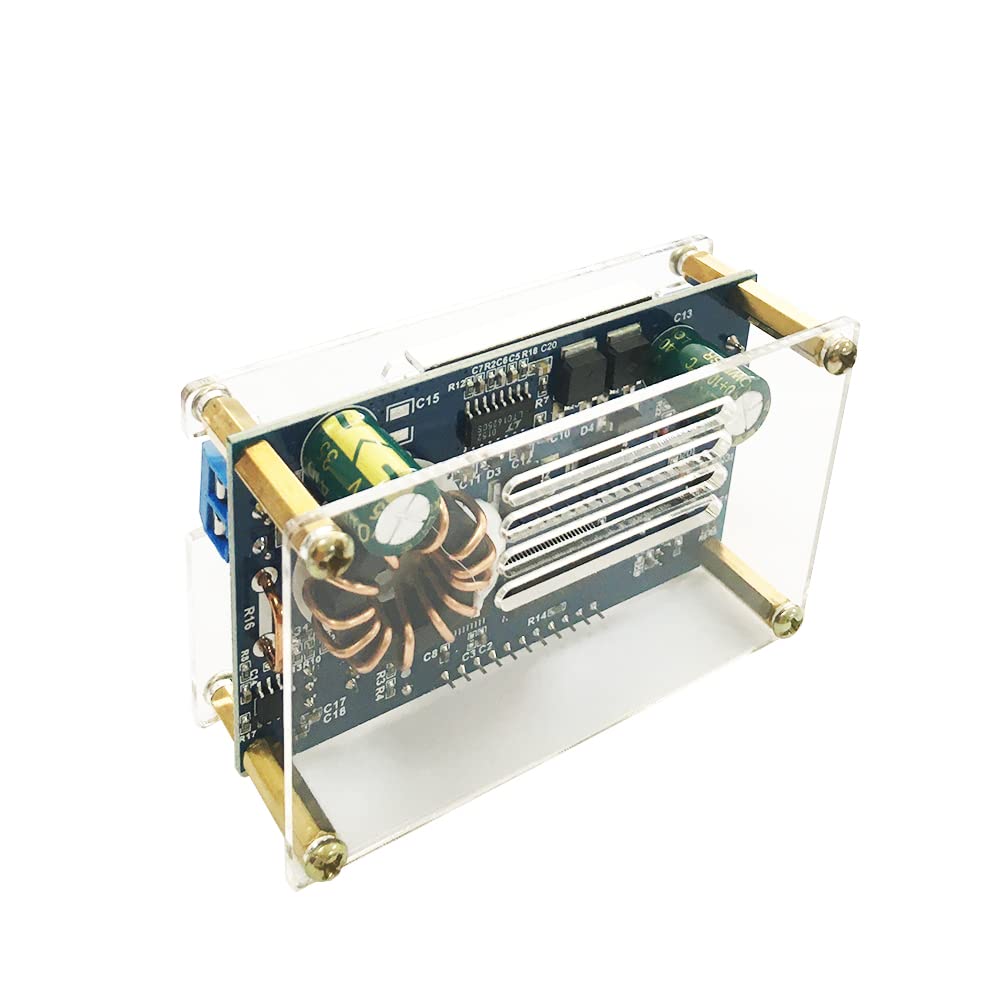

• Characteristics: This Buck Converter is equipped with LCD Display, Acrylic Case and Heat Sink. LCD Screen can display input/output voltage, output current and output power. Heat Sink can keep module 120W for long-time using in a low temperature.
• Easy Operation: The button can control ouput voltage ON/OFF status, and you can set the default output state is ON/OFF for the next time. The potentiometer can help you to adjust volt amp in a simple and fast way.
• Application:The volt conversion board can be used for 5v 6v 9v 12v 24V 30V 32V 3a 5a 10a devices, like solar panel, lab, experiment, RV, All-Terrain Vehicle, car, battery charger, LED stripes, etc.
• Protection: It has reverse-connect protection, short circuit protection and over current protection. When you connect the input wire reversely or short circuit, the module will not burn. And roate the CC potentiometer to set over current protection value you want.
Color: Multicolor
Input voltage: 5.3-32V (the lowest input 4V to achieve buck, but less than 5.3V input voltage and current measurements inaccurate)
Output voltage: 1.2-32V (must ensure that the input voltage is higher than the output voltage, the minimum voltage difference between the two is 0.8V)
Output current: long-term stable work in the 8A, strengthen the heat can reach 12A
Output power: Natural cooling 120W (8A or less), to enhance cooling 160W
Voltage display: resolution 0.05V, range 0-32V
Current display: resolution 0.01A, range 0-12A
Conversion efficiency: about 96%
Working current: 25mA or so
Soft start: Yes (very powerful with load module may fail to start)
Input reverse protection: Yes
Output anti-inrush: None (if you charge the battery, the first module to power then the battery, and to ensure that the battery voltage is lower than the output voltage; if the conditions are positive output in series with anti-reflux diode)
Short circuit protection: yes

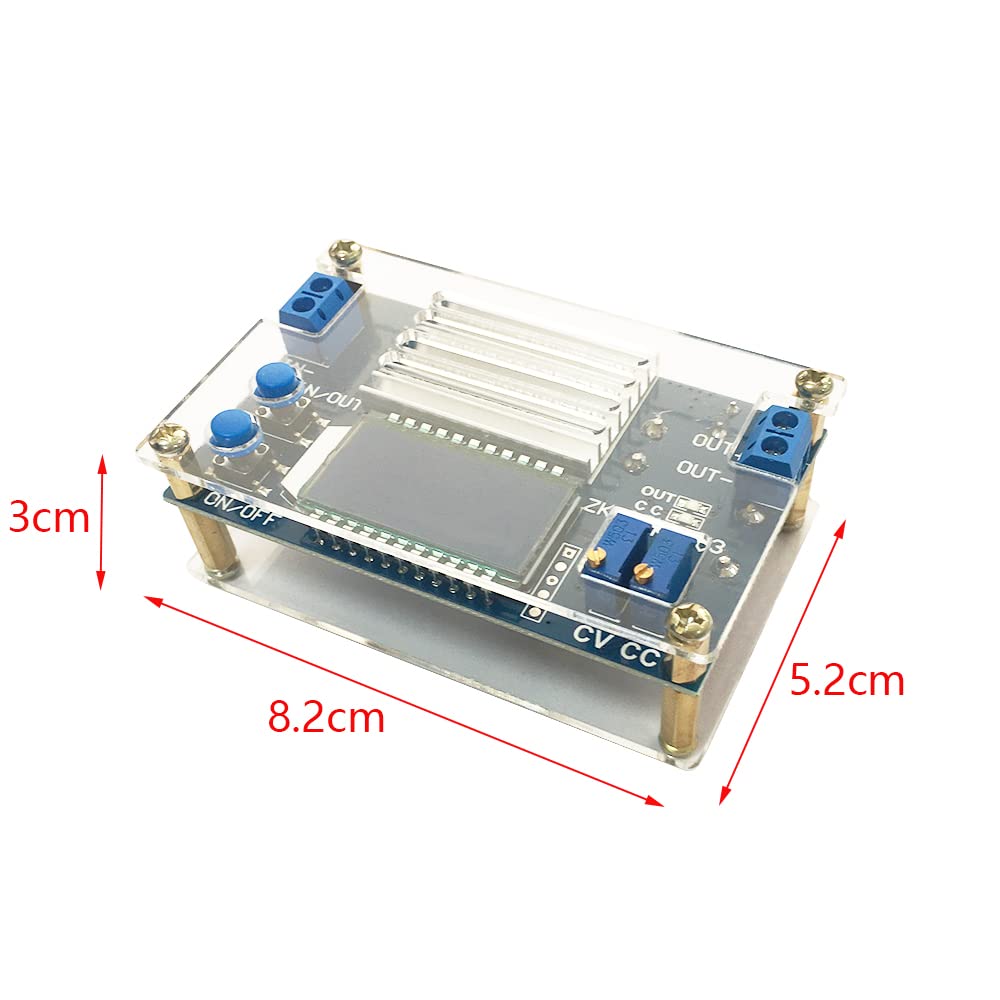

Size: 82 * 52 * 32mm
Weight: 80g

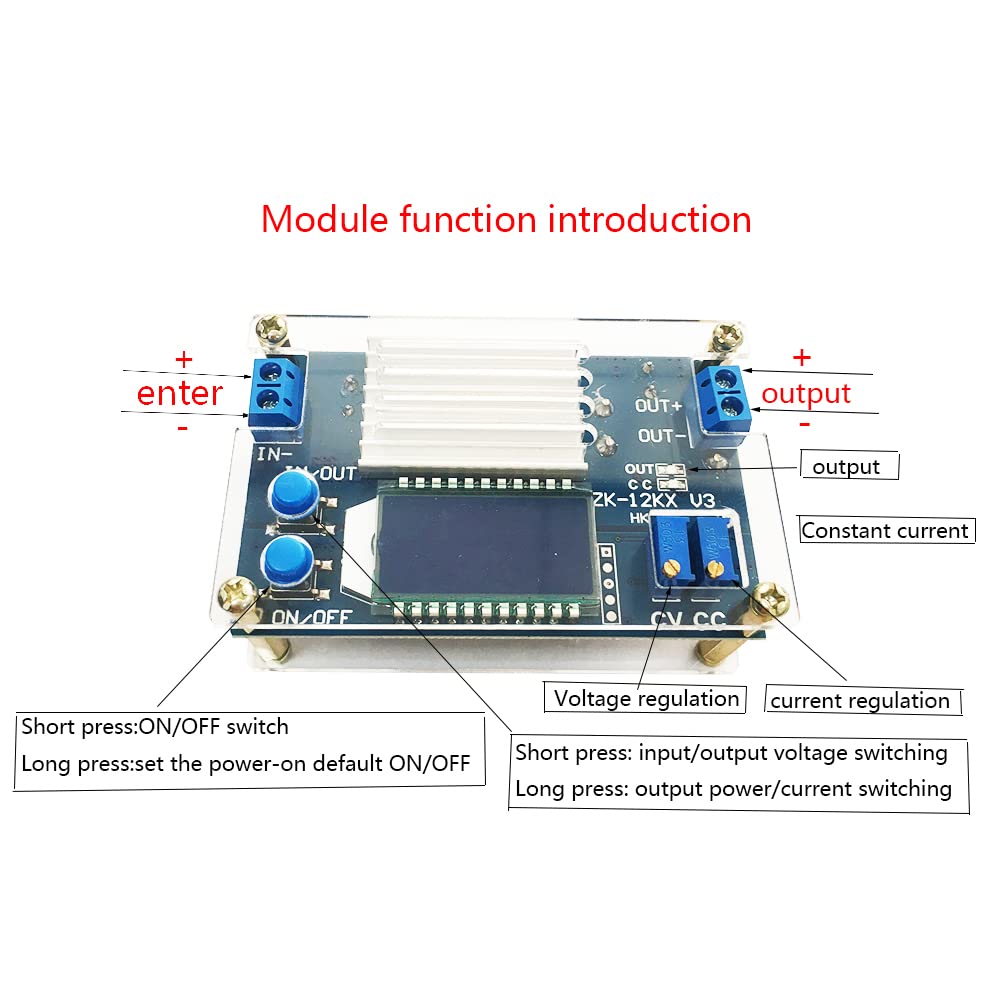

Function Description:

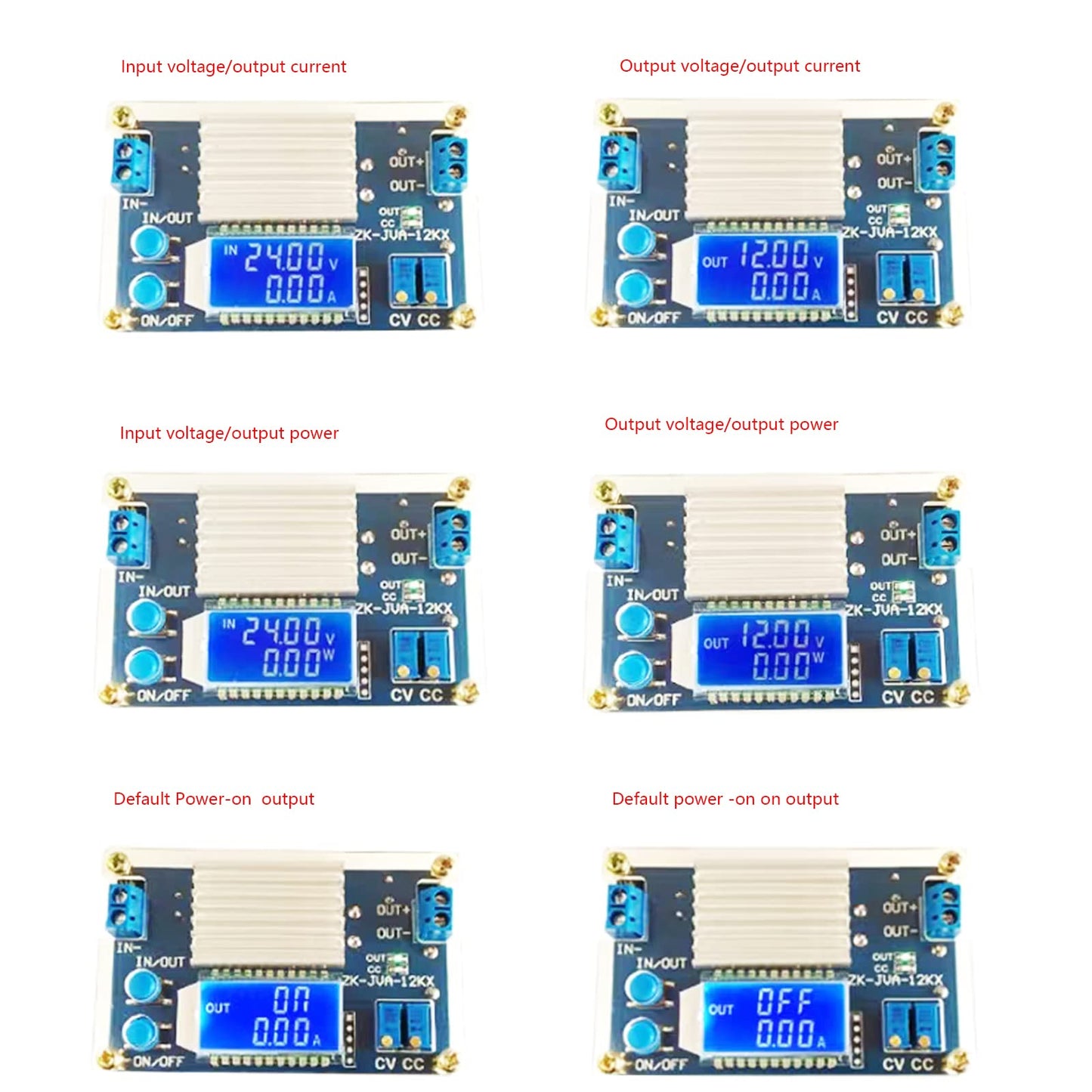

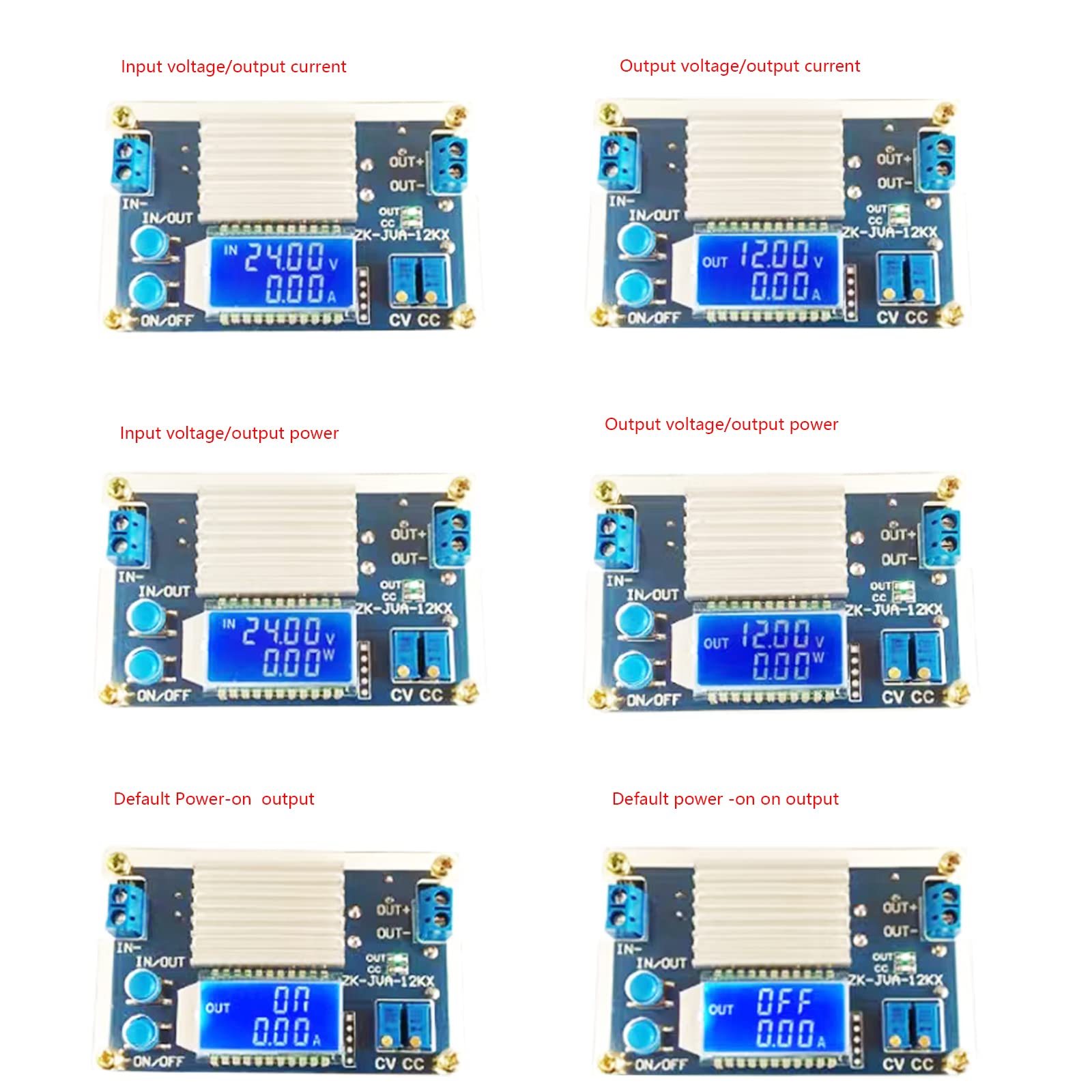

1. Module has IN / OUT, ON / OFF two buttons: IN / OUT button to switch the input voltage and output voltage display, long press to switch the output current output power display; ON / OFF button control output ON or OFF, long press Set the power-on default output state is ON or OFF the next time.
2.CC is the current setting potentiometer, clockwise rotation, can increase the set current, when the load current reaches the set current, enter the constant current state, CC constant current indicator (red) lights up; the right CV is the voltage setting Potentiometer, clockwise rotation, can increase the output voltage.OUT indicator is the output status indicator, when the output voltage is on, otherwise off.
• Parameter: Power Supply Module input volt range is DC 5.3-32V
• Output volt range is DC 1.2-32V which is variable. Output current can reach to 8A and Output Power can reach to 120W for long-time use. If enhance heat dissipation, this converter can reach 12A and 160W output.
• Characteristics: This Buck Converter is equipped with LCD Display, Acrylic Case and Heat Sink. LCD Screen can display input/output voltage, output current and output power. Heat Sink can keep module 120W for long-time using in a low temperature.
• Easy Operation: The button can control ouput voltage ON/OFF status, and you can set the default output state is ON/OFF for the next time. The potentiometer can help you to adjust volt amp in a simple and fast way.
• Application:The volt conversion board can be used for 5v 6v 9v 12v 24V 30V 32V 3a 5a 10a devices, like solar panel, lab, experiment, RV, All-Terrain Vehicle, car, battery charger, LED stripes, etc.
• Protection: It has reverse-connect protection, short circuit protection and over current protection. When you connect the input wire reversely or short circuit, the module will not burn. And roate the CC potentiometer to set over current protection value you want.
Color: Multicolor
