Description
Brand: Yanmis
Model: Yanmisyh78wnu62q
Specifications:
Type: Non-isolated step-up module (BOOST)
Input Voltage: DC10V to 60V
. Input Current: 30A(input voltage 10V to 30V)
25A(input voltage 31V to 60V)
Quiescent Current: 15mA(will increase when convert 12V to 20V)
Output Voltage: 12V to 90V (adjustable, default is 19V)
. Output Current: 20A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 15A)
Constant Current Range: 0.8A to 20A(+/-0.3A)
Reverse Input : Yes (150A MOS)
Lower Voltage : Yes (V8 to 50V adjustable, self-recovery)
Operating Temperature: - 40 to +85 (if temperature is too high, please enhance heat dissipation)
Frequency: 150KHz
Conversion Efficiency: 92% to 97% (Efficiency is related to input/output voltage, current and voltage difference. The smaller difference is, the higher efficiency will be)
Input Over-current : Yes (automatically when input is more than 35A, and Power Source voltage will not increase)
Short Circuit : Yes(input 30A )
Wiring Method: Terminals(please use large current copper wire)
. Output Power = Input Voltage*Max Current (If input 12V, the output power=12V*30A = 360W)

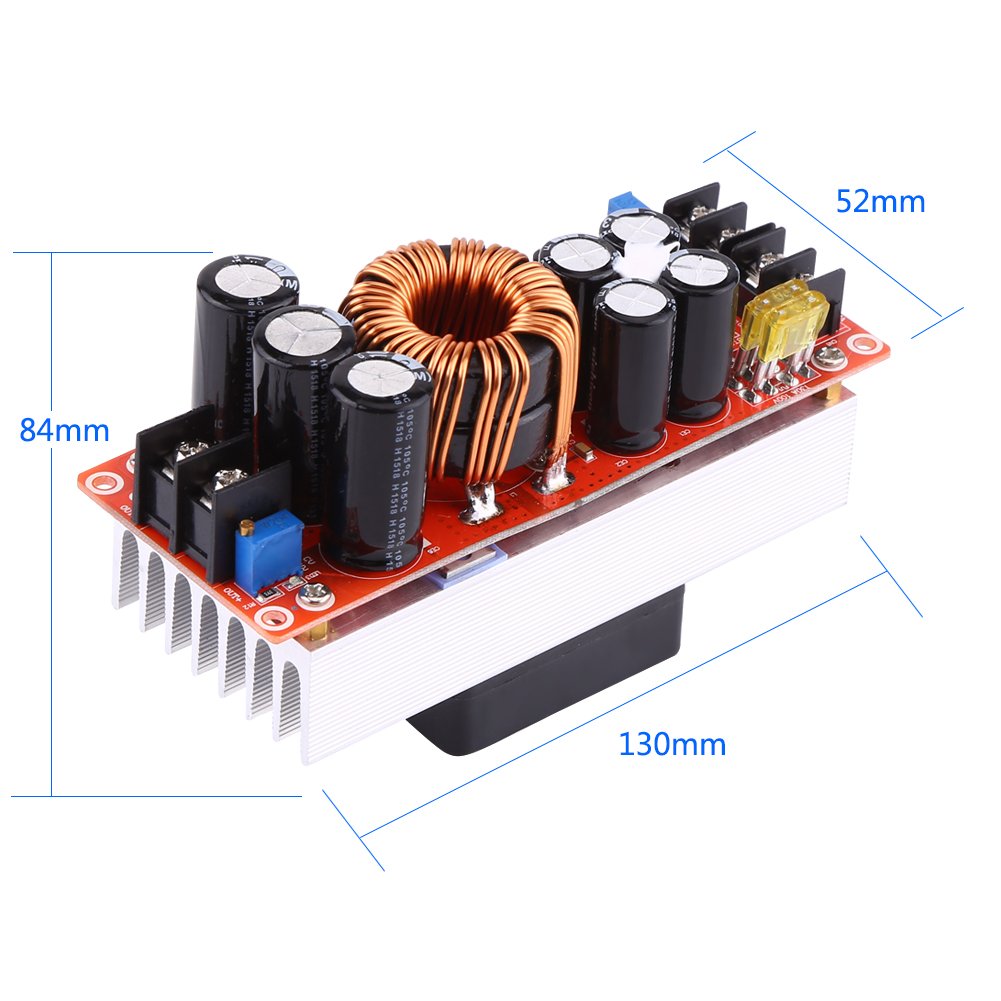

Size:130 x 84 x 52mm / 5.11 x 3.3 x 2.04"
Package Includes:
1 x Module

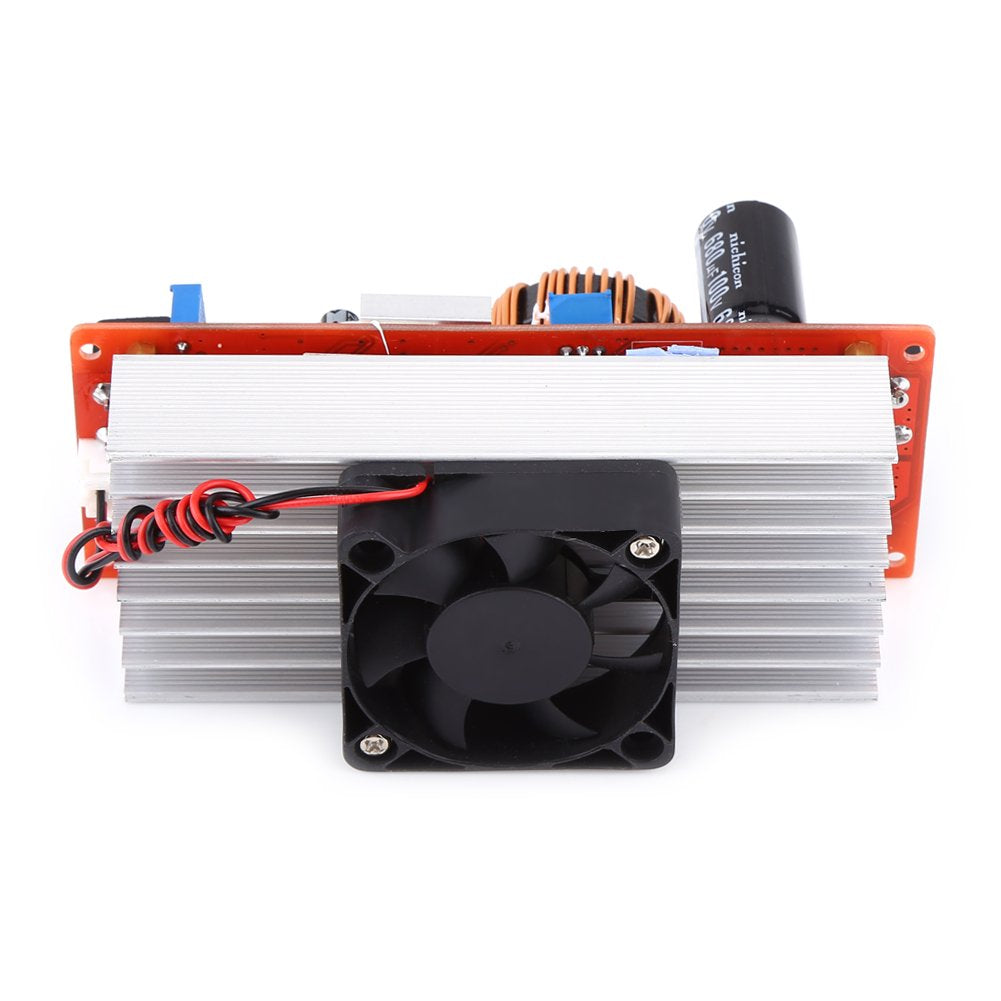

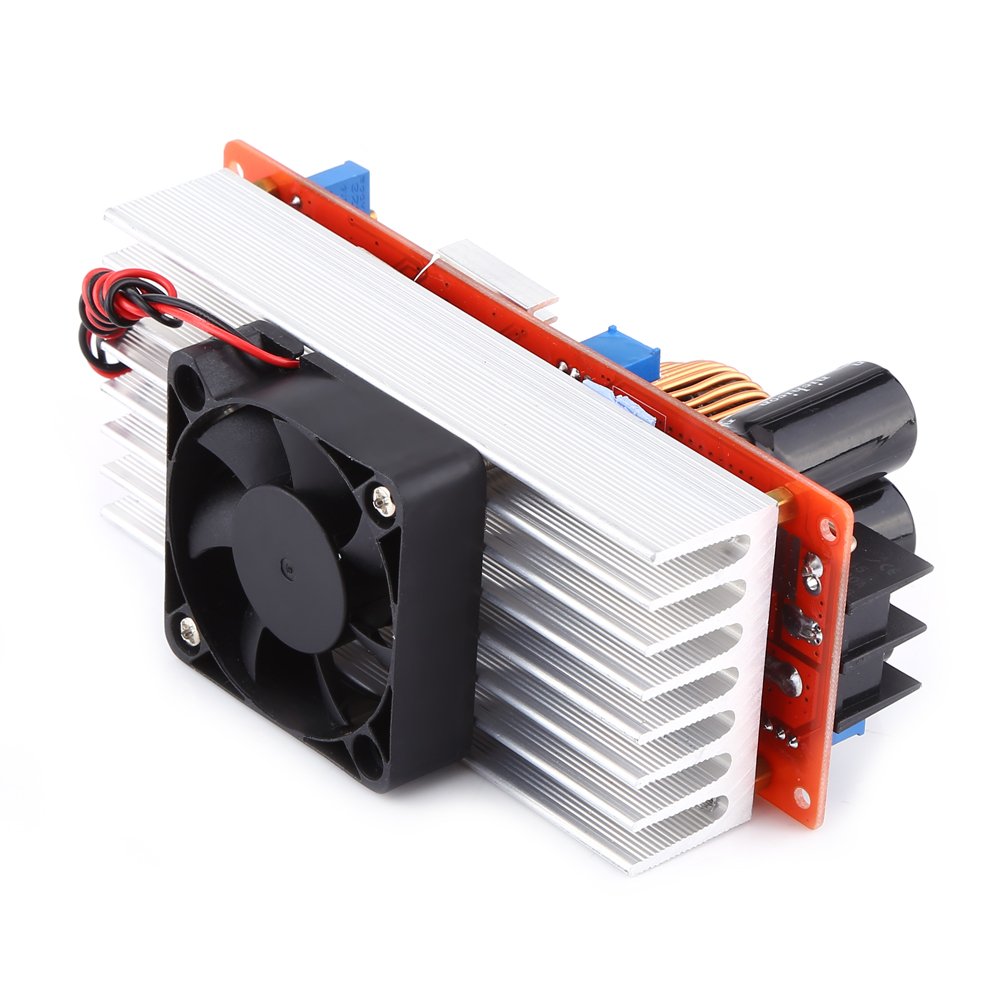

• ➤【Security】Support reverse input with MOS so there is no worry about wrong input wire and burn out power supply. Low voltage will module and battery against damage from over-discharge when use a storage battery as input. Thickened heatsink and intelligent temperature control cooling fan dissipate heat better.
• ➤【Widely Convert Range】Boost voltage converter input voltage range is DC 10-60V, input current is 30A
• continuously adjustable output voltage range is DC 12-90V, output current is 20A, more than 15A please enhance heat dissipation.
• ➤【High Efficiency】92% to 97% Conversion Efficiency, efficiency is related to input/output voltage, current and voltage difference. The smaller difference is, the higher efficiency will be. . Output Power = Input Voltage*Max Current (If input 12V, the output power=12V*30A = 360W)
• ➤【Application】DIY a power supply converter, used as the car power supply, for your laptop, PDA or a variety of digital products
• used as a solar panel regulator, etc. 100V/210A low MOS with big power and current input, suitable for big power LED, motors.
• ➤【Caution】Output wiring can not be reversed or short circuit. If a storage battery, switch power supply, solar panel or electric generator is used as input power source, the low voltage value should be adjusted lower, otherwise it might cause damage. If the module is connected to inductive load, the minimum input voltage should be higher(e.g. 24V) and maximum output power should be lower(e.g. 500W).
Color: multicolor
Model: Yanmisyh78wnu62q
Specifications:
Type: Non-isolated step-up module (BOOST)
Input Voltage: DC10V to 60V
. Input Current: 30A(input voltage 10V to 30V)
25A(input voltage 31V to 60V)
Quiescent Current: 15mA(will increase when convert 12V to 20V)
Output Voltage: 12V to 90V (adjustable, default is 19V)
. Output Current: 20A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 15A)
Constant Current Range: 0.8A to 20A(+/-0.3A)
Reverse Input : Yes (150A MOS)
Lower Voltage : Yes (V8 to 50V adjustable, self-recovery)
Operating Temperature: - 40 to +85 (if temperature is too high, please enhance heat dissipation)
Frequency: 150KHz
Conversion Efficiency: 92% to 97% (Efficiency is related to input/output voltage, current and voltage difference. The smaller difference is, the higher efficiency will be)
Input Over-current : Yes (automatically when input is more than 35A, and Power Source voltage will not increase)
Short Circuit : Yes(input 30A )
Wiring Method: Terminals(please use large current copper wire)
. Output Power = Input Voltage*Max Current (If input 12V, the output power=12V*30A = 360W)
Size:130 x 84 x 52mm / 5.11 x 3.3 x 2.04"
Package Includes:
1 x Module
• ➤【Security】Support reverse input with MOS so there is no worry about wrong input wire and burn out power supply. Low voltage will module and battery against damage from over-discharge when use a storage battery as input. Thickened heatsink and intelligent temperature control cooling fan dissipate heat better.
• ➤【Widely Convert Range】Boost voltage converter input voltage range is DC 10-60V, input current is 30A
• continuously adjustable output voltage range is DC 12-90V, output current is 20A, more than 15A please enhance heat dissipation.
• ➤【High Efficiency】92% to 97% Conversion Efficiency, efficiency is related to input/output voltage, current and voltage difference. The smaller difference is, the higher efficiency will be. . Output Power = Input Voltage*Max Current (If input 12V, the output power=12V*30A = 360W)
• ➤【Application】DIY a power supply converter, used as the car power supply, for your laptop, PDA or a variety of digital products
• used as a solar panel regulator, etc. 100V/210A low MOS with big power and current input, suitable for big power LED, motors.
• ➤【Caution】Output wiring can not be reversed or short circuit. If a storage battery, switch power supply, solar panel or electric generator is used as input power source, the low voltage value should be adjusted lower, otherwise it might cause damage. If the module is connected to inductive load, the minimum input voltage should be higher(e.g. 24V) and maximum output power should be lower(e.g. 500W).
Color: multicolor
