Brand: Dayton Audio

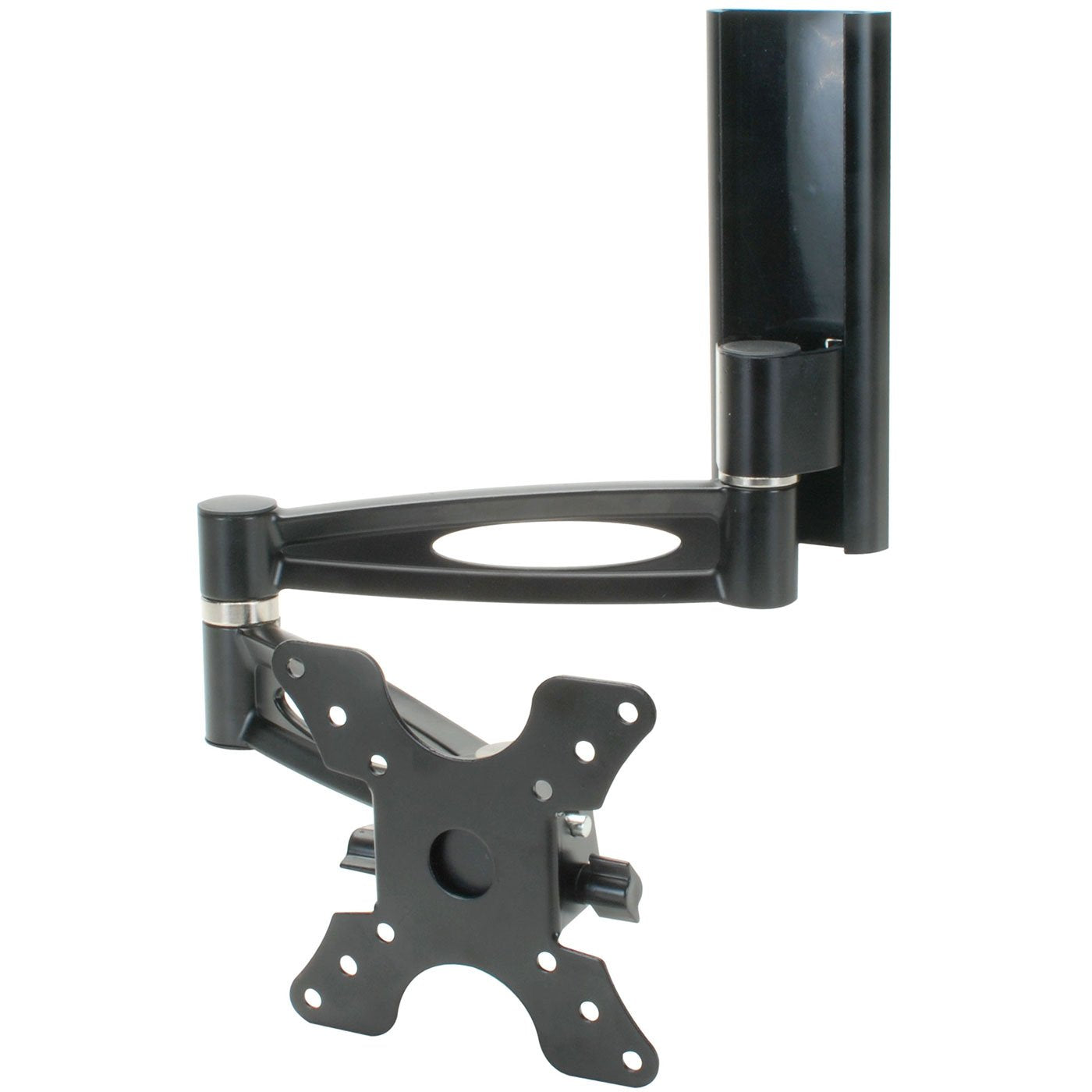

Quick OverviewThe LCDART302 features a total of 180 pan at the monitor, 360 pan at the mid point and 180 of swivel at the wall, 24 of tilt, and can extend the TV or monitor up to 16.6" from the wall. Product Highlights Extruded aluminum construction allows for up to 16.6" extension from wall Unobtrusive finish disappears behind the LCD TVs Mounting hardware and instructions included ±90°/±360° of pan and ±90° swivel adjustment ±12° of tilt adjustment Product Manuals / Spec Sheets / Downloads Dayton Audio LCDART302 Installation InstructionsDayton Audio LCDART302 Mechanical Drawing AddThis Sharing Buttons Share to FacebookFacebook Share to TwitterTwitter Share to MoreAddThis Product Description Shadow Mounts from Dayton Audio place the focus on your flat panel television or monitor-not the mount. By using an inconspicuous flat black finish, the mount virtually disappears behind the display. Heavy-duty, cast aluminum construction provides you with peace of mind knowing your HDTV investment is held securely in place for years to come. Articulating arms free up valuable desk space occupied by stand mounted TVs or monitors. Home, office, or commercial applications benefit from the ability to pull the 13"-30" HDTV into the proper viewing position when in use, and pushing it back to a stored position when finished. The LCDART302 features a total of 180° pan at the monitor, 360° pan at the mid point and 180° of swivel at the wall, 24° of tilt, and can extend the TV or monitor up to 16.6" from the wall. Standard VESA mounting sizes of 50, 75, and 100 are supported. Lag bolts, concrete anchors, Phillips head mounting screws (M4, M5, M6 and M8), safety bolts, and easy-to-follow instructions are included. Specifications: • Wall Bracket Dimensions: 2.6" W x 7.1" H (65 x 180 mm) • Articulating Arm: 0.5" W x 16.6" L (12.7 x 422 mm) • TV Bracket: 4.6" W x 4.6" H (116.9 x 116.9 mm) • Pan Adjustment: ±90°/±360° • Swivel Adjustment: ±90° • Tilt Adjustment: ±12° • Extension Length: 2.6 - 16.6" (0-422 mm) • Supported VESA sizes: 50, 75, 100 • Maximum weight capacity: 33 lbs. (15 kg). Note: Applicable television size ranges are based on VESA standards and will fit the listed screen sizes. To ensure that this specific TV mount is not exposed behind your TV, identify the length and width of your specific TV and be sure that the mounting bracket, plate, and or articulating arm does not extend beyond your television’s measurements. Consult your TVs owners manual for VESA sizing information. Product Details Model Number LCDART302 List Price $52.99 Color Black Unit of Measure Each UPC 844632077302 Warranty - Parts 5 Years Warranty - Labor 5 Years Product Shipping Weight (lbs.) 3.12 Product Height See above Product Width See above Product Length -- Product Depth -- Mount Type Articulating Mount Style Wall Mount TV Capacity 13"-30"

• Extruded aluminum construction allows for up to 16.6" extension from wall
• Unobtrusive finish disappears behind the LCD TVs
• Mounting hardware and instructions included
• ±
• 90°/±
• 360° of pan and ±
• 90° swivel adjustment
• ±
• 12° of tilt adjustment

Color: Black
