Brand: Dayton Audio

Quick Overview The Dayton Audio DS175-PR 6-1/2" passive radiator is excellent general-purpose radiator which allows lower tuning frequencies in smaller enclosures, suitable for replacement or for new construction. Product Highlights Long-throw suspension system for clean excursion Rugged stamped frame design with rear spider for stability Coated paper cone and rubber surround Product Manuals / Spec Sheets / Downloads AddThis Sharing Buttons Share to FacebookFacebook Share to TwitterTwitter Share to MoreAddThis 6 Product Description The Dayton Audio DS175-PR 6-1/2" passive radiator is an excellent general-purpose radiator suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, the passives match the Designer Series line of drivers, with a poly coated paper cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from floor standing two-ways to small active/passive subwoofer systems. Recommended for use in passive radiator enclosure alignments with active drivers from 3" to 6.5" in diameter. Dual passive radiators are recommended for use with 6.5" active drivers. Specifications: • Fs: 24.5 Hz • Vas: 27.1 liters • Qms: 5.57 • Cms: 1.15 mm/N • Rms: 1 kg/s • Mms: 36.6 g • Sd: 128.7 sq. cm. • Xmax: 8 mm • Dimensions: Overall diameter: 176.28 mm, Cutout diameter: 143 mm, Depth: 47.75 mm Note: Adding mass to the passive radiator will decrease Fs and increase Qms. Tip: As a general rule the passive radiator(s) should be able to move double the volume of air as the active woofer(s)/subwoofer(s) in the system. For example: A passive radiator system for a 6-1/2" woofer/subwoofer that has 8mm of X-max would require 2-6-1/2" passive radiators with 8mm of X-max. For single passive radiator systems, it is common to use a passive that is larger than the active woofer(s)/subwoofer(s). Product Details Speaker Series Designer Series Model Number DS175-PR List Price $17.99 Color Black Unit of Measure Each UPC 848791001857 Warranty - Parts 5 Years Warranty - Labor 5 Years Product Shipping Weight (lbs.) 0.7 Speaker Type Passive Radiator Nominal Diameter 6.50" Power Handling (max) -- Continuous Program Power -- Sensitivity -- Frequency Response -- Voice Coil Diameter -- Magnet Weight -- DC Resistance (Re) -- Voice Coil Inductance (Le) -- Resonant Frequency (Fs) 24.5 Hz Mechanical Q (Qms) 5.57 Electromagnetic Q (Qes) -- Total Q (Qts) -- Diaphragm Mass Inc. Airload (Mms) 36.6g Moving Mass Of Diaphragm (Mmd) -- Mechanical Compliance of Suspension (Cms) 1.15 mm/N Surface Area Of Cone (Sd) 128.7 cm² Volume of Displacement (Vd) 102.9 cm³ BL Product (BL) -- Compliance Equivalent Volume (Vas) 27.1 liters Maximum Linear Excursion (Xmax) 8 mm Drivers Mechanical Losses (Rms) 1 kg/s Cone / Diaphragm Material Paper Cone Entry / Exit Diameter -- Surround Material Rubber Voice Coil Wire Material -- Voice Coil Former -- Basket/Frame Material Steel Magnet Material -- Overall Outside Diameter 176.28 mm Overall Depth 47.75 mm Baffle Cutout Diameter 143 mm # Mounting Holes 5 Mounting Hole Diameter -- Bolt Circle Diameter -- Product Weight --

• Long-throw suspension system for clean excursion

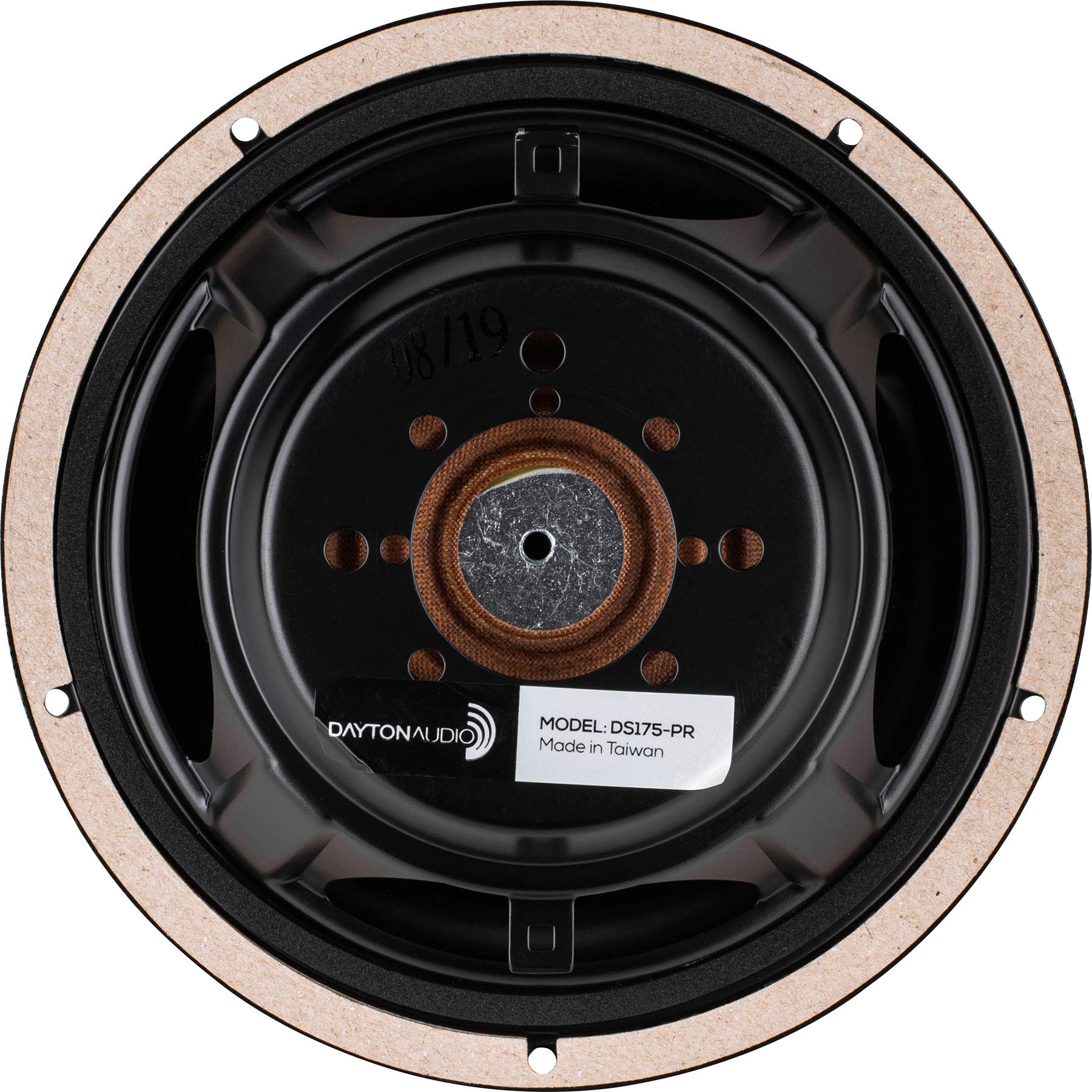

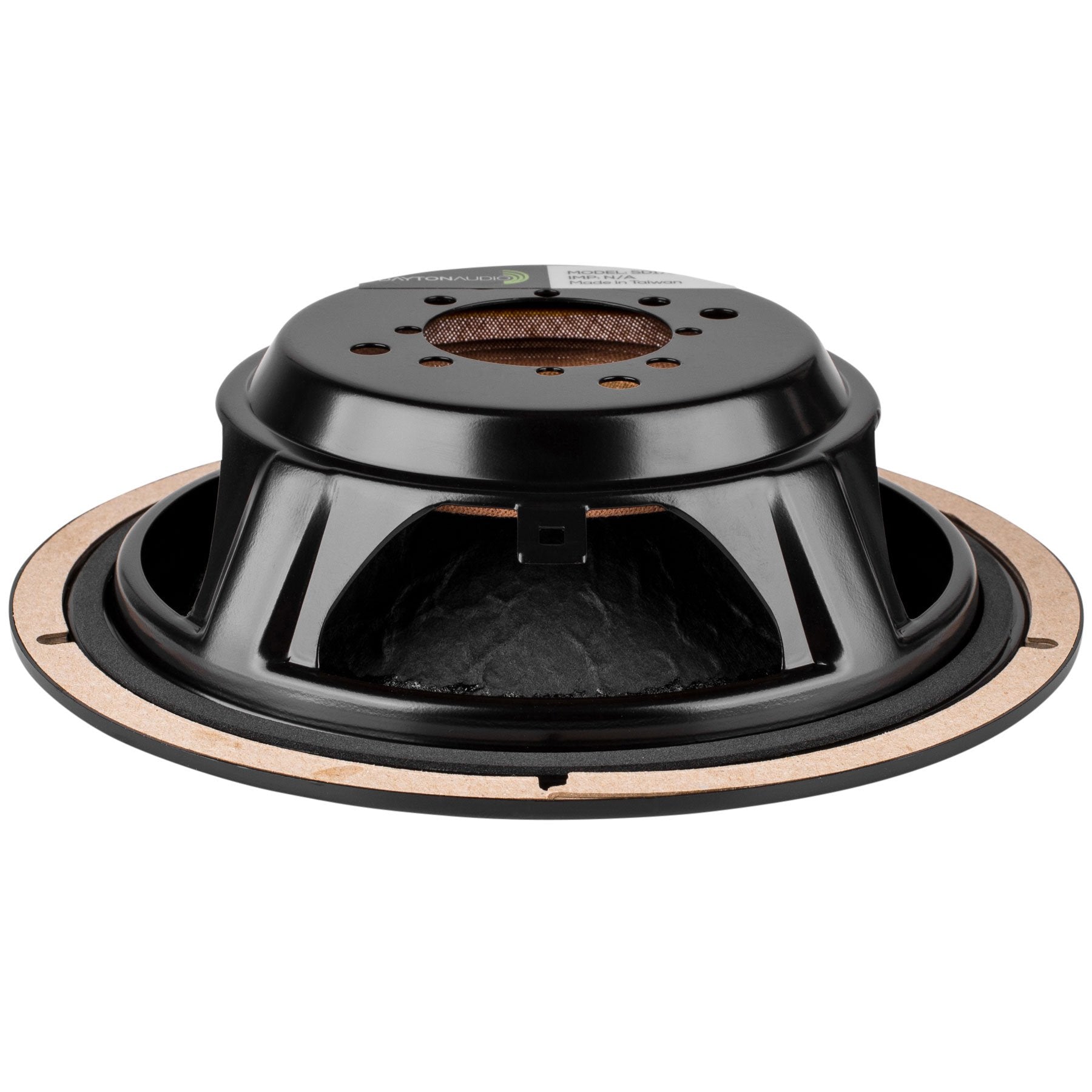

• Rugged stamped frame design with rear spider for stability

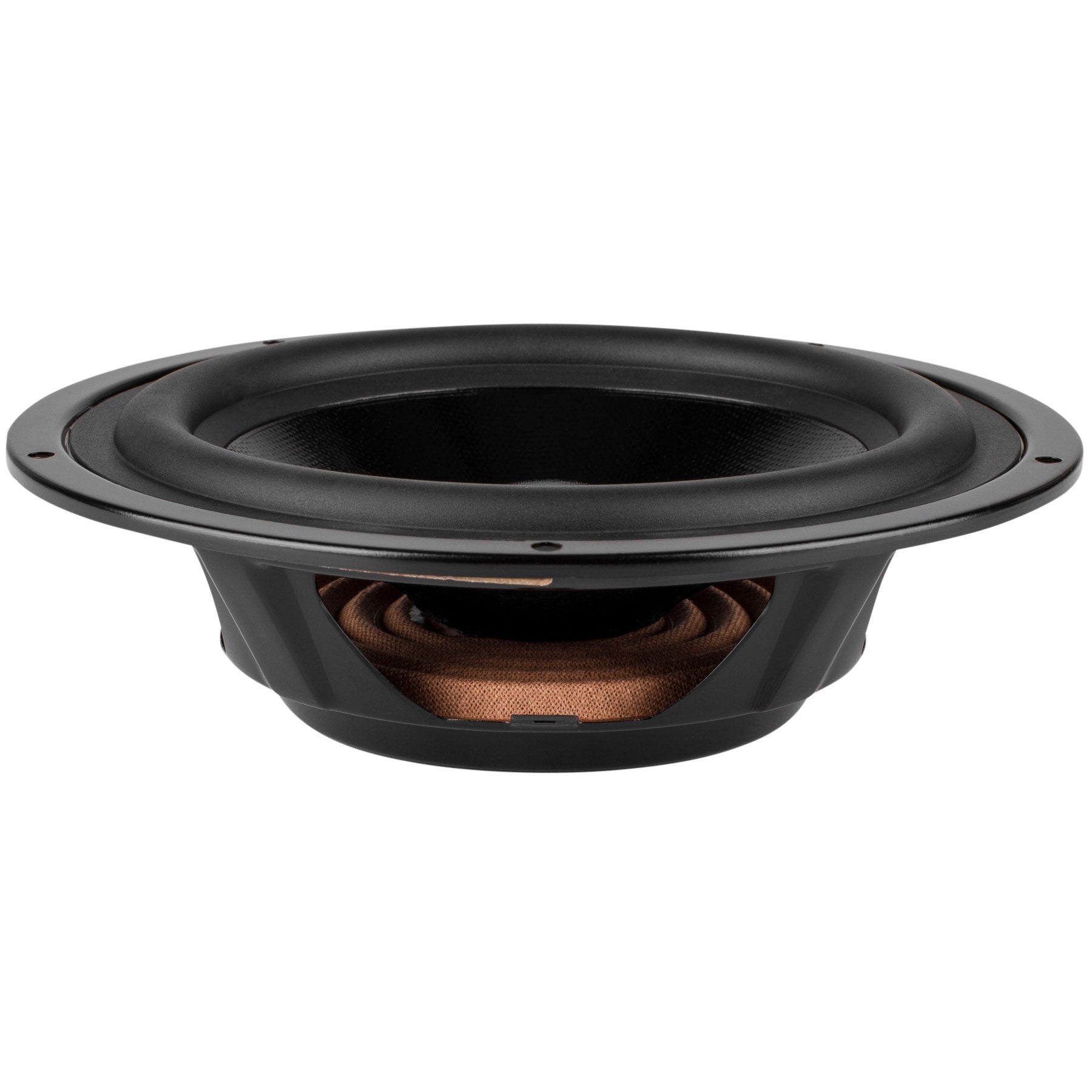

• Durable coated paper cone and rubber surround
• M5 threaded hole simplifies adding mass for lower tuning frequency

Model: SD175-PR
Color: Black
