Brand: DAOKI
Model: GR-US-117C
Description:
Features:

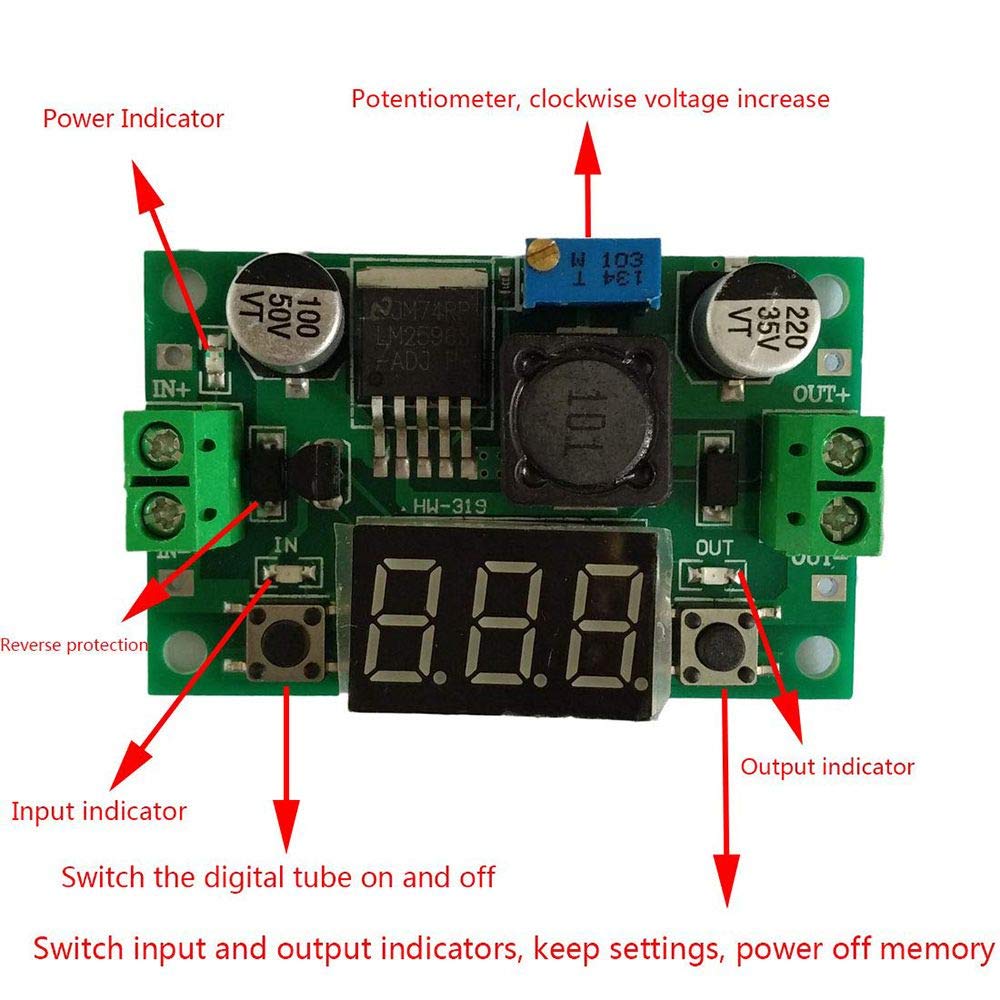

1. with power indicator
2. With voltmeter display, using PIC advanced microprocessor, voltmeter error ?0.05V, range 0 ~ 40V. (Note: To ensure the accuracy of the voltmeter, please ensure that the input voltage is above 4V)
3. Tap the button to switch the measurement input or output voltage, and the indicator light shows which voltage is being measured, and save the settings, even if it is powered off and then on.
4. The voltmeter can be turned off, and it can be easily realized by tapping the left button when it is not needed.
5. With terminal block, no soldering iron can be used conveniently, and retain the wire bond point
6. With overheat protection and short circuit protection
7. Using 150 KHz internal oscillation frequency, belonging to the second generation of switching voltage regulator, low power consumption and high efficiency.
Specification:
IN+: Input positive pole IN-: Input negative pole
OUT+: Out positive pole OUT-: Out negative pole
Input voltage range: 5-32V (The high limit voltage is 32V; in order to avoid to be burnt, please leave room to use)
Output voltage range: 0-30.0V Output power: Max 30W
Output current: Max 1.5A (If over 1.5A, please forced heat dissipation)
Output voltage set resolution: 0.1v Product weight:24g

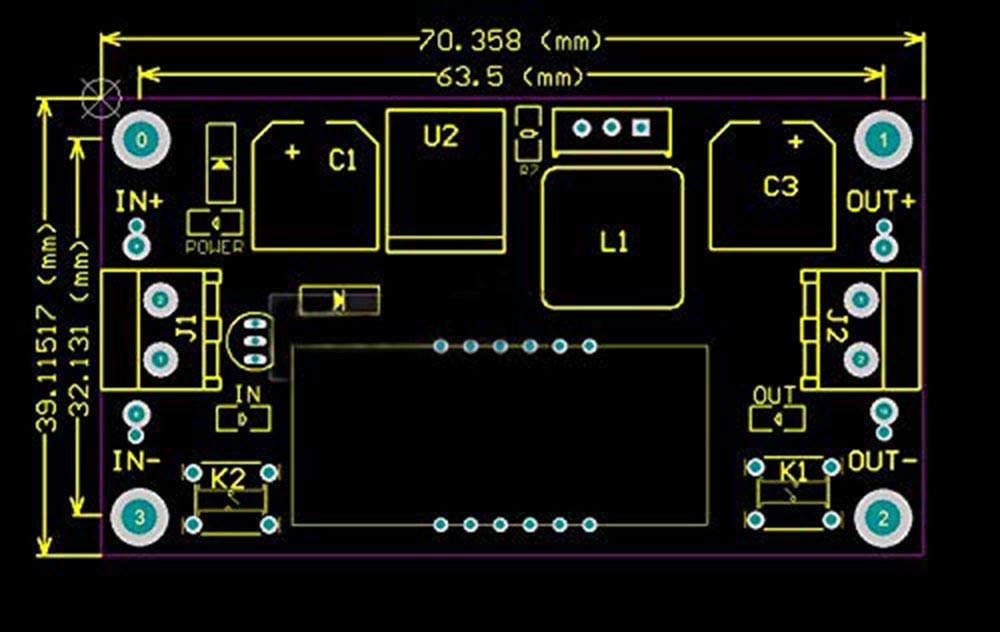

Product size: 66mm x 36mm x 14mm/2.6 x 1.4 x 0.6inch

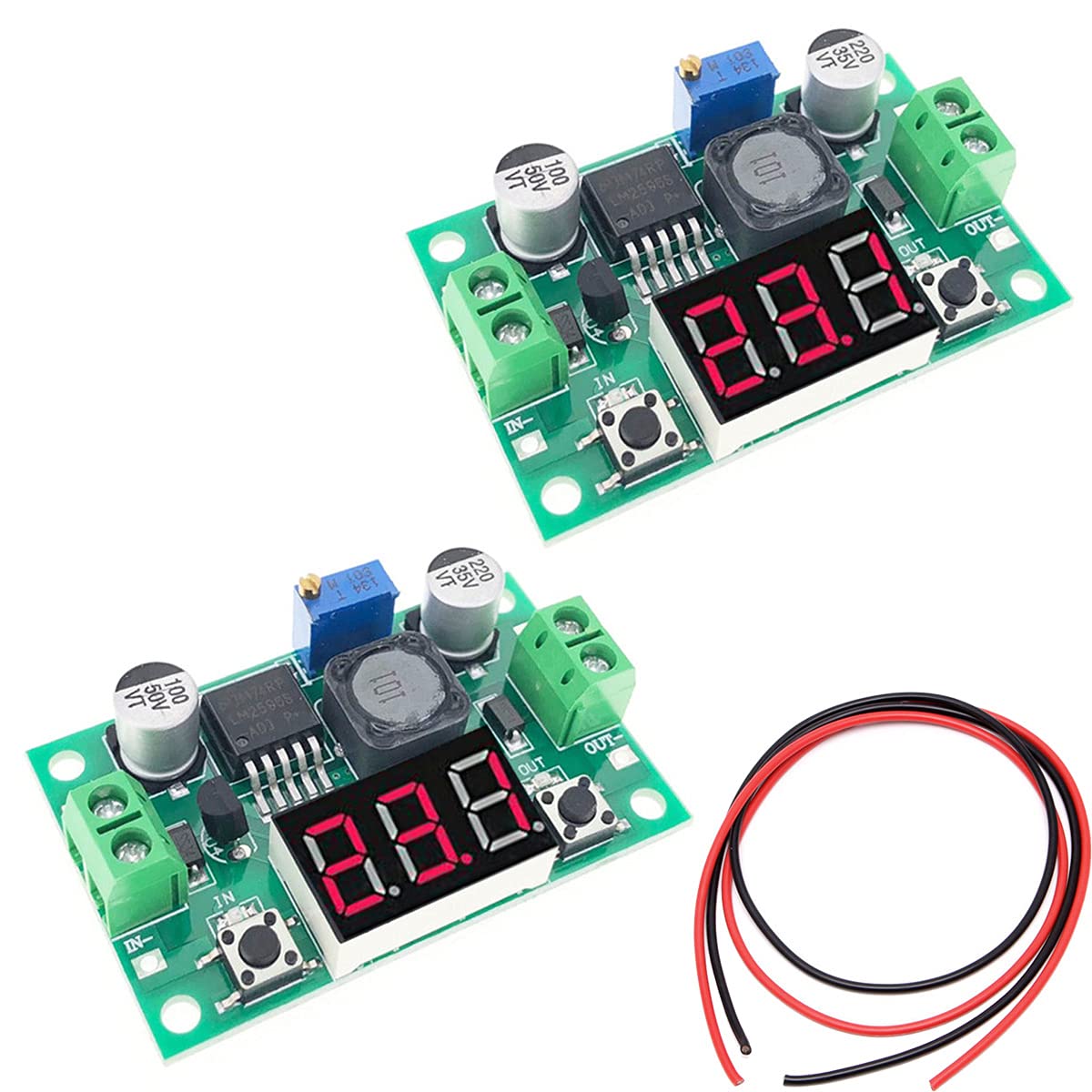

Package included:
2 x Buck Converter LM2596 LED Step-Down Power Supply Module
1 x 30cm/11.8inch Power Wire
• The Power module is small in size, adopts PIC advanced microprocessor, and the voltmeter error is ±0.05V.
• Voltage regulator Input voltage DC 4-40V, output voltage DC1.25-37V.The potentiometer needs to be rotated more than 5 times counterclockwise. The function of voltage regulation can be realized.
• The maximum output current can be as high as 3A, and the normal stable operating current is 2A.
• With LED voltage display, you can turn the display on and off with the input button.
• Using 150 KHz internal oscillation frequency, power consumption is small and efficiency. High with overheat protection and short circuit protection.
Color: LM2596 LED
Model: GR-US-117C
Description:
Features:
1. with power indicator
2. With voltmeter display, using PIC advanced microprocessor, voltmeter error ?0.05V, range 0 ~ 40V. (Note: To ensure the accuracy of the voltmeter, please ensure that the input voltage is above 4V)
3. Tap the button to switch the measurement input or output voltage, and the indicator light shows which voltage is being measured, and save the settings, even if it is powered off and then on.
4. The voltmeter can be turned off, and it can be easily realized by tapping the left button when it is not needed.
5. With terminal block, no soldering iron can be used conveniently, and retain the wire bond point
6. With overheat protection and short circuit protection
7. Using 150 KHz internal oscillation frequency, belonging to the second generation of switching voltage regulator, low power consumption and high efficiency.
Specification:
IN+: Input positive pole IN-: Input negative pole
OUT+: Out positive pole OUT-: Out negative pole
Input voltage range: 5-32V (The high limit voltage is 32V; in order to avoid to be burnt, please leave room to use)
Output voltage range: 0-30.0V Output power: Max 30W
Output current: Max 1.5A (If over 1.5A, please forced heat dissipation)
Output voltage set resolution: 0.1v Product weight:24g
Product size: 66mm x 36mm x 14mm/2.6 x 1.4 x 0.6inch
Package included:
2 x Buck Converter LM2596 LED Step-Down Power Supply Module
1 x 30cm/11.8inch Power Wire
• The Power module is small in size, adopts PIC advanced microprocessor, and the voltmeter error is ±0.05V.
• Voltage regulator Input voltage DC 4-40V, output voltage DC1.25-37V.The potentiometer needs to be rotated more than 5 times counterclockwise. The function of voltage regulation can be realized.
• The maximum output current can be as high as 3A, and the normal stable operating current is 2A.
• With LED voltage display, you can turn the display on and off with the input button.
• Using 150 KHz internal oscillation frequency, power consumption is small and efficiency. High with overheat protection and short circuit protection.
Color: LM2596 LED
