Brand: DALY

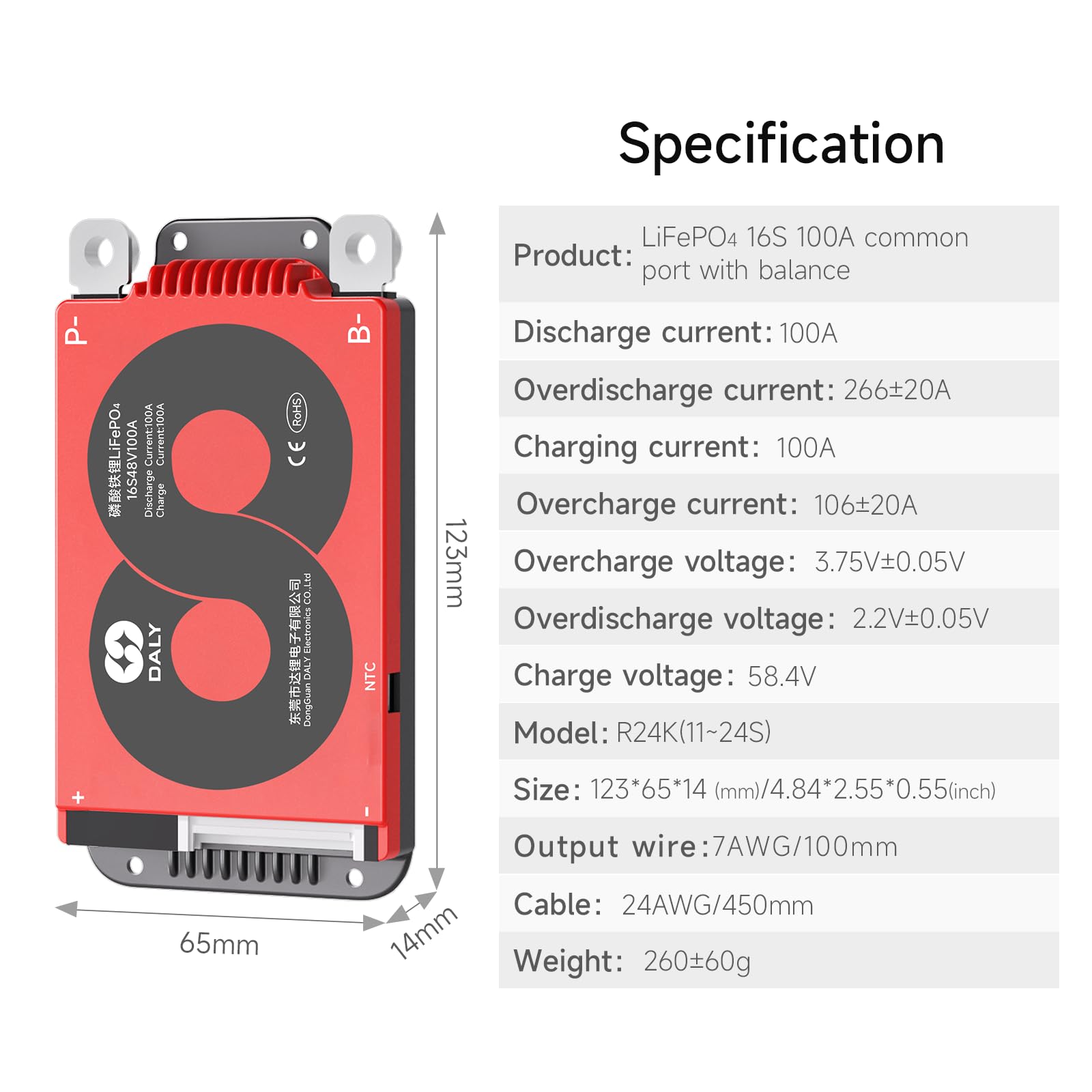

This is DALY common bms Fan Rated 3.2V WITHOUT smart communication function , if you need the smart bms , please go to the smart bms link. Battery pack strings must be matched with BMS strings. DALY BMS Adopt top quality (A-level) IC Solution make battery management much more efficient , greatly help to keep battery pack healthy and stable. Extending battery life-span, improve performance. DALY BMS being waterproof test, humidity resistance . DALY BMS can be applied with home power storage system , RV Power supply , E-bike and other lithium battery related device . Fan runs at about 50°. Balance detect Voltage: 3.5V Balance current： 30±5 mA Over charge voltage detect : 3.75±0.05 Over charge release voltage: 3.55±0.05 over charge protection delay 1s Over discharge voltage detect :2.2±0.1 V Over discharge voltage release voltage: 2.5±0.1 V Short Circuit Protection BMS Self-Consumption Working Current :≤500 uA

• [DALY BMS]Overcurrent,Overcharge,Overdischarge,Short circuit, Temperature protection.DALY BMS maximizes optimizes the lithium battery performance, and extends the battery lifetime to a large extent.
• [Double Protection] Double protection by injection patent technology and patent shell.Waterproof,Dustproof,Shockproof and Anti-static
• High-quality components, pressure-resistant and durable material, high acquisition accuracy.

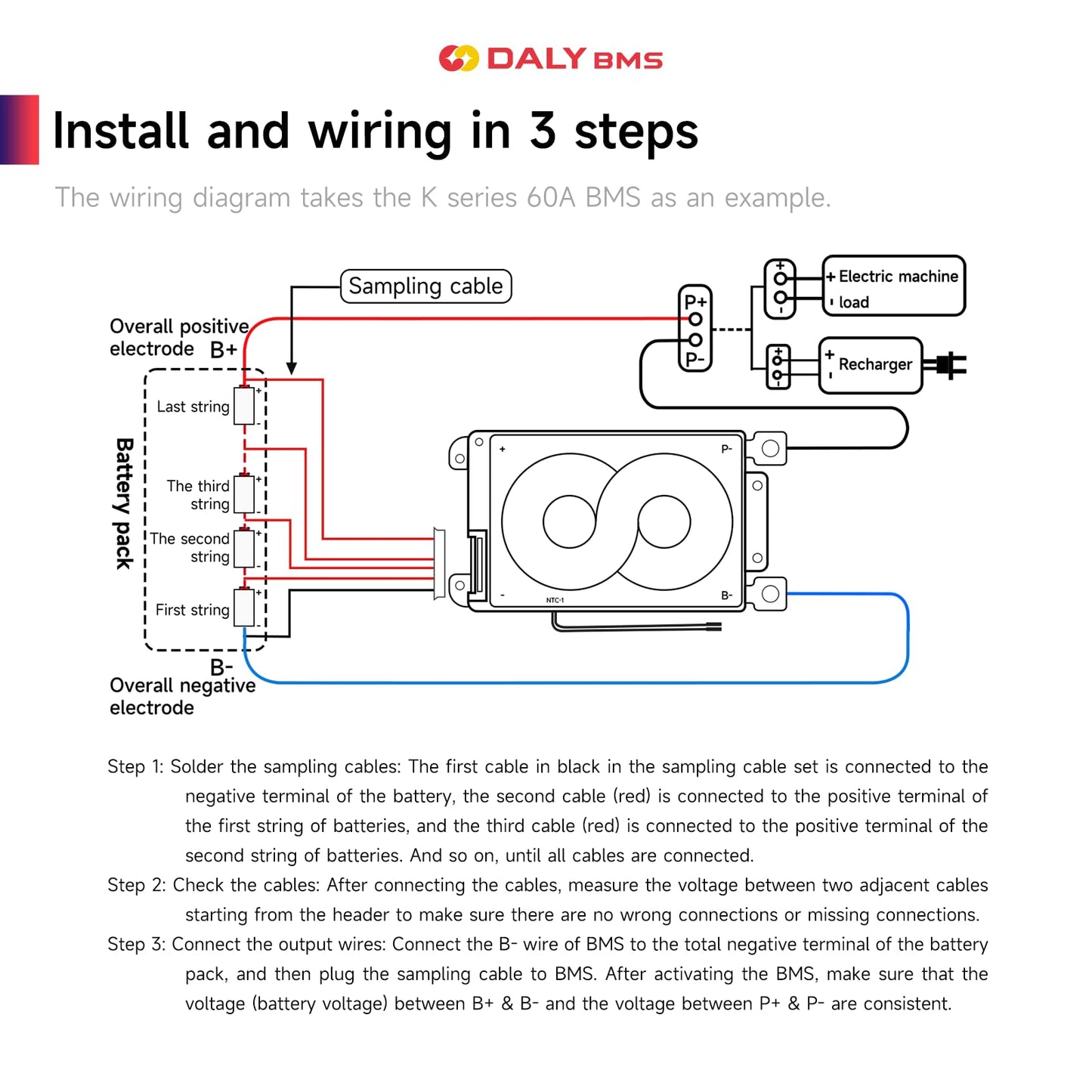

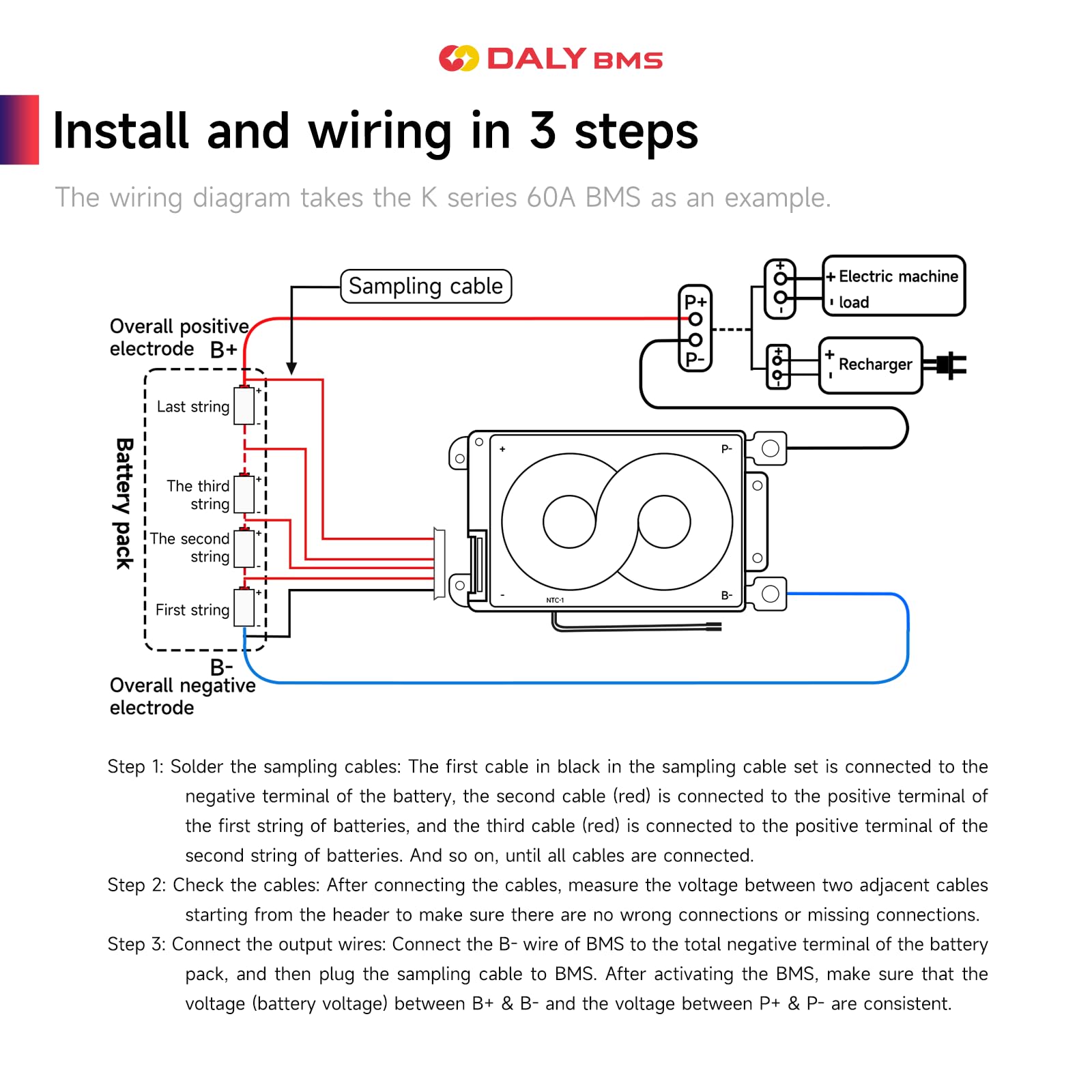

• [Easy to install]Easy to plug and unplug, which allows you to effortlessly create an electrical connection between the battery pack and the BMS.
• [Note] Standard BMS dosen't have communication functions. If you need smart BMS, active balancer, parallel module or other accessories, please contact online customer service.We offer 24-hour one-on-one customer service and lifetime technical support.

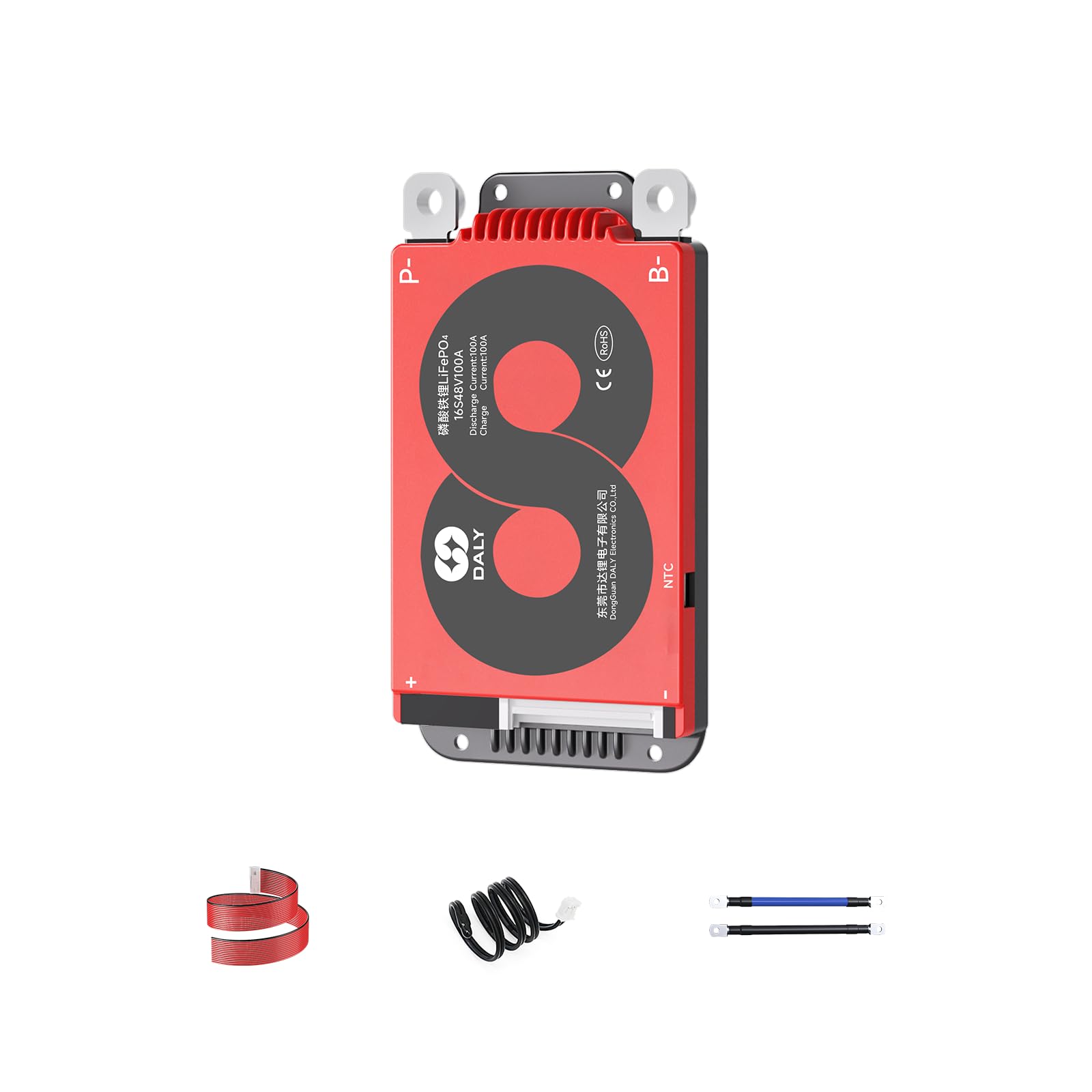

• [Packing List]3.2V Lifepo4 BMS*1,NTC sensor*1,Sampling cable*1,Instruction Manual*1.Quality Guarantee--- ISO/ FCC/ RoHS/ PSE/ CE APPROVED

Color: Standard BMS

Power/Wattage: 100A
