Description
Brand: DaFuRui
• ??Excellent Quality?The human infrared sensing module is an automatic control product based on infrared technology.
• ??Standard sizes?Working voltage: DC voltage 4.8~20V?Static current:<50uA?Level output: High 3.3V/Low 0V?Trigger method: L cannot be triggered repeatedly/H repeated trigger (default repeated trigger)
• ??Design Features?High sensitivity, strong reliability, low power consumption, low voltage working mode
• ??Widely Used?widely used in various automatic induction electrical equipment, especially in dry battery powered automatic control products

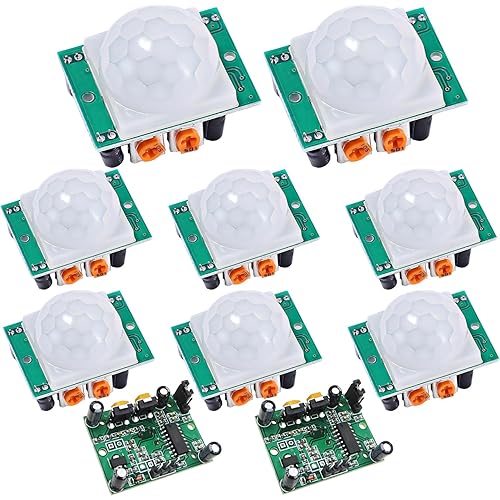

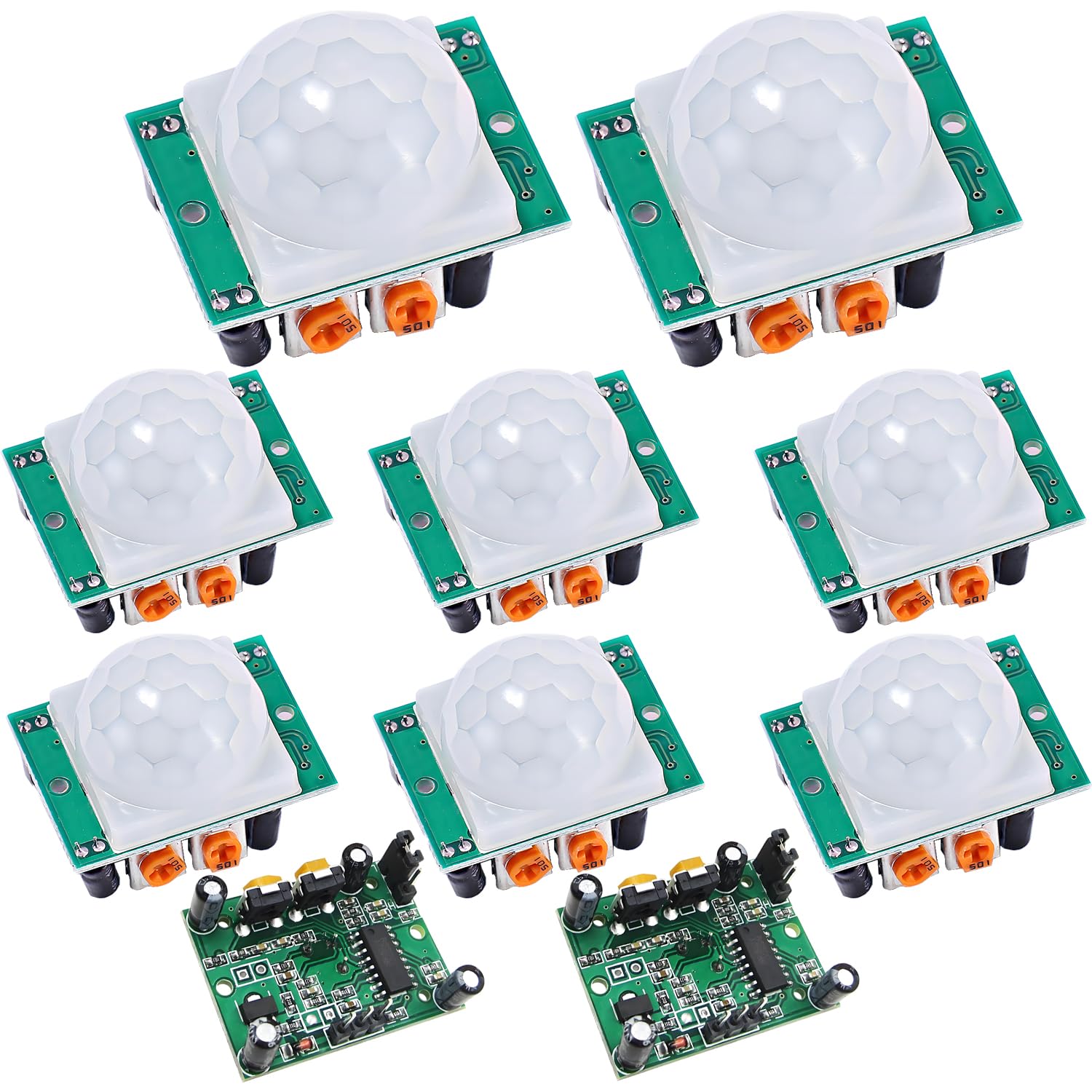

• ??Package?10PCS HC-SR501 PIR Module Pyroelectric Infrared Motion Sensor Module Detector
Product model: D-SUN human body sensing module
Working voltage: DC voltage 4.8~20V
Static current:<50uA
Level output: High 3.3V/Low 0V

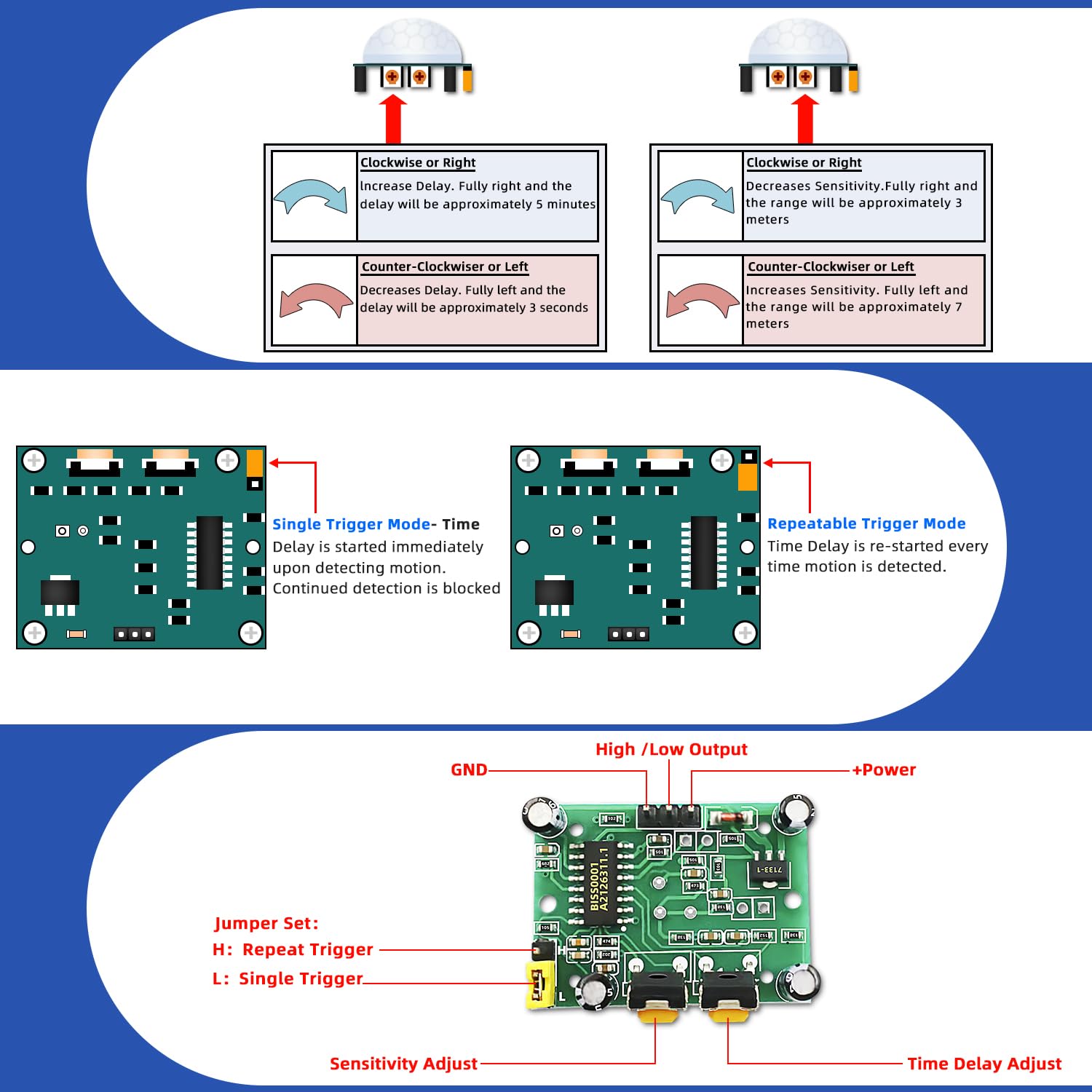

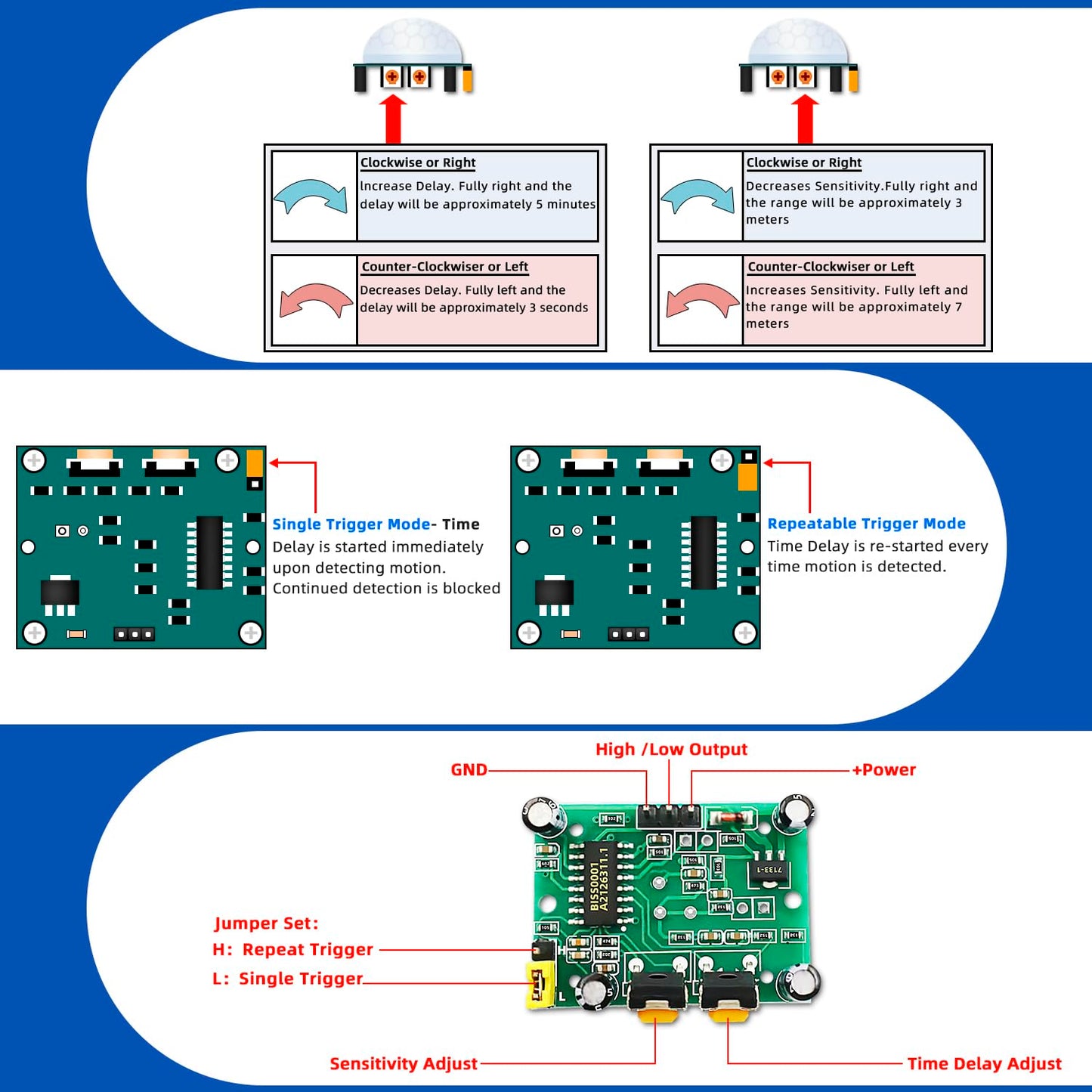

Trigger method: L cannot be triggered repeatedly/H repeated trigger (default repeated trigger)

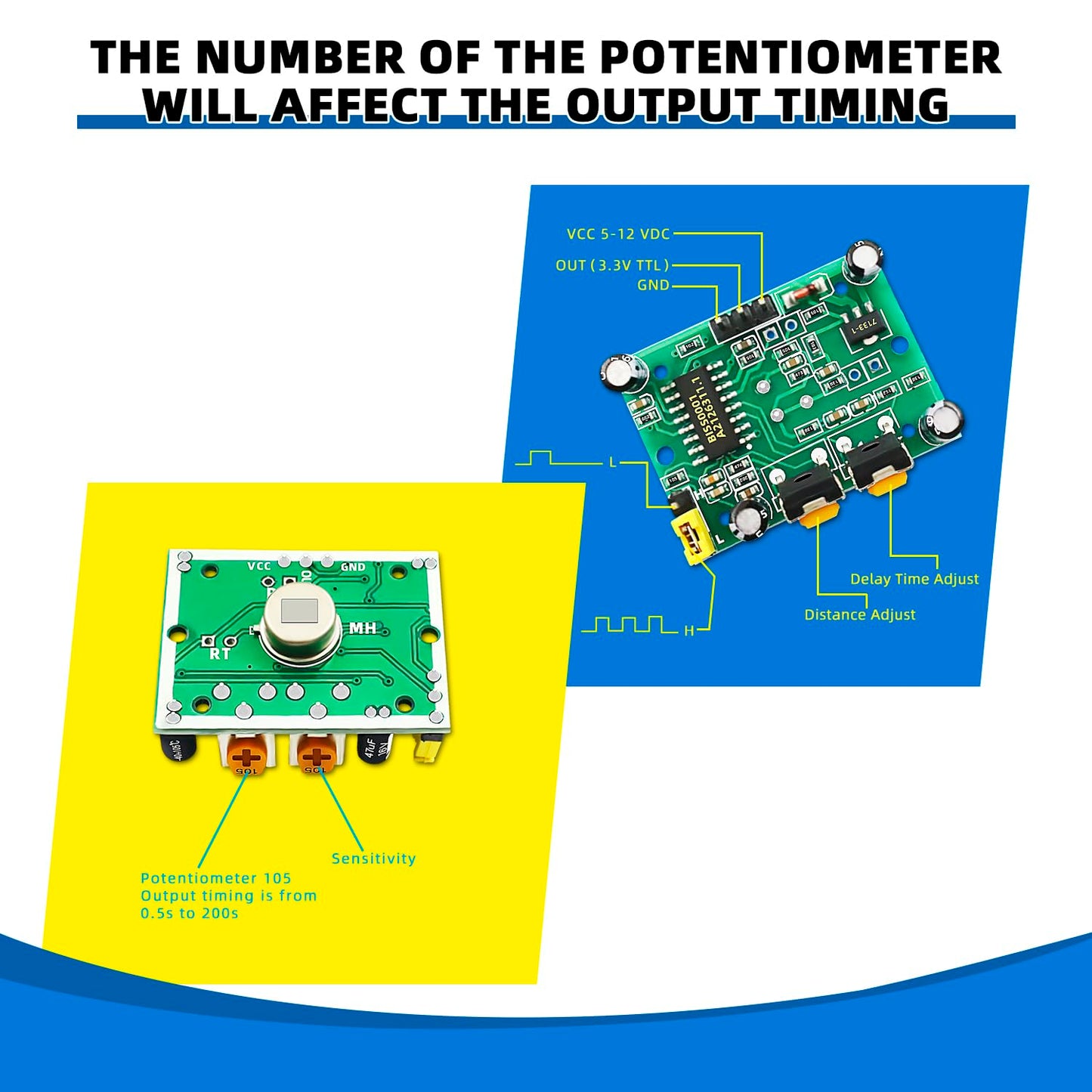

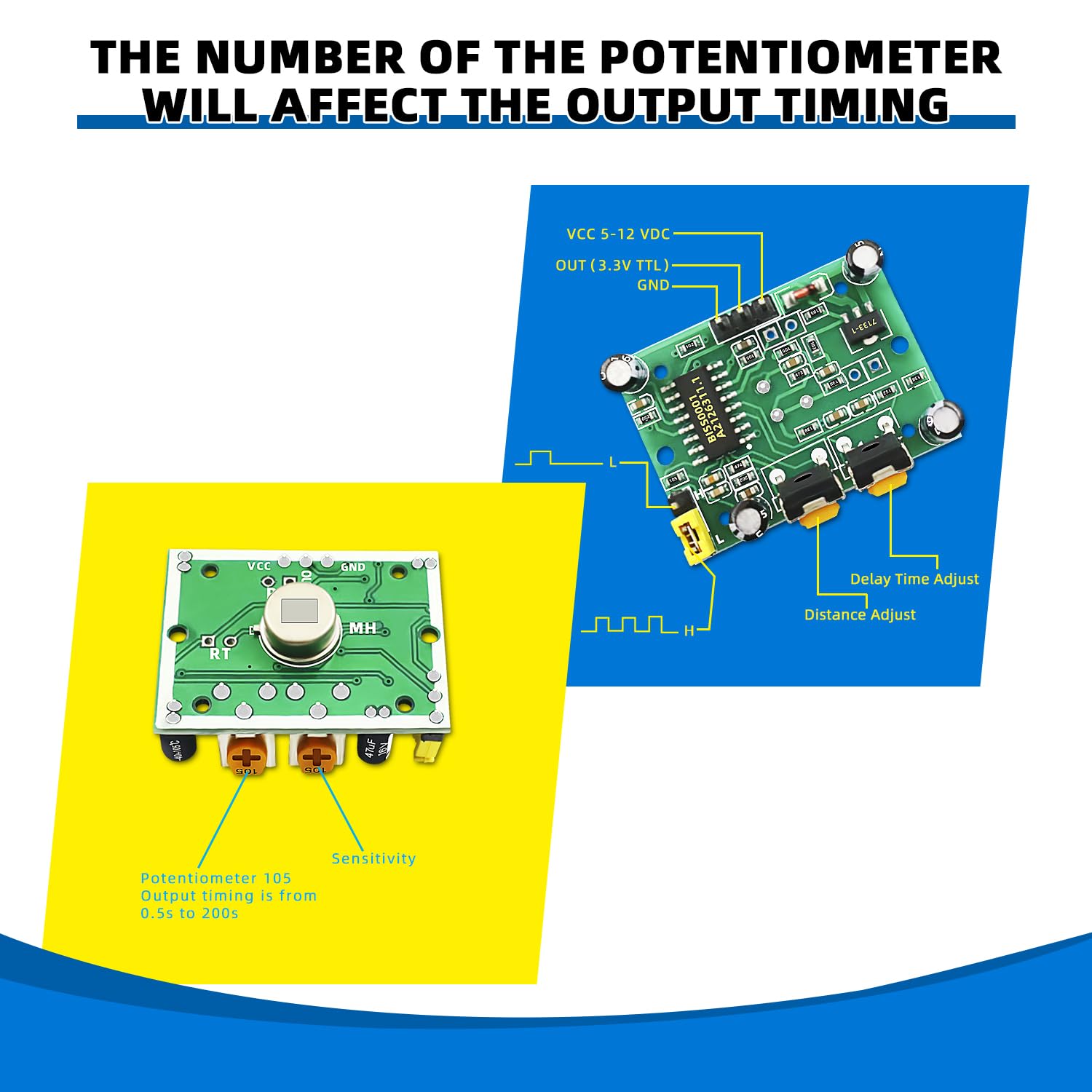

Delay time: 0.5-200S (adjustable) with a production range of a few seconds to tens of minutes
Blockage time: 2.5 seconds (default) can be created within a range of a few seconds to tens of seconds
Outside the circuit board: 32mm * 24mm
Induction angle:<100 degree cone angle
Working temperature: -15-70 degrees Celsius
Induction lens: diameter: 23mm (default)
• ??Excellent Quality?The human infrared sensing module is an automatic control product based on infrared technology.
• ??Standard sizes?Working voltage: DC voltage 4.8~20V?Static current:<50uA?Level output: High 3.3V/Low 0V?Trigger method: L cannot be triggered repeatedly/H repeated trigger (default repeated trigger)
• ??Design Features?High sensitivity, strong reliability, low power consumption, low voltage working mode
• ??Widely Used?widely used in various automatic induction electrical equipment, especially in dry battery powered automatic control products
• ??Package?10PCS HC-SR501 PIR Module Pyroelectric Infrared Motion Sensor Module Detector
