Description
Brand: DaFuRui
Model: LM2596
• ★Input: DC 3-40 V (input voltage must be 1.5 V higher than the output voltage, no boost).
• ★Output: DC 1.5-35 V voltage is continuously adjustable, maximum output current is 3 A.
• ★Easy work: convenient to accurately adjust the output voltage with a mini screwdriver.
• ★Features: use SANYO solid-state capacitors,36u thickening circuit boards, high-Q inductance with LED indicator output.
• ★Application: widely used for DIY mobile power, monitor power supply, communications equipment supply,etc.
Color: LM2596
Model: LM2596
Description:

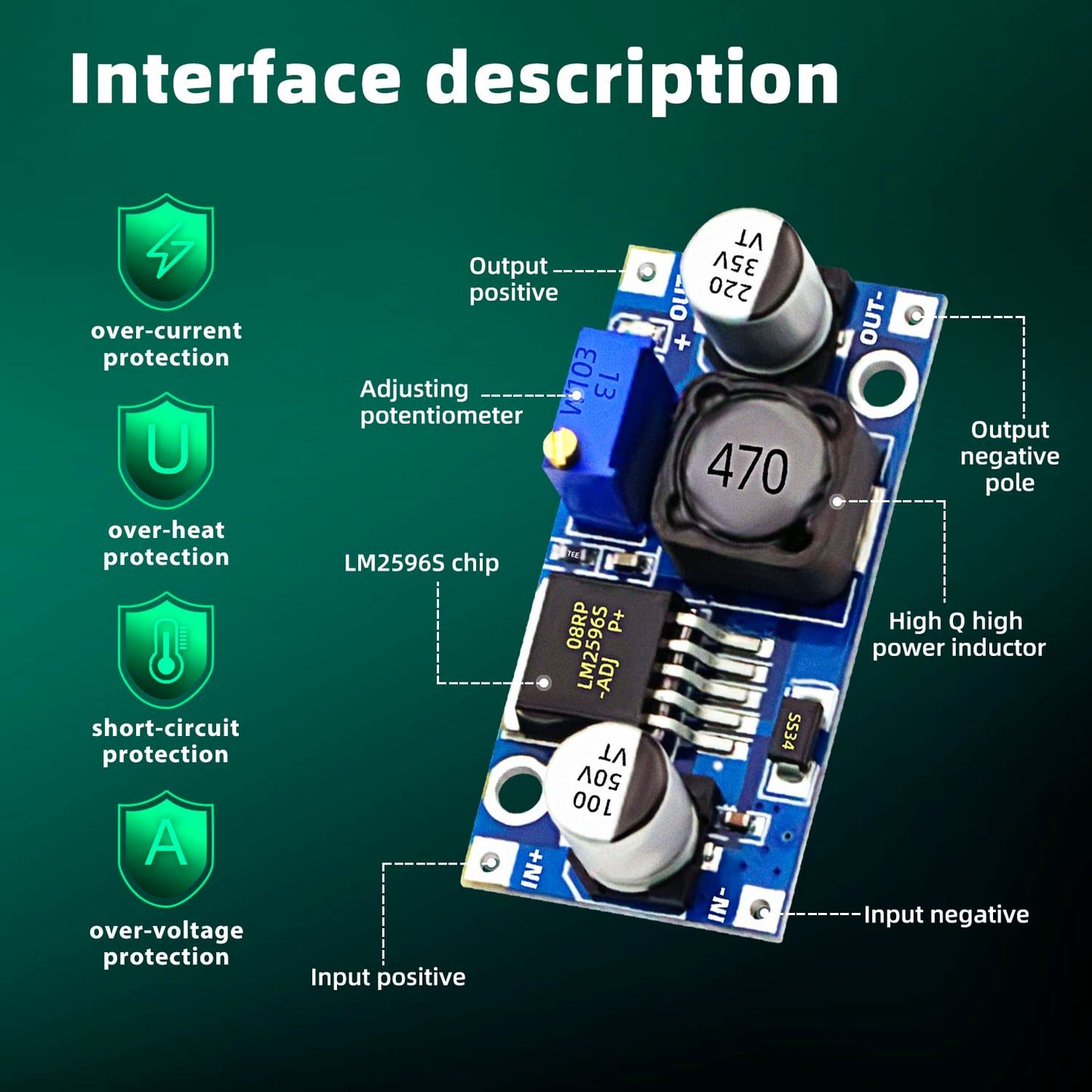

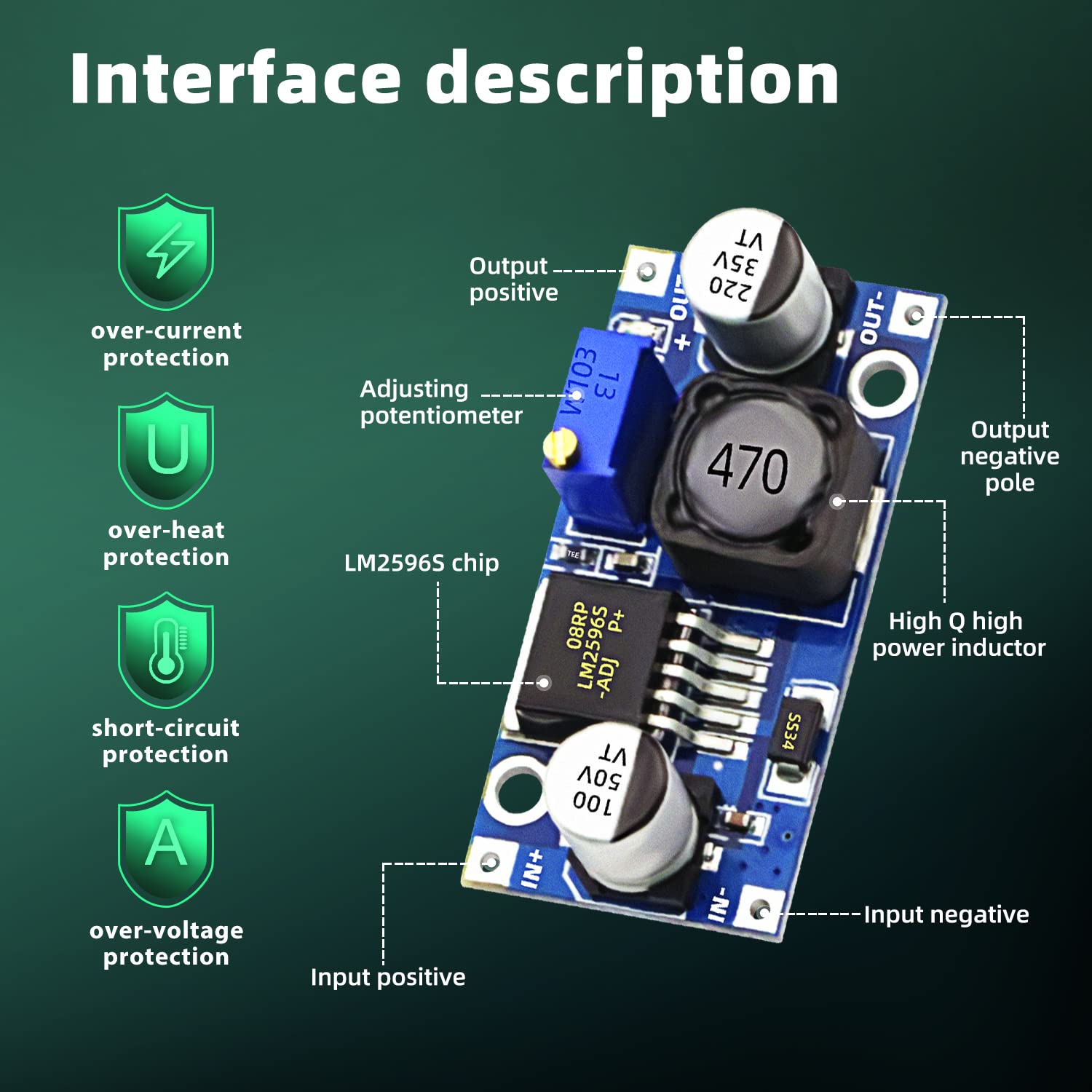

Input Voltage: 3.0V~40V (IN+ : Input Positive; IN-:Input Negative)
Output Voltage: 1.5V~35V (OUT+: Output Positive OUT-: Output Negative)
Output Current: Rated current: 2A, Maximum: 3A
Conversion Efficiency: 92% (maximum)

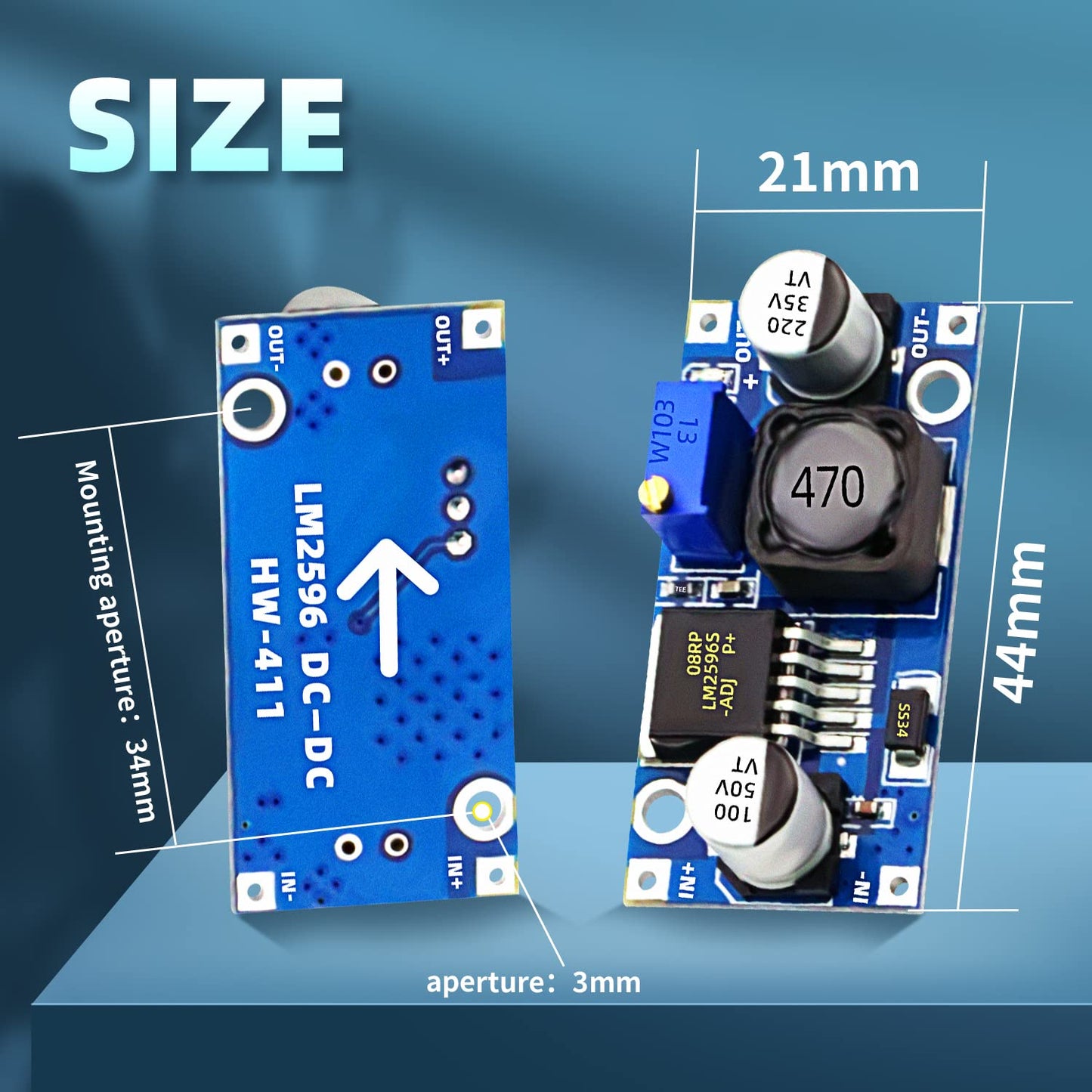

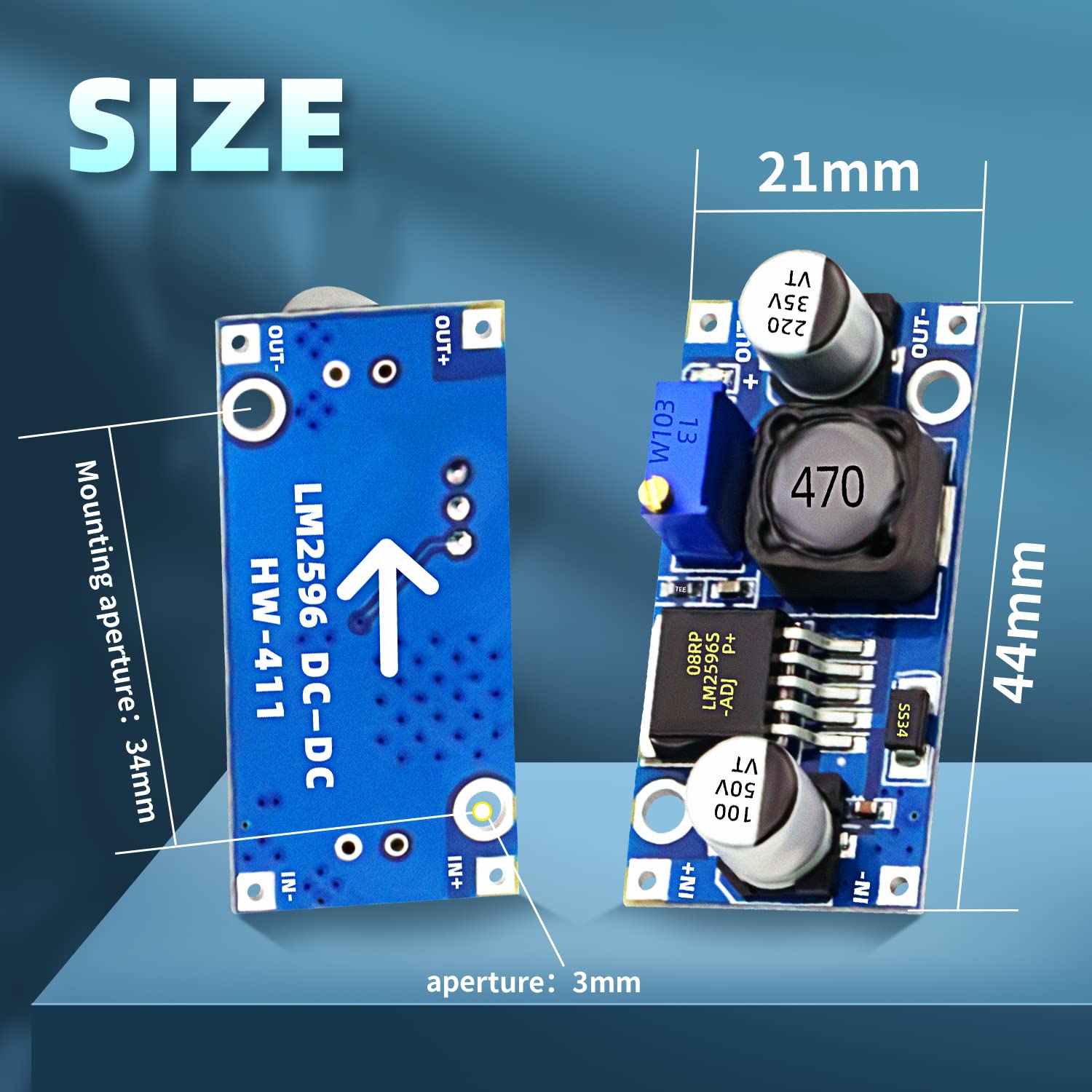

Size: 45 * 20 * 14 mm (with potentiometer)
Instruction manual:
a:Access the power supply ( 3-40 V), the power indicator light, the module is working properly.

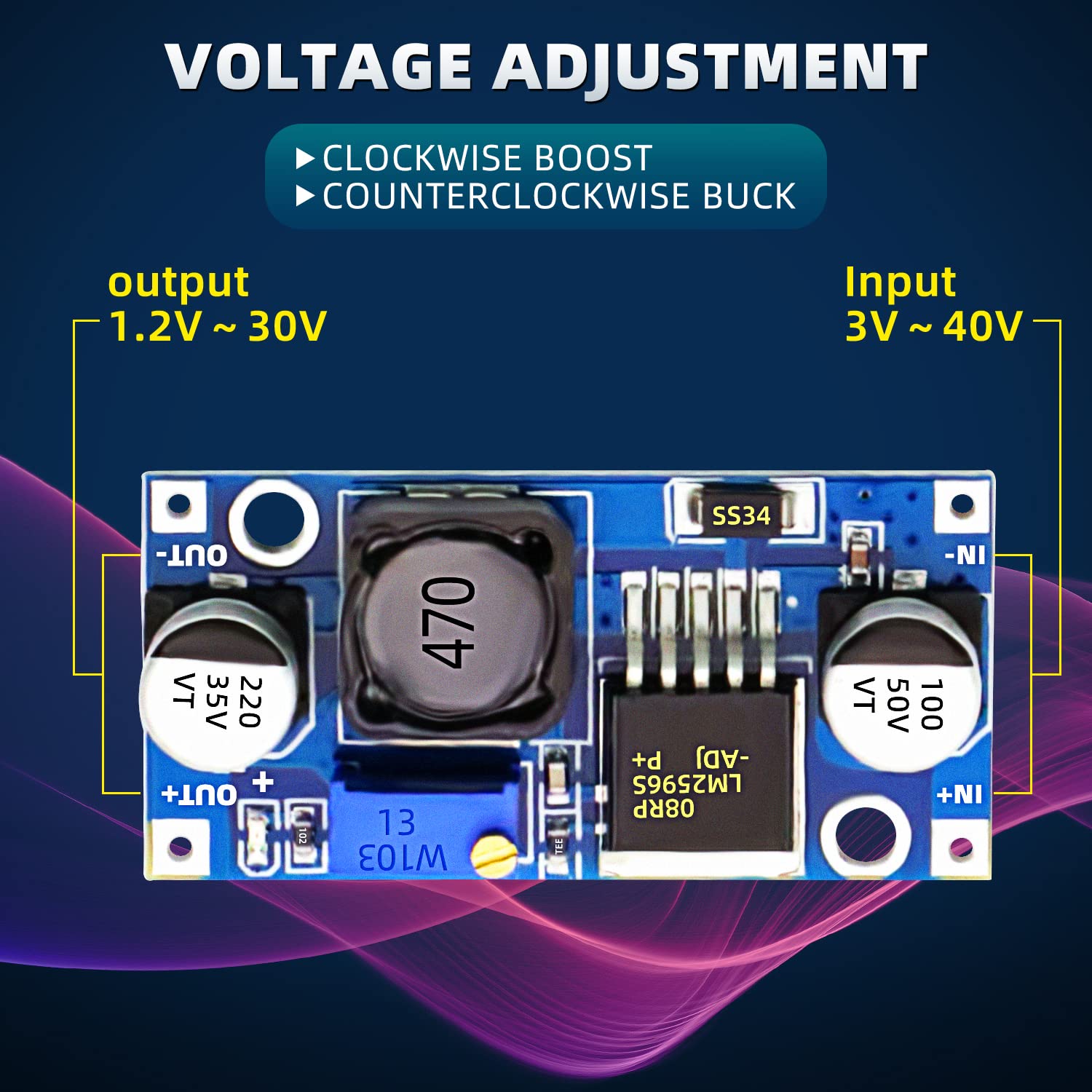

b:Adjust the blue potentiometer knob (usually clockwise rotation boost, counterclockwise rotation Step-down) and monitor the output voltage with a multimeter to reach the required voltage.
ProductFeatures:
- DC to DC step down module
- Thickened circuit boards
- Advanced solid-state capacitor
- Short circuit and over-temperature protection
- 100% tested, sealed in anti-static packaging
Howto use
1.Access the power supply ( 3.2 -46 V), the powerindicator light, the module is working properly.
2.Adjust the blue potentiometer knob (usually clockwise rotation boost,counterclockwise rotation Step-down) and monitor the output voltage with amultimeter to reach the required voltage.
3.A customer reflects the module output voltage can not be adjusted, alwaysequal to the input voltage. When you encounter this problem, please firstcounterclockwise rotation potentiometer 10 laps above, and then use the modulecan be normal adjustment of the voltage.
Note:
The input and output interface can not be reversed.
Keep it under 2.5 A and use the heat sink when working for long hours.
(Factory default stays a high voltage, you need to contrarotate about 7-15 circles before the voltage starts changing, 1 circle means +/- 1V).
• ★Input: DC 3-40 V (input voltage must be 1.5 V higher than the output voltage, no boost).
• ★Output: DC 1.5-35 V voltage is continuously adjustable, maximum output current is 3 A.
• ★Easy work: convenient to accurately adjust the output voltage with a mini screwdriver.
• ★Features: use SANYO solid-state capacitors,36u thickening circuit boards, high-Q inductance with LED indicator output.
• ★Application: widely used for DIY mobile power, monitor power supply, communications equipment supply,etc.
Color: LM2596
