Description
Brand: D-FLIFE
• Conversion Efficiency: Up to 96%. Low input voltage or a large difference between input and output voltage will degrade the current capacity and efficiency.

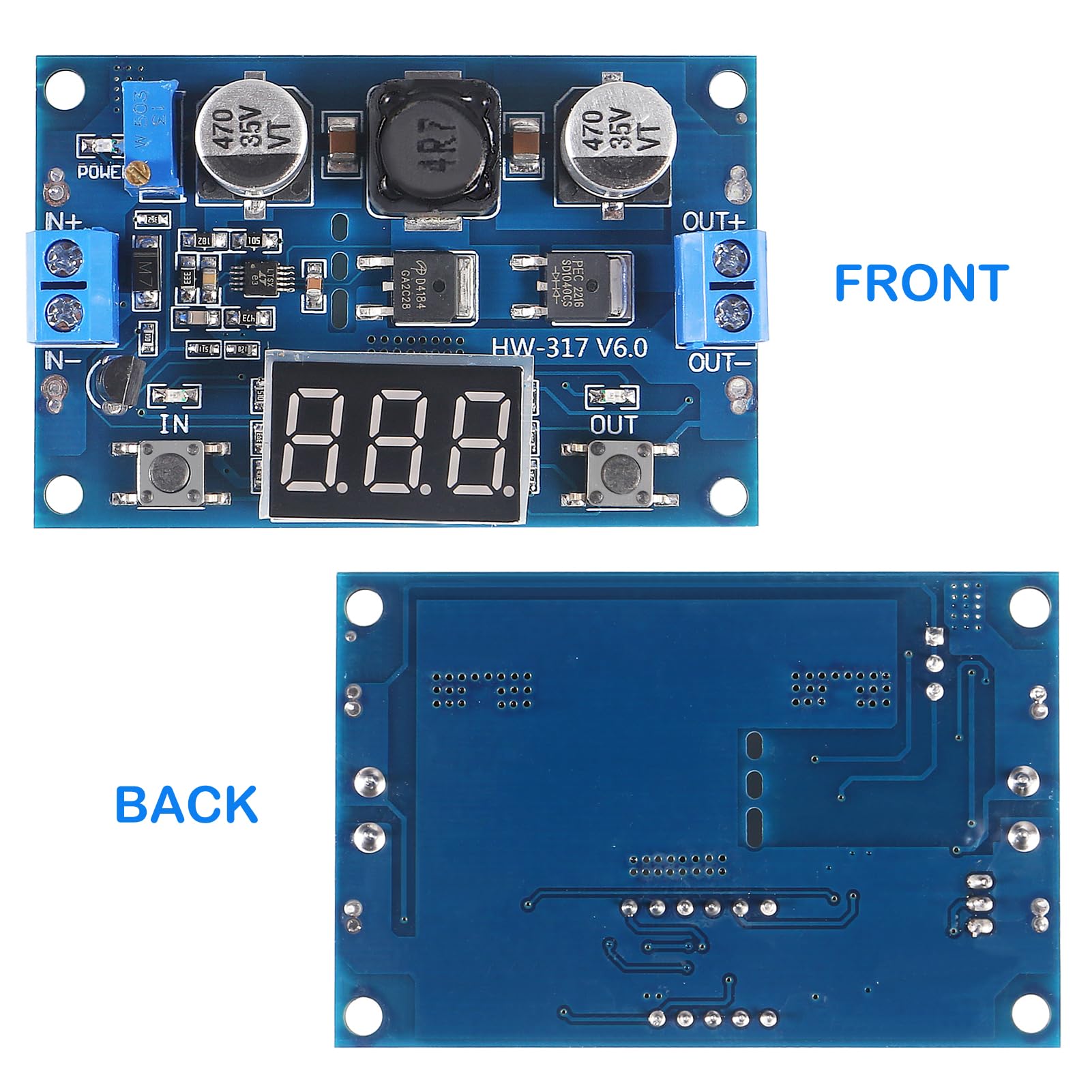

• This LTC1871 DC-DC step-up voltage regulator board has a step-up switching regulator on it. The regulator can pass through current up to 10A on itself. It's input voltage range is 3-35V and you can get an output voltage adjustable between 3.5-35V via the trimpot on the board.
• Output voltage must be greater than input voltage, do not apply reverse polarity voltage, voltmeter works only when input is >= 4V.
• Boost voltage to a stable regulated output. Useful for a wide range of applications, such as powering 5V USB devices from a 3.7V lithium cell, powering higher powered electronics from a 12V battery, and a wide range of automotive and electronic projects .
• LTC1871 DC 3-35V to DC 3.5-35V Boost Step-up Voltage Converter Module Adjustable Output Regulator Board 100W High Power LED Display
Specifications:
Input Voltage: 3-35V DC (Note: When input voltage is less than 4V, onboard voltmeter will not work)
Input Current: 9A (max)
Output Voltage: 3.5-35V DC (this board is boosting board, output voltage>=Input voltage)
Output Current: 6A (max)
Output Power: 65W (when the input and output voltage greater than 20V up to 100W)
Conversion Efficiency: 96% (max)
Voltmeter range: 4 to 40V, error ±0.1V

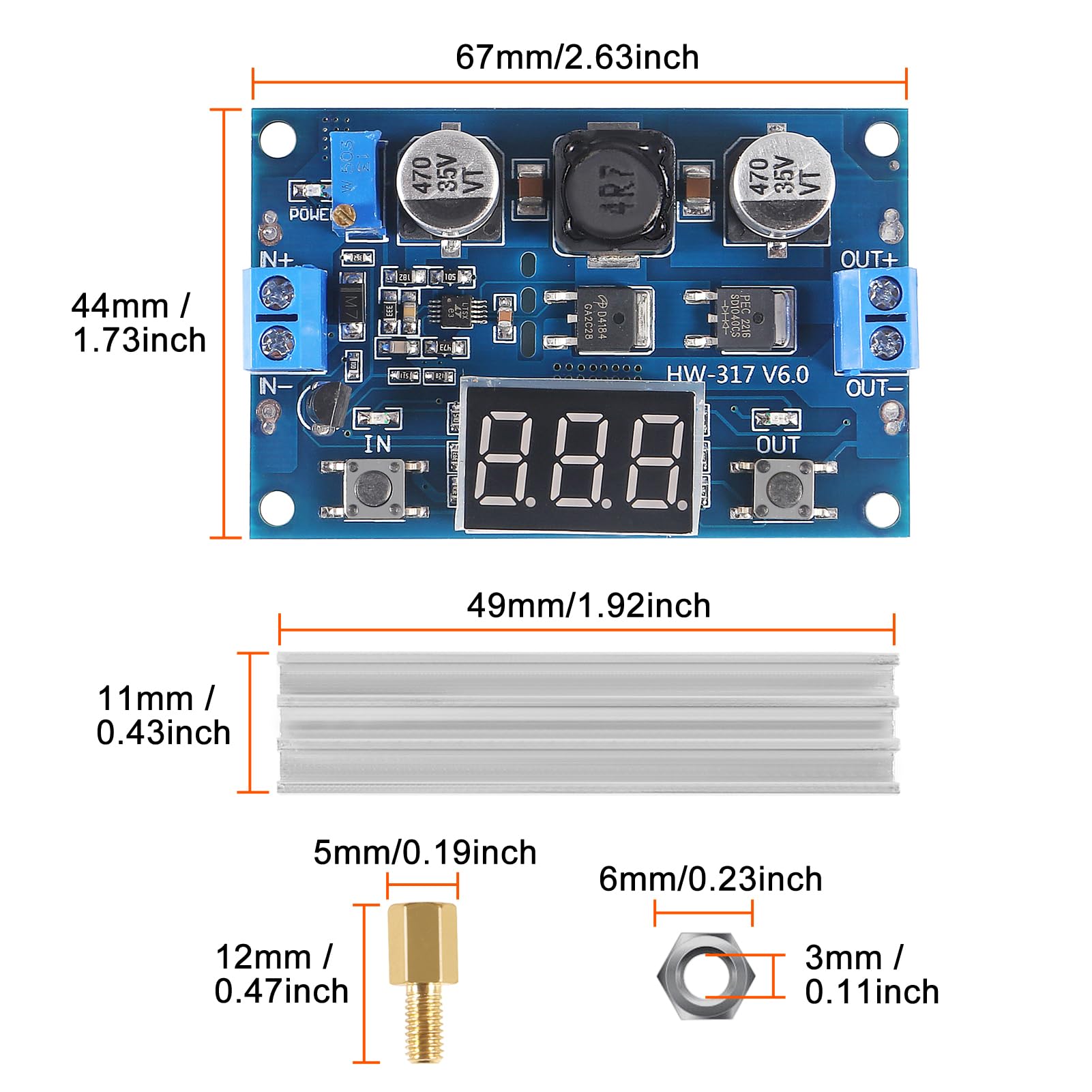

Size: 67.5 * 41.5 * 14mm (L*W*H)
Use Steps:
Connect load at OUT+ and OUT- at first.Please note the positive and negative.
Connect power supply at IN+ and IN-.Please note the positive and negative.
Press the button to switch the display input or output voltage value.
Warm tip:
When the high power load is connected, because the shock current of the start-up is very limited, it is recommended to start up and then connect the load.
Package Includes :

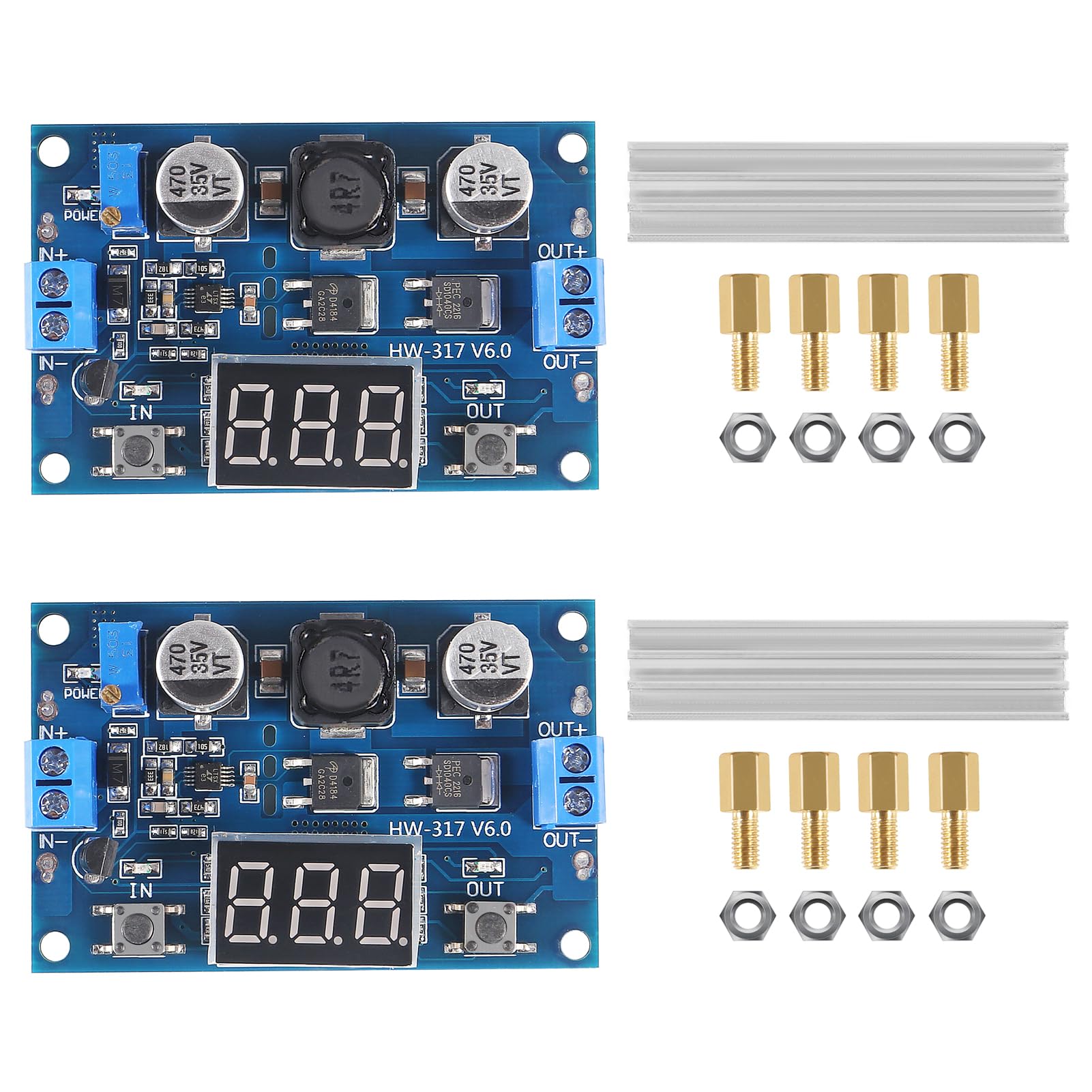

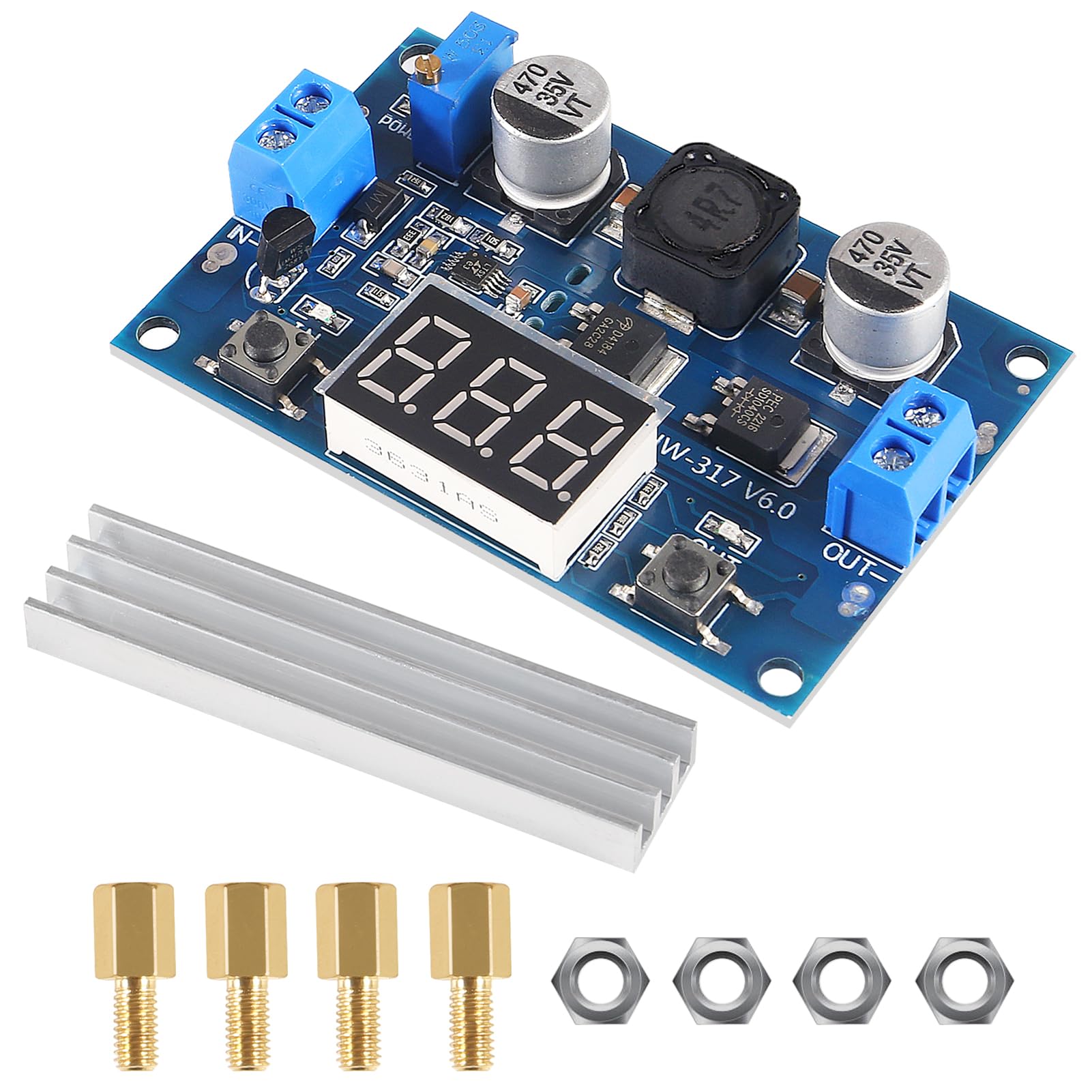

2 * LTC1871 DC-DC Step Up Booster Converter Module
• Conversion Efficiency: Up to 96%. Low input voltage or a large difference between input and output voltage will degrade the current capacity and efficiency.
• This LTC1871 DC-DC step-up voltage regulator board has a step-up switching regulator on it. The regulator can pass through current up to 10A on itself. It's input voltage range is 3-35V and you can get an output voltage adjustable between 3.5-35V via the trimpot on the board.
• Output voltage must be greater than input voltage, do not apply reverse polarity voltage, voltmeter works only when input is >= 4V.
• Boost voltage to a stable regulated output. Useful for a wide range of applications, such as powering 5V USB devices from a 3.7V lithium cell, powering higher powered electronics from a 12V battery, and a wide range of automotive and electronic projects .
• LTC1871 DC 3-35V to DC 3.5-35V Boost Step-up Voltage Converter Module Adjustable Output Regulator Board 100W High Power LED Display
