Brand: CTCUnion

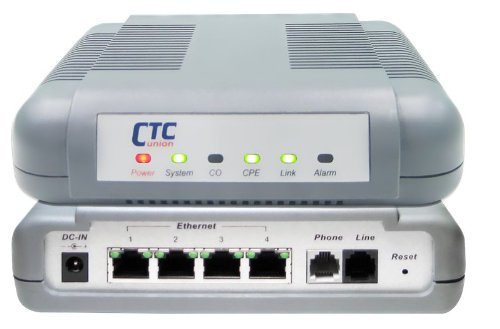

Note: Price is per unit. You need a pair to make a VDSL2 connection. Image shows front and back of same unit. The VDTU2A-304 is a VDSL2 bridge modem equipped with an RJ45 POTS interface and four 10/100 Mbps Ethernet ports for local network. The VDTU2A is extremely flexible, working in both symmetric and asymmetric connection modes and adjusting for maximum performance over the copper lines it operates. The maximum throughput is 100/75 Mbps asymmetrical (* - subject to certain conditions of the environment like 24 AWG and low EMI) and still offering a stunning 10Mbps duplex on distances up to 1Km. The extra benefit of VDTU2A-304 can work over existing POTS lines without any splitter required. Thus, installation of VDSL2 extenders and modems becomes an easy task, no extra wires being required for deployment. A single pair of telephone lines is enough for the VDTU2A-304. The VDTU2A-304 is working in pair with the VDTU2A-301 rack mountable modem
• Interfaces: four RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX compliant ports and one RJ-45 VDSL2 DMT port, ITU-T G993.1/G993.2 compliant, on-board surge protection, phone line extension for handset connectivity
• Operating distance: up to 1.5Km on AWG 26 copper wire
• front LEDs: PWR, CO/CPE, Idle/Link, each TP port Act/Link and Duplex on jack
• Power: External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug
• consumption: 6 Watt maximum
Note: Price is per unit. You need a pair to make a VDSL2 connection. Image shows front and back of same unit. The VDTU2A-304 is a VDSL2 bridge modem equipped with an RJ45 POTS interface and four 10/100 Mbps Ethernet ports for local network. The VDTU2A is extremely flexible, working in both symmetric and asymmetric connection modes and adjusting for maximum performance over the copper lines it operates. The maximum throughput is 100/75 Mbps asymmetrical (* - subject to certain conditions of the environment like 24 AWG and low EMI) and still offering a stunning 10Mbps duplex on distances up to 1Km. The extra benefit of VDTU2A-304 can work over existing POTS lines without any splitter required. Thus, installation of VDSL2 extenders and modems becomes an easy task, no extra wires being required for deployment. A single pair of telephone lines is enough for the VDTU2A-304. The VDTU2A-304 is working in pair with the VDTU2A-301 rack mountable modem
• Interfaces: four RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX compliant ports and one RJ-45 VDSL2 DMT port, ITU-T G993.1/G993.2 compliant, on-board surge protection, phone line extension for handset connectivity
• Operating distance: up to 1.5Km on AWG 26 copper wire
• front LEDs: PWR, CO/CPE, Idle/Link, each TP port Act/Link and Duplex on jack
• Power: External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug
• consumption: 6 Watt maximum
