Description
Brand: CTCUnion

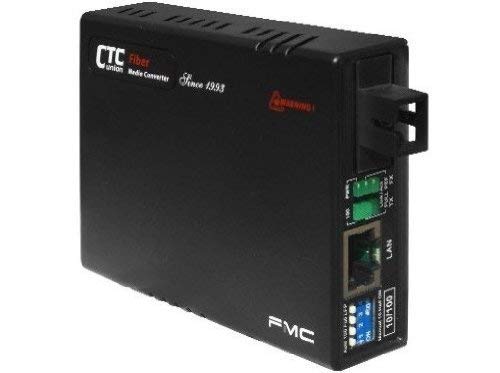

The FMC media converters are noticed for their simplicity: no management features, guaranteed reliability and extremely affordable cost. Units are available with SC type fiber optic connector. FMC-10-100 WDM family are WDM single strand single-mode (1310nm/1550nm) optical wave converters, with auto-negotiation 10/100 and MDI/MDI-X features for the Fast Ethernet RJ45 UTP interface. The FMC-10-100-SC20A WDM model covers operating distance of 20Km and has a type A optical module with Tx:1310nm and Rx:1550nm. The optical power budget is 17dB and diode is Fabry-Perot type. The FMC-10-100-SC20A works ONLY in pair with FMC-10-100-SC20B type media converter. Even without the SNMP management support, FMC series support Link-Fault-Pass through function (LFP - an extremely useful feature to easily debug faulty fiber links), Far-End-Fault function (FEF), acts on a Store-and-Forward switching platform and can carry Jumbo data packets up to 9K size. Used with their compatible FMC-CH08 fiber optic chassis they can be aggregated up to 16 units in a 19" wide and 2U height space only.
• Interfaces: RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX compliant and SC, 100Base-BX compliant
• Tx:1310nm/Rx:1550nm WDM single strand fiber, supports 10/100Base-TX, Full, Half duplex n-way (Auto-Negotiation). Packet Rate for 10/100Base-TX : 14880/148800 pps. Copper TP cable 4 pair Cat. 3 or 5 UTP, features: FEF (Far-End-Fault) and LFP (Link-Fault-Pass through), Operating distance: 20Km on
• Front LEDs: PWR, FEF, Fiber Link, TP Link, Duplex, Speed
• Power: External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug - included in the box
• Temperature: 0 - 50°C (Operating)
The FMC media converters are noticed for their simplicity: no management features, guaranteed reliability and extremely affordable cost. Units are available with SC type fiber optic connector. FMC-10-100 WDM family are WDM single strand single-mode (1310nm/1550nm) optical wave converters, with auto-negotiation 10/100 and MDI/MDI-X features for the Fast Ethernet RJ45 UTP interface. The FMC-10-100-SC20A WDM model covers operating distance of 20Km and has a type A optical module with Tx:1310nm and Rx:1550nm. The optical power budget is 17dB and diode is Fabry-Perot type. The FMC-10-100-SC20A works ONLY in pair with FMC-10-100-SC20B type media converter. Even without the SNMP management support, FMC series support Link-Fault-Pass through function (LFP - an extremely useful feature to easily debug faulty fiber links), Far-End-Fault function (FEF), acts on a Store-and-Forward switching platform and can carry Jumbo data packets up to 9K size. Used with their compatible FMC-CH08 fiber optic chassis they can be aggregated up to 16 units in a 19" wide and 2U height space only.
• Interfaces: RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX compliant and SC, 100Base-BX compliant
• Tx:1310nm/Rx:1550nm WDM single strand fiber, supports 10/100Base-TX, Full, Half duplex n-way (Auto-Negotiation). Packet Rate for 10/100Base-TX : 14880/148800 pps. Copper TP cable 4 pair Cat. 3 or 5 UTP, features: FEF (Far-End-Fault) and LFP (Link-Fault-Pass through), Operating distance: 20Km on
• Front LEDs: PWR, FEF, Fiber Link, TP Link, Duplex, Speed
• Power: External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug - included in the box
• Temperature: 0 - 50°C (Operating)
